House Plan with Study Option and 2-Story Great Room

Plan 15720GE

  • 3,195

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • Both the foyer and grand room boast 2-story ceilings in this attractive Craftsman home with a mix of stone, shakes and brick on the exterior.
  • An optional first floor guest suite lies close to the hall bath for convenience.
  • Tray ceilings in the dining room add a touch of elegance.
  • An open floor plan combines the kitchen, breakfast area and grand room, creating a wonderful flow.
  • The remaining four bedrooms lie on the second floor with a balcony overlooking the grand room below.
  • Double doors open to the master suite with a sitting area and optional fireplace.
  • In the 3 car version, the space over the third bay can be used as an exercise or craft room.
  • PLAN DELIVERY NOTE: Please allow 7 to 10 business days for the slab or crawlspace options.

The plan set includes the following:

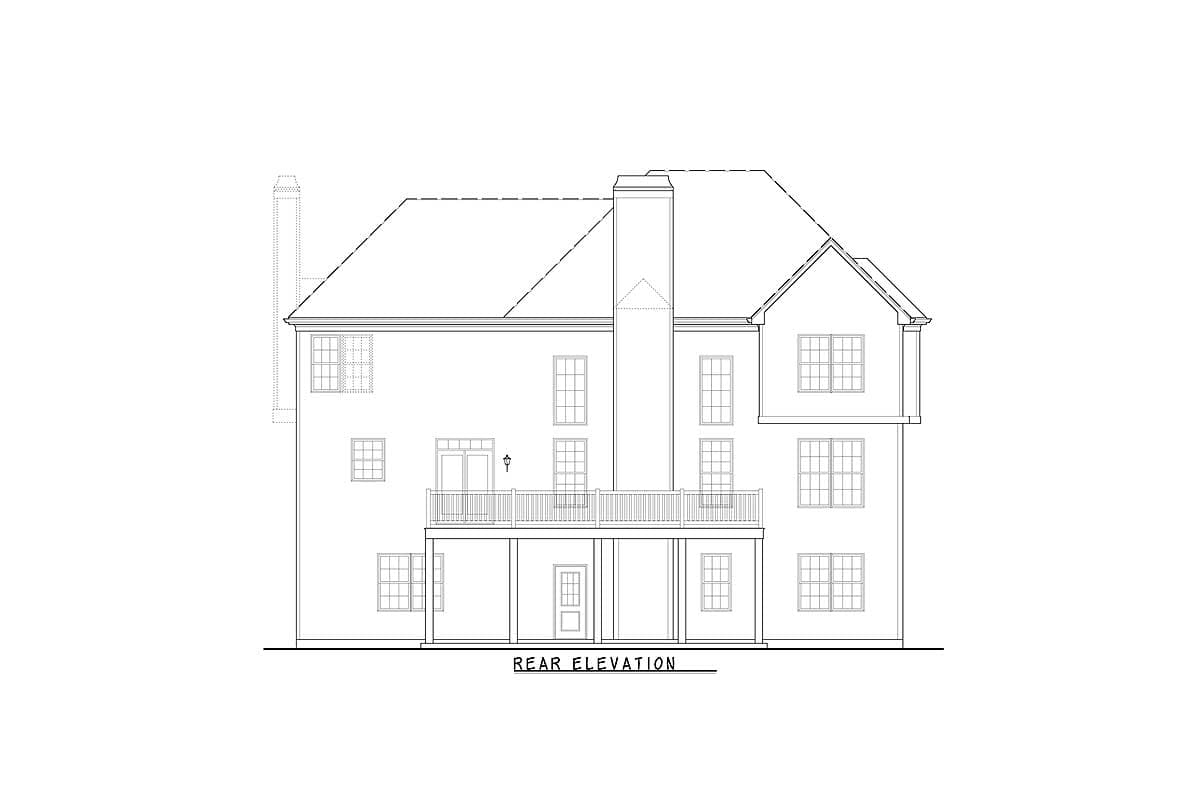

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

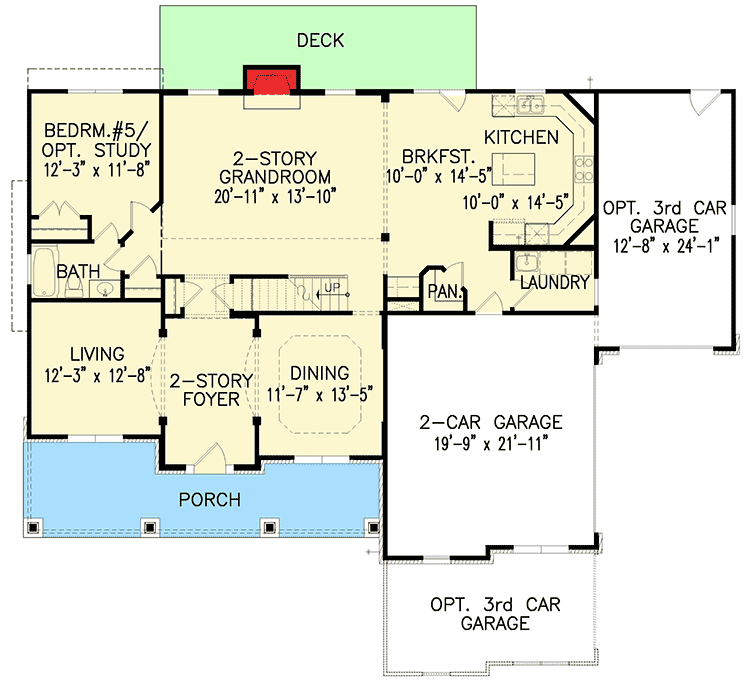

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
House Plan with Study Option and 2-Story Great Room - 15720GE floor plan - Main Level

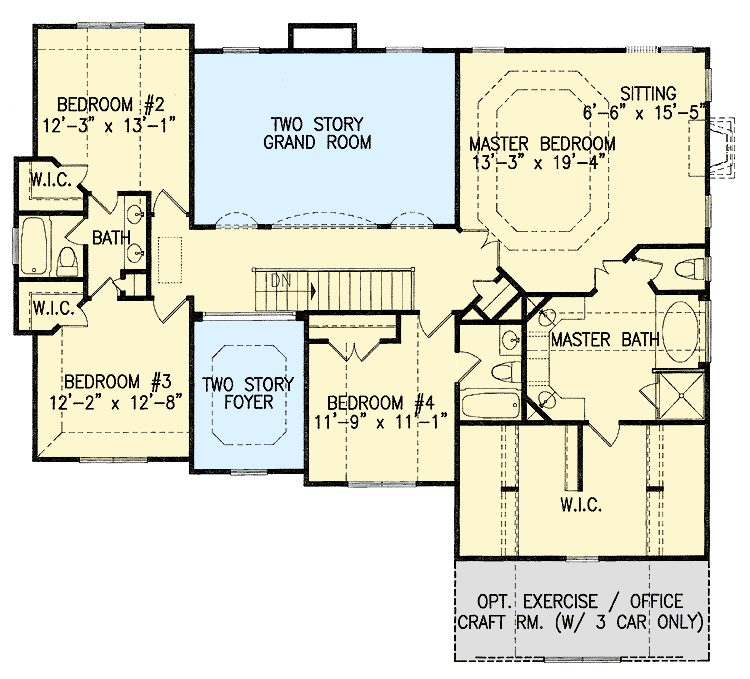

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
House Plan with Study Option and 2-Story Great Room - 15720GE floor plan - 2nd Floor

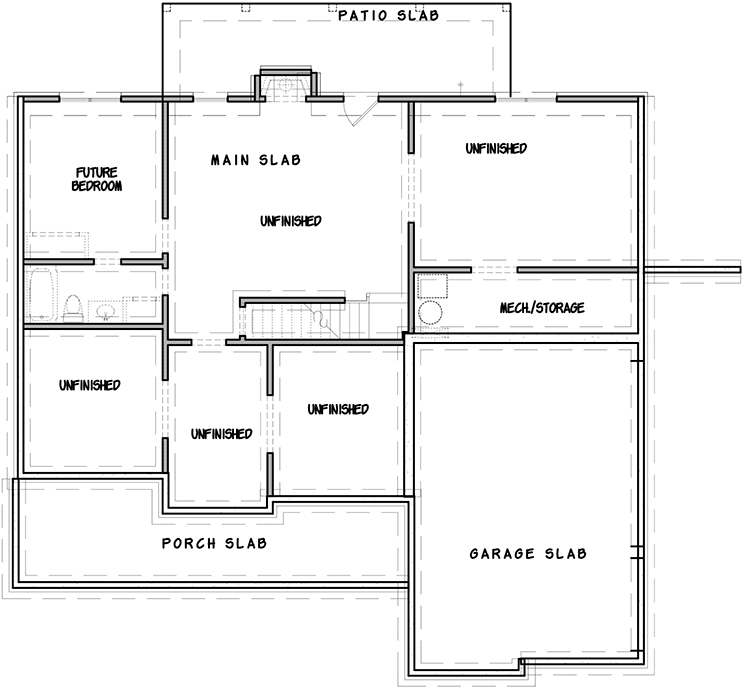

Unfinished basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
House Plan with Study Option and 2-Story Great Room - 15720GE floor plan - Unfinished basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,195 sq. ft.
  • 1st Floor: 1,595 sq. ft.
  • 2nd Floor: 1,600 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 61' 0"
  • Max ridge height: 31' 7"

Garage

  • Type: Attached
  • Area: 380 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front, Side

Architectural Style

Special features

Plan Collections

House Plan with Study Option and 2-Story Great Room

  • 3,195

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,595
  • CAD - Single-Build $2,645
  • View all purchase option online

About This Plan

  • Both the foyer and grand room boast 2-story ceilings in this attractive Craftsman home with a mix of stone, shakes and brick on the exterior.
  • An optional first floor guest suite lies close to the hall bath for convenience.
  • Tray ceilings in the dining room add a touch of elegance.
  • An open floor plan combines the kitchen, breakfast area and grand room, creating a wonderful flow.
  • The remaining four bedrooms lie on the second floor with a balcony overlooking the grand room below.
  • Double doors open to the master suite with a sitting area and optional fireplace.
  • In the 3 car version, the space over the third bay can be used as an exercise or craft room.
  • PLAN DELIVERY NOTE: Please allow 7 to 10 business days for the slab or crawlspace options.

Floor Plans

  • Main Level

  • 2nd Floor

  • Unfinished basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,195 sq. ft.
  • 1st Floor: 1,595 sq. ft.
  • 2nd Floor: 1,600 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 61' 0"
  • Max ridge height: 31' 7"

Garage

  • Type: Attached
  • Area: 380 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front, Side
