Plan 56310SM

Huge Family Room

2,263 3 3 1-2 2
Pageloader

Huge Family Room

Plan 56310SM

  • 2,263

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Brick arches, a huge family room and an open floor plan are the hallmarks of this French Country home plan.
  • An enormous island in the kitchen has a raised eating bar making conversation easy while you are cooking.
  • The master bedroom is hidden away in the rear of the home to ensure privacy and quiet.
  • The remaining two bedrooms share a Jack and Jill bathroom.

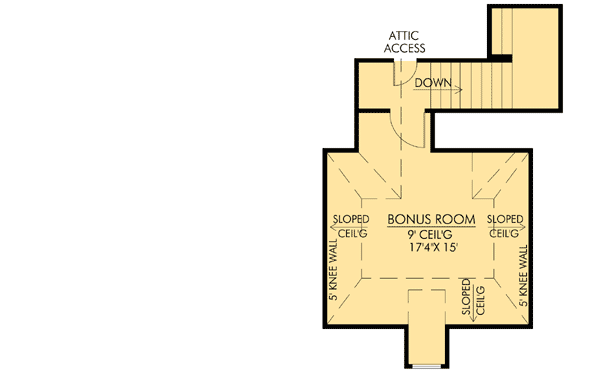

  • Bonus space lies over the garage.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT:  Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • HVAC / MECHANICAL PLAN: Specifications, notes, air handler details and plans showing the locations and size of HVAC units, compressors, vents, grills, cfm flows, attic access and clearances.

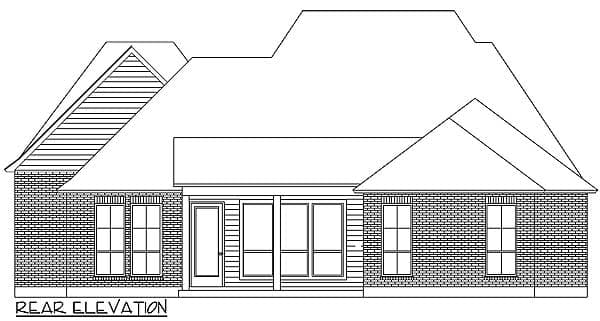

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn.  Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details.  Also included are wall sections, and any other necessary details for your framer or other subcontractors

Plan details



Huge Family Room

  • 2,263

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • 6 Sets $800
  • 8 Sets $900
  • PDF - single-use $900
  • CAD $1,900
  • View all purchase option online

About This Plan

  • Brick arches, a huge family room and an open floor plan are the hallmarks of this French Country home plan.
  • An enormous island in the kitchen has a raised eating bar making conversation easy while you are cooking.
  • The master bedroom is hidden away in the rear of the home to ensure privacy and quiet.
  • The remaining two bedrooms share a Jack and Jill bathroom.
  • Bonus space lies over the garage.

Floor Plans

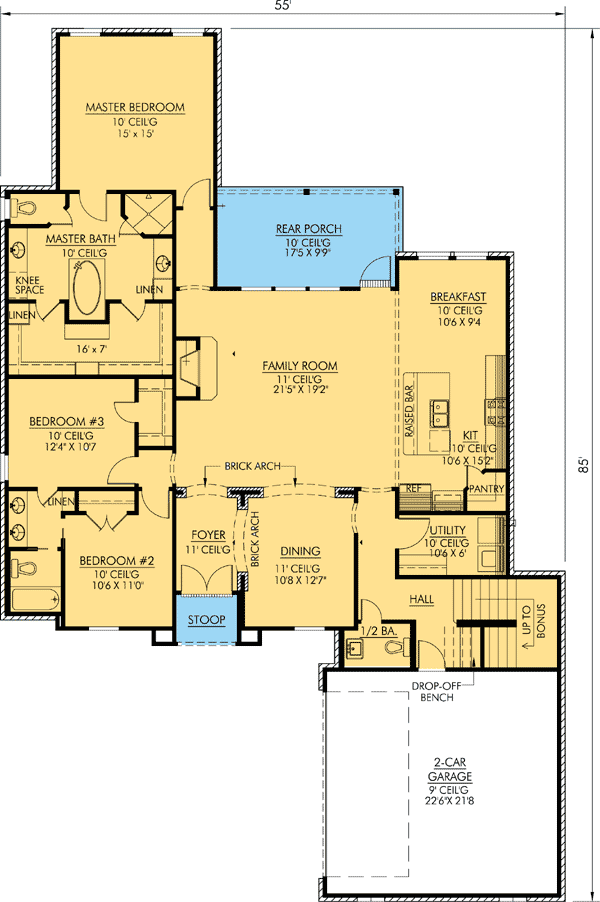

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,263 sq. ft.
  • 1st Floor: 2,263 sq. ft.
  • Bonus: 343 sq. ft.
  • Porch, Front: 42 sq. ft.
  • Porch, Rear: 170 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 55' 0"
  • Depth: 85' 0"
  • Max ridge height: 26' 7"

Garage

  • Type: Attached
  • Area: 488 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
