Plan 40410DB Ideal for the Blended Family

2,476 3 2.5 2 2
Print
Compare
...

Ideal for the Blended Family

Plan 40410DB

  • 2,476

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This is the ideal home plan for the blended family. Two loft bedrooms with "Jack 'n Jill" bathrooms give kids some privacy while downstairs they'll be right in the mix with the family.
  • Kids will love the walk-in closets as well and will find plenty of room for sports gear, clothes, shoes and textbooks.
  • A magnificent master suite offers even more storage. A spacious walk-in closet and linen storage will please any couple. A double vanity will further family harmony, especially in the early morning when everyone is in a rush.
  • Related Plan: Get an extra bedroom with house plan 40891DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

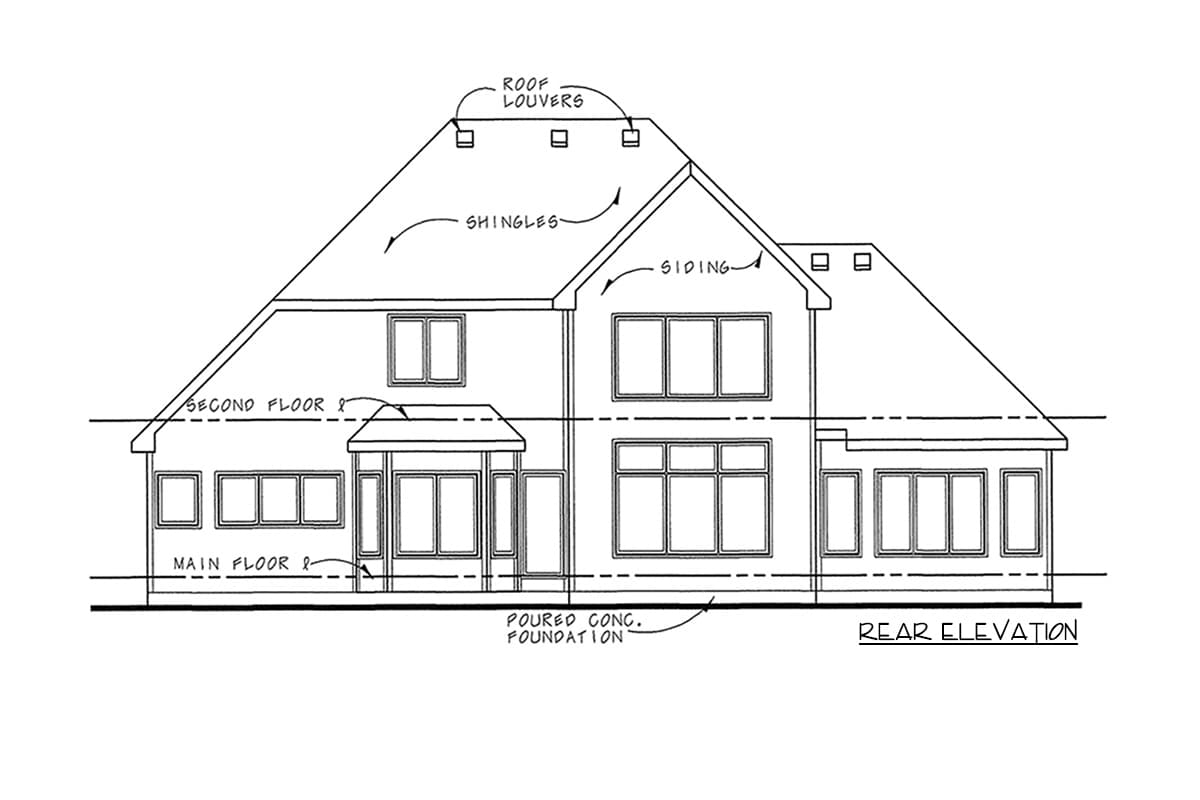

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,476 sq. ft.
  • 1st Floor: 1,863 sq. ft.
  • 2nd Floor: 613 sq. ft.
  • Porch, Front: 181 sq. ft.
  • Bonus: 425 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 58' 8"
  • Depth: 62' 0"
  • Max ridge height: 31' 5"

Garage

  • Type: Attached
  • Area: 802 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections



Ideal for the Blended Family

  • 2,476

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $670
  • PDF - Single-Build $1,025
  • PDF - Unlimited Build $1,525
  • CAD - Single-Build $1,794
  • CAD - Unlimited Build $2,294
  • View all purchase option online

About This Plan

  • This is the ideal home plan for the blended family. Two loft bedrooms with "Jack 'n Jill" bathrooms give kids some privacy while downstairs they'll be right in the mix with the family.
  • Kids will love the walk-in closets as well and will find plenty of room for sports gear, clothes, shoes and textbooks.
  • A magnificent master suite offers even more storage. A spacious walk-in closet and linen storage will please any couple. A double vanity will further family harmony, especially in the early morning when everyone is in a rush.
  • Related Plan: Get an extra bedroom with house plan 40891DB.

Floor Plans

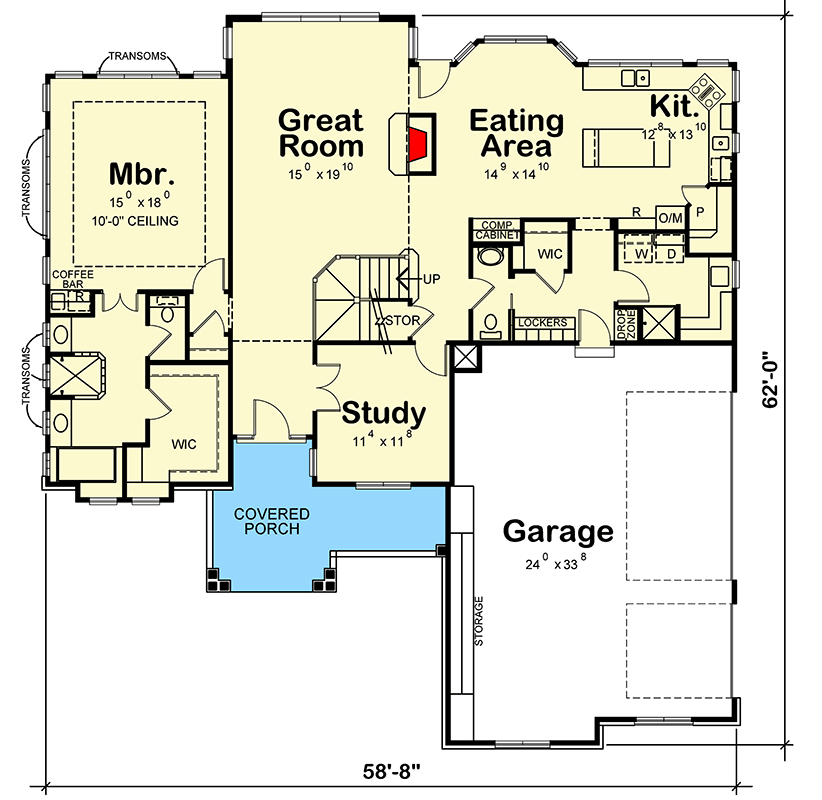

  • Main Level

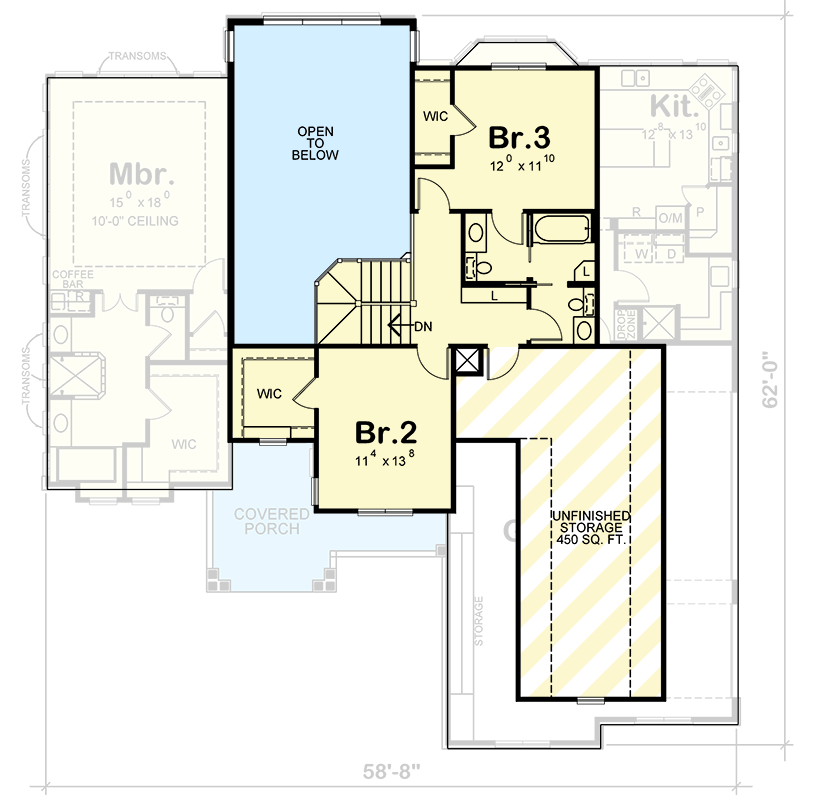

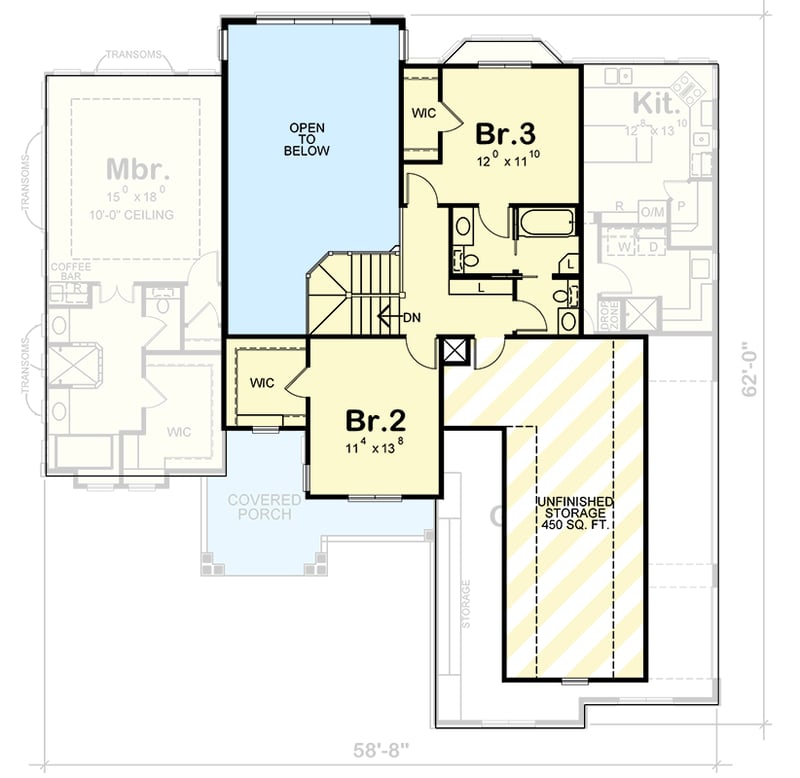

  • 2nd Floor

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,476 sq. ft.
  • 1st Floor: 1,863 sq. ft.
  • 2nd Floor: 613 sq. ft.
  • Porch, Front: 181 sq. ft.
  • Bonus: 425 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 58' 8"
  • Depth: 62' 0"
  • Max ridge height: 31' 5"

Garage

  • Type: Attached
  • Area: 802 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Plan 40410DB
View this and more for this plan by visiting www.architechtecturaldesigns.com/40410DB
|
Need Help? 800-854-7852
|
Plan 40410DB
