Plan 18773CK

Ideal Mountain Retreat

Heated S.F.

3,740

Beds

4

Baths

3.5

Stories

2

Cars

2

Floor Plan

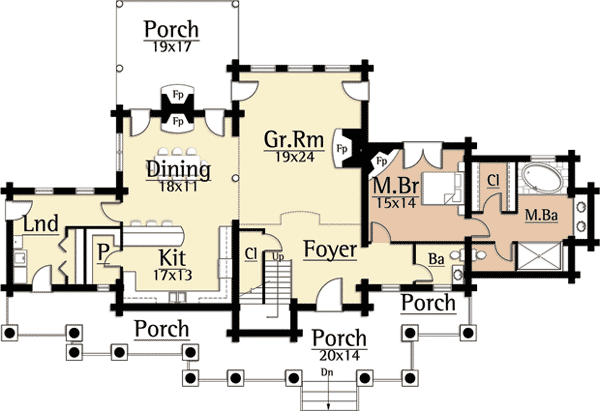

Main Level

floor plan image Main Level

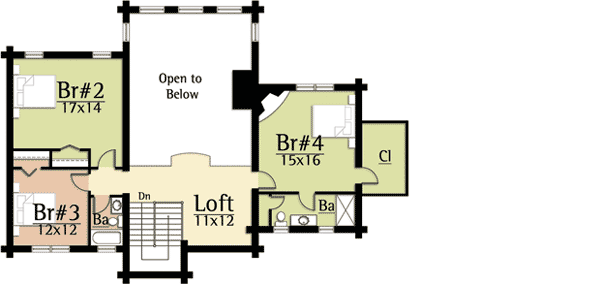

2nd Floor

floor plan image 2nd Floor

Detached Garage

floor plan image Detached Garage

Plan Details

Four bedrooms and a huge great room suit this Mountain home for a large family.

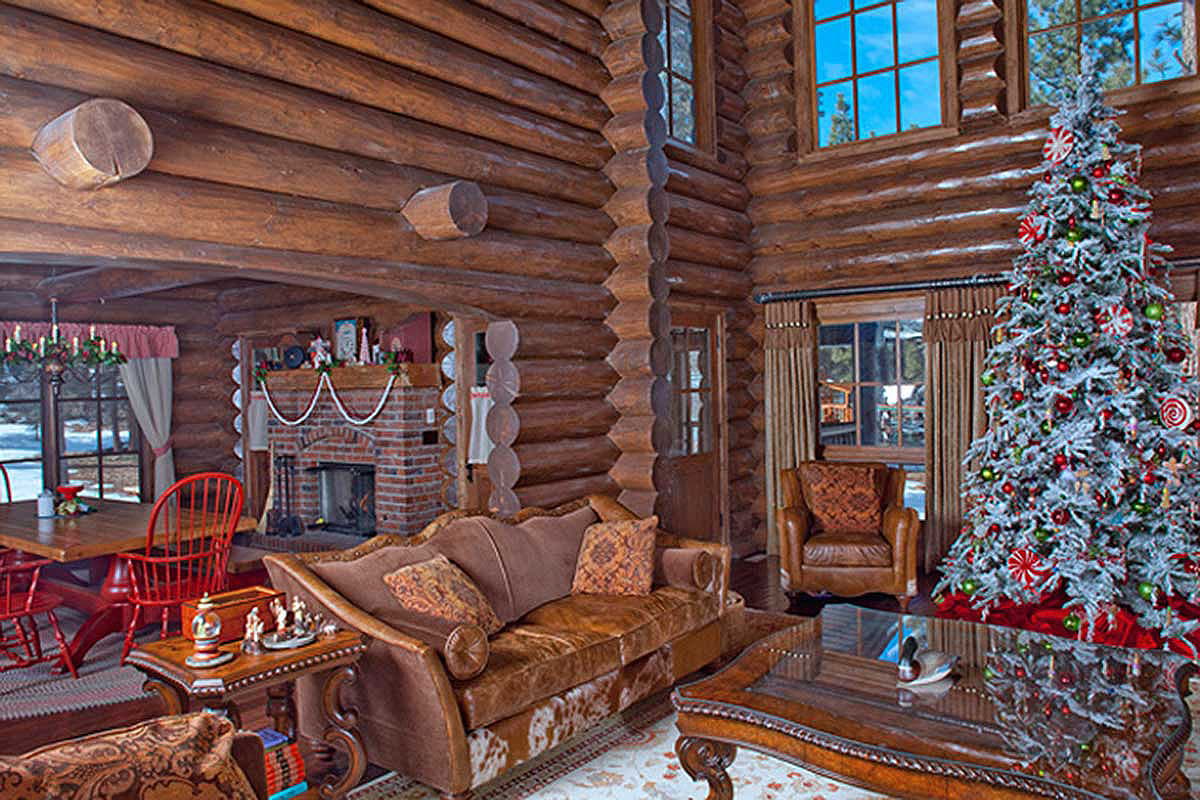

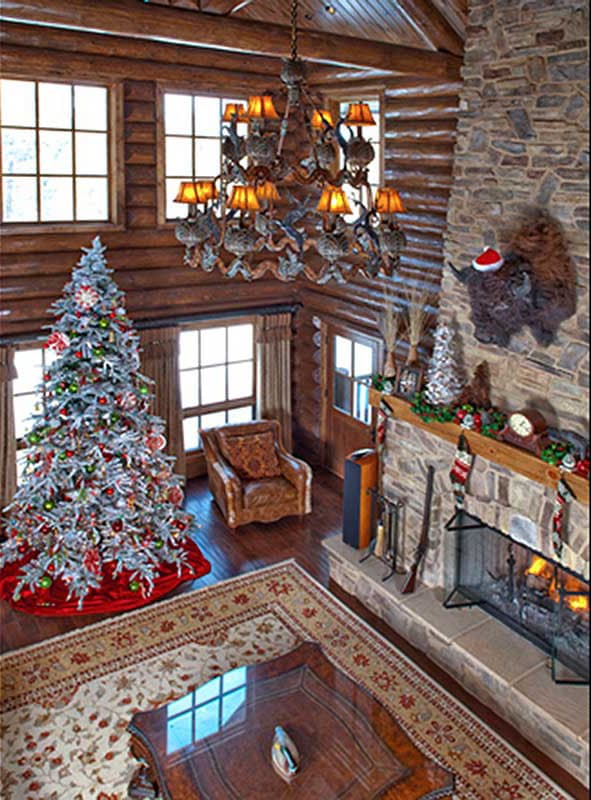

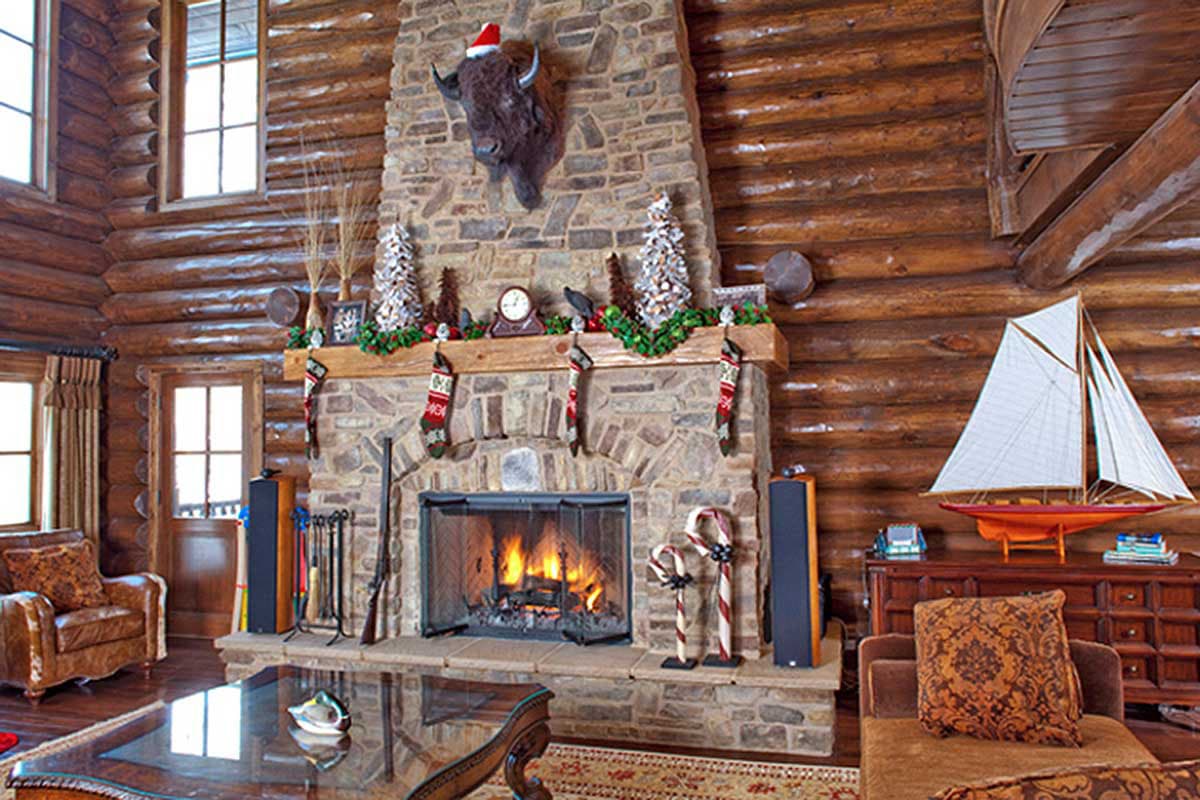

The two-story great room is huge and it opens to the dining room. Both rooms have fireplaces to cozy up to.

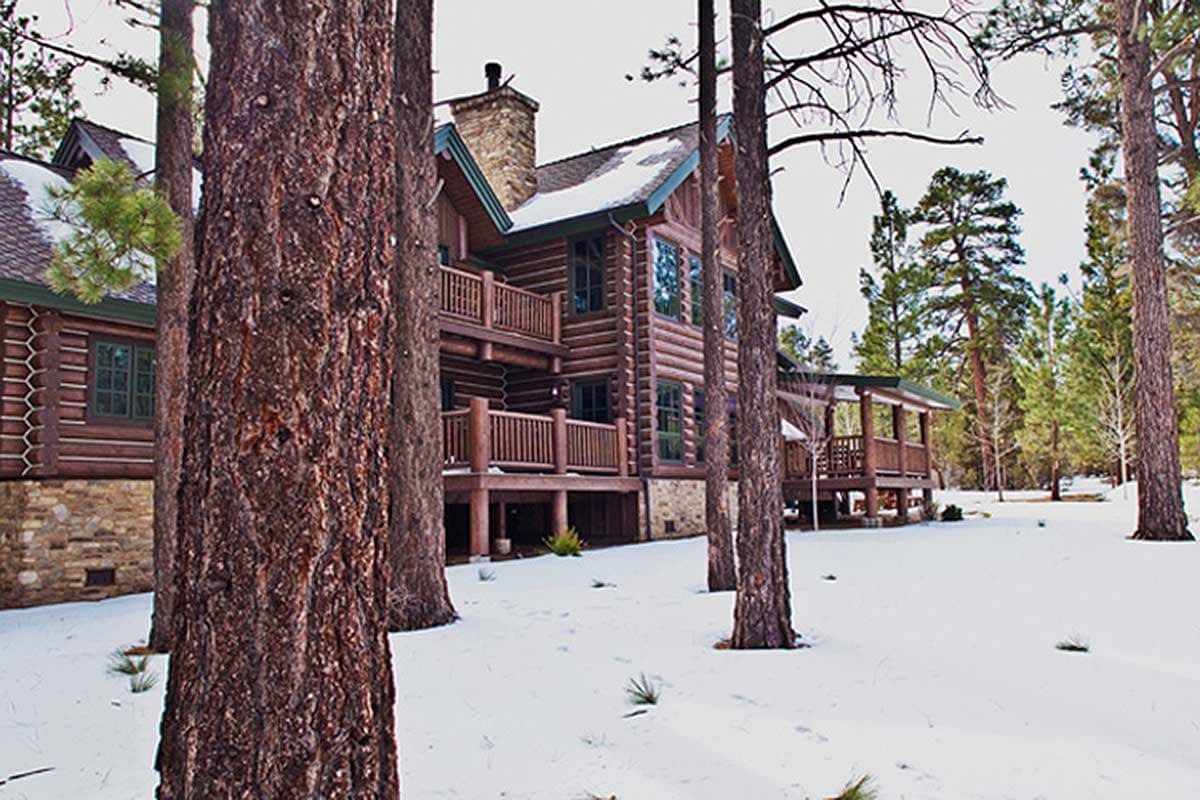

Even the rear porch has an outdoor fireplace for your family to enjoy.

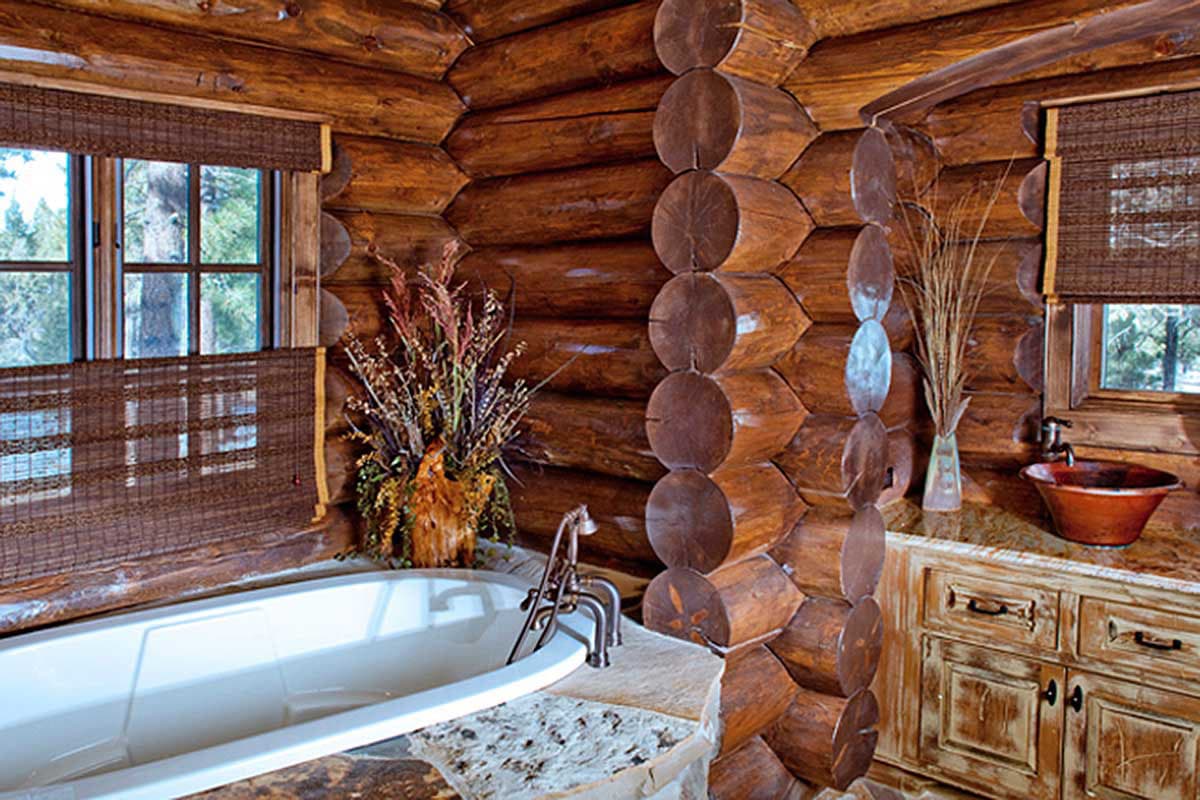

The master suite is located on the main floor and boasts a luxurious bathroom.

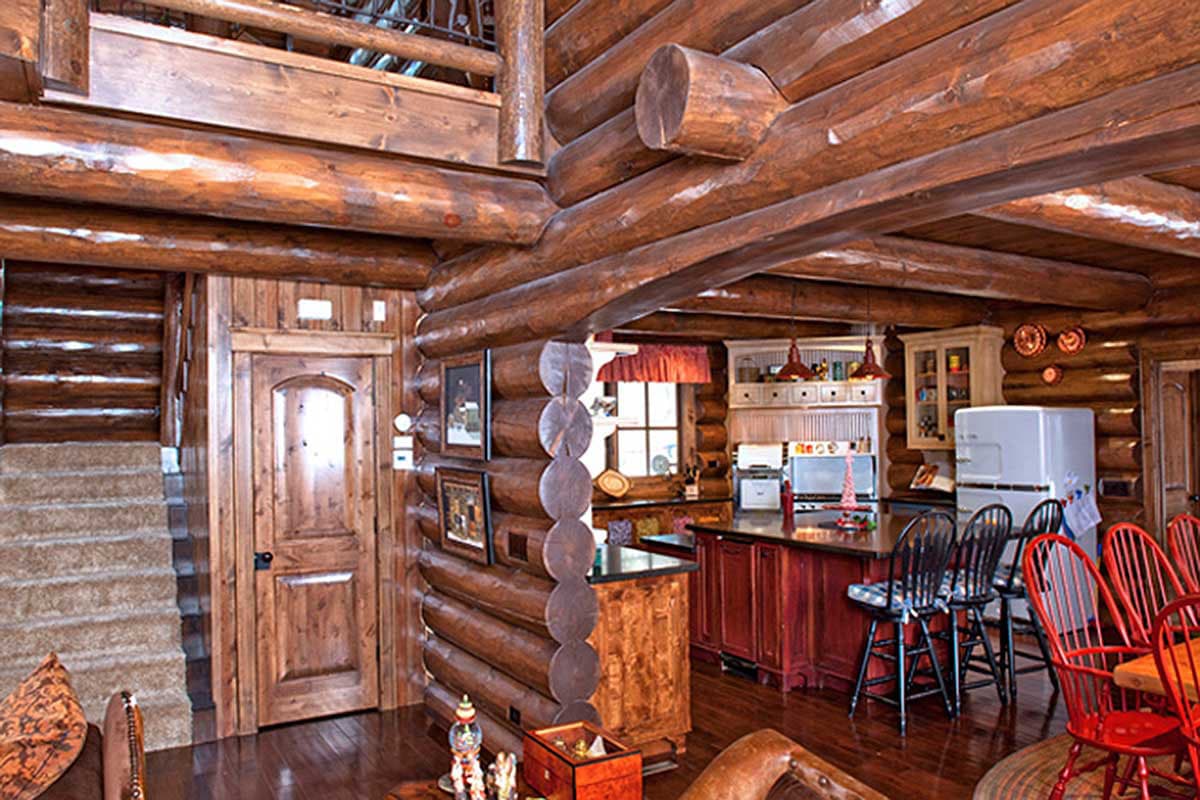

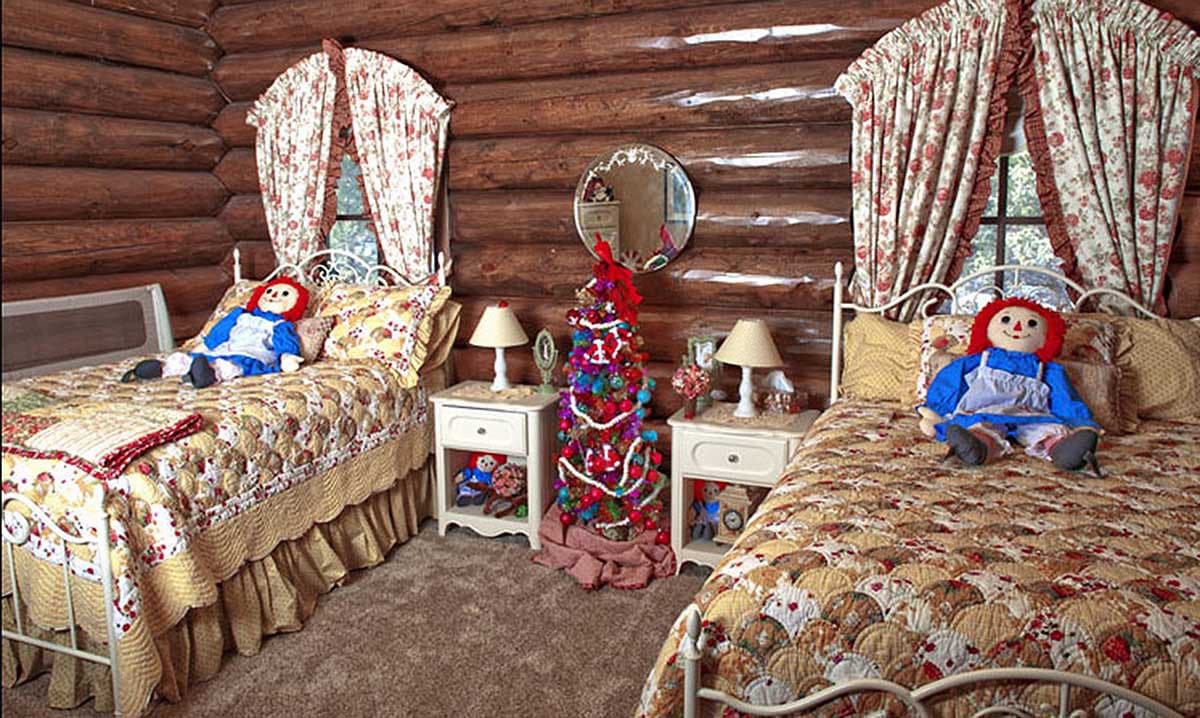

On the upper floor, a loft overlooks the great room below and leads to the three upstairs bedrooms.

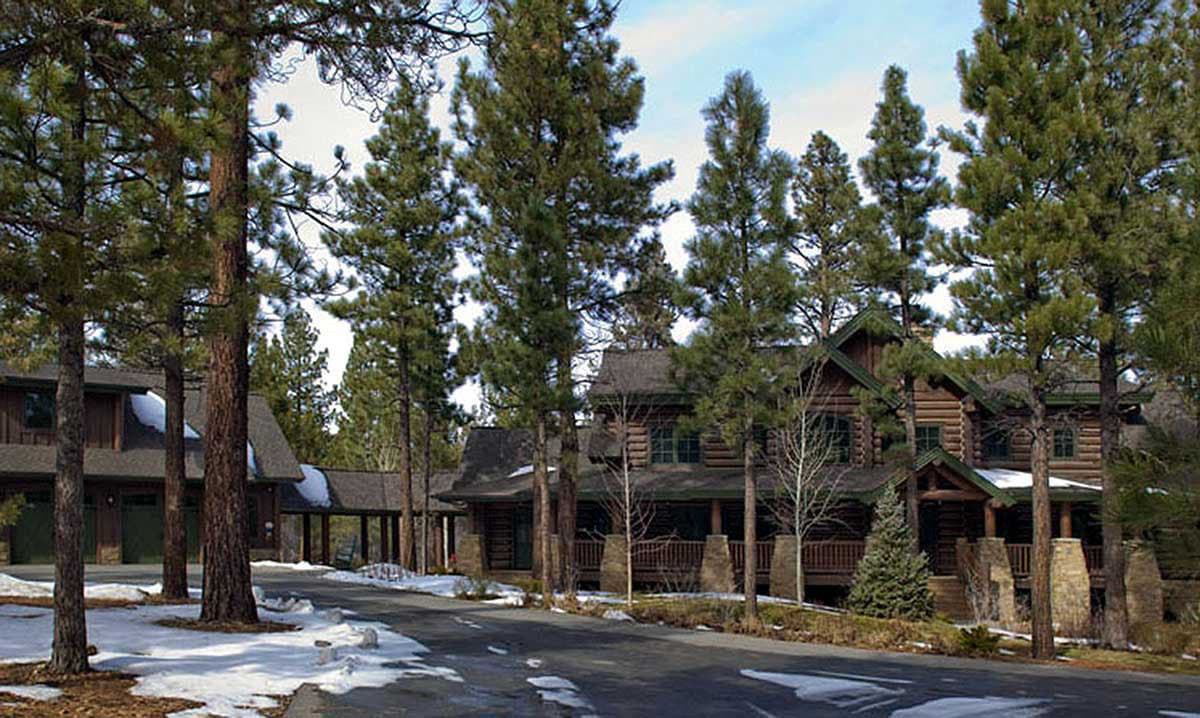

Added Bonus: This house plan comes with a detached 2-car garage giving you 624 square feet of room for your cars and/or storage.
PLEASE NOTE: This plan carries a 6-8 week delivery delay. Please contact us with any additional questions.

What's Included

Foundation
Framing
Floor plan
Roof
Special sections
Details page
Electrical plan
Door and window schedule

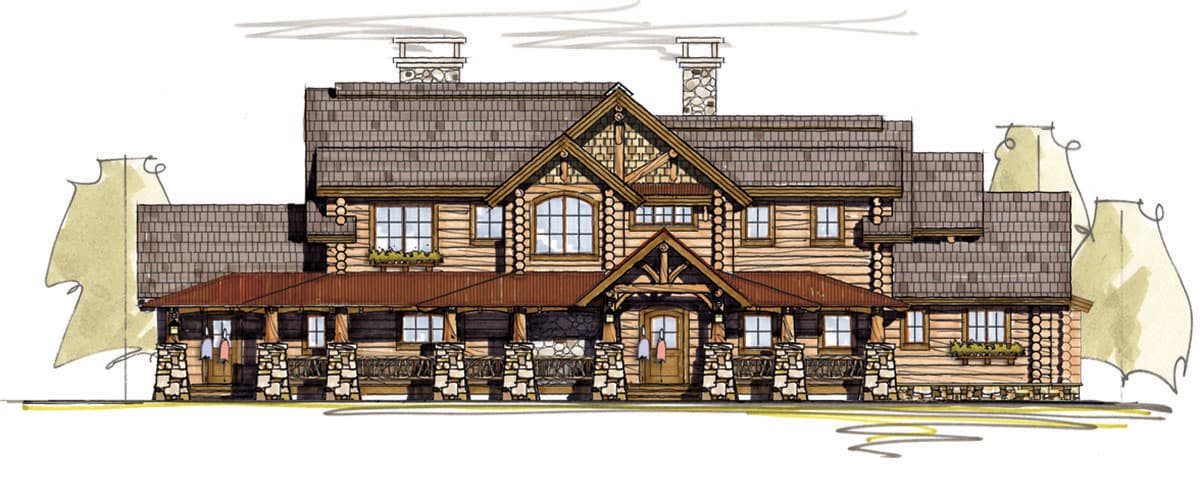

Elevations with details
Cross sections as needed

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,740 sq. ft.

1st Floor

2,370 sq. ft.

2nd Floor

1,370 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

Log

Dimensions

Width

88' 0"

Depth

42' 0"

Garage

Type

Detached

Area

624 sq. ft.

Count

2 Cars

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace

Two Story Great Room

Plan Collections

Premium Collection
