Imaginative Touches

Plan 69020AM

  • 2,562

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

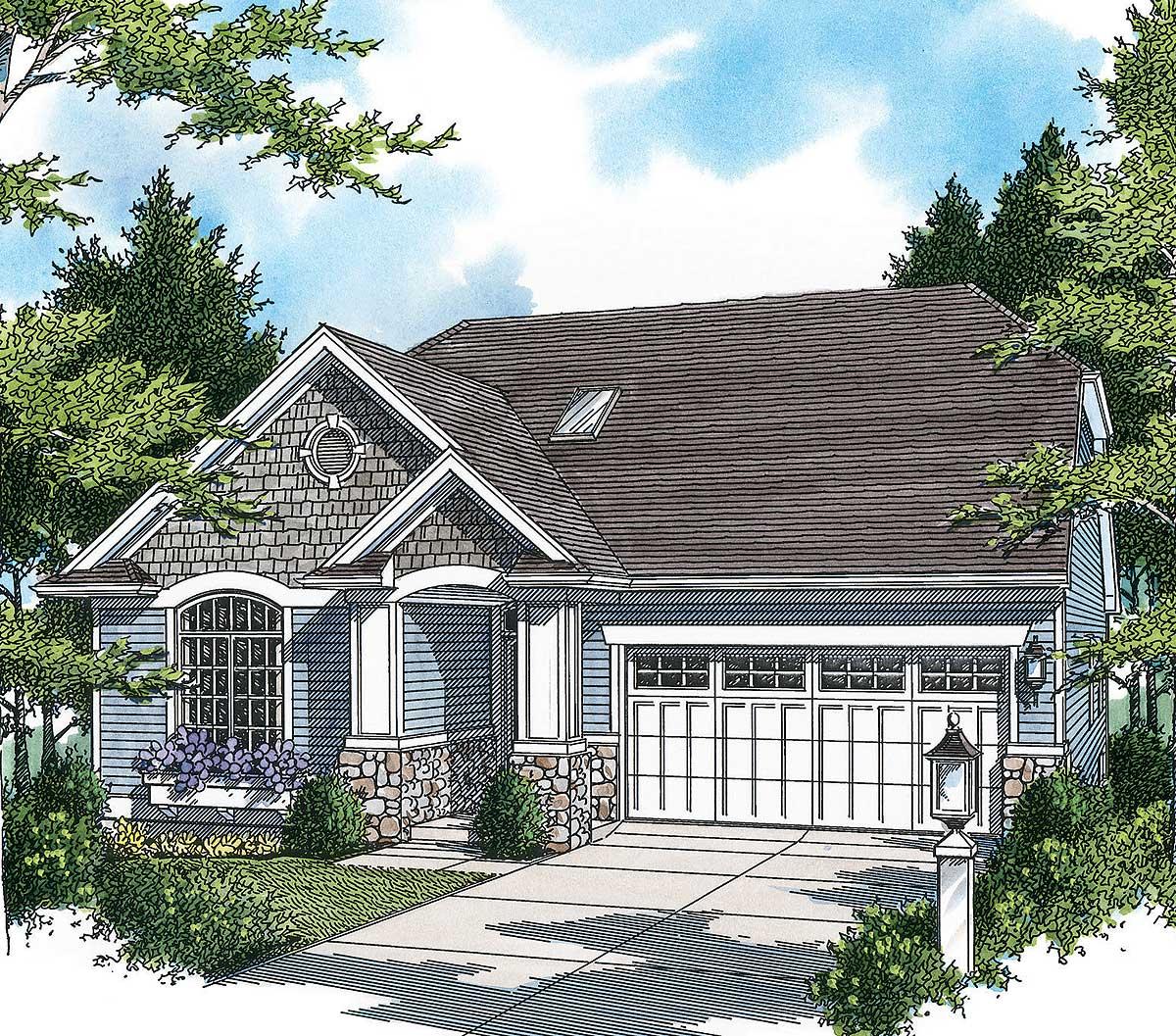

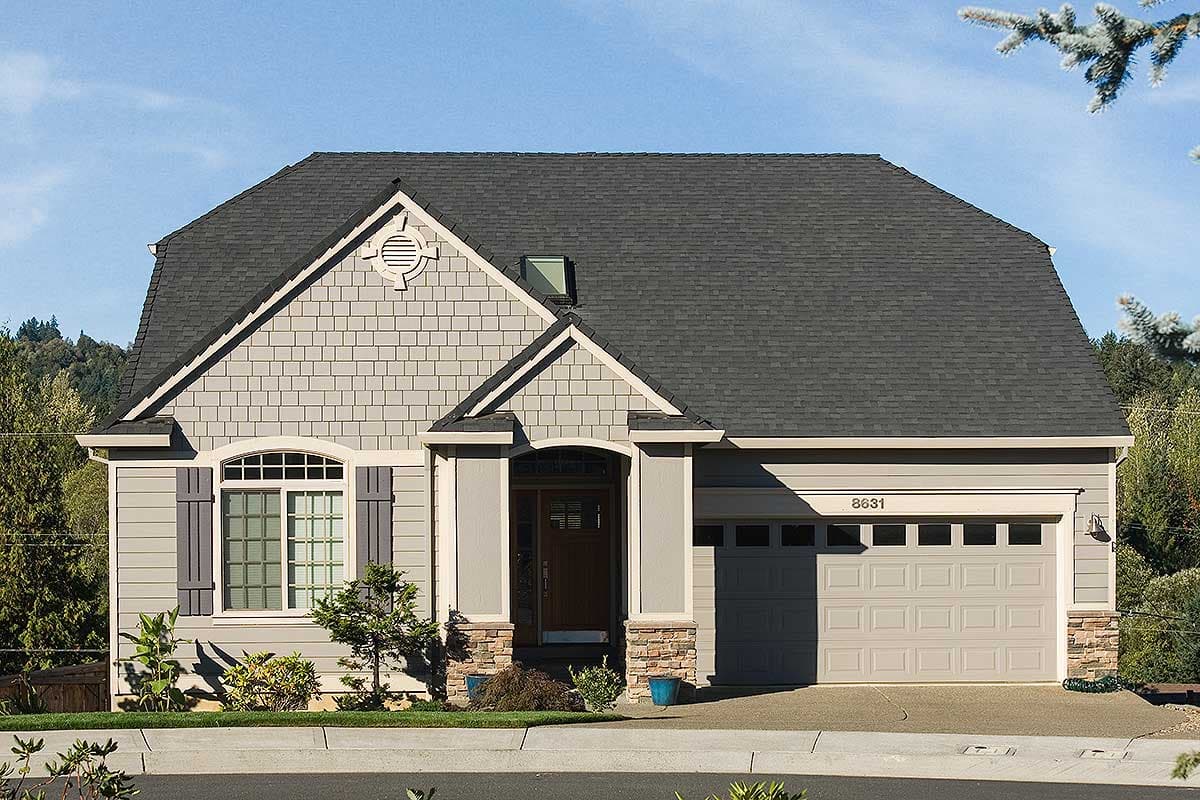

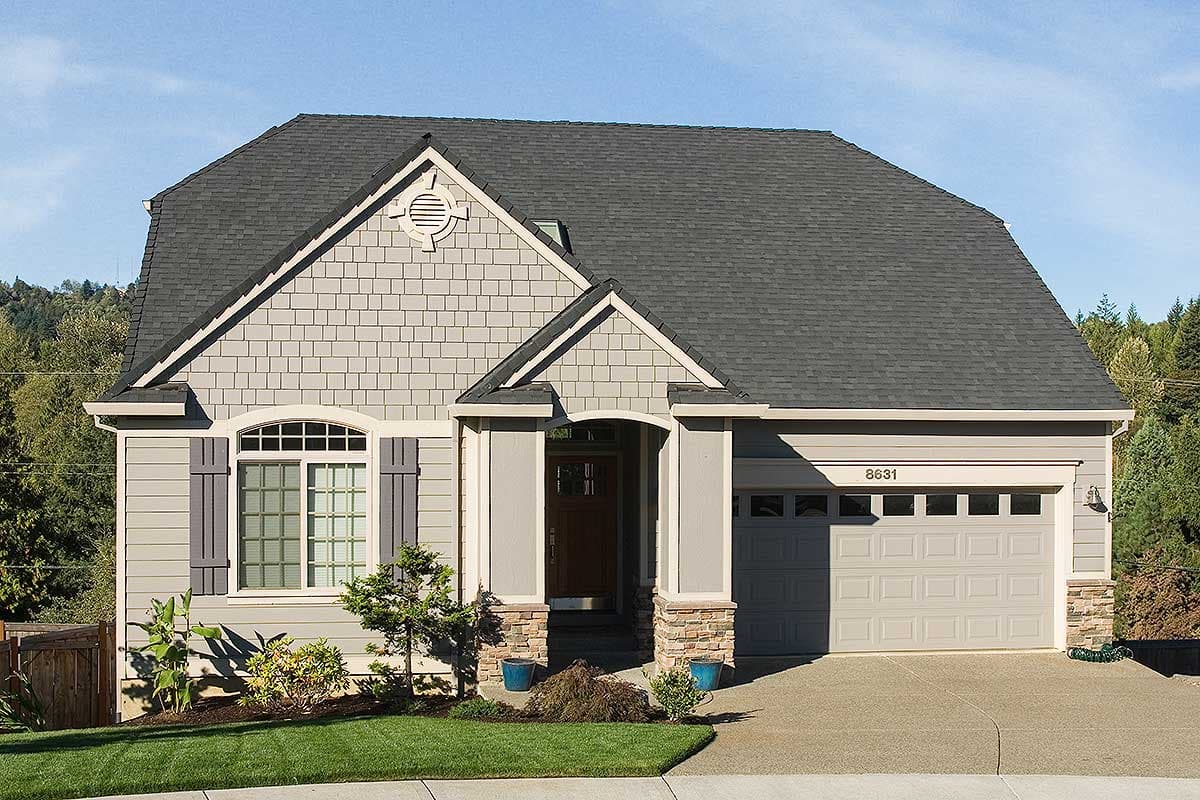

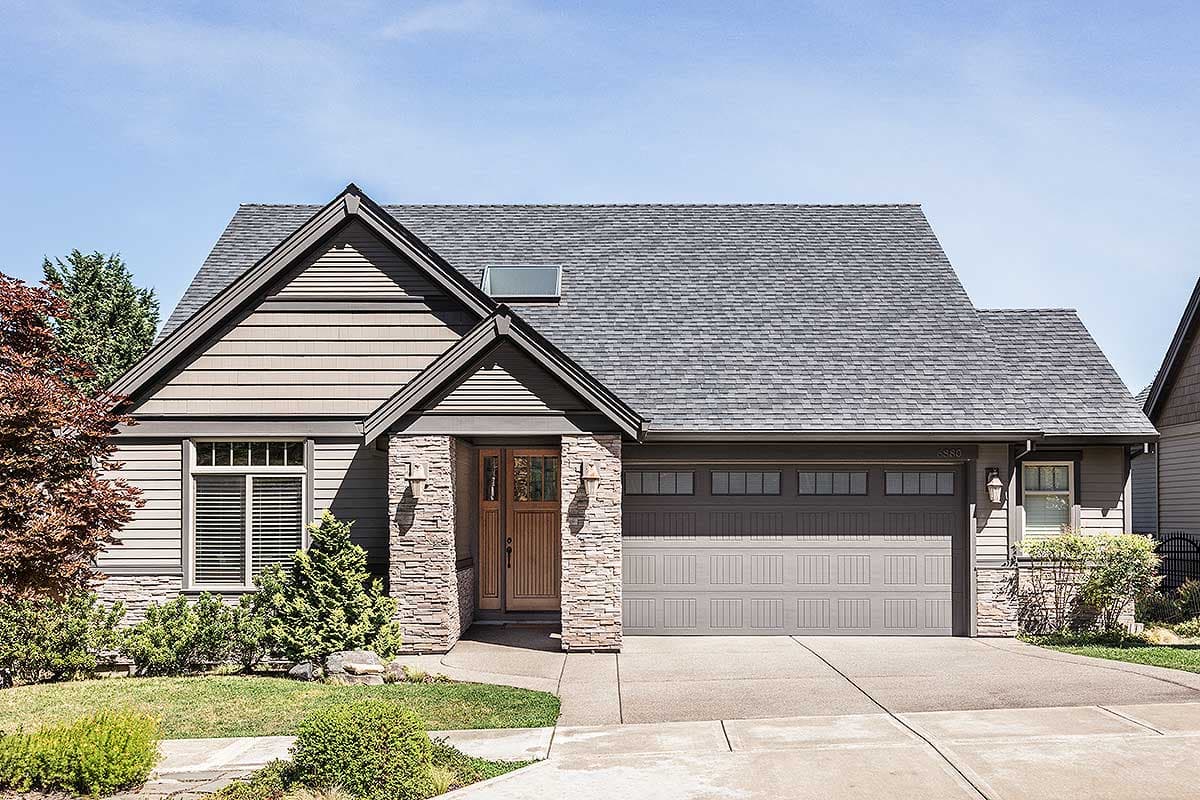

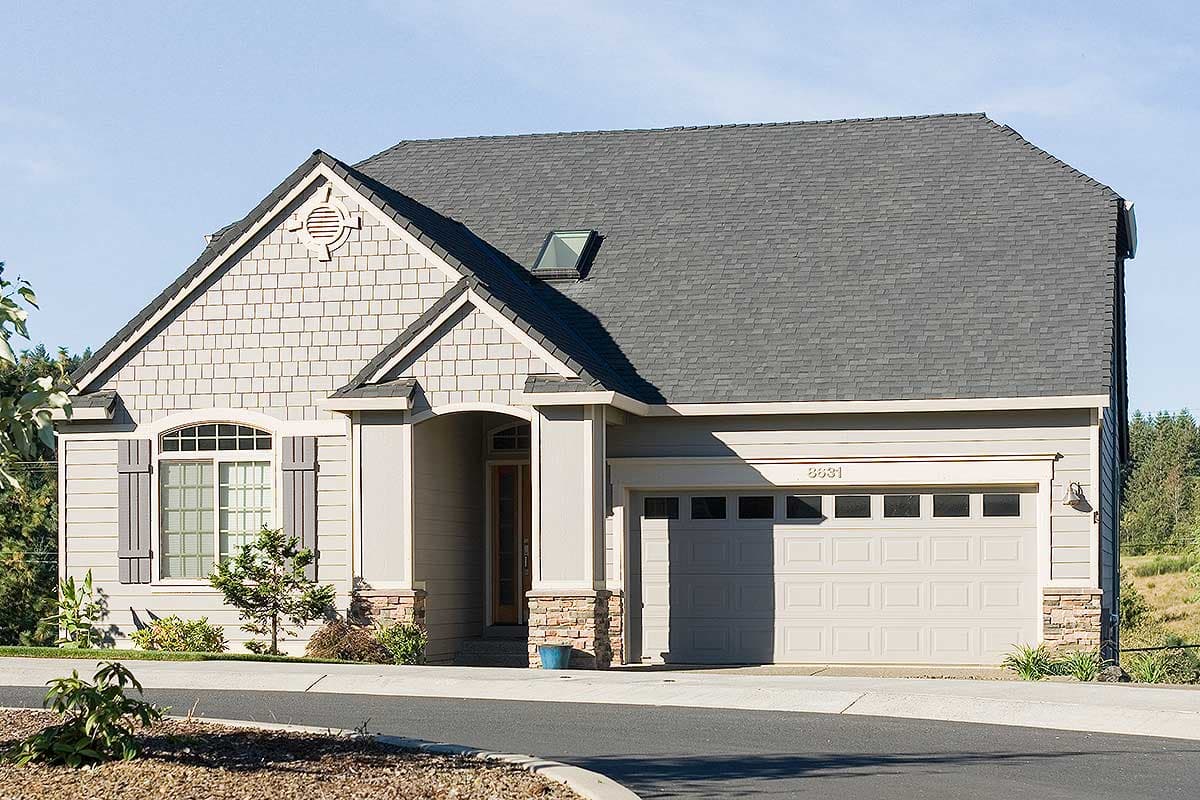

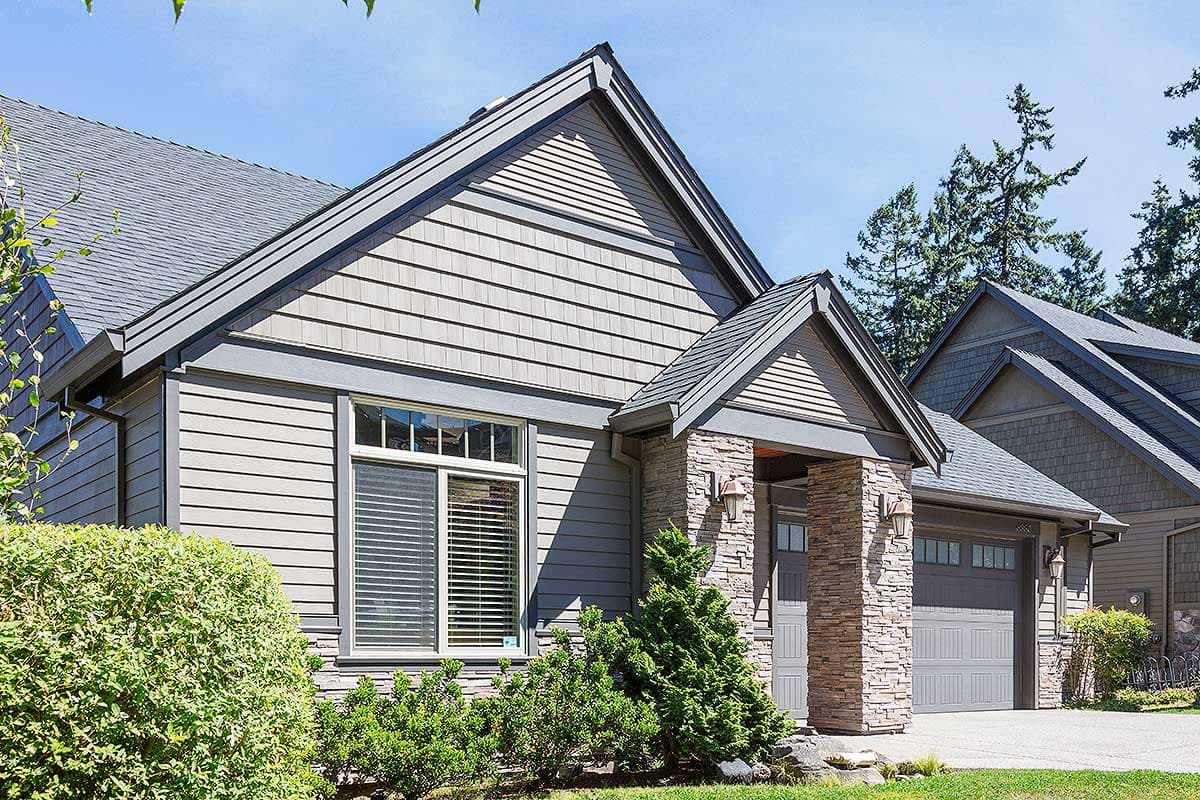

  • This charming cottage home plan this home is enriched by Craftsman-style detailings, imaginative touches, and sheer practicality. Passersby will stop to admire the graceful architecture: roof peaks, arches above window and door, the convergence of materials; stone, horizontal siding, and cedar shakes. Take pleasure in planting the window box with colorful blooms. Welcome guests beneath the covered entryway.
  • Large gathering areas, on the main level and downstairs, keep the family connected to each other and to the outdoors. Both the great room and the games room are anchored by fireplaces and feature handsome built-ins, which showcase finely crafted wood. Practicality abounds, from the two-car garage to the island kitchen. The kitchen work core is defined by the angular island, equipped with a self-venting cooktop and a snack counter. A built-in desk and pantry enhance kitchen convenience.
  • The main level also houses a lavish master suite with a private entry to the deck, a walk-in closet, and a compartmentalized bath with a tub and shower. At the front of the house, a den features a bumped-out window and vaulted ceiling. An adjacent bath allows the den to be used as a bedroom. Two more bedrooms, a bath, and linen closets are located downstairs.
  • Related Plans: Get an alternate exterior with house plans 69700AM69155AM and 69156AM. Get a drive-under garage with house plan 6918AM.

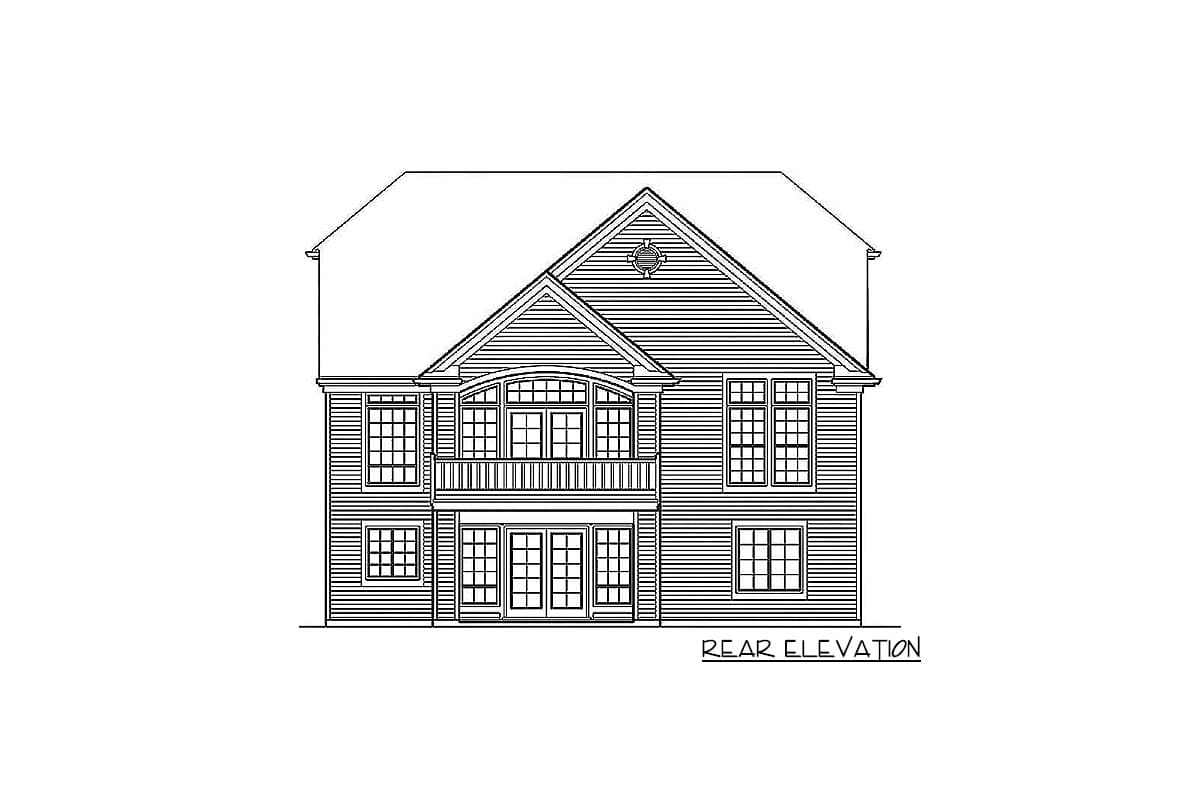

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



Imaginative Touches

  • 2,562

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $882
  • PDF - single-use $1,232
  • 5 Sets $1,382
  • 5 Sets PLUS $1,432
  • CAD - multi-use $2,464
  • View all purchase option online

About This Plan

  • This charming cottage home plan this home is enriched by Craftsman-style detailings, imaginative touches, and sheer practicality. Passersby will stop to admire the graceful architecture: roof peaks, arches above window and door, the convergence of materials; stone, horizontal siding, and cedar shakes. Take pleasure in planting the window box with colorful blooms. Welcome guests beneath the covered entryway.
  • Large gathering areas, on the main level and downstairs, keep the family connected to each other and to the outdoors. Both the great room and the games room are anchored by fireplaces and feature handsome built-ins, which showcase finely crafted wood. Practicality abounds, from the two-car garage to the island kitchen. The kitchen work core is defined by the angular island, equipped with a self-venting cooktop and a snack counter. A built-in desk and pantry enhance kitchen convenience.
  • The main level also houses a lavish master suite with a private entry to the deck, a walk-in closet, and a compartmentalized bath with a tub and shower. At the front of the house, a den features a bumped-out window and vaulted ceiling. An adjacent bath allows the den to be used as a bedroom. Two more bedrooms, a bath, and linen closets are located downstairs.
  • Related Plans: Get an alternate exterior with house plans 69700AM69155AM and 69156AM. Get a drive-under garage with house plan 6918AM.

Floor Plans

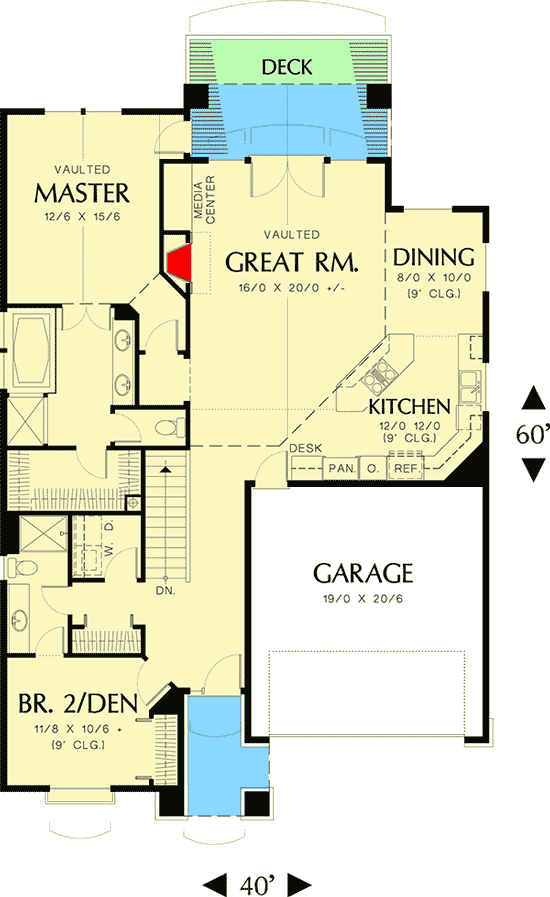

  • Main Level

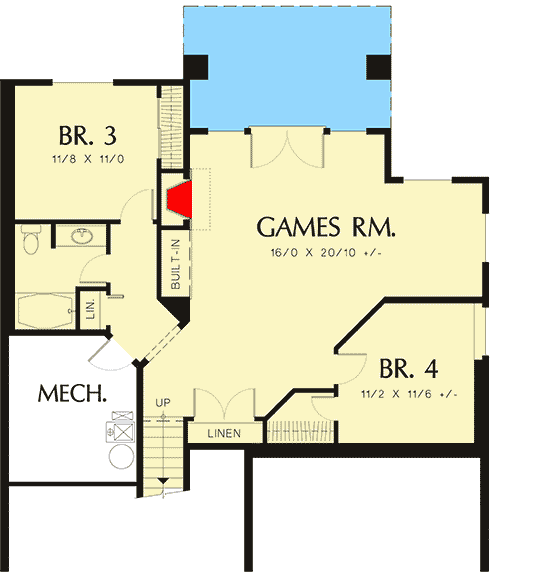

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,562 sq. ft.
  • Lower Level: 1,018 sq. ft.
  • 1st Floor: 1,544 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 60' 0"
  • Max ridge height: 24' 4"

Garage

  • Type: Attached
  • Area: 410 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Truss

Architectural Style

  • Cottage
  • Traditional

Special features

  • 1st Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • Media-Game-Home Theater
  • PDF
