Plan 17579LV

  • 5,277

    Heated s.f.

  • 5

    Beds

  • 5

    Baths

  • 2

    Stories

  • 3

    Cars

  • A stylish courtyard garage, multiple gables and a copper bay window adorn this impressive design. Inside, a balcony overlooks the foyer and the great room, both rising for two stories. Vaulted ceilings are found in the downstairs study and in bedroom three.
  • In the great room, built-ins border the fireplace, and transom windows are stacked over French doors opening to the terrace. The bayed breakfast nook is open to the kitchen with its walk-in pantry. Another bay window is found in the master suite, which includes a walk-in closet and a compartmented bath filled with amenities.
  • A formal dining room defined by decorative columns completes the first floor.
  • Upstairs, a well-appointed bath serves bedrooms two and three. Notice the sitting area off the balcony. The second floor includes 215 square feet of unfinished storage space which could be suite 4.
  • Foundation: crawl space.

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans

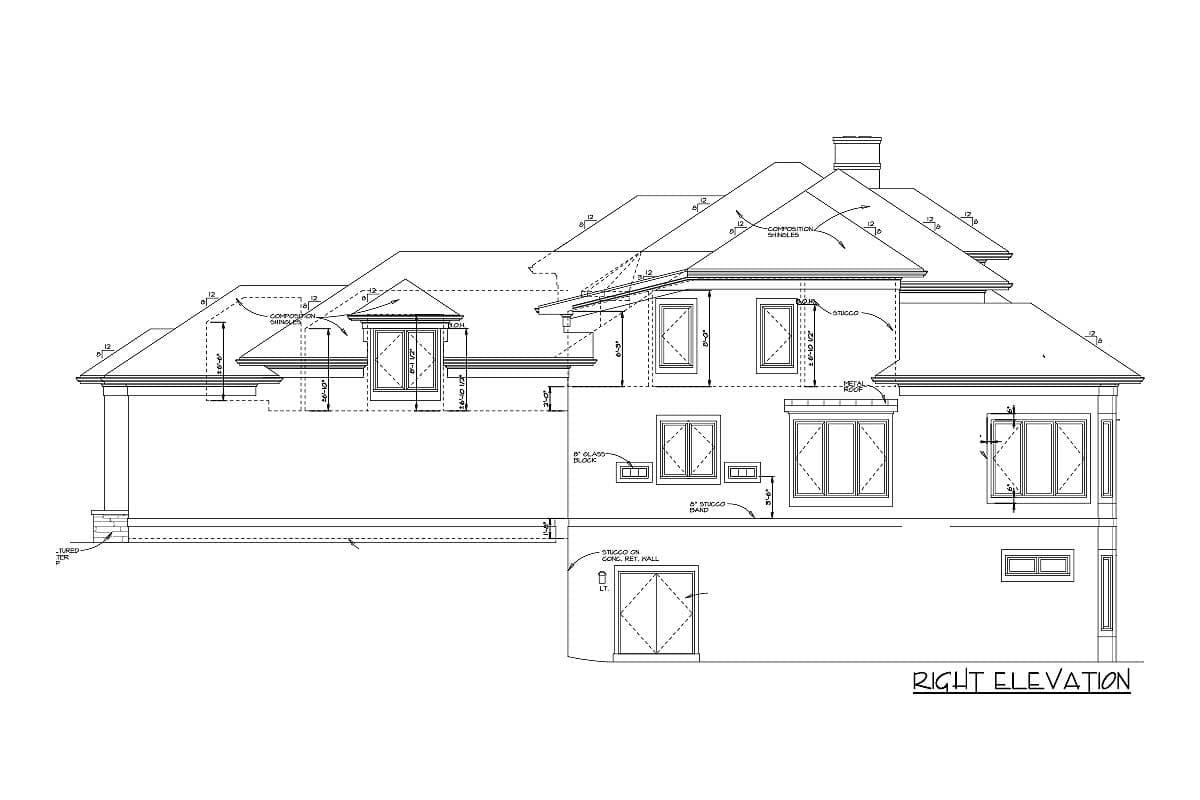

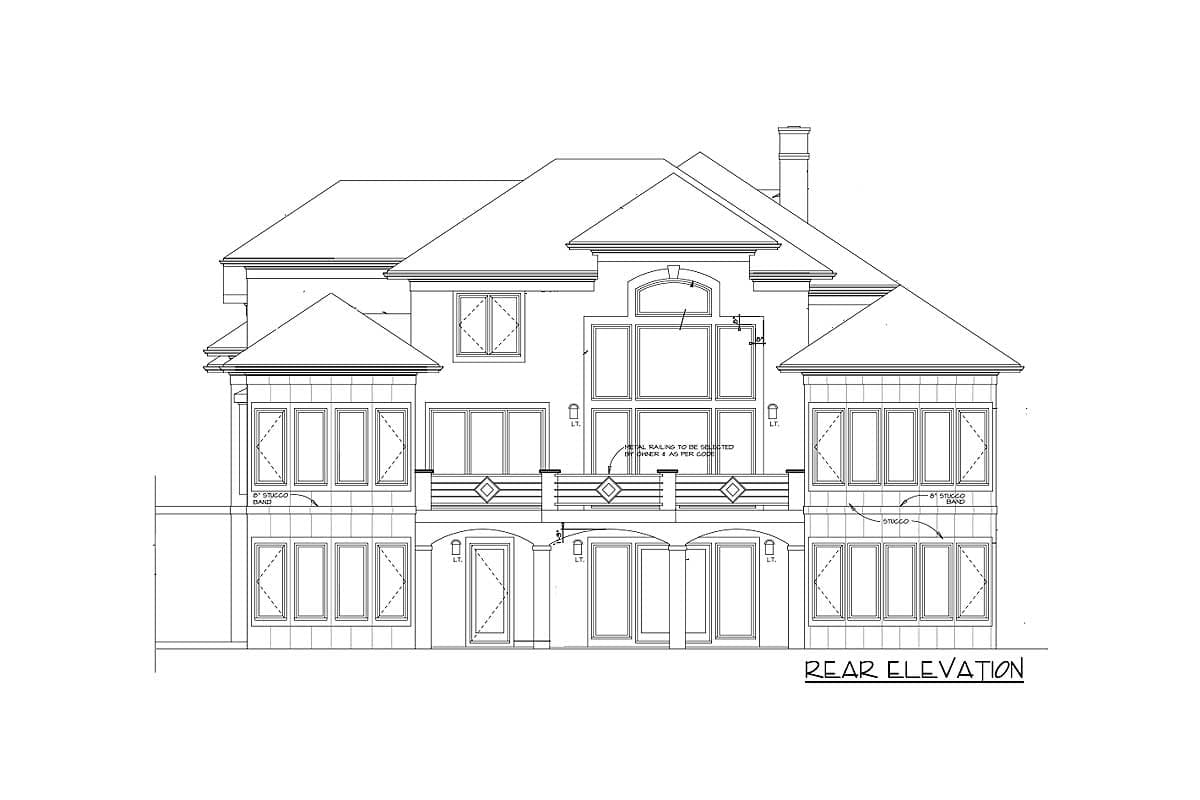

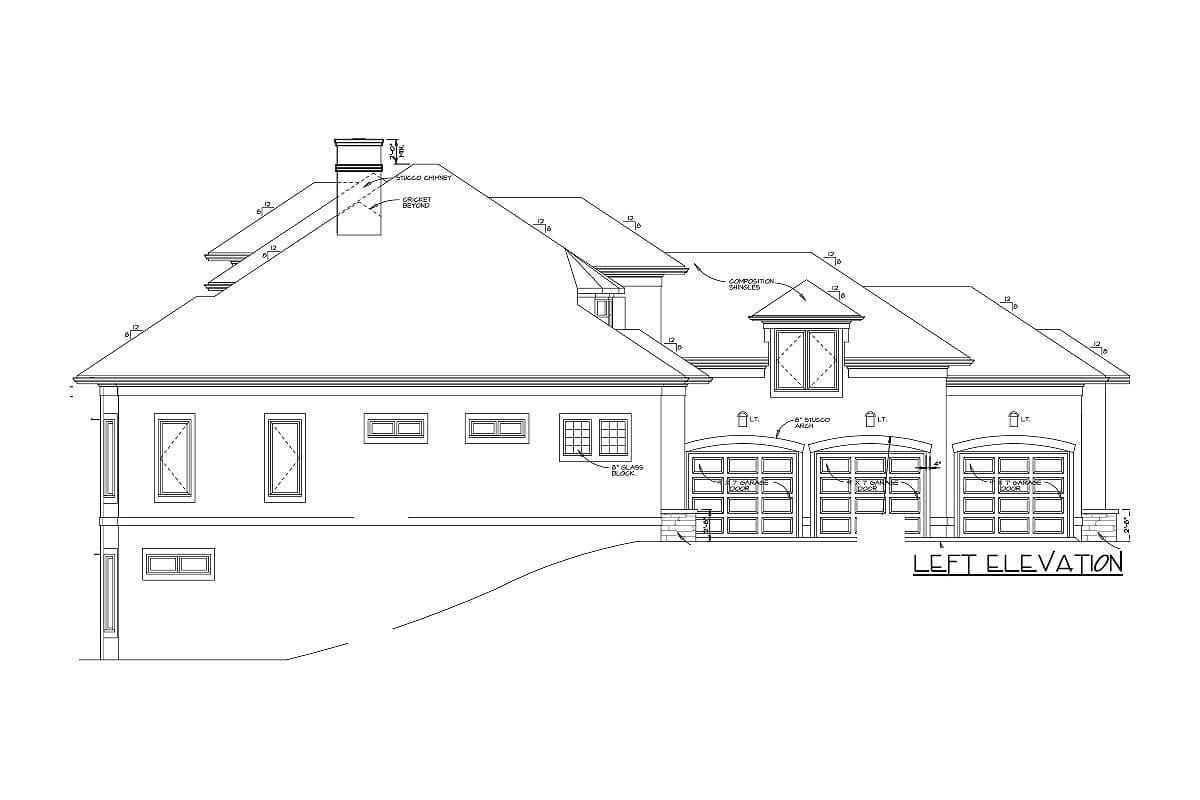

  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)

Plan details

Architectural Style

Plan Collections



Impressive Design

  • 5,277

    Heated s.f.

  • 5

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $2,250
  • PDF - single-use $2,250
  • CAD $4,499
  • View all purchase option online

About This Plan

  • A stylish courtyard garage, multiple gables and a copper bay window adorn this impressive design. Inside, a balcony overlooks the foyer and the great room, both rising for two stories. Vaulted ceilings are found in the downstairs study and in bedroom three.
  • In the great room, built-ins border the fireplace, and transom windows are stacked over French doors opening to the terrace. The bayed breakfast nook is open to the kitchen with its walk-in pantry. Another bay window is found in the master suite, which includes a walk-in closet and a compartmented bath filled with amenities.
  • A formal dining room defined by decorative columns completes the first floor.
  • Upstairs, a well-appointed bath serves bedrooms two and three. Notice the sitting area off the balcony. The second floor includes 215 square feet of unfinished storage space which could be suite 4.
  • Foundation: crawl space.

Floor Plans

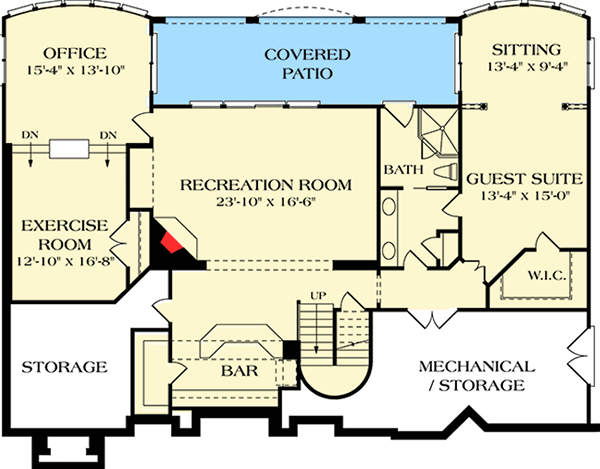

  • Lower Level

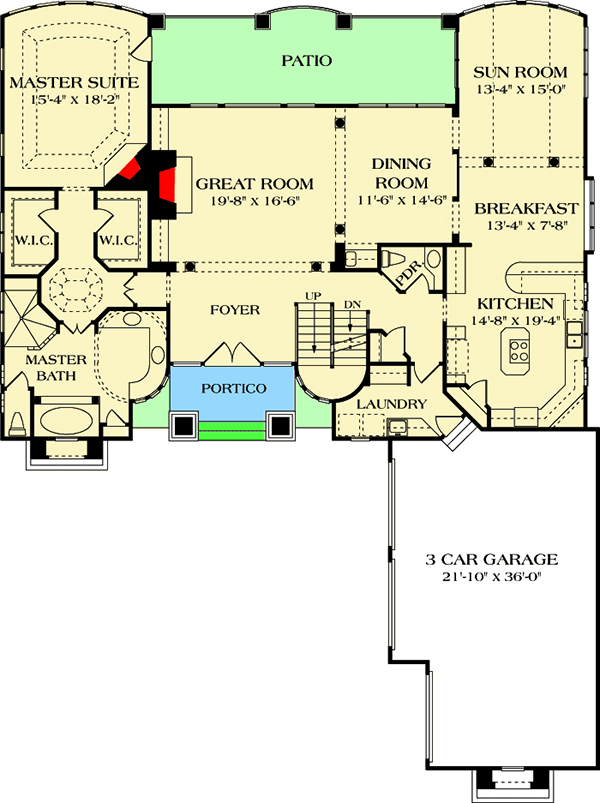

  • Main Level

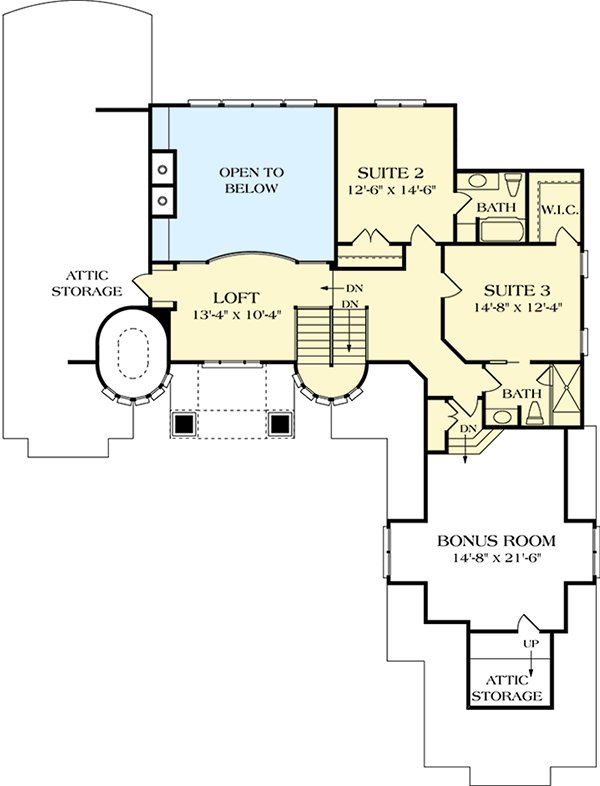

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,277 sq. ft.
  • Lower Level: 1,964 sq. ft.
  • 1st Floor: 2,391 sq. ft.
  • 2nd Floor: 922 sq. ft.
  • Bonus: 400 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 63' 10"
  • Depth: 85' 6"

Garage

  • Type: Attached
  • Area: 765 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

  • European

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • CAD Available
  • Jack & Jill Bath
  • Loft
  • PDF
