Plan 81608AB
Impressive Family Home Plan
Heated S.F.
3,844
Beds
3-5
Baths
2.5 - 3.5
Stories
2
Cars
5
What's Included
Floor Plan
PRINT PLANS
Main Floor
Reverse Floor Plan

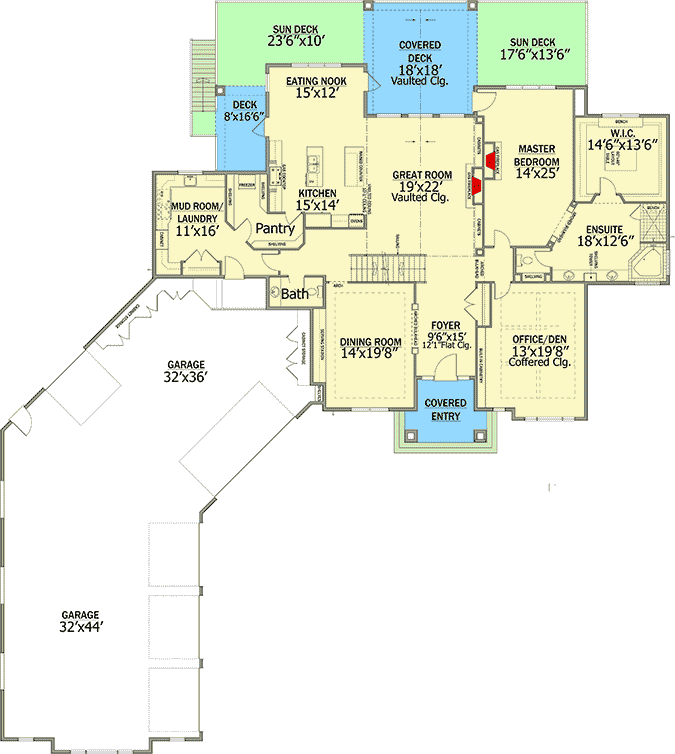

Impressive Family Home Plan - 81608AB floor plan - Main Floor
Second Floor
Reverse Floor Plan
Impressive Family Home Plan - 81608AB floor plan - Second Floor
Optional Lower Level
Reverse Floor Plan

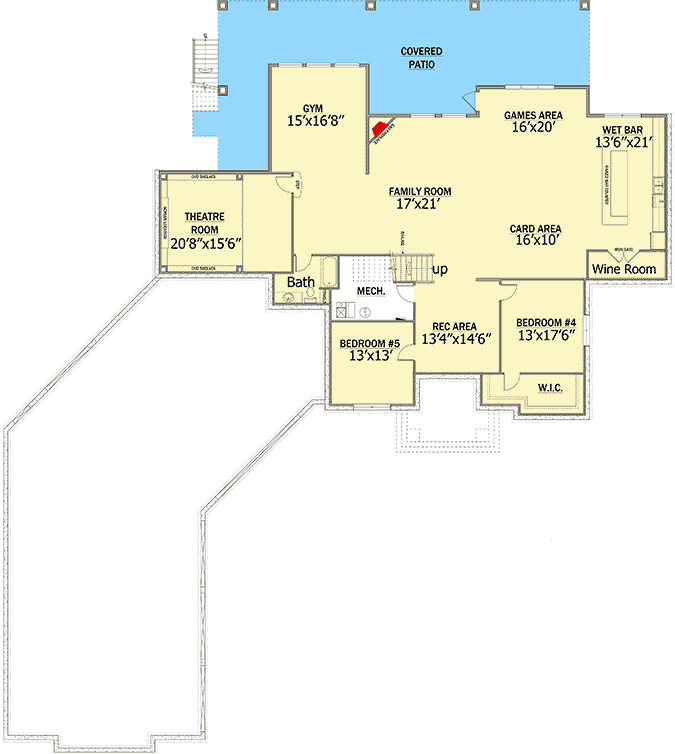

Impressive Family Home Plan - 81608AB floor plan - Optional Lower Level
Plan Details
  • With five bedrooms spread out over three levels, this impressive home plan was designed with the large family in mind.
  • The main level of the house has vaulted and tray ceilings and a luxurious master suite with a huge walk-in closet.
  • Two bedrooms on the second floor share a hall bath.
  • But the heart of this home will be in the spectacular lower level with its home theater with a raised platform, games room, gym and a full kitchen with wine cellar close by.
  • That's entertaining in grand style!
  • Two additional bedrooms are on this level, giving you a total of five bedrooms.
  • A five-car angled garage completes this impressive home.
What's Included
Plans include the following:

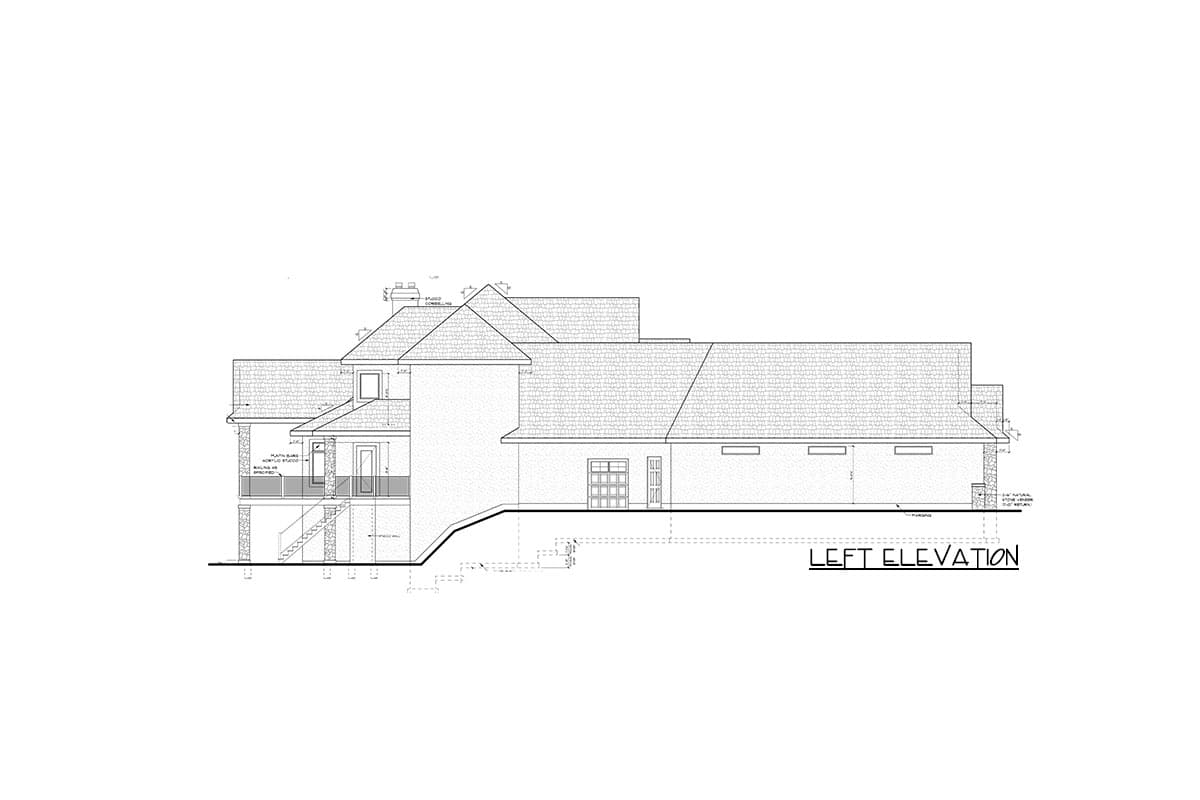

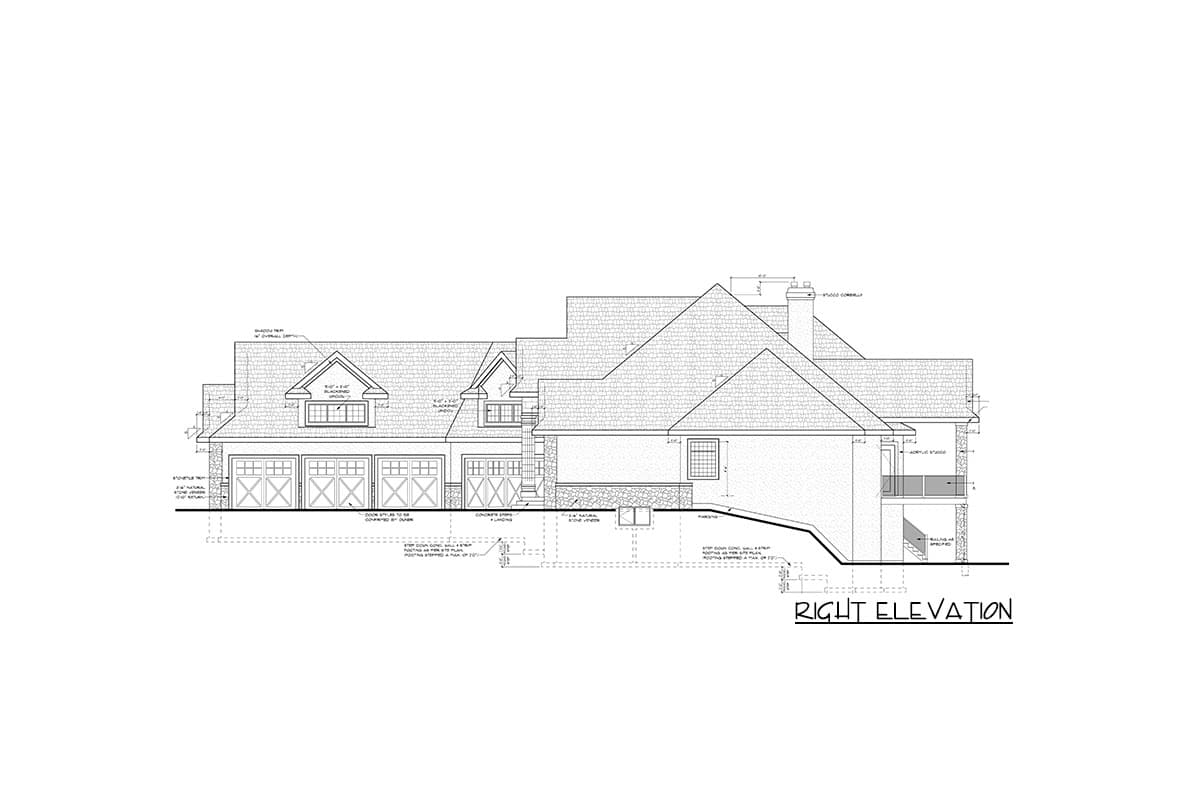

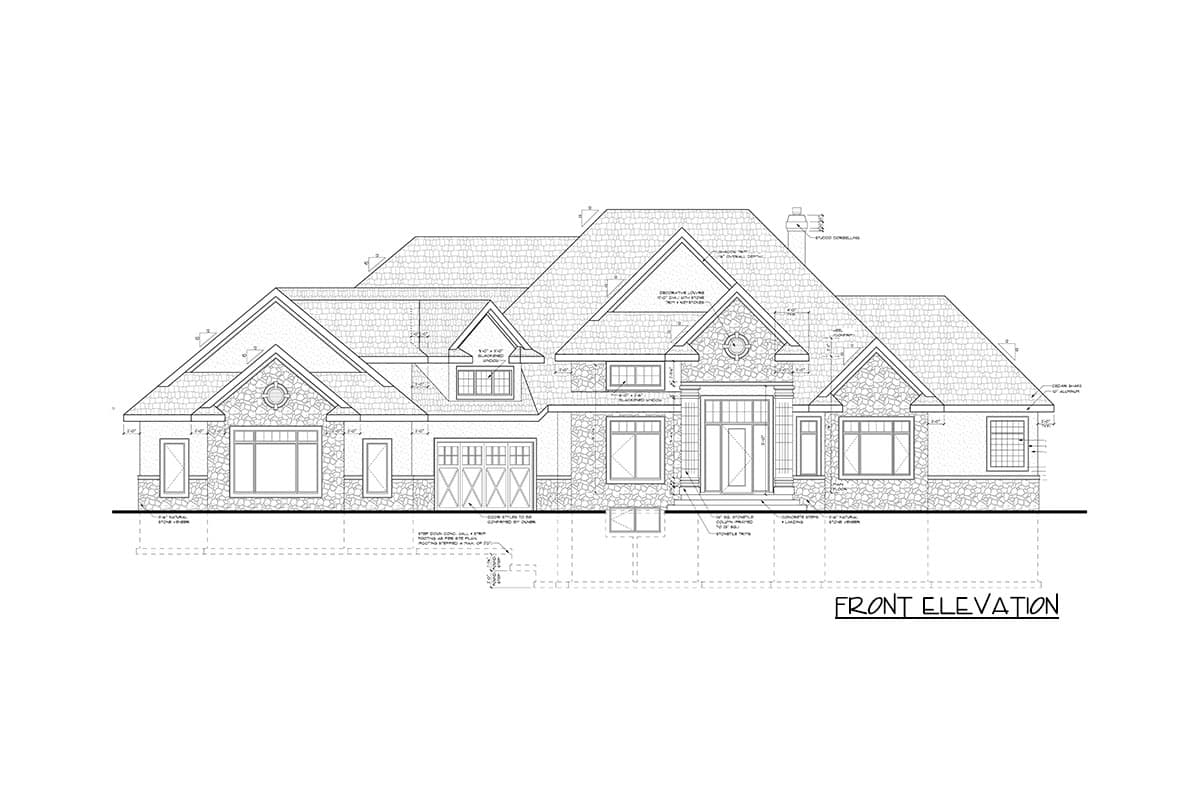

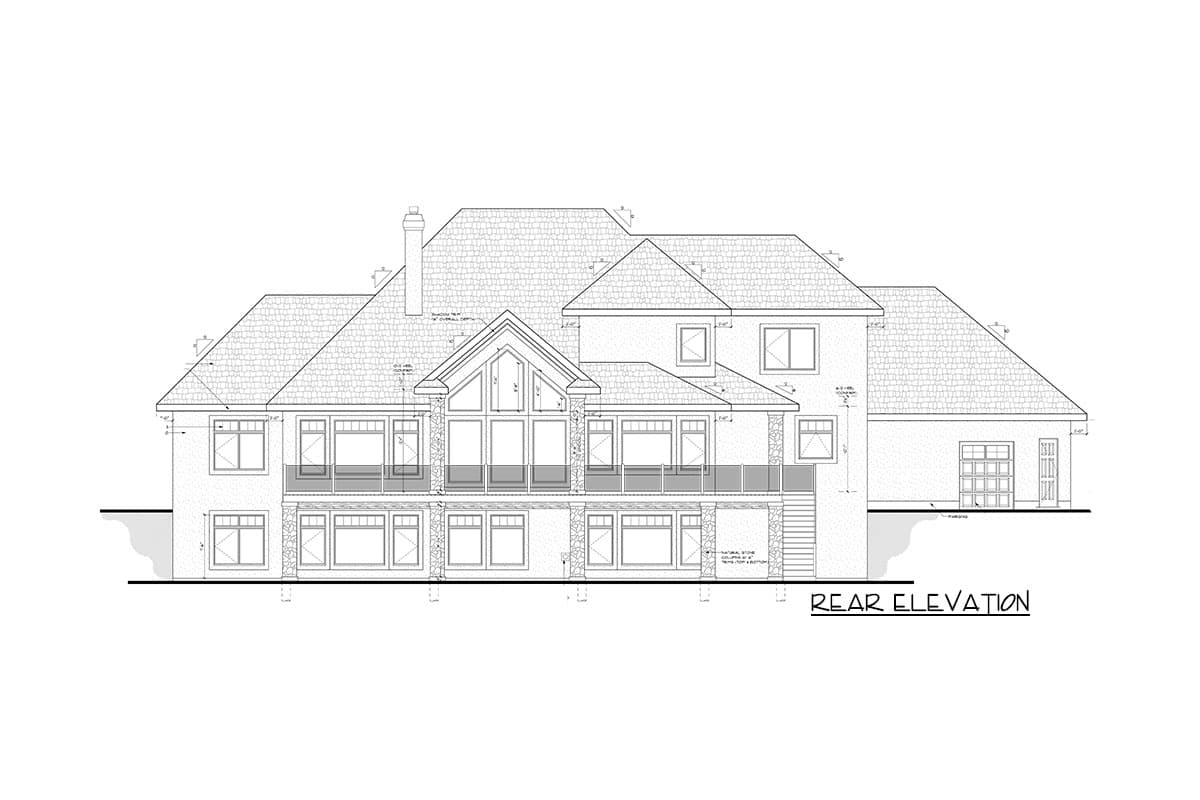

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Impressive Family Home Plan

  • 3,844

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 5

    Car garage

Floor Plan

  • Main Floor

  • Second Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,844 sq. ft.
  • 1st Floor: 3,116 sq. ft.
  • 2nd Floor: 728 sq. ft.

Dimensions

  • Width: 119' 0"
  • Depth: 106' 0"
  • Max ridge height: 35' 6"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 2573 sq. ft.
  • Count: 5 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
