Plan 59984ND

Impressive Rustic Retreat

Impressive Rustic Retreat

Plan 59984ND

  • 4,693

    Heated s.f.

  • 6-7

    Beds

  • 5.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This rustic stone and siding home features impressive timber detailing and a striking rear exterior with both a covered porch and an upper covered deck. Inside this split-bedroom home plan, the great room features a fireplace and media center and is open to the kitchen and breakfast room.
  • The master suite has a private access to the covered porch and the door to the bath is at a 45 degree angle. The master bath features a large corner whirlpool tub under a window and a corner shower with a seat and also has double vanities and a large walk-in closet.
  • On the opposite side of the house are 2 bedrooms and 2 full bathrooms.
  • You'll entertain for sure downstairs with the full kitchen open to the den/game room that has a fireplace. Off of the den is an incredible home theater complete with stadium seating. 2 additional bedrooms are also downstairs that each have walk-in closets and share a full bathroom. There's also a closet nearby that holds a convenient stacked washer/dryer.
  • In-laws or guests will feel at home in their quarters on the opposite side which features a walk-in closet, a private full bathroom, and private access to the covered porch.
  • And the top floor offers 2 enormous bonus rooms that have all kinds of potential.
  • Related Plan: Eliminate the grilling porch and lower level with house plan 59978ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Plan details



Impressive Rustic Retreat

  • 4,693

    Heated s.f.

  • 6 - 7

    Beds

  • 6

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $2,050
  • 5 Sets $2,150
  • CAD $4,100
  • View all purchase option online

About This Plan

  • This rustic stone and siding home features impressive timber detailing and a striking rear exterior with both a covered porch and an upper covered deck. Inside this split-bedroom home plan, the great room features a fireplace and media center and is open to the kitchen and breakfast room.
  • The master suite has a private access to the covered porch and the door to the bath is at a 45 degree angle. The master bath features a large corner whirlpool tub under a window and a corner shower with a seat and also has double vanities and a large walk-in closet.
  • On the opposite side of the house are 2 bedrooms and 2 full bathrooms.
  • You'll entertain for sure downstairs with the full kitchen open to the den/game room that has a fireplace. Off of the den is an incredible home theater complete with stadium seating. 2 additional bedrooms are also downstairs that each have walk-in closets and share a full bathroom. There's also a closet nearby that holds a convenient stacked washer/dryer.
  • In-laws or guests will feel at home in their quarters on the opposite side which features a walk-in closet, a private full bathroom, and private access to the covered porch.
  • And the top floor offers 2 enormous bonus rooms that have all kinds of potential.
  • Related Plan: Eliminate the grilling porch and lower level with house plan 59978ND.

Floor Plans

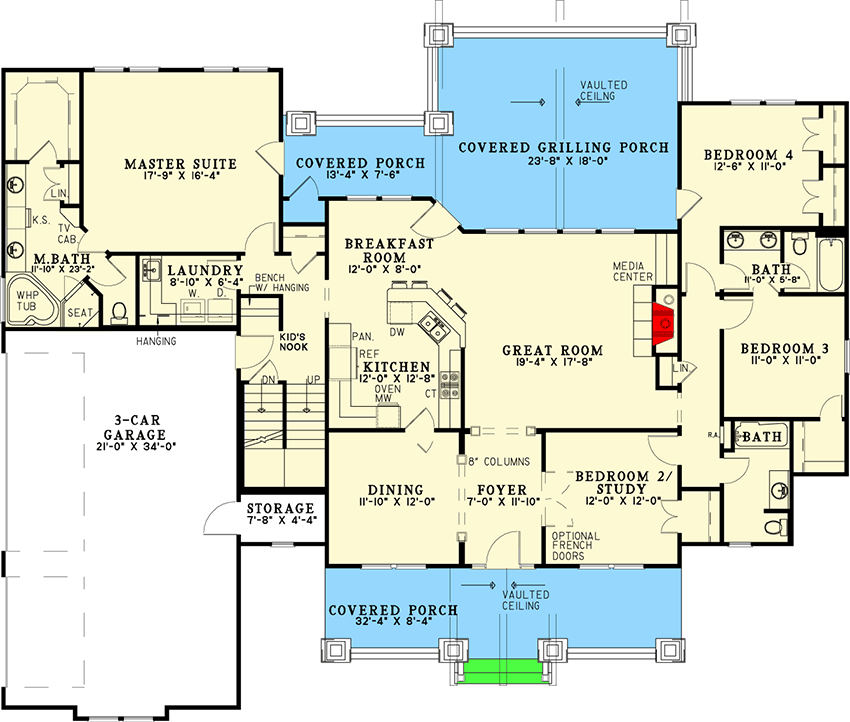

  • Main Level

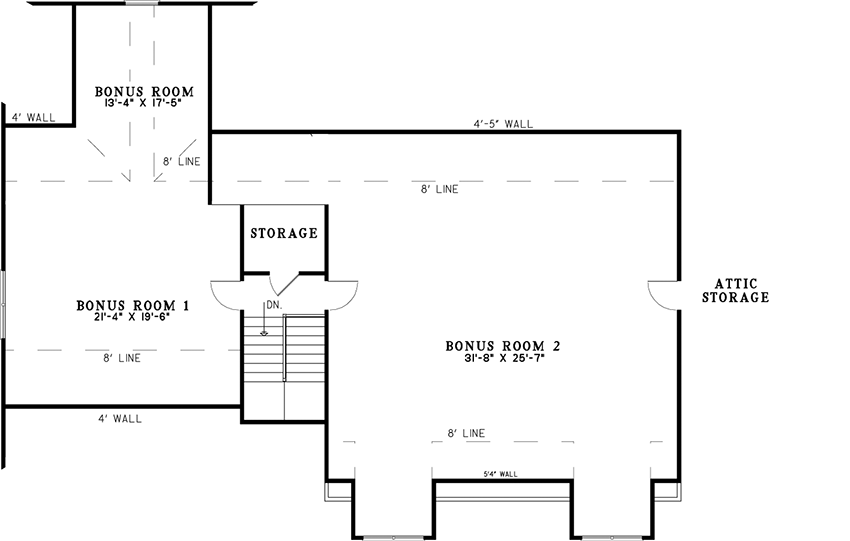

  • Bonus

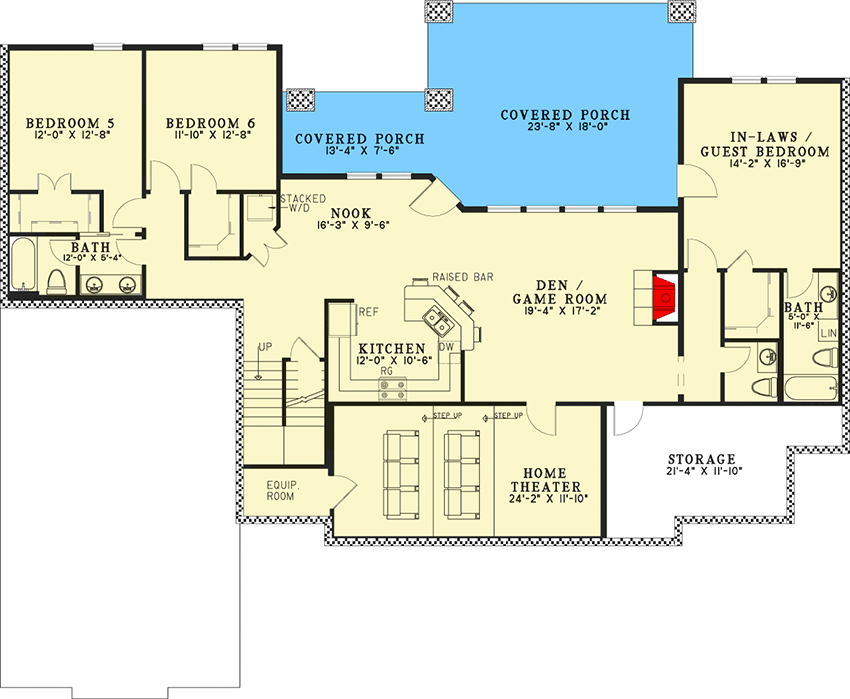

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,693 sq. ft.
  • Lower Level: 2,320 sq. ft.
  • 1st Floor: 2,373 sq. ft.
  • Bonus: 1,945 sq. ft.
  • Porch, Front: 269 sq. ft.
  • Porch, Rear: 526 sq. ft.
  • Covered Patio: 526 sq. ft.

Beds/Baths

  • Bedrooms: 6 or 7
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 76' 10"
  • Depth: 62' 8"
  • Max ridge height: 29' 2"

Garage

  • Type: Attached
  • Area: 783 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick
