Plan 59978ND

Affordable Rustic Retreat

Heated S.F.
2,373
Beds
4
Baths
3
Stories
1
Cars
3

Floor Plan

Plan 59978ND

Main Level
Main Level
Optionally Finished Bonus Level
Optionally Finished Bonus Level

Plan 59978ND

M-F 9am-5pm EST |

1-203-761-8500

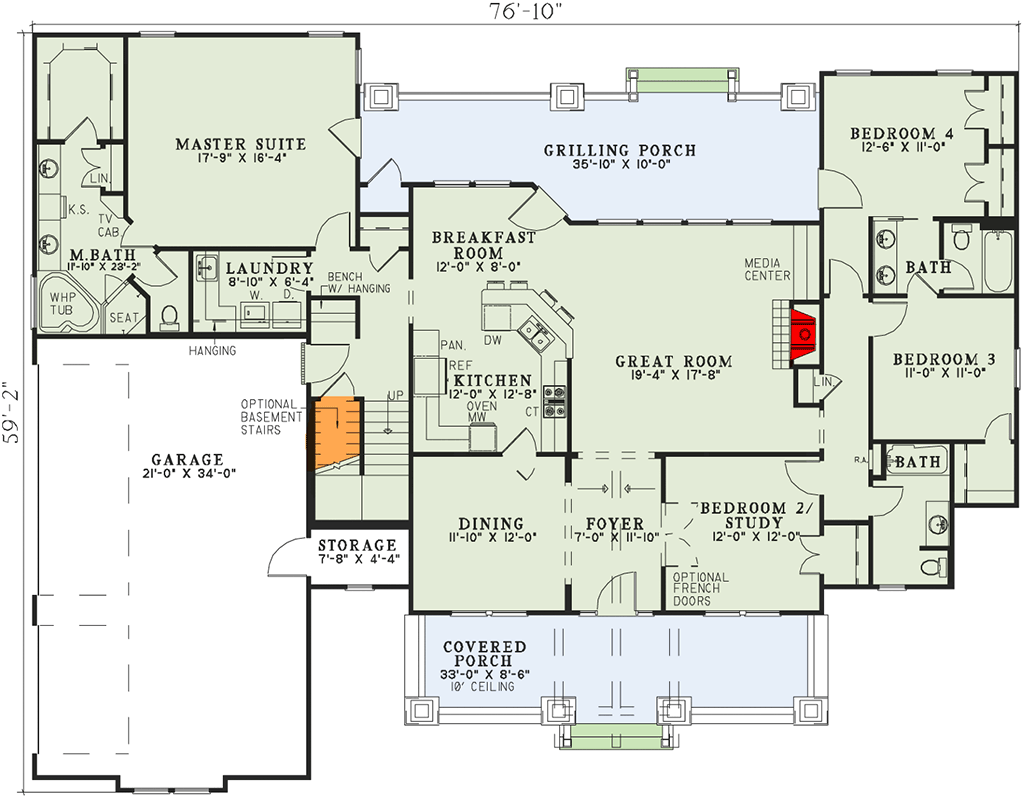

Main Level

Plan 59978ND: Affordable Rustic Retreat - Floor Plan - Main Level - Craftsman, Vacation

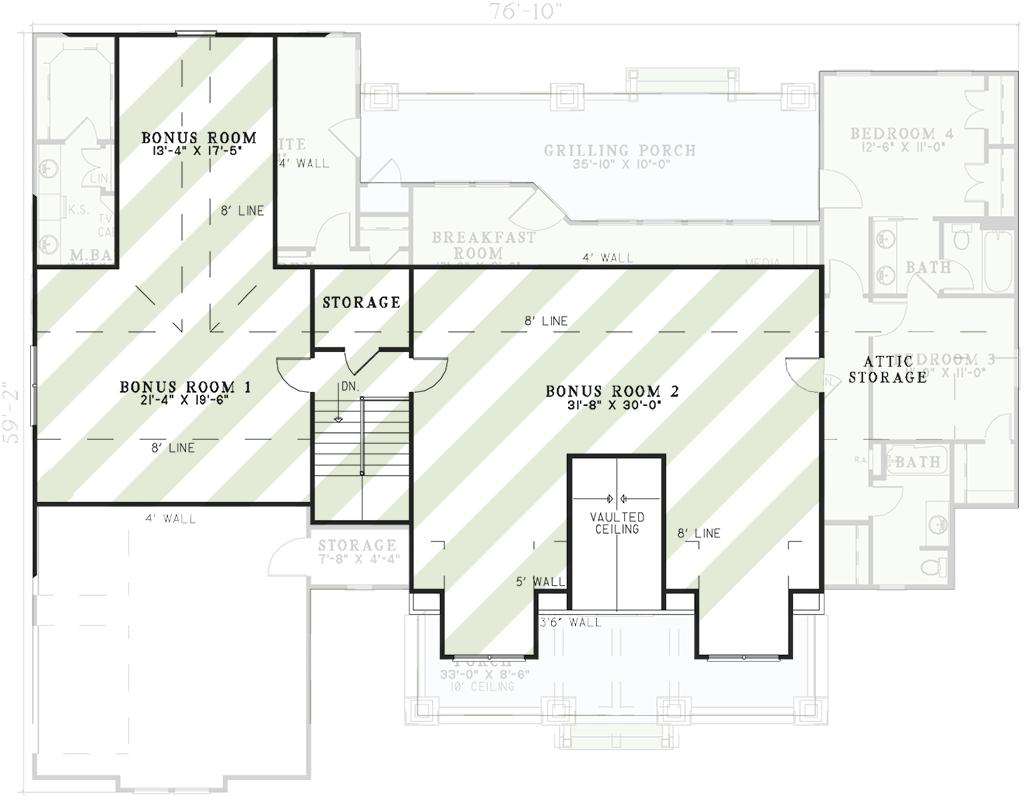

Optionally Finished Bonus Level

Plan 59978ND: Affordable Rustic Retreat - Floor Plan - Optionally Finished Bonus Level - Craftsman, Vacation

Plan Details

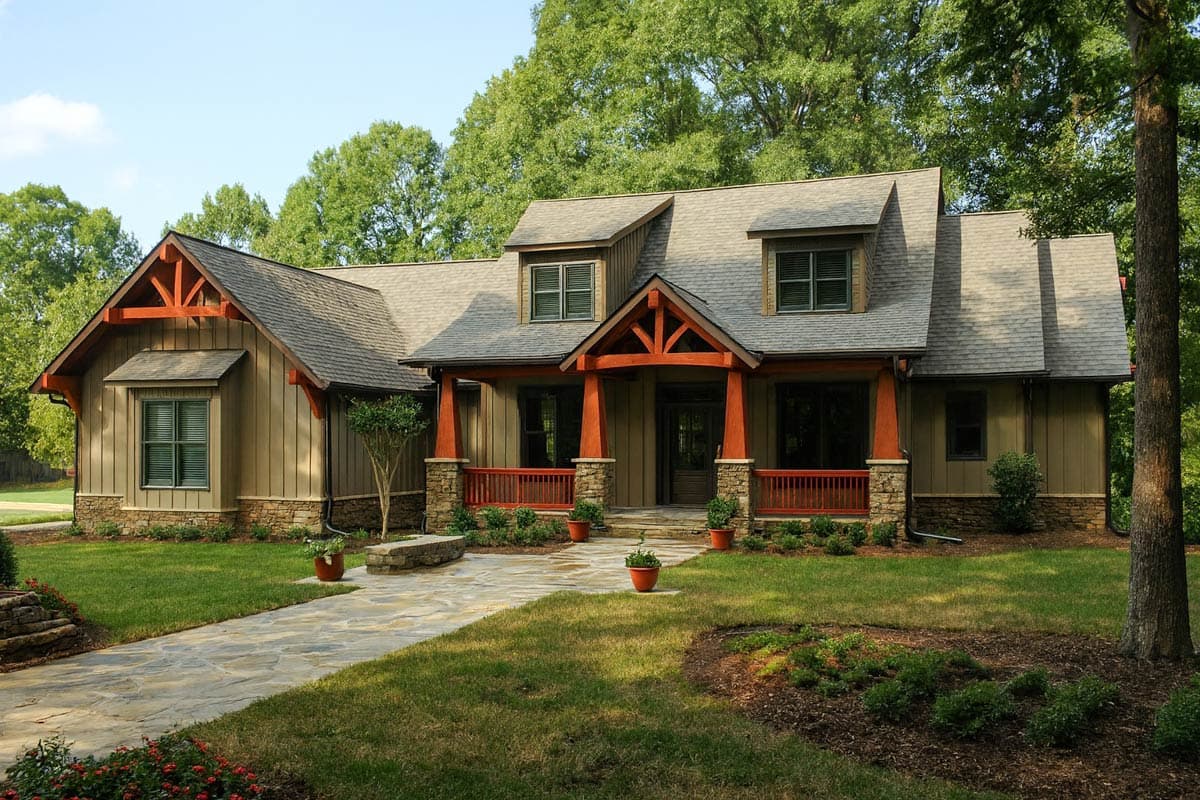

  • This rustic stone and siding home plan features impressive timber detailing and great porches front and back. Inside this split-bedroom home plan, the great room features a fireplace and media center and is open to the kitchen and breakfast room.
  • The master suite has a private access to the covered porch and the door to the bath is at a 45 degree angle. The master bath features a large corner whirlpool tub under a window and a corner shower with a seat and also has double vanities and a large walk-in closet.
  • A formal dining room and a study - which could double as a study - flank the foyer.
  • And the top floor offers 2 enormous bonus rooms that have all kinds of potential.
  • There are two bonus rooms upstairs giving you great expansion space.
  • Related Plan: Get a finished lower level and a larger rear grilling porch with house plan 59984ND. and for an alternate version look at house plan - 70531MK

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

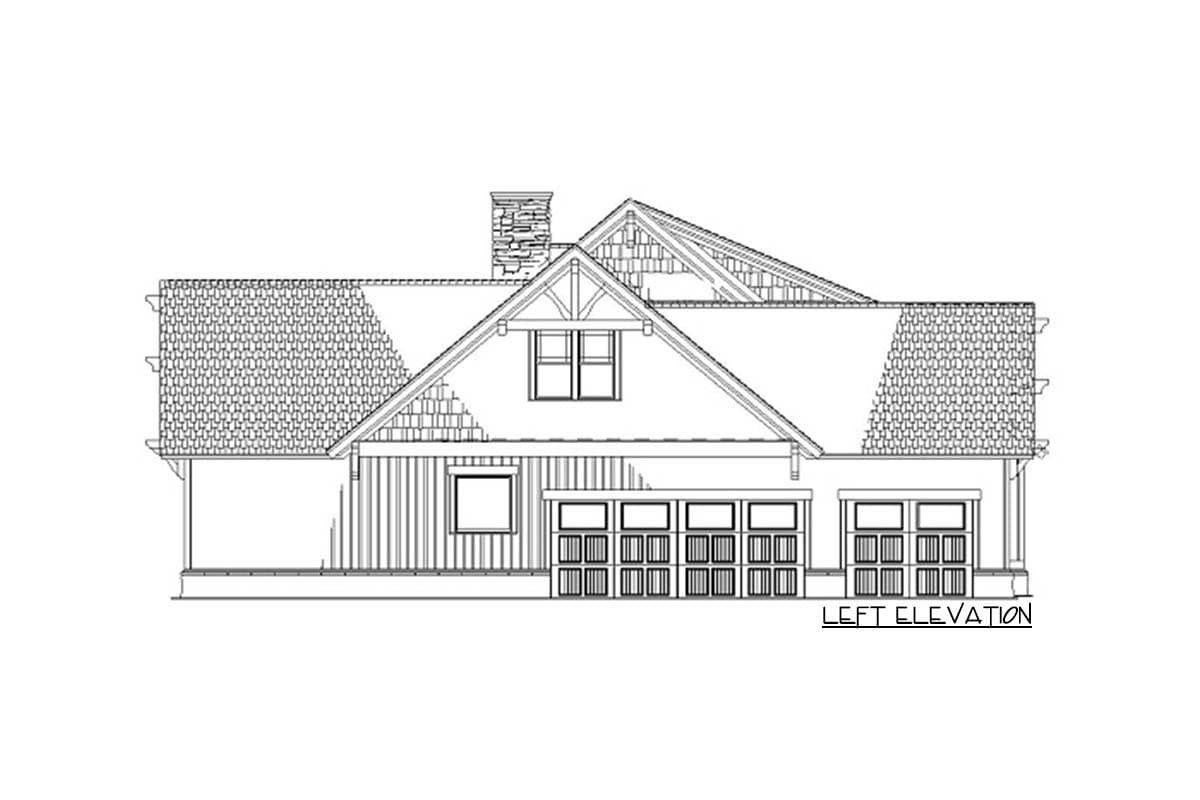

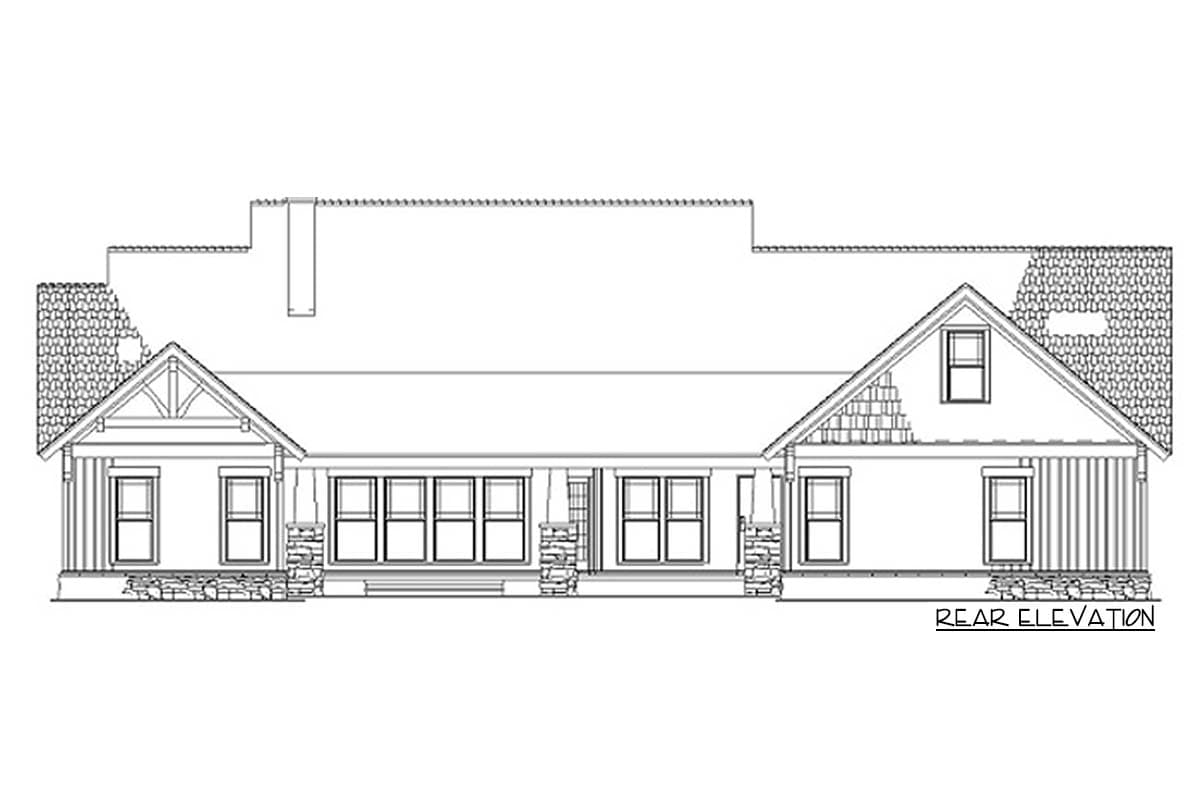

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,373 sq. ft.

1st Floor

2,373 sq. ft.

Bonus

1,542 sq. ft.

Porch, Front

280 sq. ft.

Porch, Rear

317 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 10"

Depth

59' 2"

Max Ridge Height

26' 2"

Garage

Type

Attached

Area

783 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Craftsman

Vacation

Special Features

Bedrooms - Split

Formal Dining

Jack & Jill Bath

Library/Study

Master Suite - 1st Floor

Optionally Finished Bonus Room

Square Footage Breakdown

Total Heated Area

2,373 sq. ft.

1st Floor

2,373 sq. ft.

Bonus

1,542 sq. ft.

Porch, Front

280 sq. ft.

Porch, Rear

317 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 10"

Depth

59' 2"

Max Ridge Height

26' 2"

Garage

Type

Attached

Area

783 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Craftsman

Vacation

Special Features

Bedrooms - Split

Formal Dining

Jack & Jill Bath

Library/Study

Master Suite - 1st Floor

Optionally Finished Bonus Room
