Incredible Mountain House Plan with Rearward Views

Plan 12959KN

  • 3,230

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A large covered porch allows you to enjoy the outdoors, or cozy up by the fire and relish in the rearward views through the oversized windows and sliding glass door.
  • The dining, kitchen, and living rooms are combined to present an open layout, complete with a fireplace and rounded kitchen island. A corner pantry provides ample storage space for any size gathering.
  • The master bedroom resides on the main level, and features an elegant tray ceiling and a master bathroom with a standalone tub, two sinks, a toilet room, and a sizable walk-in closet.
  • Upstairs, discover a bedroom which includes a full bathroom, and another bedroom sits next to a full bath.
  • The lower level presents a second living room that expands to a covered patio, a full bathroom, bedroom with a walk-in closet, and the laundry room. Access to the 2-car garage is also on the lower level.

Floor plans at ¼" scale

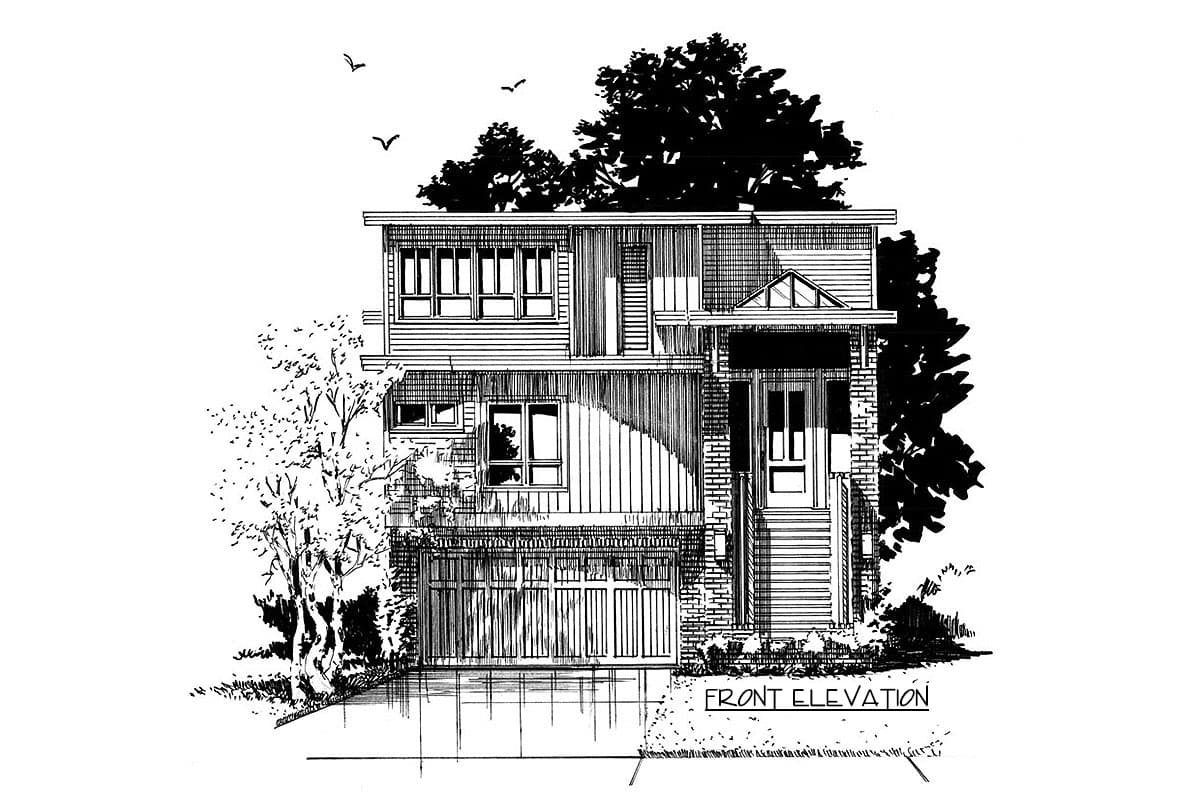

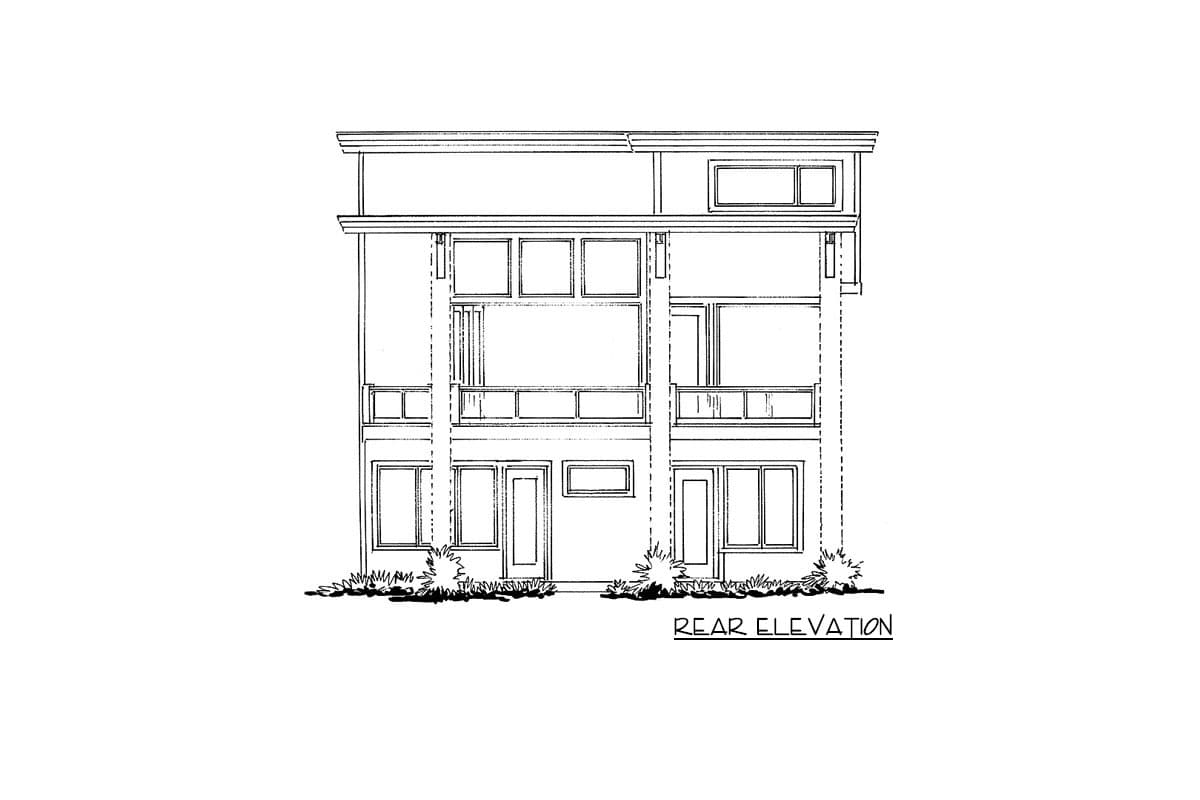

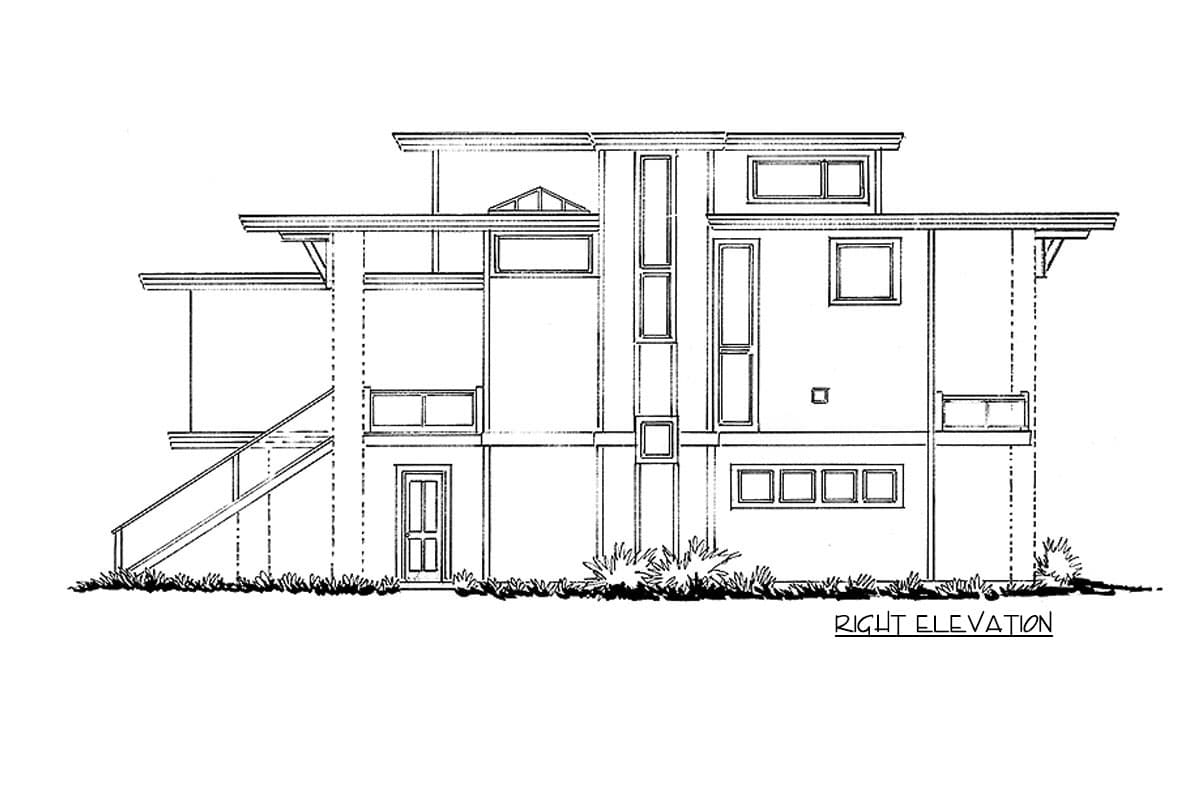

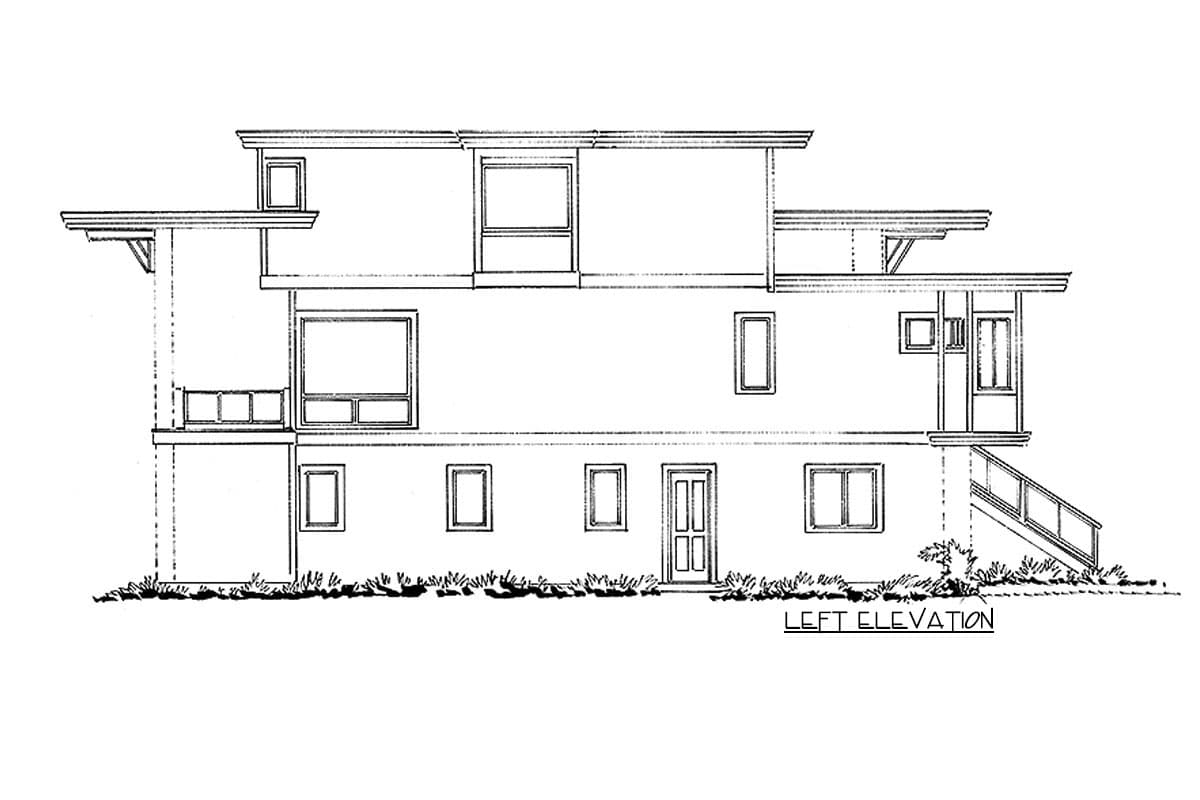

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

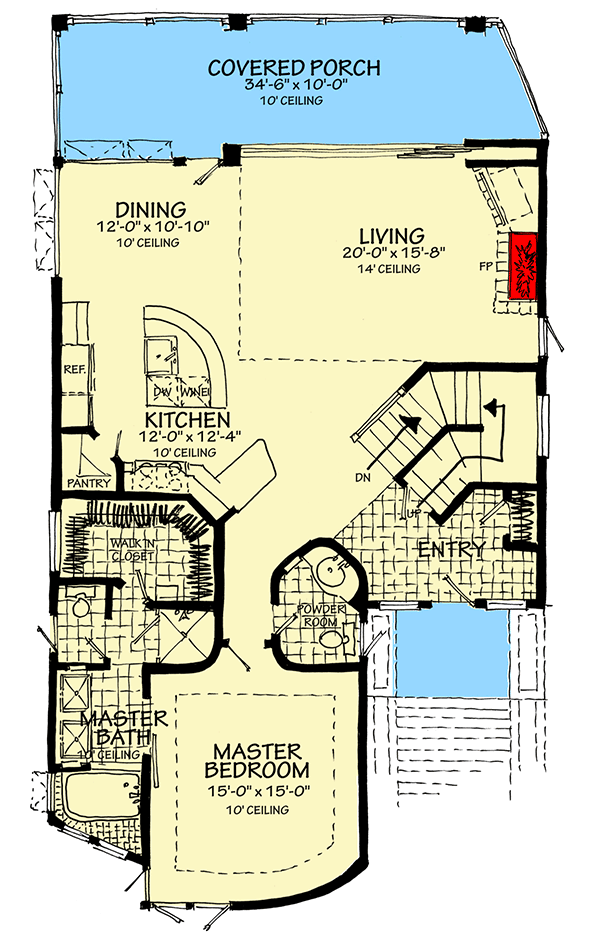

Incredible Mountain House Plan with Rearward Views - 12959KN floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

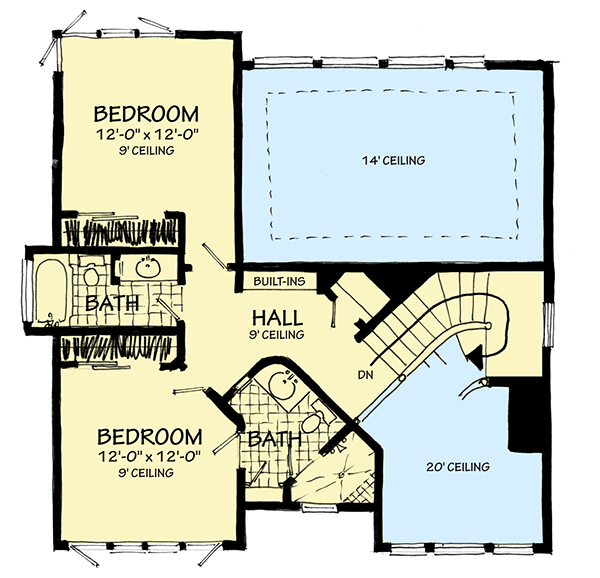

Incredible Mountain House Plan with Rearward Views - 12959KN floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

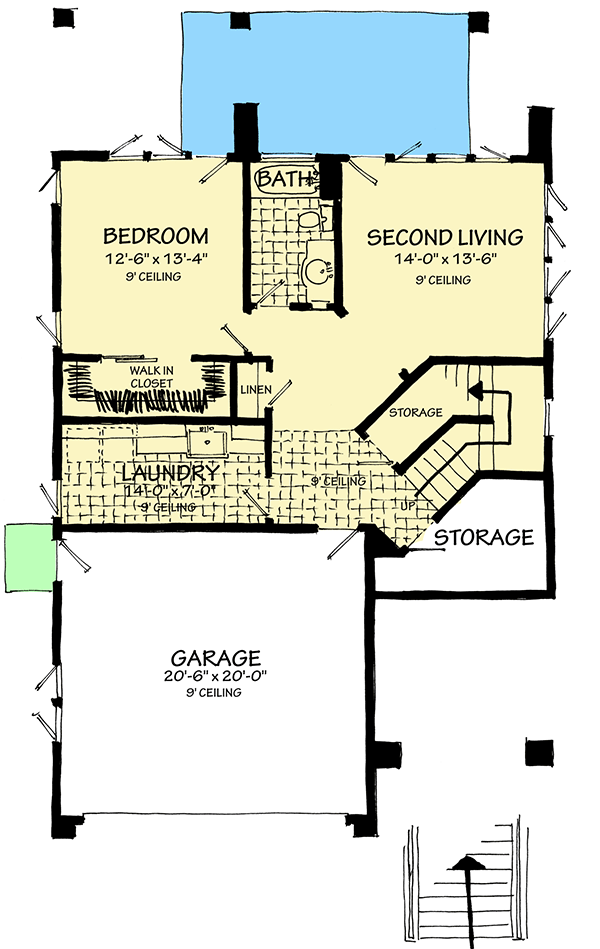

Incredible Mountain House Plan with Rearward Views - 12959KN floor plan - Lower Level
