Plan: 36283TX

Indoor Grotto with Fireplace

4,427 4 5 2 2
Pageloader

Indoor Grotto with Fireplace

Plan 36283TX

  • 4,427

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Stories

  • 2

    Cars

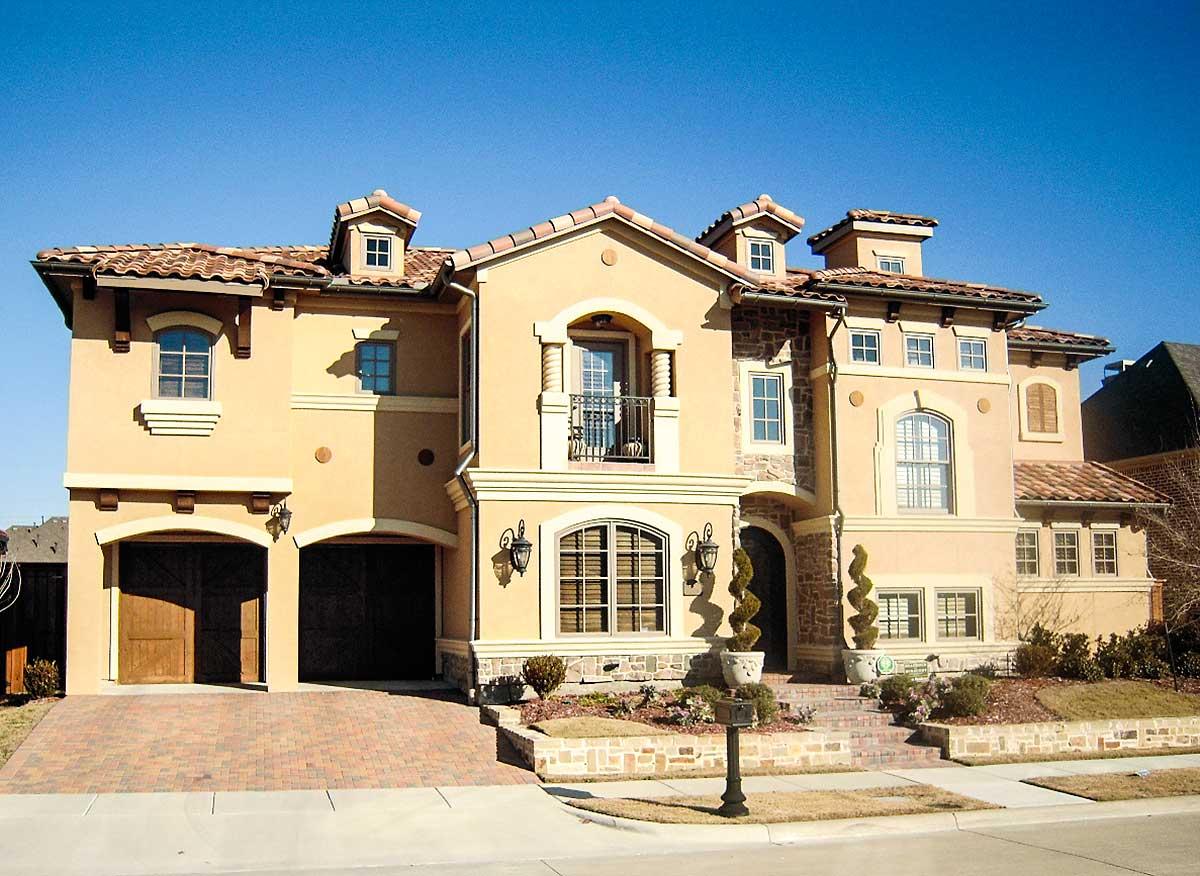

  • This splendid Mediterranean home is filled with special features such as a hobby room and a spectacular step-down indoor grotto with wine bar and fireplace.
  • The two-story foyer leads back into the large informal area of the home with its open floor plan.
  • An extra-large kitchen offers plenty of counter space and a walk-in pantry closet.
  • The first floor master suite has a tray ceiling and sitting area with a two-sided fireplace to enjoy while soaking in the tub.
  • A private study off the landing of the stairs is on its own level.
  • Continue on up the stairs to enjoy the enormous game room with an area devoted to card playing.
  • Everyone will love family movie night in the large media room with a raised floor section.
  • Related Plans: Get a slightly smaller dining room, grotto and study with house plan 36281TX.
    Get an alternate exterior with house plan 36284TX (4 bedrooms) and 36285TX (3 bedrooms).

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

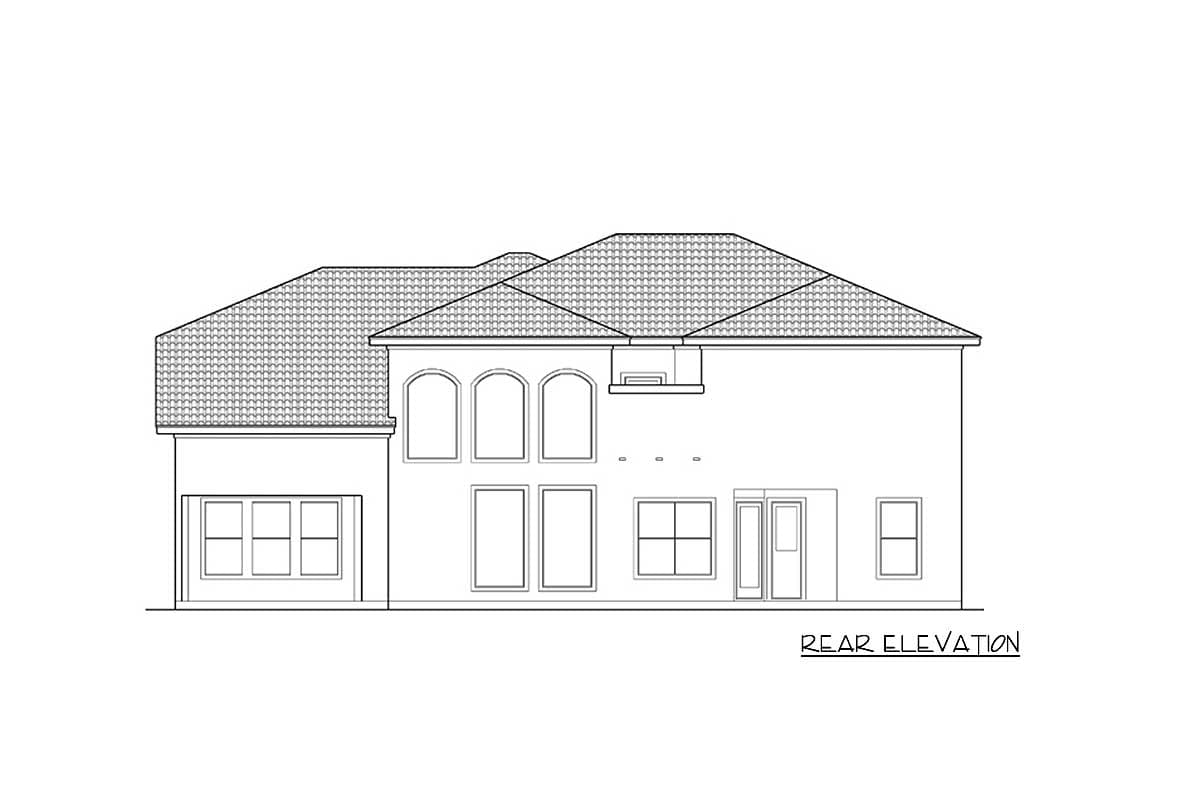

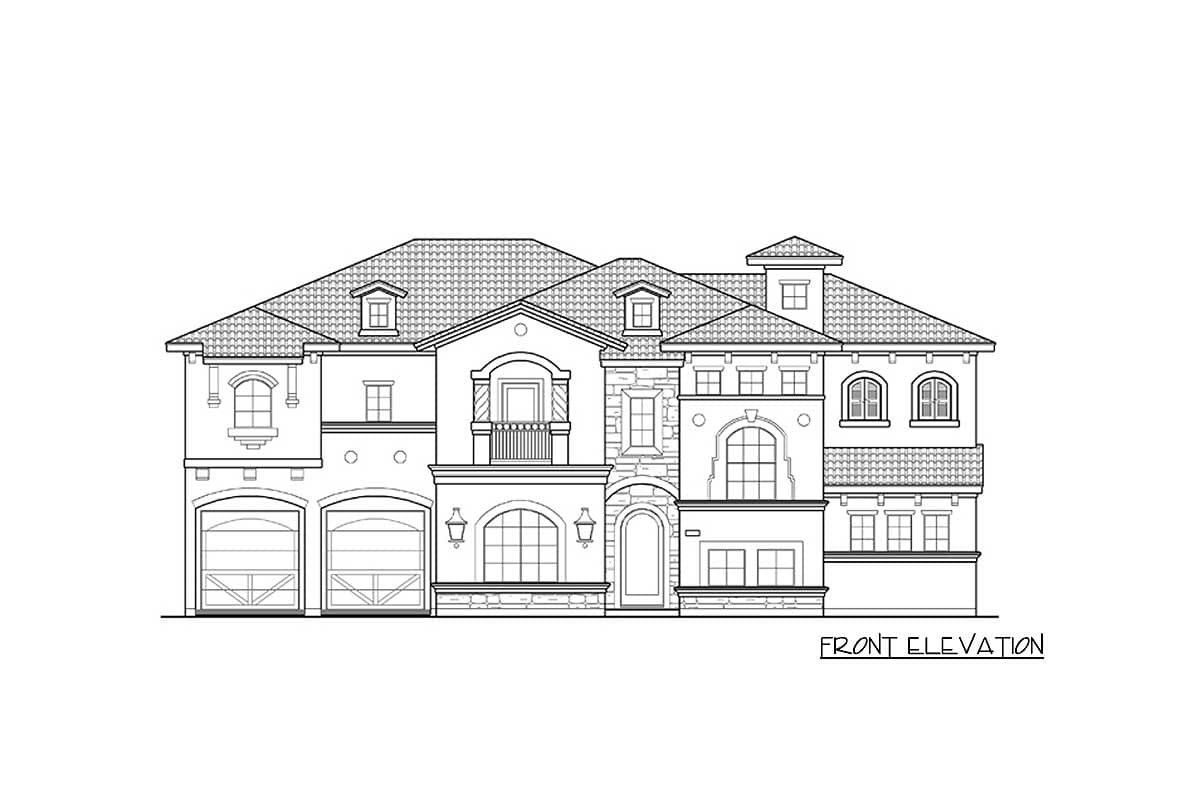

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

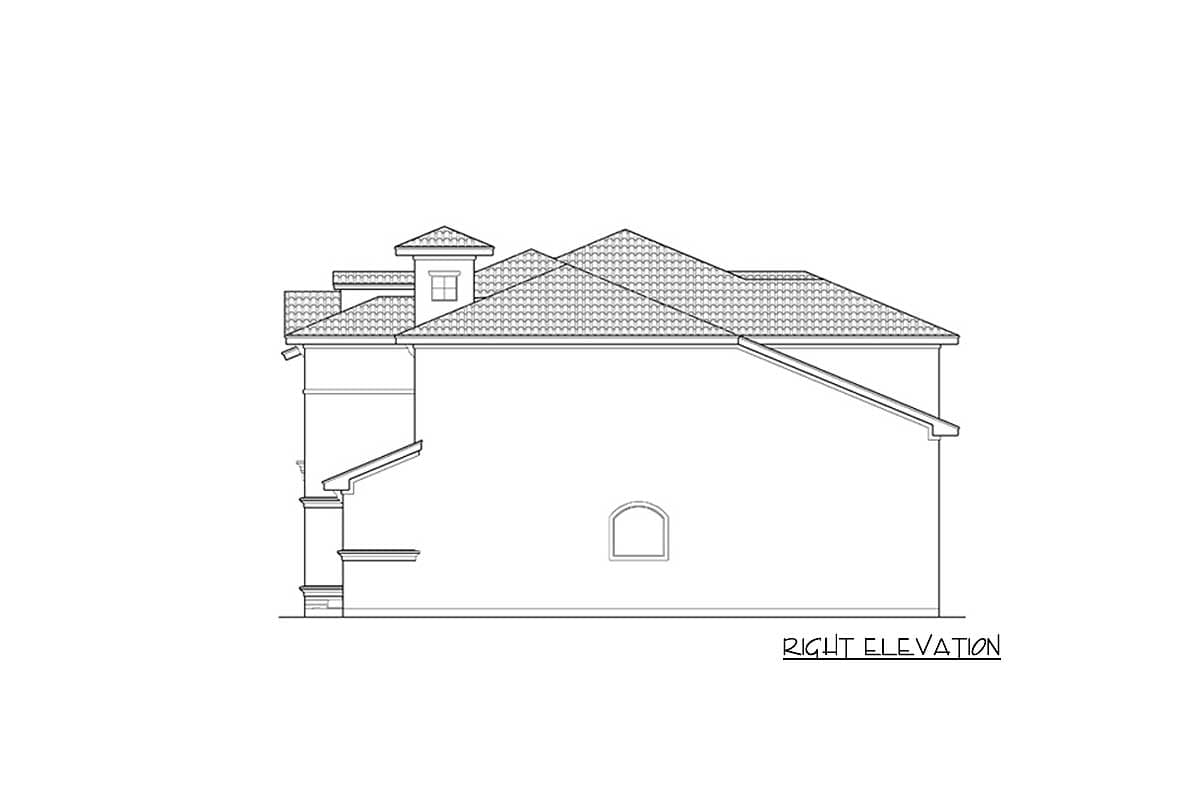

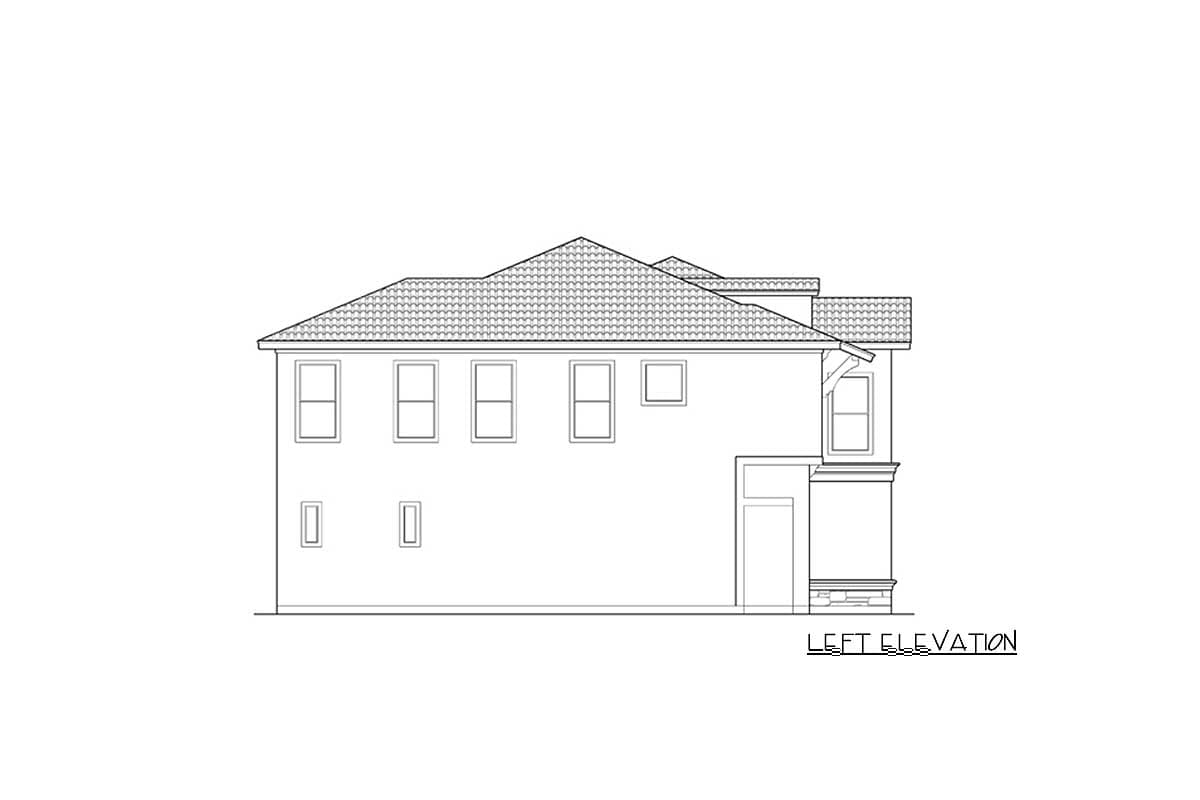

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page - NOT all of our house plans include sections because they may not have been required with the original design.

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



Indoor Grotto with Fireplace

  • 4,427

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,515
  • 5 Sets $1,715
  • CAD $2,275
  • View all purchase option online

About This Plan

  • This splendid Mediterranean home is filled with special features such as a hobby room and a spectacular step-down indoor grotto with wine bar and fireplace.
  • The two-story foyer leads back into the large informal area of the home with its open floor plan.
  • An extra-large kitchen offers plenty of counter space and a walk-in pantry closet.
  • The first floor master suite has a tray ceiling and sitting area with a two-sided fireplace to enjoy while soaking in the tub.
  • A private study off the landing of the stairs is on its own level.
  • Continue on up the stairs to enjoy the enormous game room with an area devoted to card playing.
  • Everyone will love family movie night in the large media room with a raised floor section.
  • Related Plans: Get a slightly smaller dining room, grotto and study with house plan 36281TX.
    Get an alternate exterior with house plan 36284TX (4 bedrooms) and 36285TX (3 bedrooms).

Floor Plans

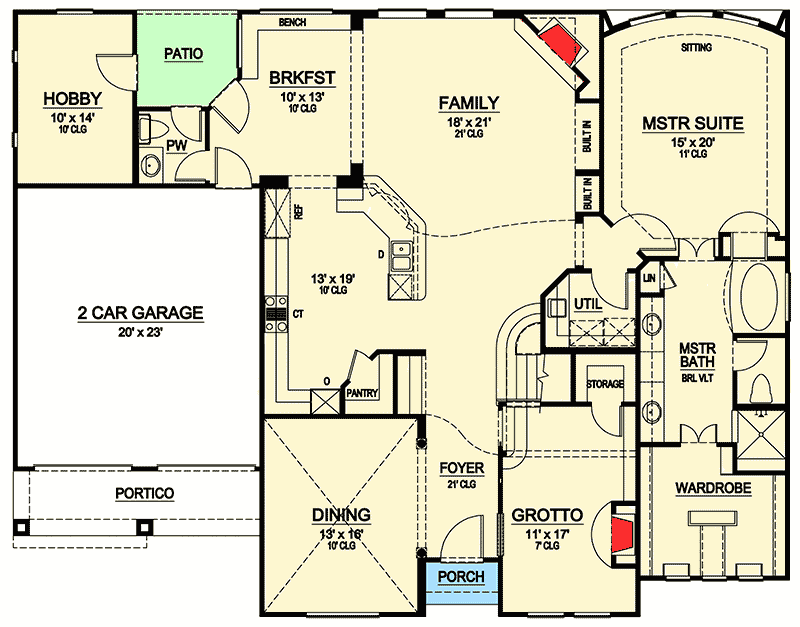

  • Main Level

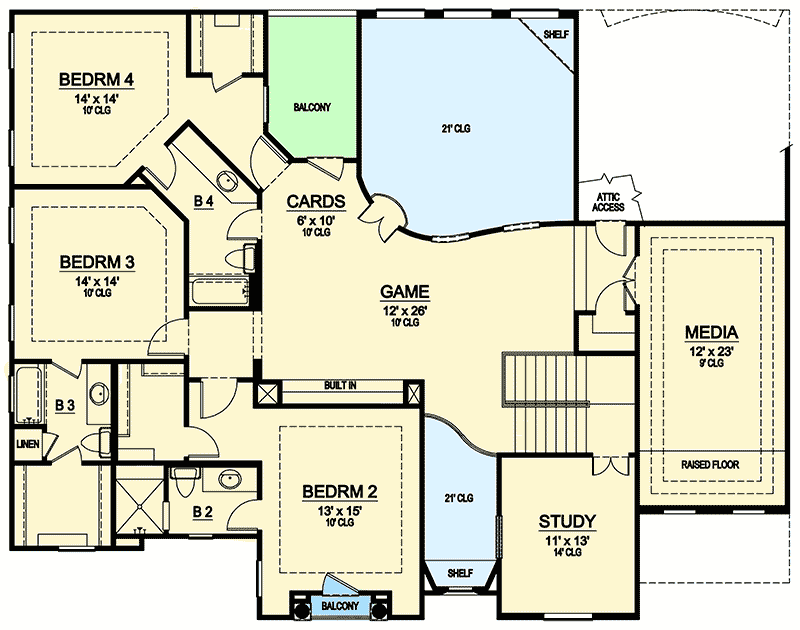

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,427 sq. ft.
  • 1st Floor: 2,347 sq. ft.
  • 2nd Floor: 2,080 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 64' 0"
  • Depth: 50' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 474 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Architectural Style

  • European
  • Mediterranean
  • Spanish

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • MBR Sitting Area
  • Media-Game-Home Theater
  • PDF

Plan Collections

  • Luxury

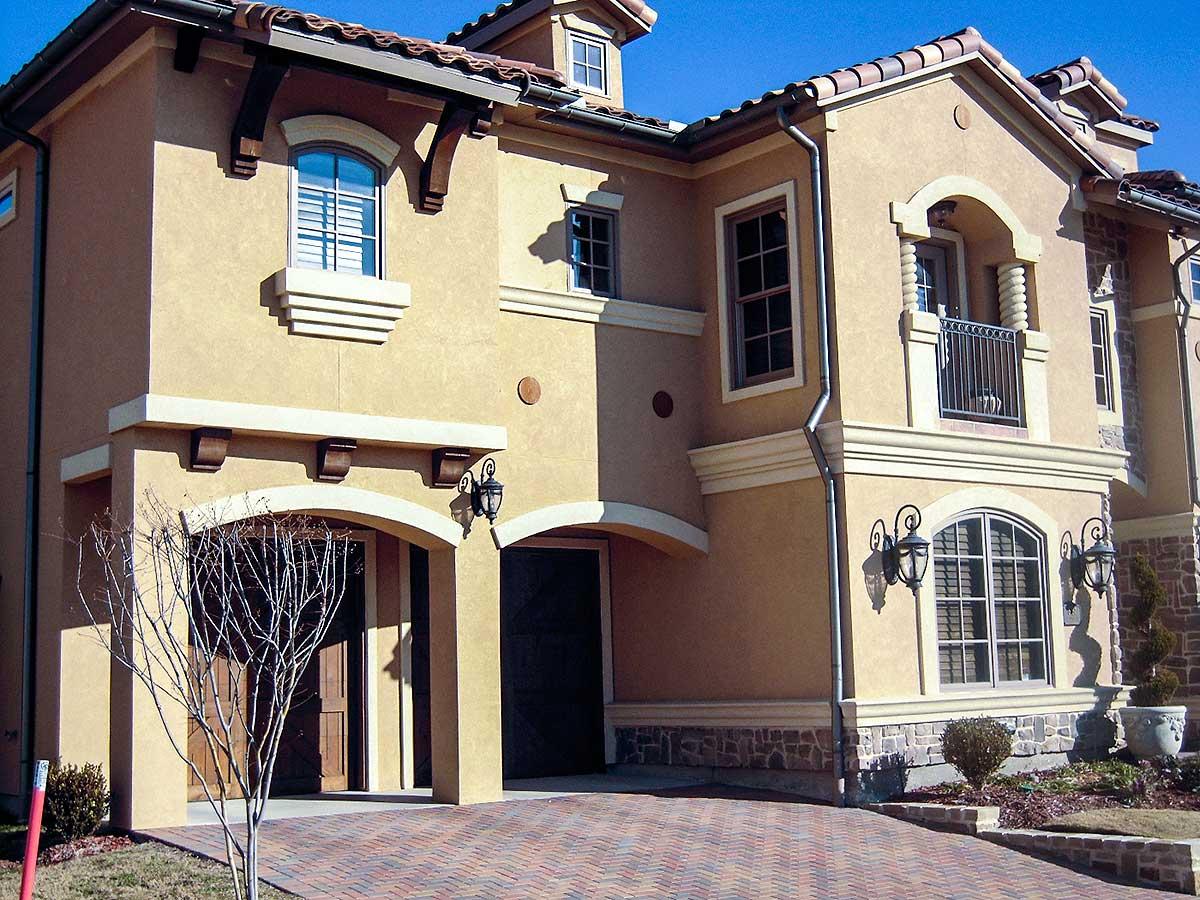

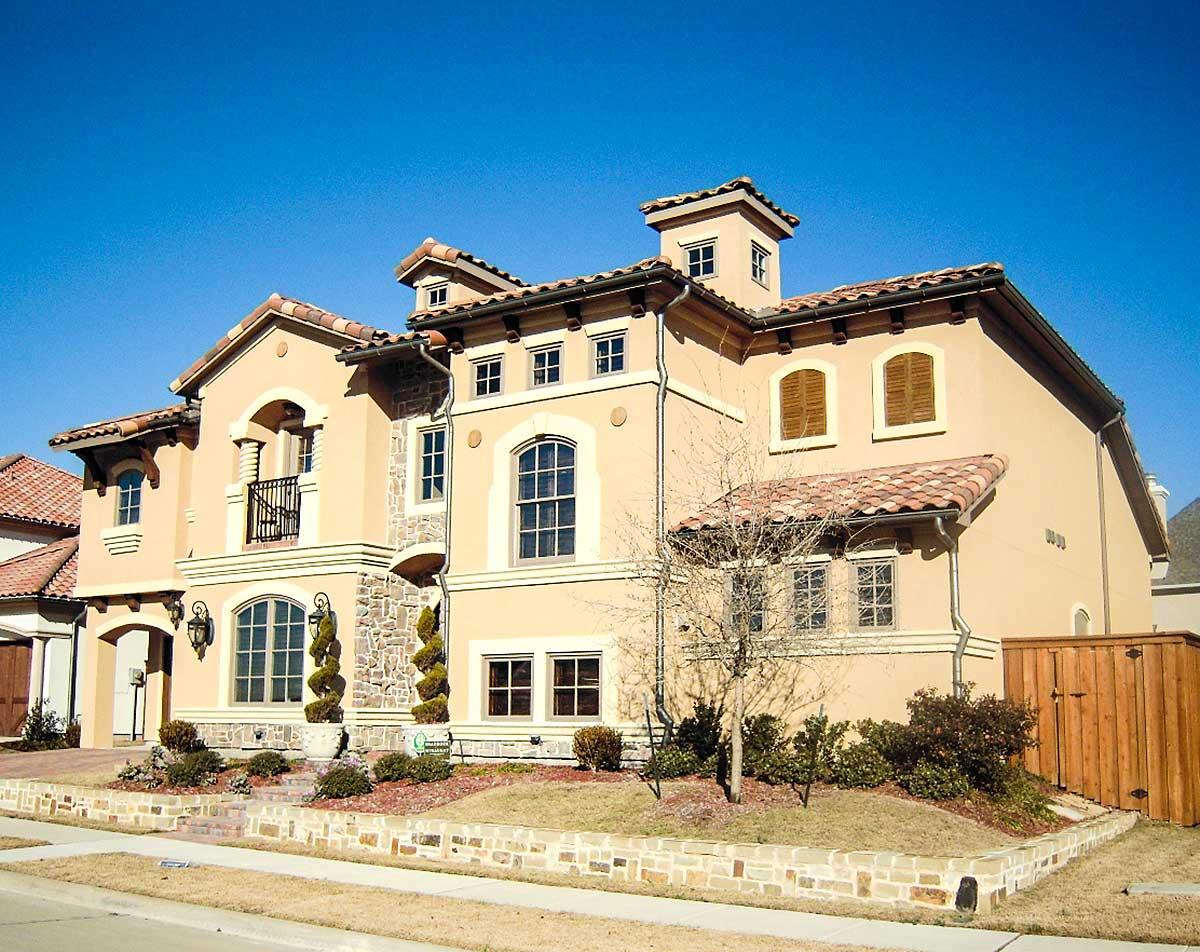

  • Photo Gallery
