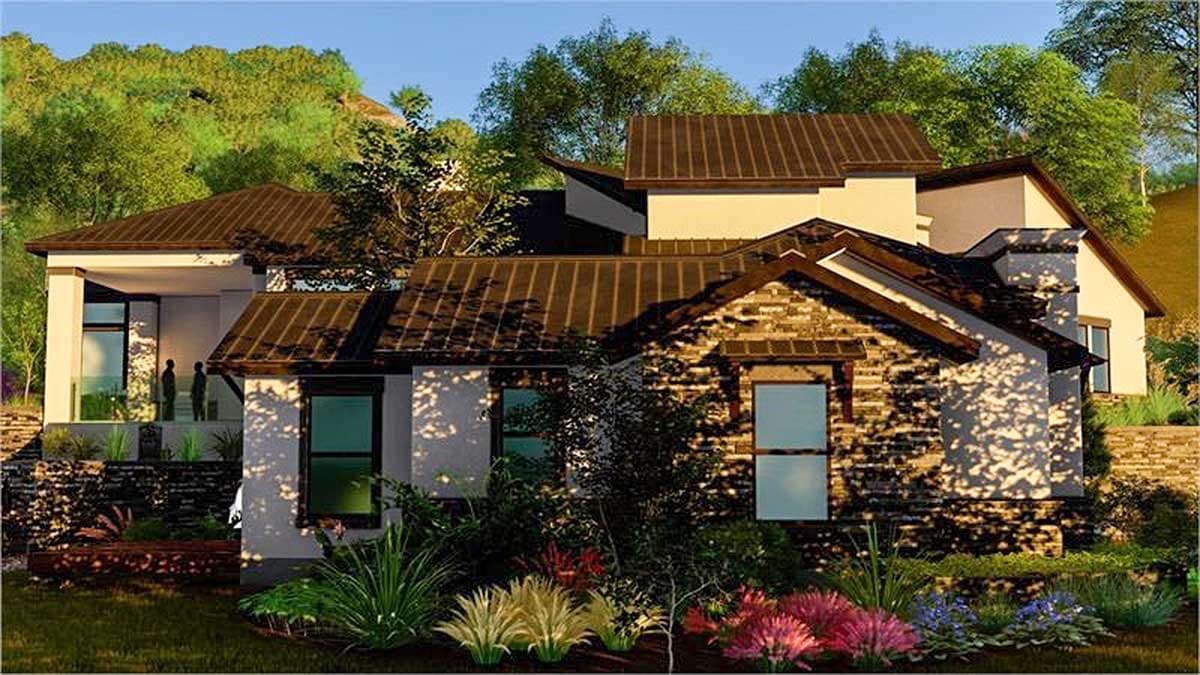

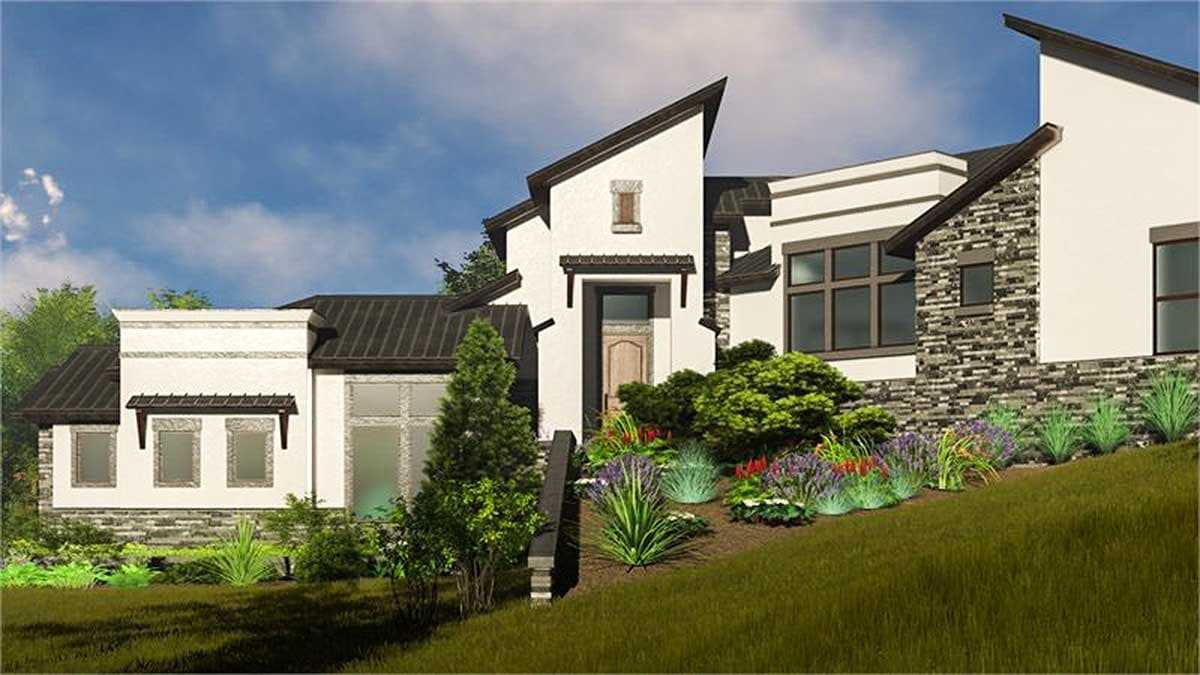

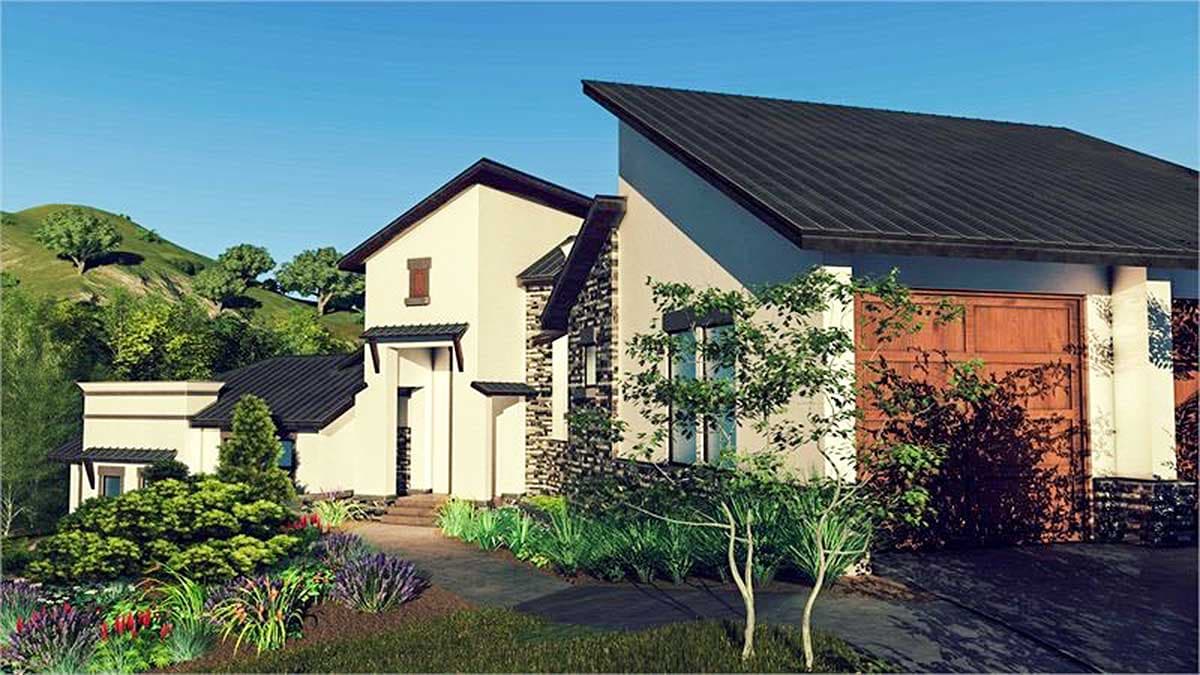

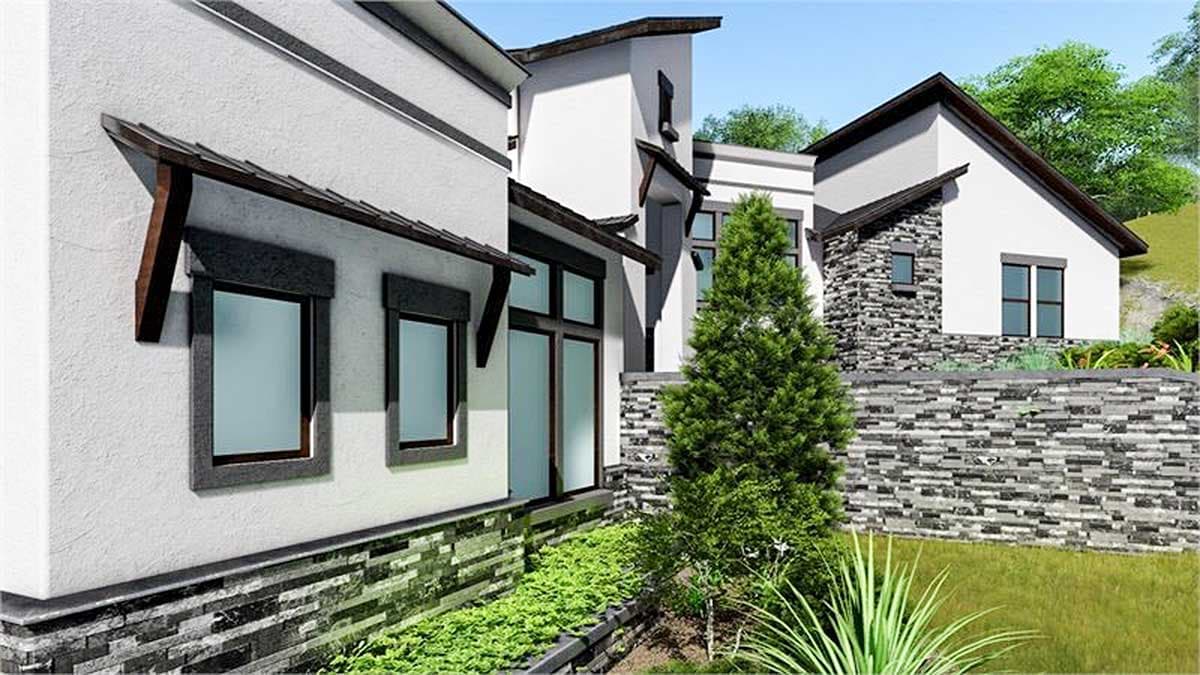

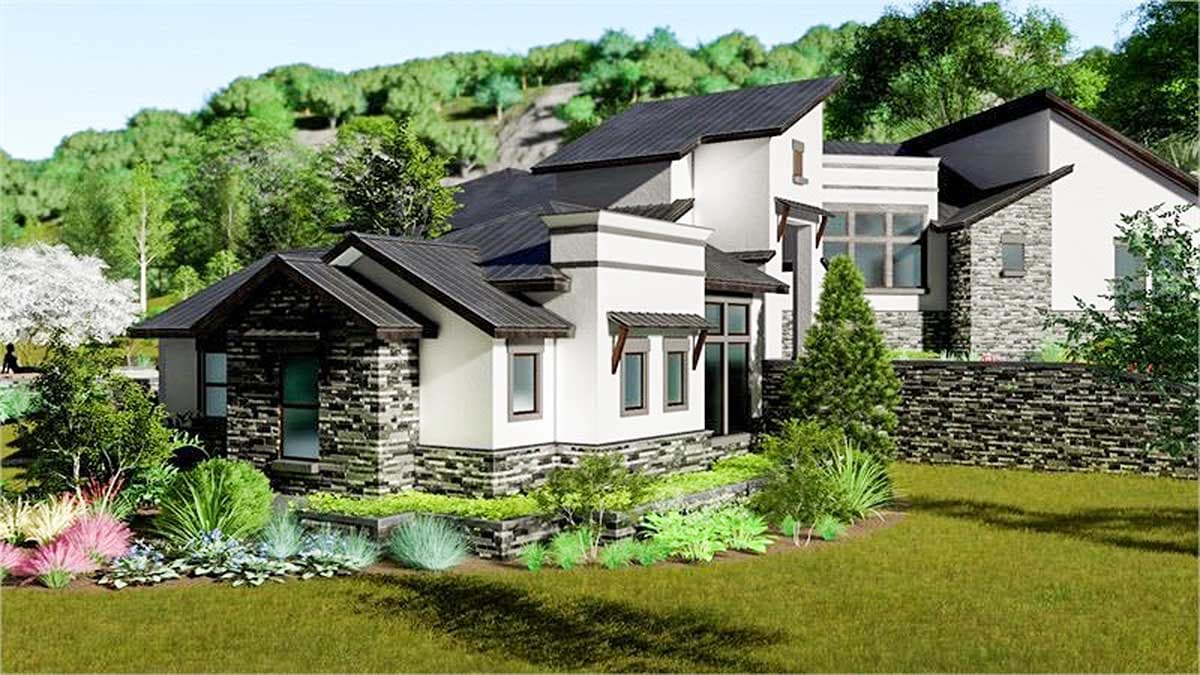

Plan 54017LK Inspired Contemporary House Plan

3,010 3-4 3.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Inspired Contemporary House Plan

Plan 54017LK

  • 3,010

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This unique Contemporary house plan offers multi-level living with a modern vibe.
  • The stand-alone foyer leads up on the right to the main living area or down on the left to a bedroom wing with an optional game room with deck.

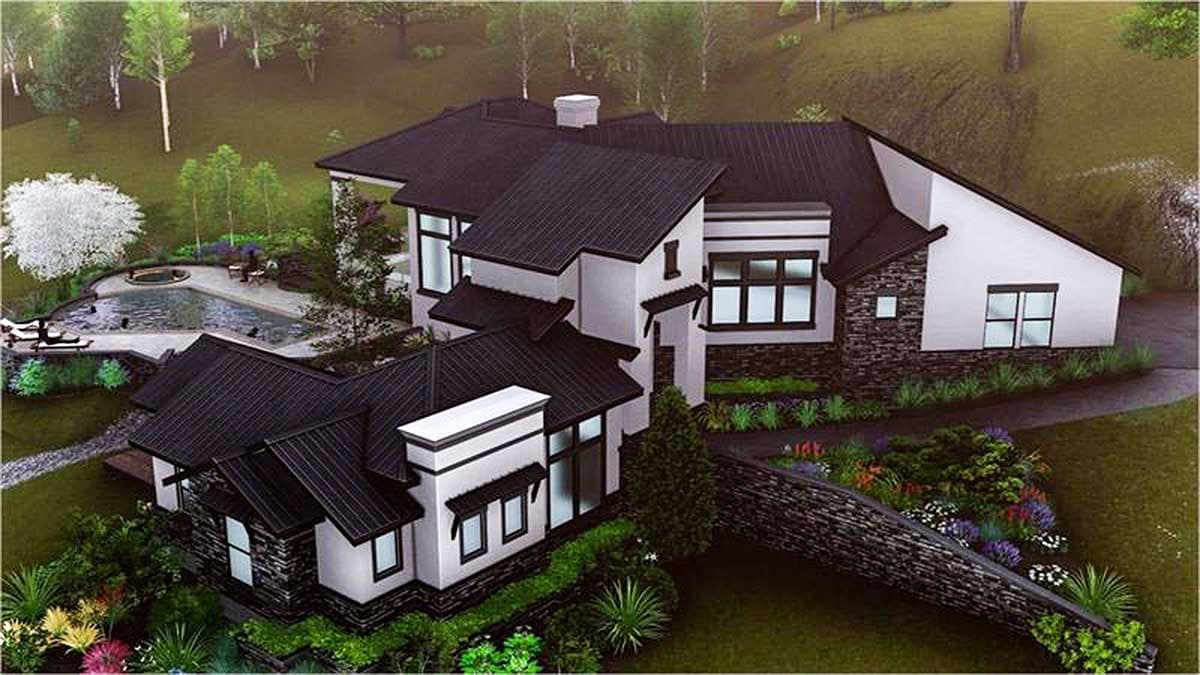

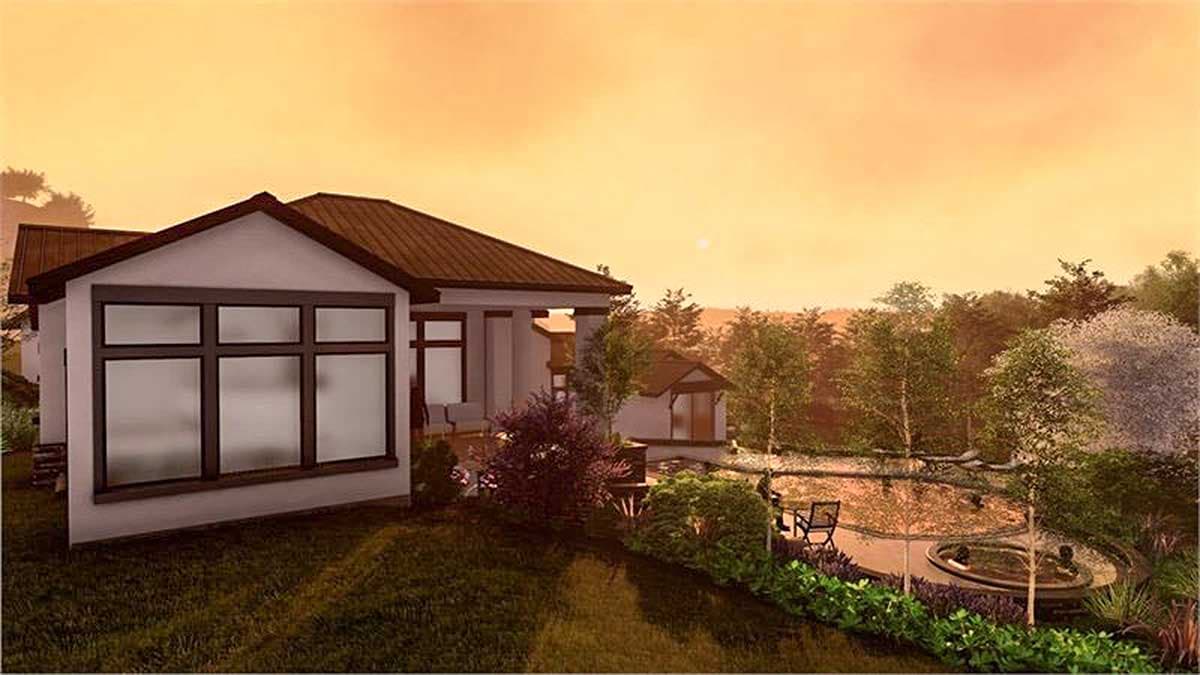

  • Windows over look a lower yard and a raised yard with an area for a pool if desired.

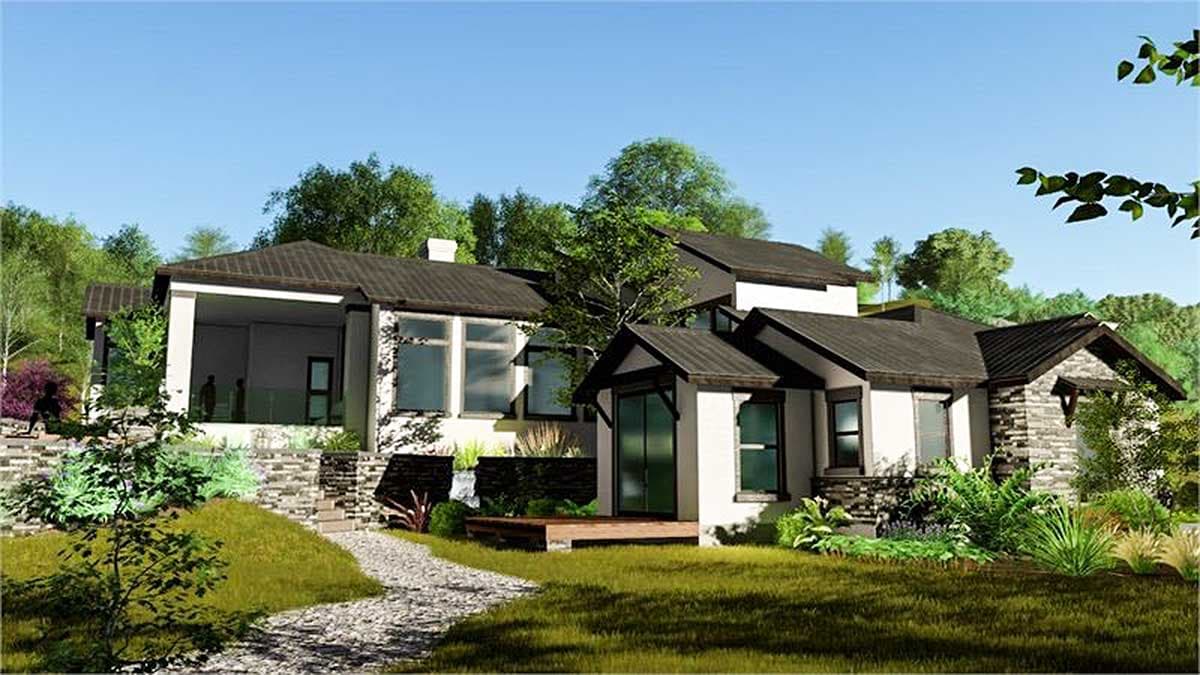

  • Views from the kitchen look back thru the 12' high dining room and great room to a covered porch that overlooks the pool area.
  • A spectacular master suite is set off by itself and offers beams on the ceiling, a huge spa-like bathroom and a walk-in closet with a door directly to the laundry room.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
  • ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
  • BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
  • INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
  • NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Inspired Contemporary House Plan - 54017LK floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,010 sq. ft.
  • 1st Floor: 3,010 sq. ft.
  • Covered Patio: 111 sq. ft.
  • Porch, Combined: 434 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 95' 2"
  • Depth: 98' 8"

Garage

  • Type: Attached
  • Area: 742 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Inspired Contemporary House Plan

  • 3,010

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,995
  • CAD - Single-Build $2,995
  • View all purchase option online

About This Plan

  • This unique Contemporary house plan offers multi-level living with a modern vibe.
  • The stand-alone foyer leads up on the right to the main living area or down on the left to a bedroom wing with an optional game room with deck.
  • Windows over look a lower yard and a raised yard with an area for a pool if desired.
  • Views from the kitchen look back thru the 12' high dining room and great room to a covered porch that overlooks the pool area.
  • A spectacular master suite is set off by itself and offers beams on the ceiling, a huge spa-like bathroom and a walk-in closet with a door directly to the laundry room.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,010 sq. ft.
  • 1st Floor: 3,010 sq. ft.
  • Covered Patio: 111 sq. ft.
  • Porch, Combined: 434 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 95' 2"
  • Depth: 98' 8"

Garage

  • Type: Attached
  • Area: 742 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Framing Type: Stick
Plan 54017LK
View this and more for this plan by visiting www.architechtecturaldesigns.com/54017LK
|
