Plan 720146DA

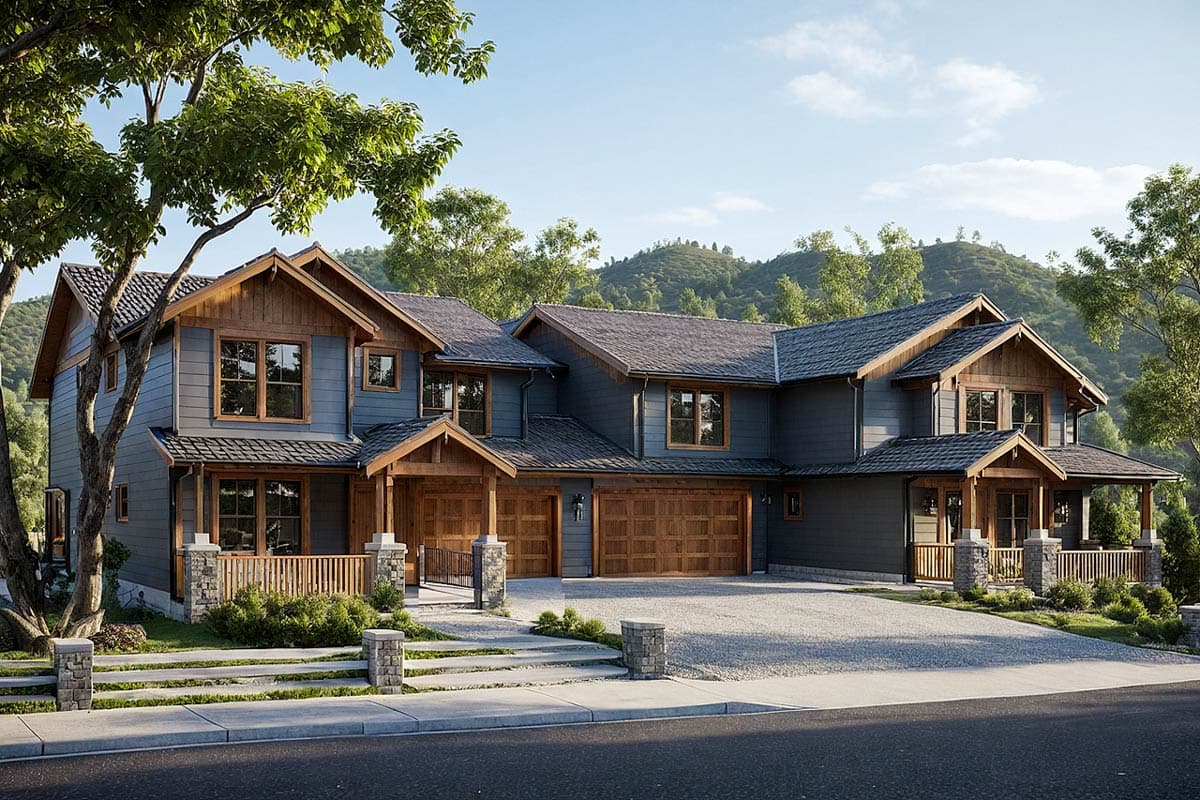

Inviting 8-Bedroom Craftsman Duplex House Plan with Dual Garages and Covered Porches

Heated S.F.
3,000
Units
2
Width
Depth

Floor Plan

Plan 720146DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 720146DA

M-F 9am-5pm EST |

1-203-761-8500

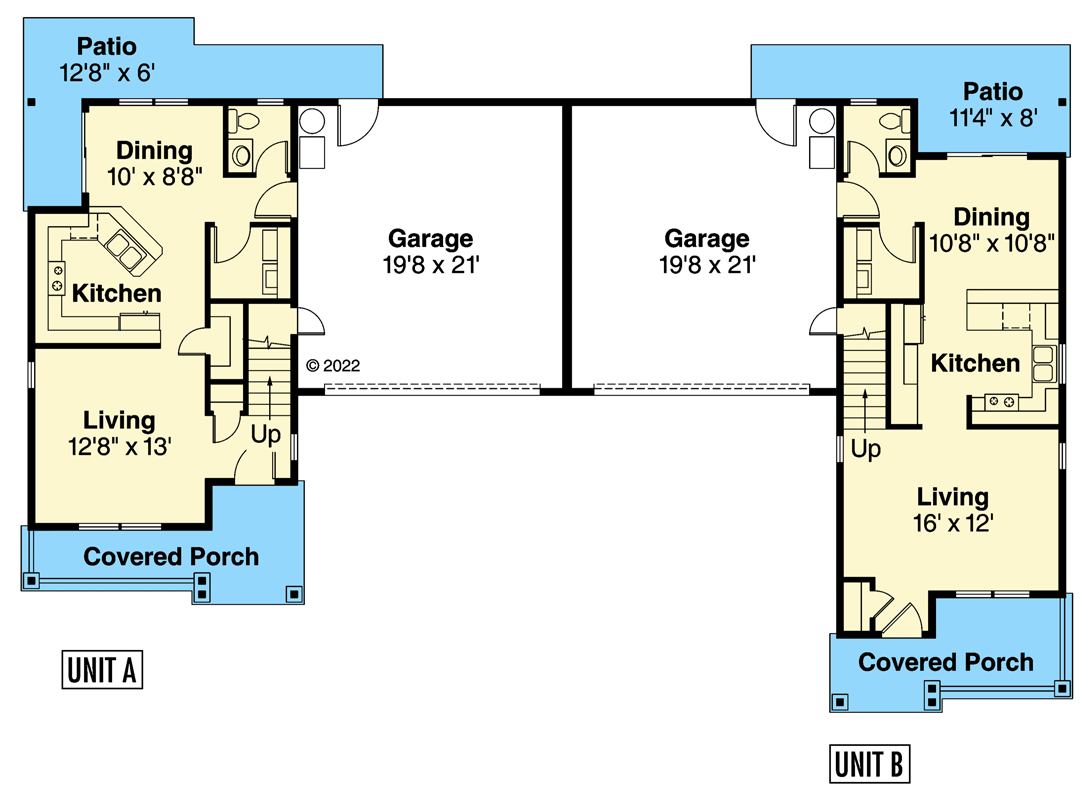

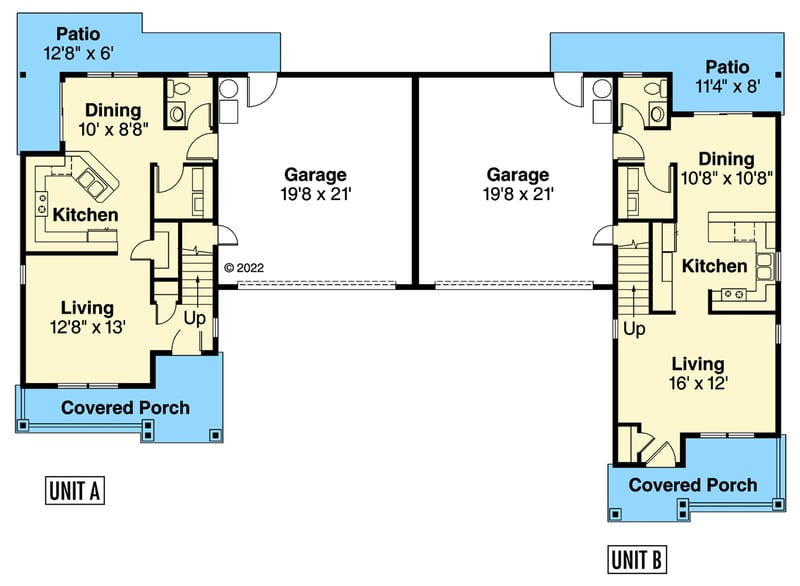

Main Level

Plan 720146DA: Inviting 8-Bedroom Craftsman Duplex House Plan with Dual Garages and Covered Porches - Floor Plan - Main Level - Cottage, Country, Craftsman, Traditional

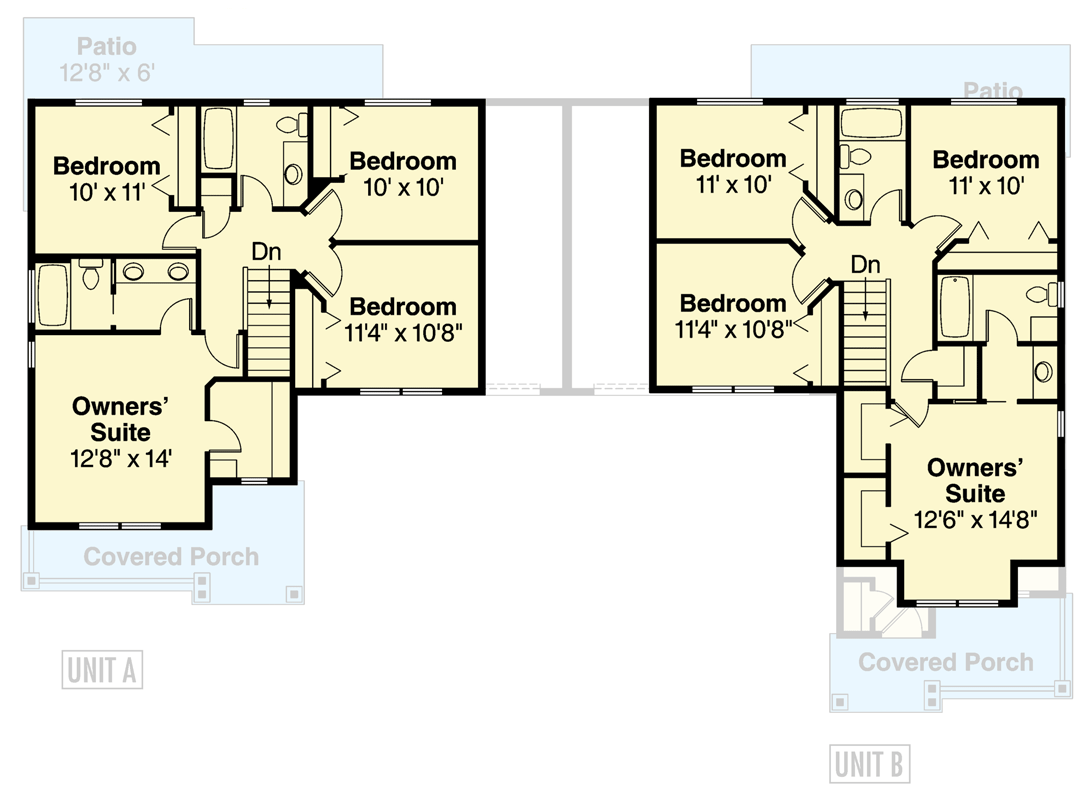

2nd Floor

Plan 720146DA: Inviting 8-Bedroom Craftsman Duplex House Plan with Dual Garages and Covered Porches - Floor Plan - 2nd Floor - Cottage, Country, Craftsman, Traditional

Plan Details

  • This Craftsman duplex house plan offers a combined 3,000 sq. ft. of heated living space across two units, featuring 8 bedrooms, 5 full bathrooms, 2 half bathrooms, and two attached 1-car garages totaling 880 sq. ft., all wrapped in a charming craftsman-inspired exterior.
  • Step into each inviting unit from a welcoming covered porch, where an open-concept living area immediately greets you, seamlessly connecting the living room, kitchen, and dining space for a fluid daily experience.
  • Each unit's main level features a well-appointed kitchen with an island, flowing directly into the dining area and a comfortable living room, creating an ideal setting for both intimate meals and larger gatherings. A convenient half-bath and main-level laundry enhance functionality.
  • The upper level of each unit hosts an expansive Owners' Suite, providing a private retreat with its own en-suite bathroom. This floor also accommodates three additional bedrooms and another full bathroom, thoughtfully arranged to offer comfort and privacy for all residents.
  • Each unit extends its living space outdoors with a charming covered front porch, perfect for enjoying morning coffee, and a private rear patio, offering a secluded spot for outdoor dining or dancing.
Unit A
Heated Area
1,488Sq. Ft.
587 Sq. Ft. 1st
901 Sq. Ft. 2nd
Beds
4Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
440 Sq. Ft.
Dimensions
1'width
1'depth
Unfinished Areas
440 Sq. Ft. Garage
Unit B
Heated Area
1,512Sq. Ft.
607 Sq. Ft. 1st
905 Sq. Ft. 2nd
Beds
4Beds
Baths
3Full Baths
1Half Bath
Cars
Attached
440 Sq. Ft.
Dimensions
1'width
1'depth
Unfinished Areas
440 Sq. Ft. Garage

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

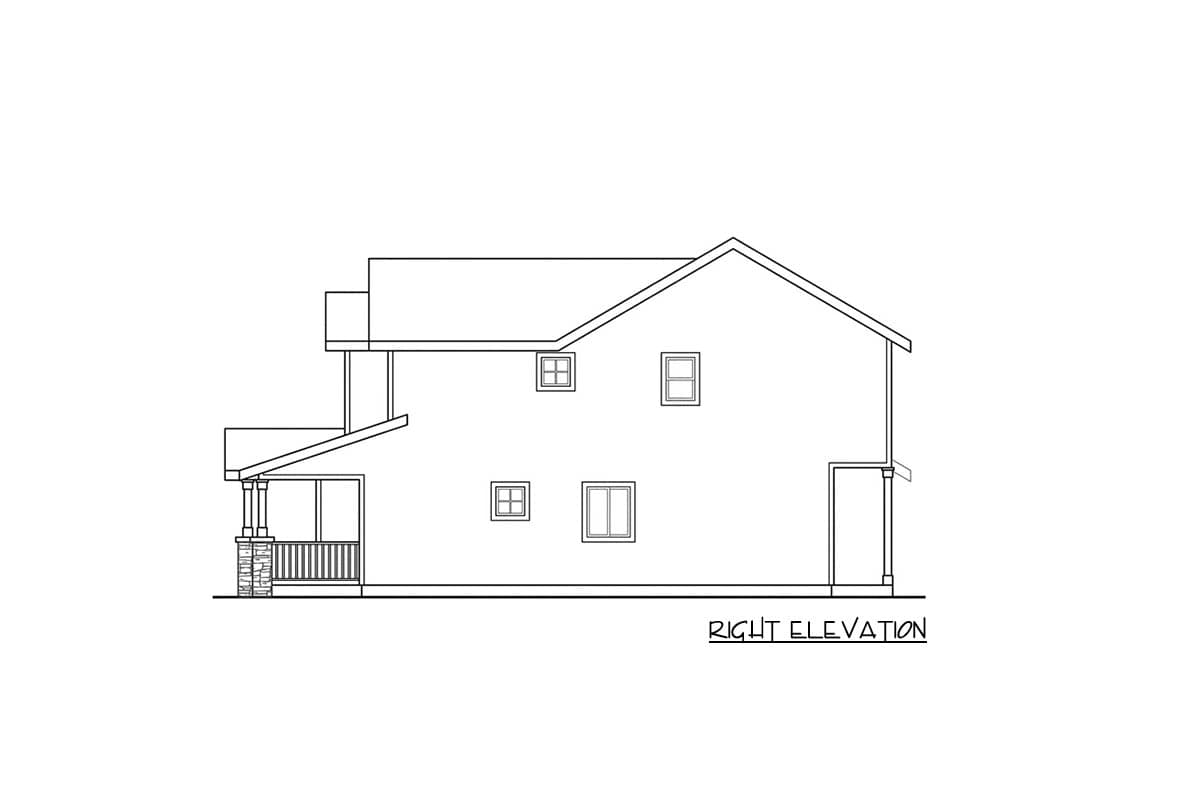

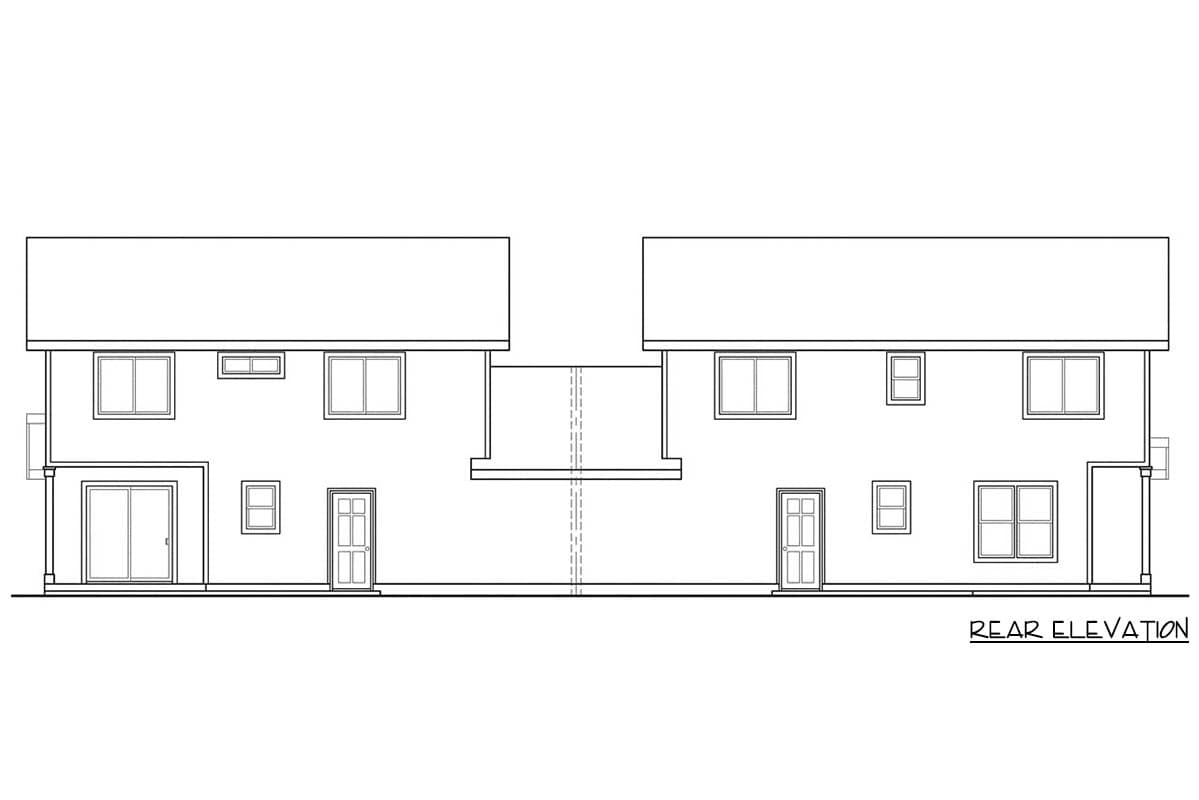

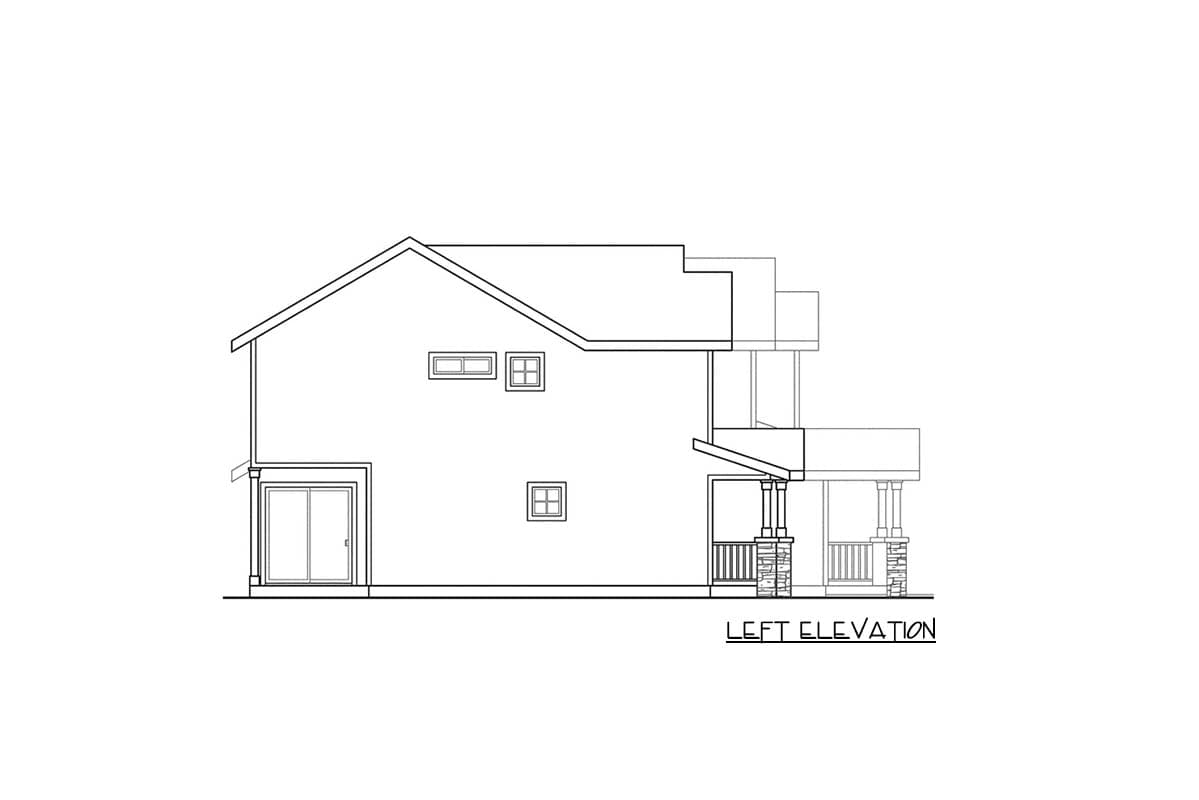

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,000 sq. ft.

1st Floor

1,194 sq. ft.

2nd Floor

1,806 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

5

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 0"

Depth

45' 0"

Max Ridge Height

25' 0"

Garage

Type

Standard, Attached

Area

880 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Craftsman

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

3,000 sq. ft.

1st Floor

1,194 sq. ft.

2nd Floor

1,806 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

5

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 0"

Depth

45' 0"

Max Ridge Height

25' 0"

Garage

Type

Standard, Attached

Area

880 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Craftsman

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - Upstairs
