Plan 28926JJ
EXCLUSIVE
Inviting and Exclusive Farmhouse with Flexible Loft Space
Heated S.F.
2,443
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

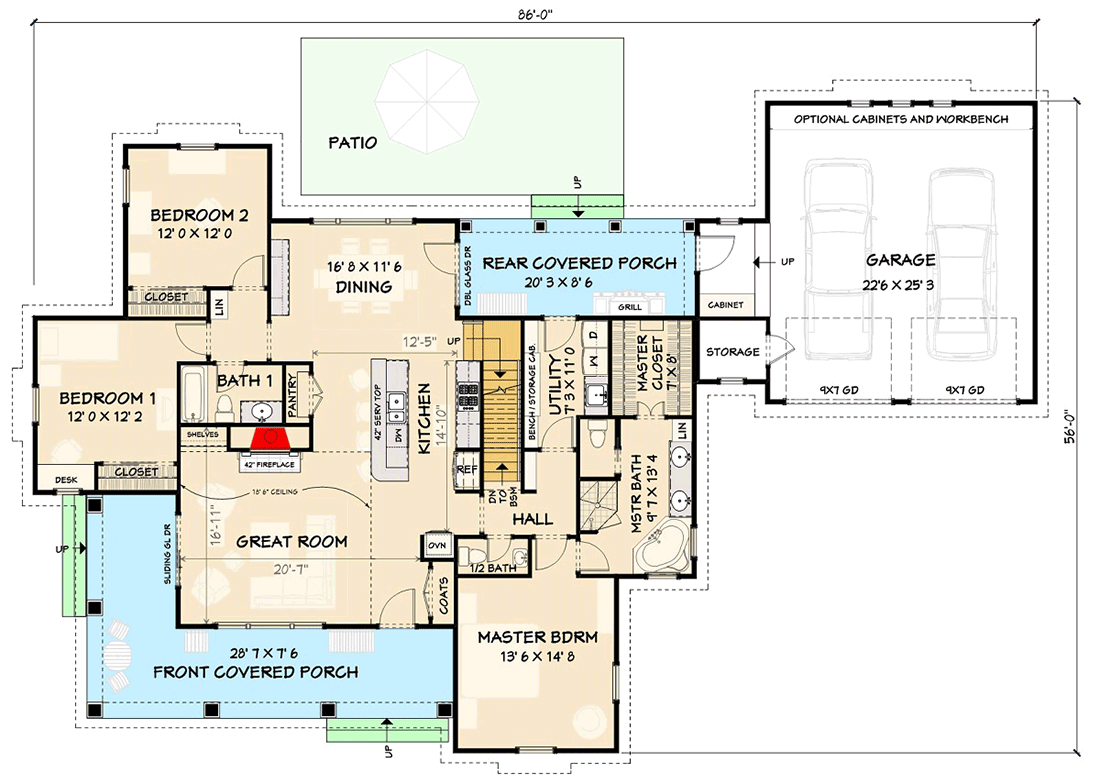

Main Level - Basement Version
Reverse Floor Plan
Inviting and Exclusive Farmhouse with Flexible Loft Space - 28926JJ floor plan - Main Level - Basement Version

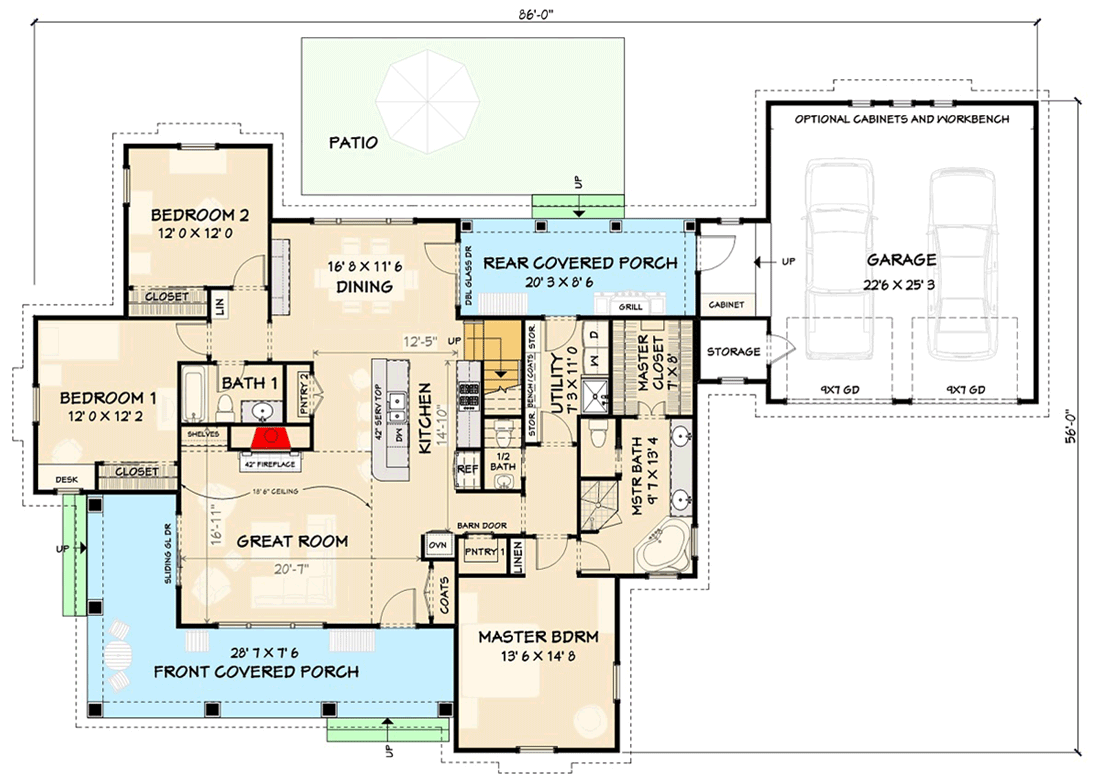

Main Level - Crawlspace Version
Reverse Floor Plan
Inviting and Exclusive Farmhouse with Flexible Loft Space - 28926JJ floor plan - Main Level - Crawlspace Version
Plan Details
  • An L-shaped porch graces the front of this exclusive modern farmhouse plan that comes complete with an attached 2-car garage.
  • Step inside and you enter an airy great room with high ceilings and a fireplace and flows into the kitchen and dining room. You can actually see all the way through the home from the front door.
  • The kitchen sink has two sections and a raised eating bar hides the dishwasher and gives you seating for casual meals.
  • The master bedroom is split from the two other first floor bedrooms and comes with a walk-in closet and close proximity to the laundry room.
  • In back, a rear porch is accessible from both the dining room and the utility room.

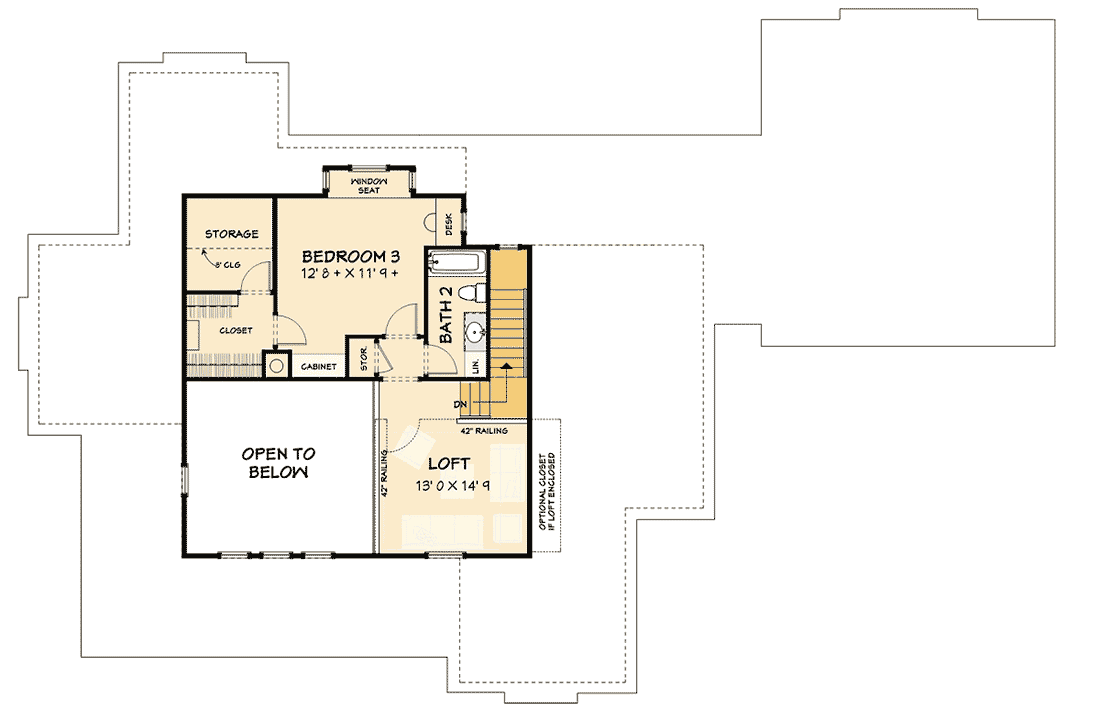

  • A very private fourth bedroom lies on the second floor and has a charming window seat and lots of closet and storage space.
  • The loft overlooks the vaulted great room below.
  • Related Plan: Get a smaller version with a detached garage with house plan 28919JJ (1,619 sq. ft.).
What's Included
This plan has 10 sheets as follows;
  1. Cover sheet with general notes
  2. First floor plan
  3. Second floor plan

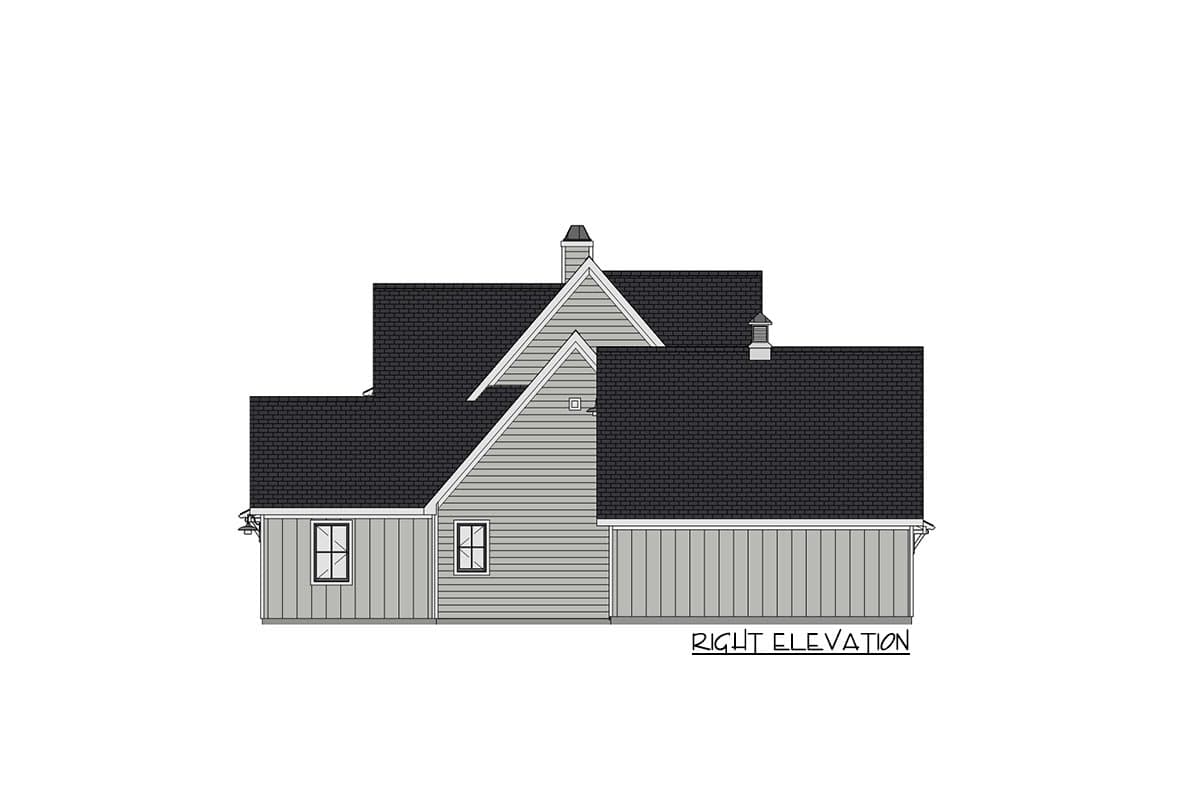

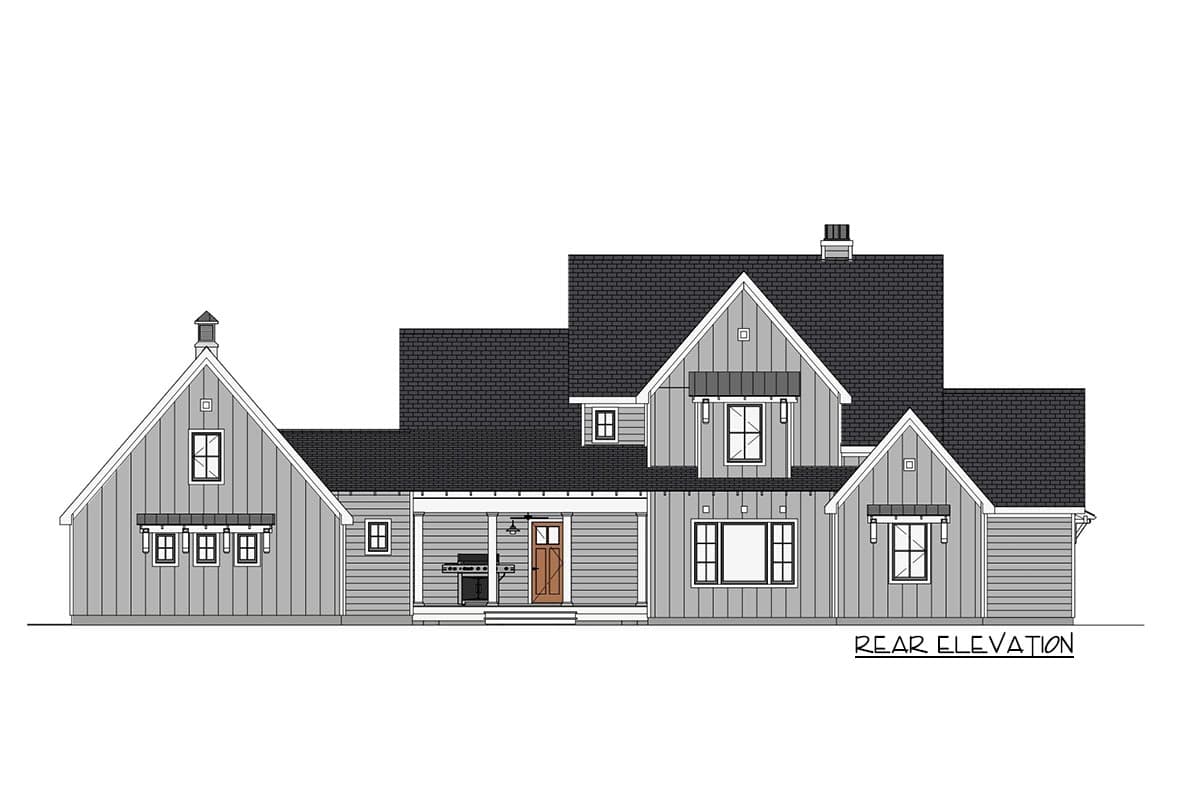

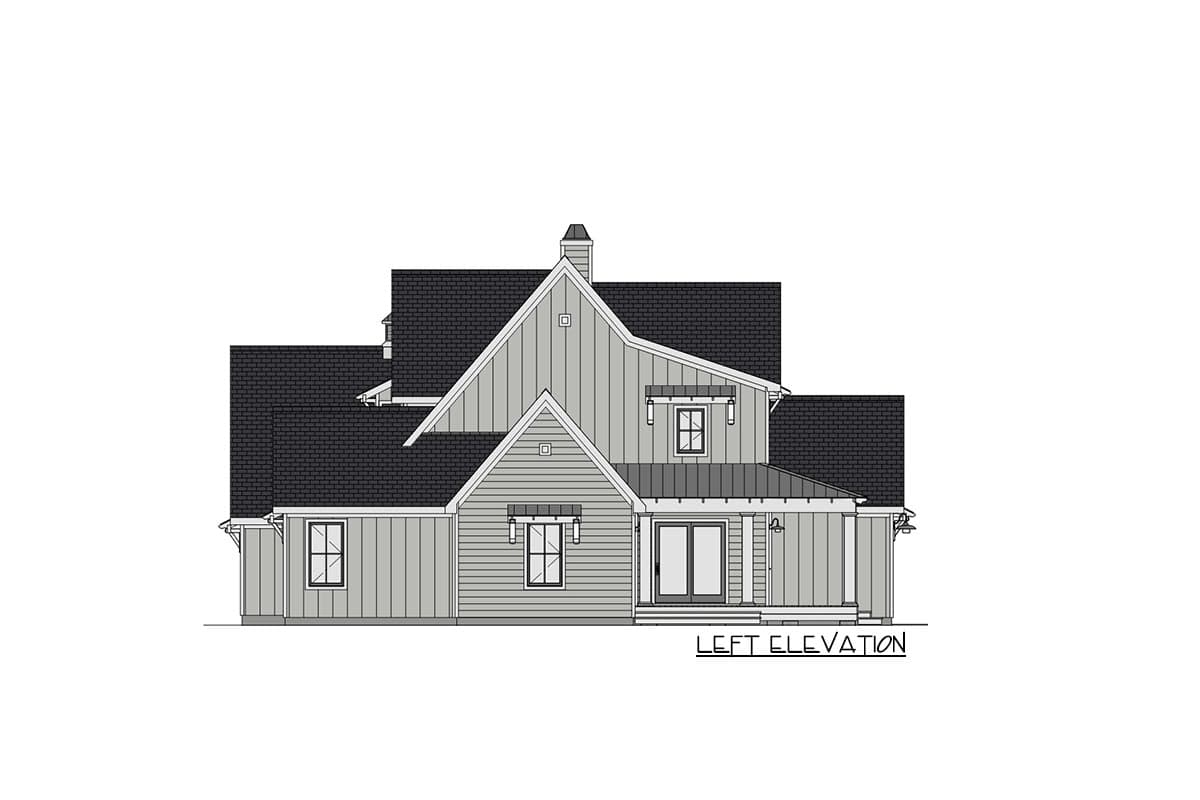

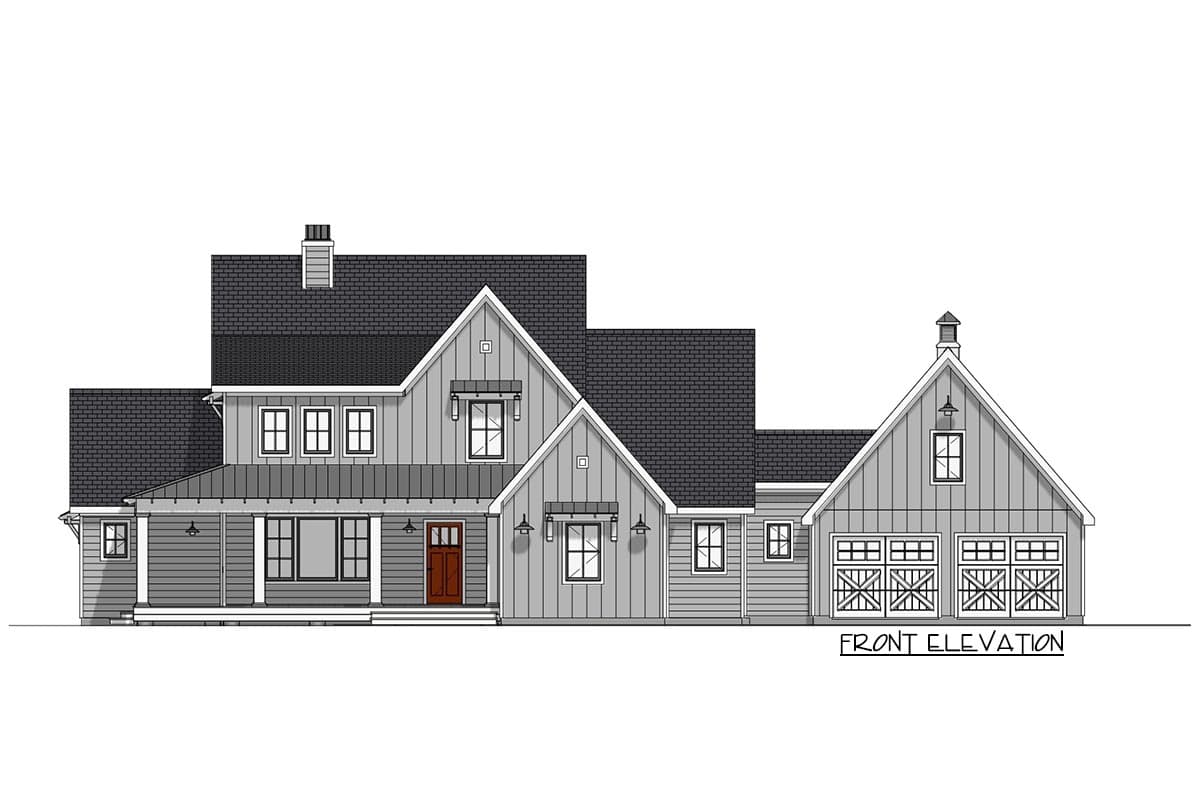

  4. Elevations
  5. Elevations and cross sections
  6. Cross sections
  7. Foundation plan
  8. Roof plan
  9. Lighting layout
  10. 3D interior drawings
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Inviting and Exclusive Farmhouse with Flexible Loft Space

  • 2,443

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level - Basement Version

  • 2nd Floor

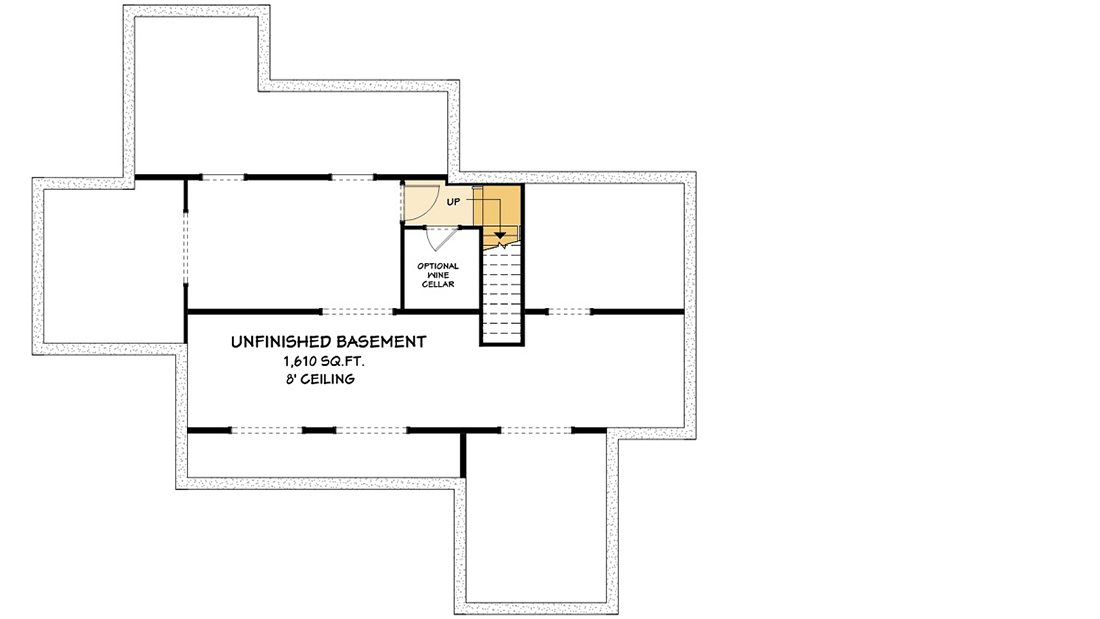

  • Basement

  • Main Level - Crawlspace Version

Plan Details

Square Footage Breakdown

  • Total: 2,443 sq. ft.
  • 1st Floor: 1,831 sq. ft.
  • 2nd Floor: 612 sq. ft.

Dimensions

  • Width: 86' 0"
  • Depth: 56' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 651 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Basement
    • Optional Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 4 On 12; 5 On 12; 6 on
  • Framing Type: Stick
