Inviting Country Ranch House Plan with Den and Workshop

Name: Plan 35290GH: Inviting Country Ranch House Plan with Den and Workshop
Brand: Architectural Designs
SKU: 35290GH
Price: 2525.0 USD
Availability: InStock

Heated S.F.

4,196

Beds

Baths

3.5

Stories

Cars

Floor Plan

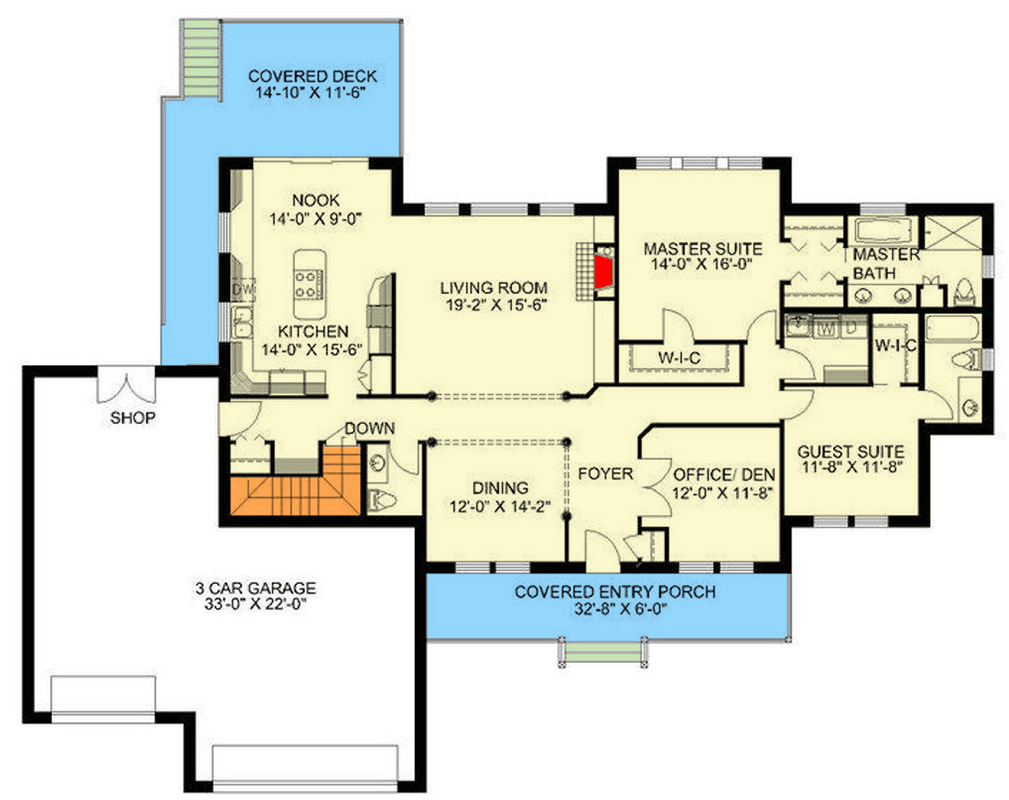

Main Level

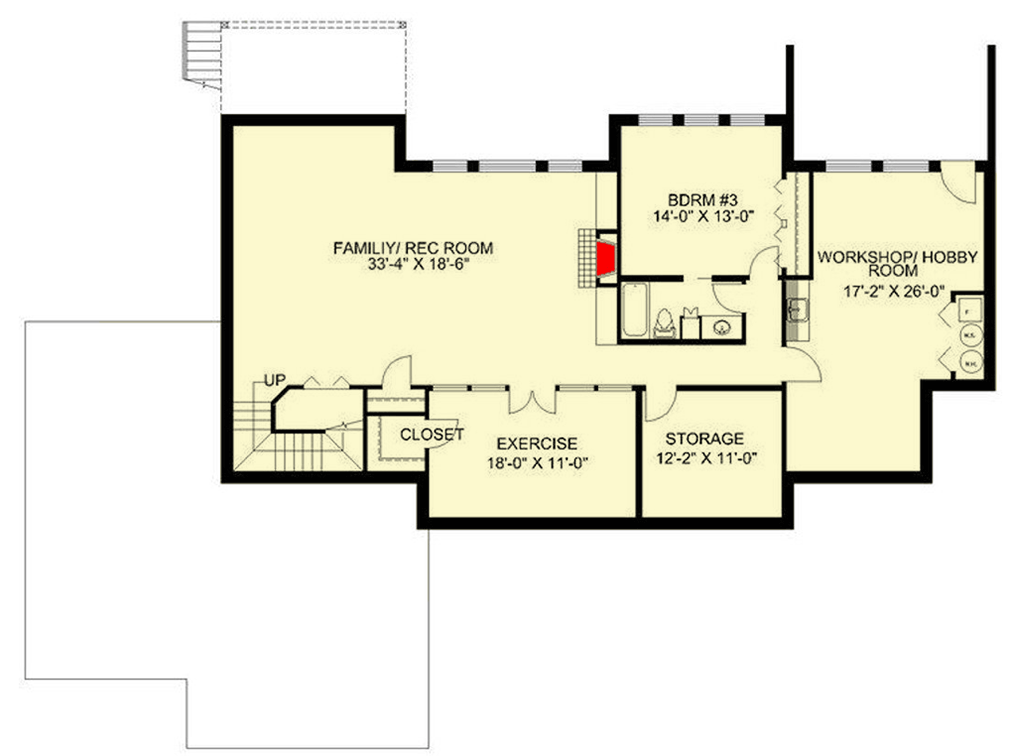

Lower Level

Plan Details

This charming Country Ranch house plan features a classic exterior with green siding and stone accents, complemented by an inviting covered front porch and a two-car garage.
The entry welcomes you to a thoughtfully laid out single-story design, featuring distinct areas like a formal dining room and a versatile den or home office.
The main living areas offer a functional flow, including a dedicated breakfast nook for casual dining.
The first-floor master suite provides a private retreat, while secondary bedrooms are clustered for convenient family living.
Additional spaces cater to diverse needs, including a game or rec room, a dedicated playroom, a library or study, and a practical workshop.
An inviting covered front porch extends a warm welcome, perfect for enjoying quiet mornings or greeting guests.

What's Included

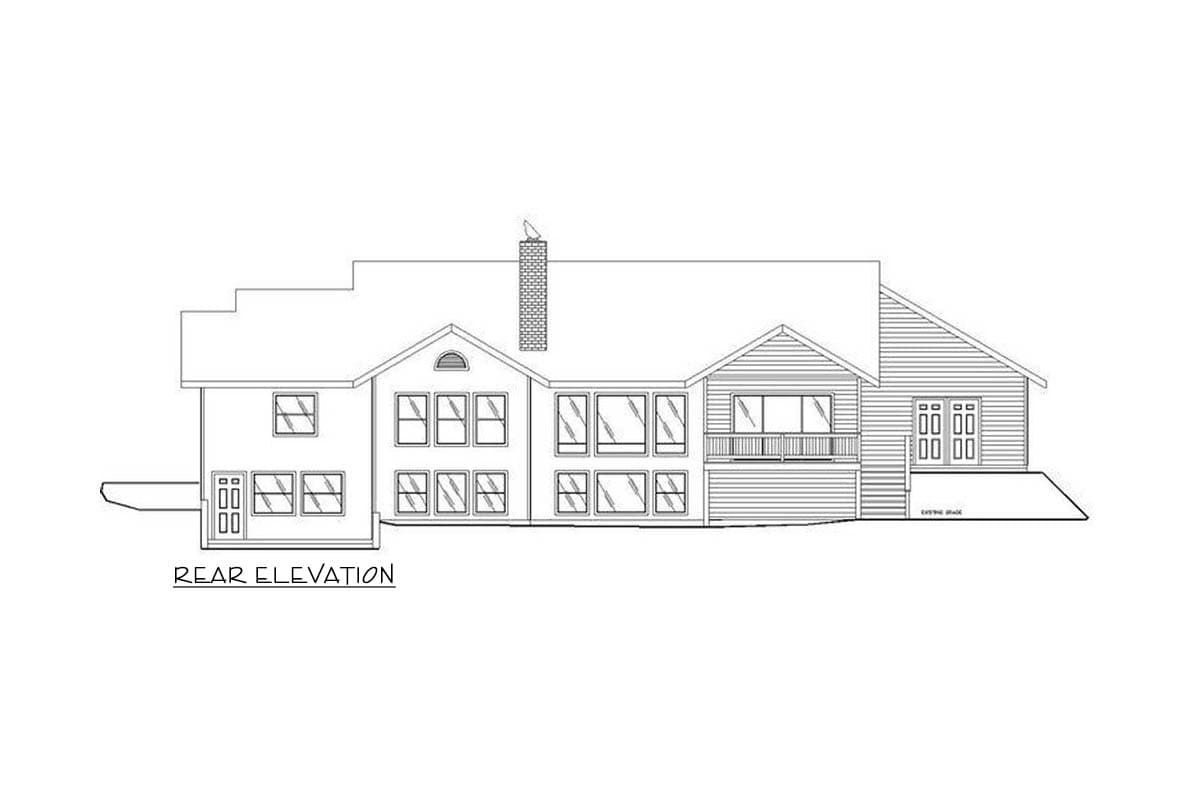

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
