Plan 72360DA

Inviting Country Ranch House Plan with Open Concept and Split Bedrooms

Name: Plan 72360DA: Inviting Country Ranch House Plan with Open Concept and Split Bedrooms
Brand: Architectural Designs
SKU: 72360DA
Price: 1725.0 USD
Availability: InStock

Heated S.F.

1,328

Beds

2 - 3

Baths

Stories

Floor Plan

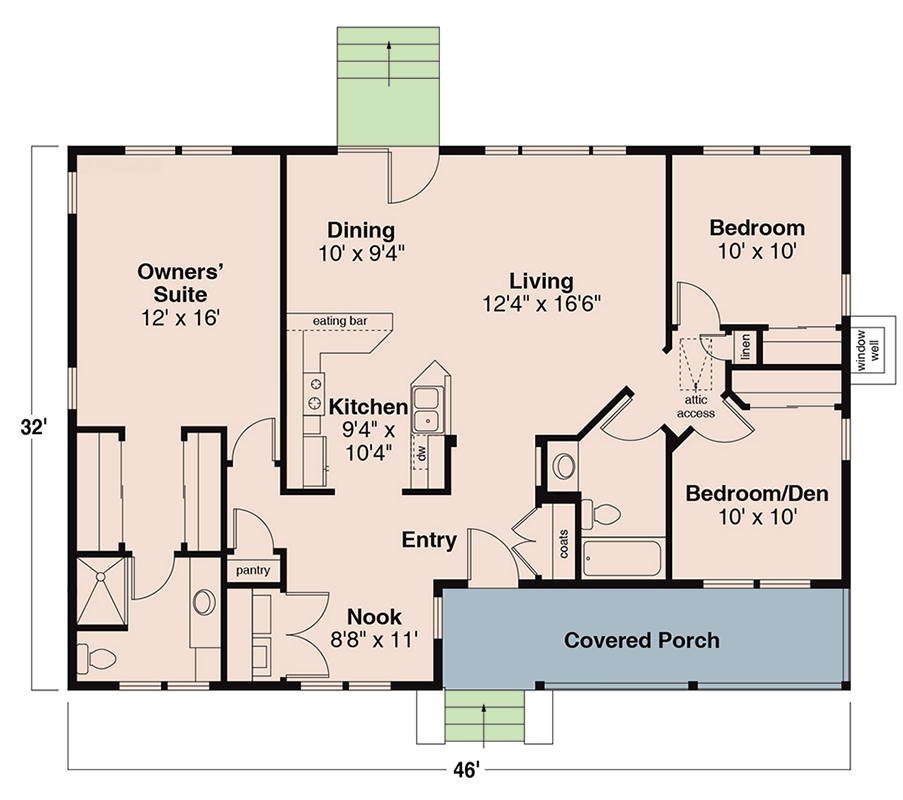

Main Level

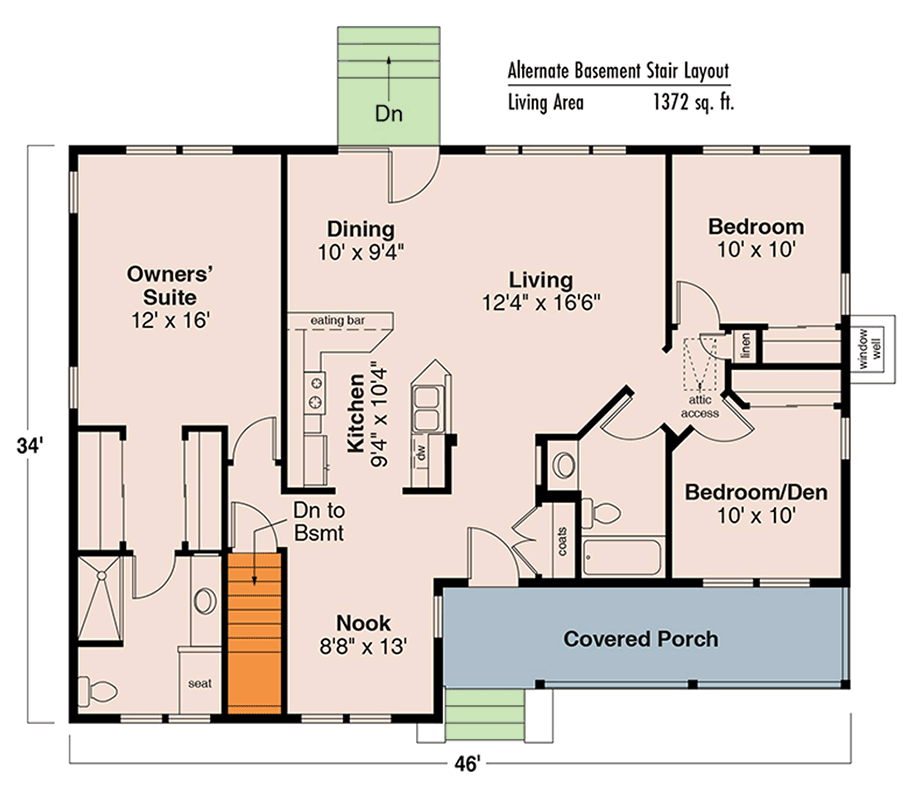

Basement Stairs Location

Plan Details

This charming 1,328 sq. ft. Country Ranch house plan features 2 to 3 bedrooms, 2 full bathrooms, and a classic white horizontal siding exterior with natural wood accents.
Step inside to discover an inviting, free-flowing layout where the living room, dining room, and kitchen seamlessly connect, fostering an expansive and airy atmosphere.

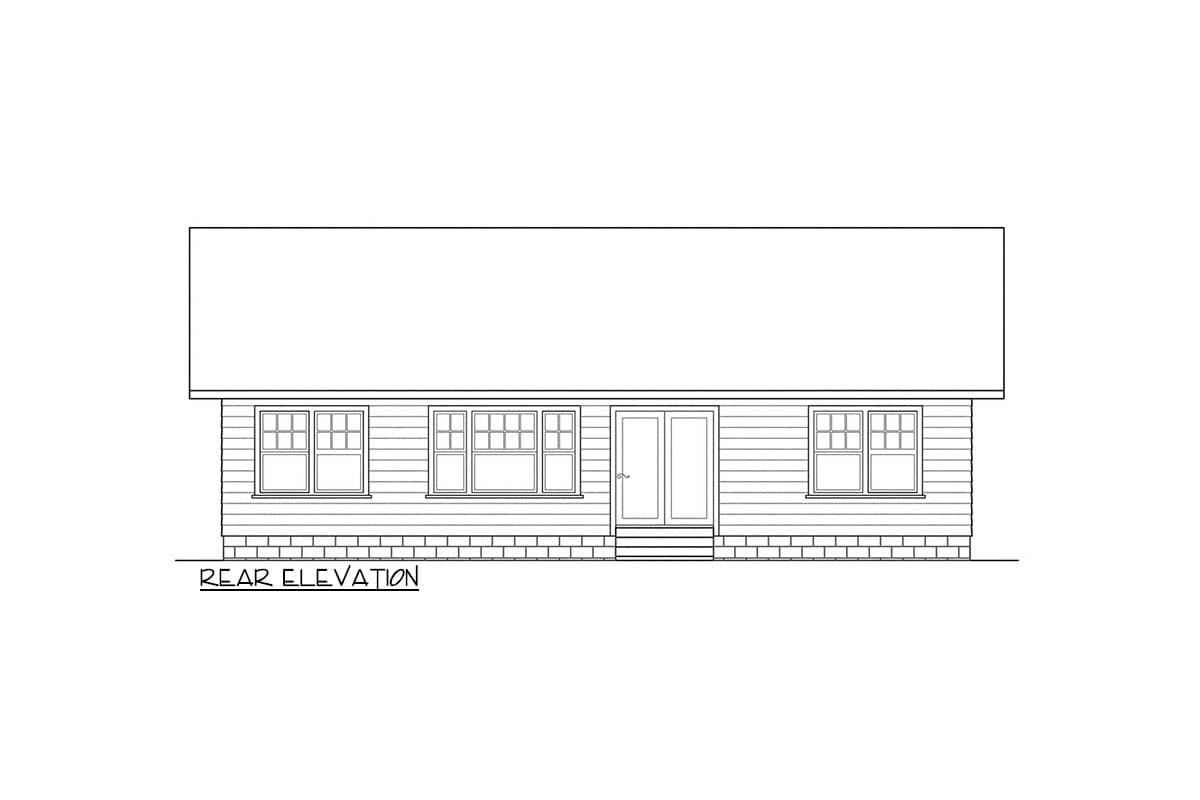

The open-concept design creates an effortless flow between the main living spaces, perfect for both daily life and gathering. The kitchen's breakfast nook is bathed in natural light from double windows with Craftsman-style panes, while the rear of the living and dining rooms open to the outdoors through three matching windows and two elegant atrium doors.
The private master suite, strategically located on the first floor and well-isolated, boasts ample natural light from double windows. It features a long, walk-through closet leading to a luxurious private bath complete with an oversized shower and built-in seat, offering a serene retreat away from the secondary bedrooms on the opposite side of the house.
A unique, long and narrow attic space, illuminated by windows at both ends, provides potential for additional storage or future customization, accessible via a pull-down ladder in the secondary bedroom hallway.
The welcoming front porch, supported by sturdy wooden posts and adorned with a classic railing, offers an ideal spot for morning coffee or evening relaxation, enhancing the home's curb appeal and connection to the landscaped surroundings.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

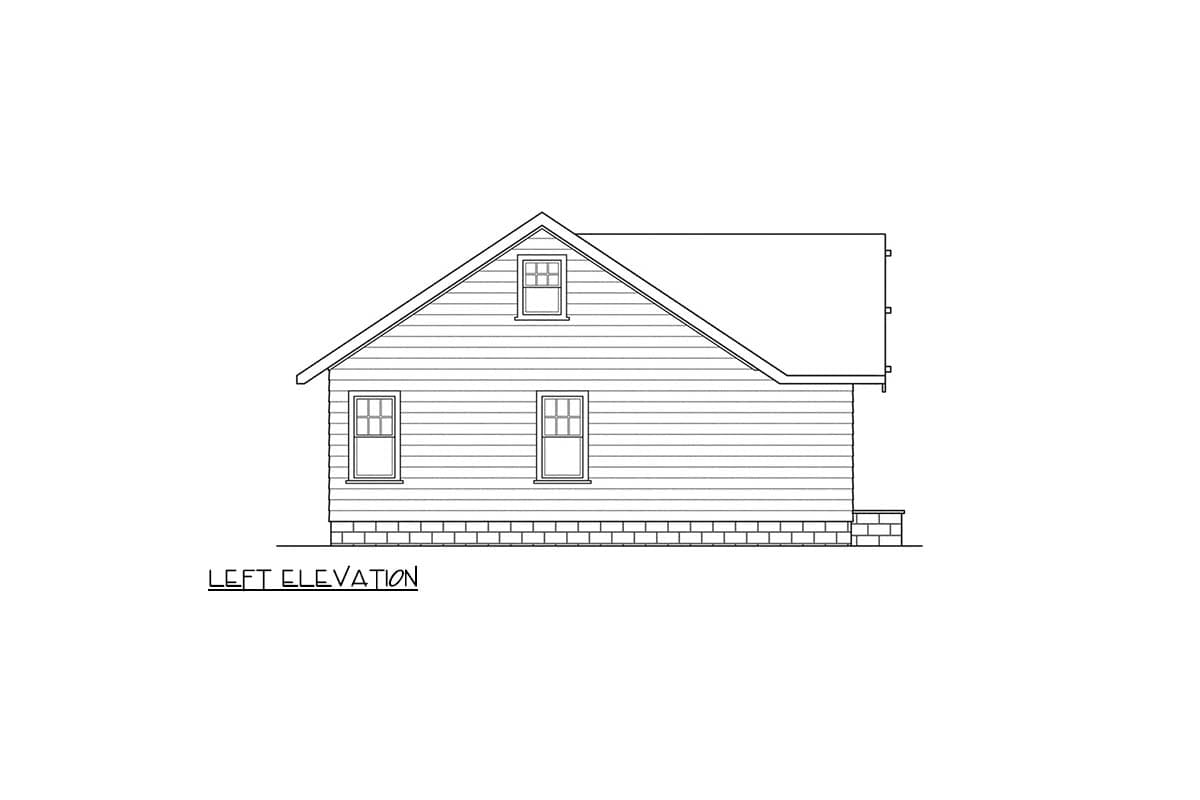

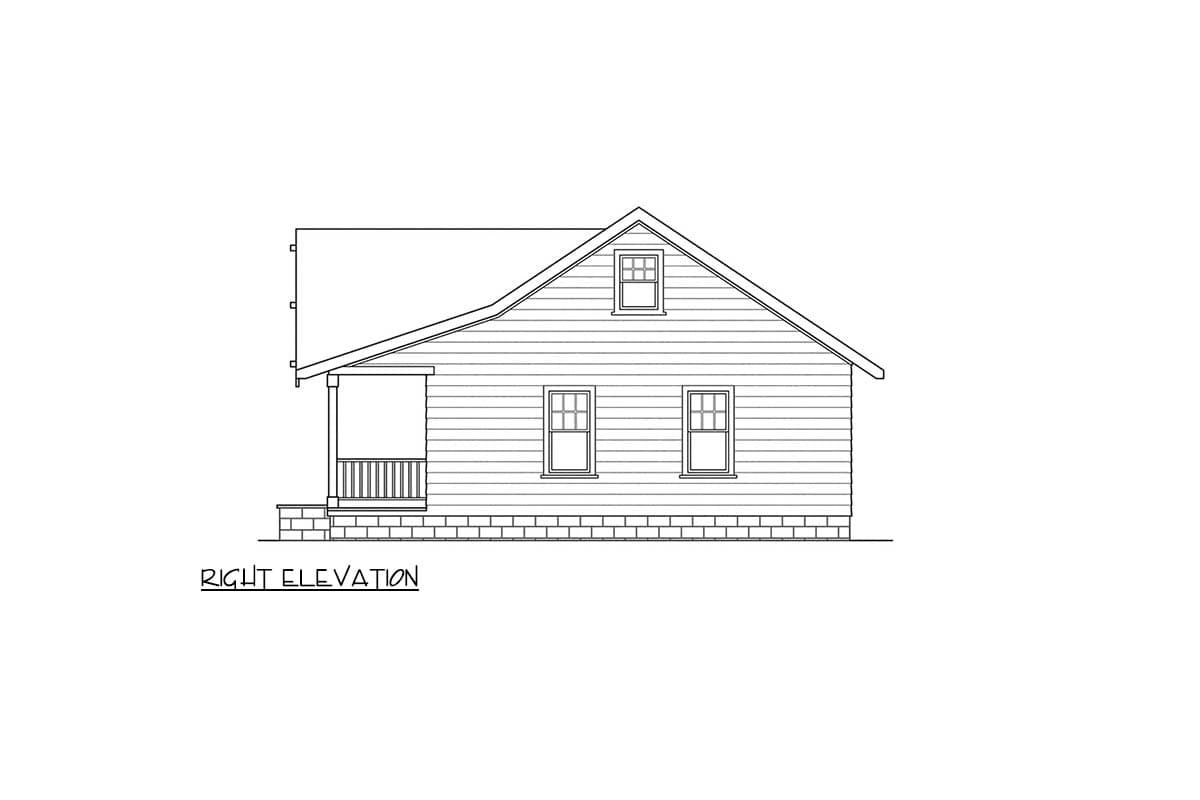

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
