Inviting Craftsman Cottage House Plan: 3 Beds, 2 Baths, Mudroom

Heated S.F.
1,196
Beds
3
Baths
2
Stories
1
Cars
2

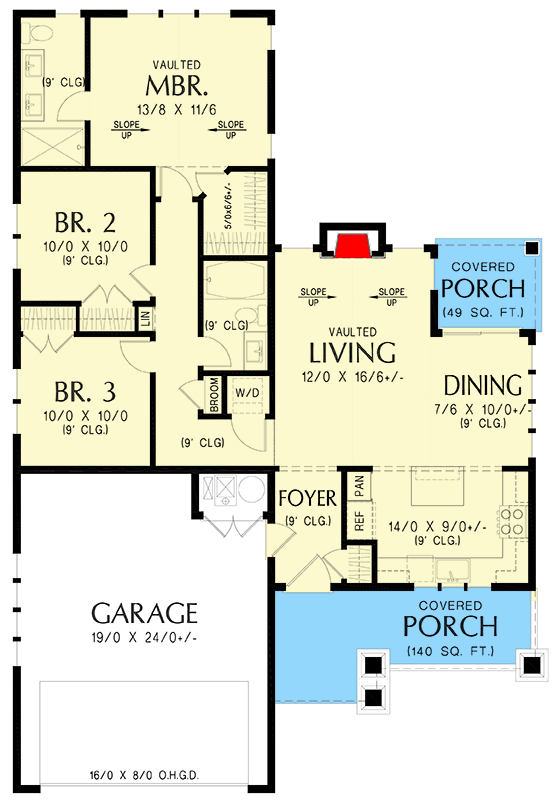

Floor Plan

Plan 69911AM

Main Level
Main Level

Plan 69911AM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 69911AM: Inviting Craftsman Cottage House Plan: 3 Beds, 2 Baths, Mudroom - Floor Plan - Main Level - Cottage, Craftsman, Ranch

Plan Details

  • This charming 1,196 sq. ft. Craftsman Cottage Ranch House Plan offers 3 bedrooms, 2 full bathrooms, and an attached 486 sq. ft. two-car garage, exuding timeless curb appeal.
  • Upon entering, discover a thoughtfully designed layout that balances comfort and functionality. A convenient mudroom, a key special feature, offers a practical transition zone from the attached garage.
  • The main level is designed for effortless living, integrating essential amenities like a conveniently placed laundry area, simplifying daily routines.
  • The serene primary bedroom suite is ideally situated on the first floor, offering a private retreat. Secondary bedrooms are thoughtfully clustered, providing a cohesive and comfortable living arrangement for family or guests.
  • The inviting front porch, adorned with robust stone-clad columns, provides a charming spot for morning coffee or to greet neighbors, enhancing the home's curb appeal and connection to its surroundings.
  • For future expansion or personalized living, an optional basement foundation offers significant potential for additional finished living space, tailored to your evolving needs and lifestyle.
  • Related Plan: Get an alternate style and similar floor plan with house plan 69910AM (1,196 sq. ft.).

What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,196 sq. ft.

1st Floor

1,196 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

60' 0"

Max Ridge Height

20' 9"

Garage

Type

Standard, Attached

Area

486 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Craftsman

Ranch

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,196 sq. ft.

1st Floor

1,196 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

60' 0"

Max Ridge Height

20' 9"

Garage

Type

Standard, Attached

Area

486 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Craftsman

Ranch

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
