Plan 51277MM

Inviting Craftsman House Plan with Split Bedrooms and Flexible Office Space

Heated S.F.
1,502
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 51277MM

Main Level
Main Level

Plan 51277MM

M-F 9am-5pm EST |

1-203-761-8500

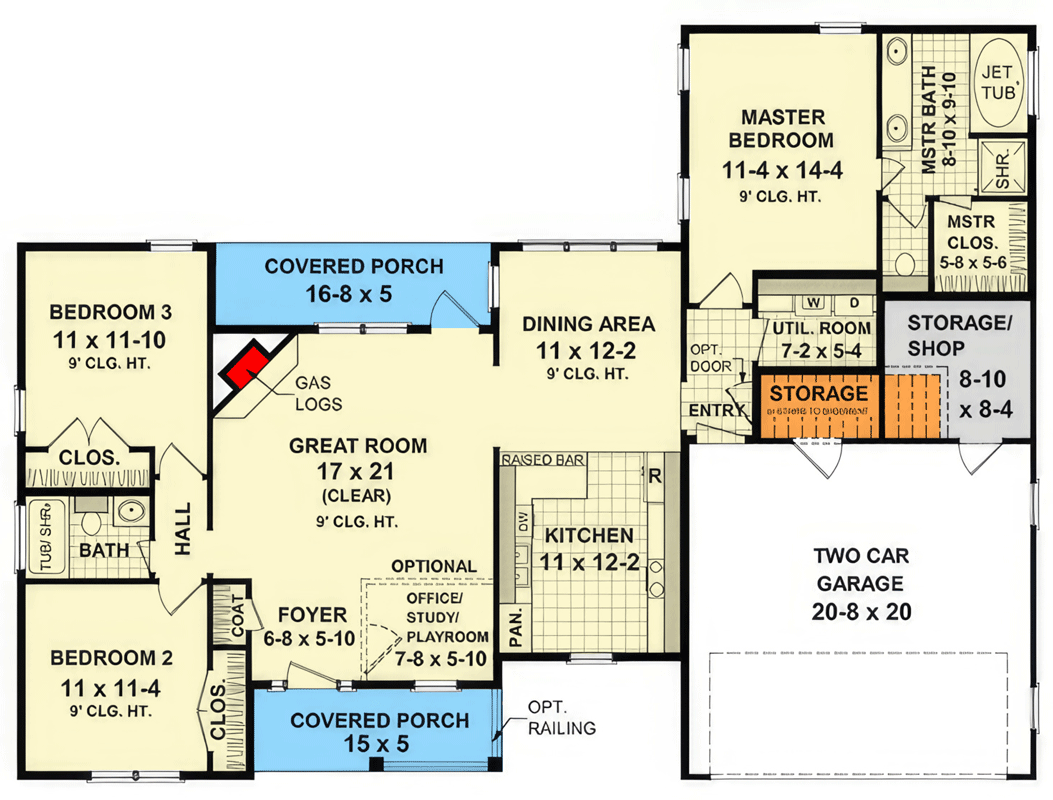

Main Level

Plan 51277MM: Inviting Craftsman House Plan with Split Bedrooms and Flexible Office Space - Floor Plan - Main Level - Country, Craftsman, Ranch

Plan Details

  • This charming 1,502 sq. ft. Craftsman house plan offers 3 bedrooms, 2 full bathrooms, and an attached 2-car garage spanning 431 sq. ft.
  • Step inside from the inviting 75 sq. ft. covered front porch into a welcoming foyer, which opens directly into an expansive great room, forming the heart of this open-concept home. A versatile flex space, perfect as a home office, study, or playroom, is conveniently located near the entry.
  • The great room flows seamlessly into the dining area and a well-appointed kitchen, creating an ideal environment for daily living and casual gatherings. The kitchen features a practical island with a raised bar, offering additional seating and preparation space, and a dedicated pantry.
  • The thoughtful split-bedroom layout places the luxurious master suite on one side of the home, featuring a spacious bedroom with a 9-foot ceiling, two walk-in closets, and a spa-like master bath complete with a jet tub and separate shower. Two additional bedrooms, also with 9-foot ceilings, are situated on the opposite side, sharing a full bathroom for privacy and comfort.
  • A dedicated storage room or workshop, conveniently located off the garage and utility room, provides ample space for hobbies, tools, or household essentials.
  • Enjoy tranquil mornings or evenings on the generous covered front porch, or retreat to the private 83 sq. ft. rear covered porch for outdoor relaxation.
  • This plan includes an expansive 1,613 sq. ft. unfinished basement, offering significant potential for future expansion and customization to suit your lifestyle needs.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

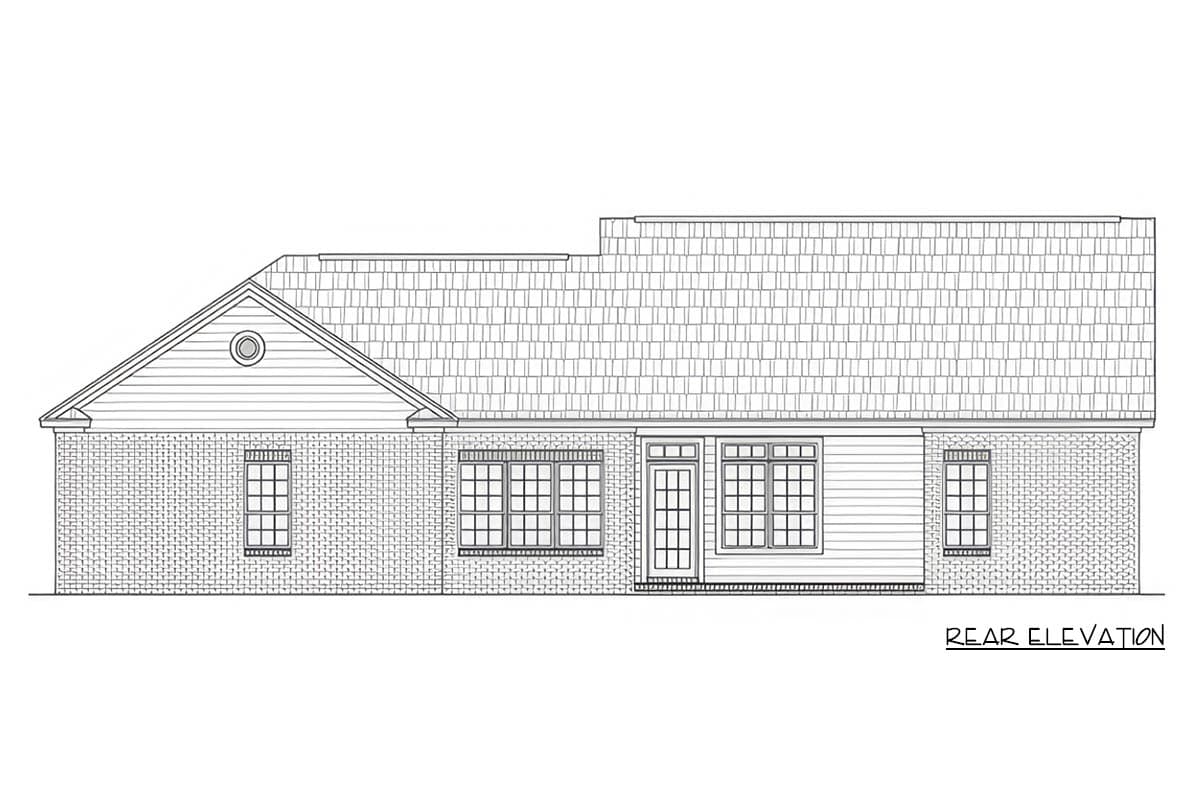

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,502 sq. ft.

1st Floor

1,502 sq. ft.

Basement Unfinished

1,613 sq. ft.

Porch, Front

75 sq. ft.

Porch, Rear

83 sq. ft.

Storage

110 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

61' 8"

Depth

45' 8"

Max Ridge Height

22' 3"

Garage

Type

Attached

Area

431 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Playroom

Workshop

Square Footage Breakdown

Total Heated Area

1,502 sq. ft.

1st Floor

1,502 sq. ft.

Basement Unfinished

1,613 sq. ft.

Porch, Front

75 sq. ft.

Porch, Rear

83 sq. ft.

Storage

110 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

61' 8"

Depth

45' 8"

Max Ridge Height

22' 3"

Garage

Type

Attached

Area

431 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Playroom

Workshop
