Plan 720159DA

Inviting Craftsman Ranch House Plan: 3 Beds, 2.5 Baths, 1,867 Sq Ft

Name: Plan 720159DA: Inviting Craftsman Ranch House Plan: 3 Beds, 2.5 Baths, 1,867 Sq Ft
Brand: Architectural Designs
SKU: 720159DA
Price: 1538.92 USD
Availability: InStock

Heated S.F.

1,867

Beds

Baths

2.5

Stories

Cars

Floor Plan

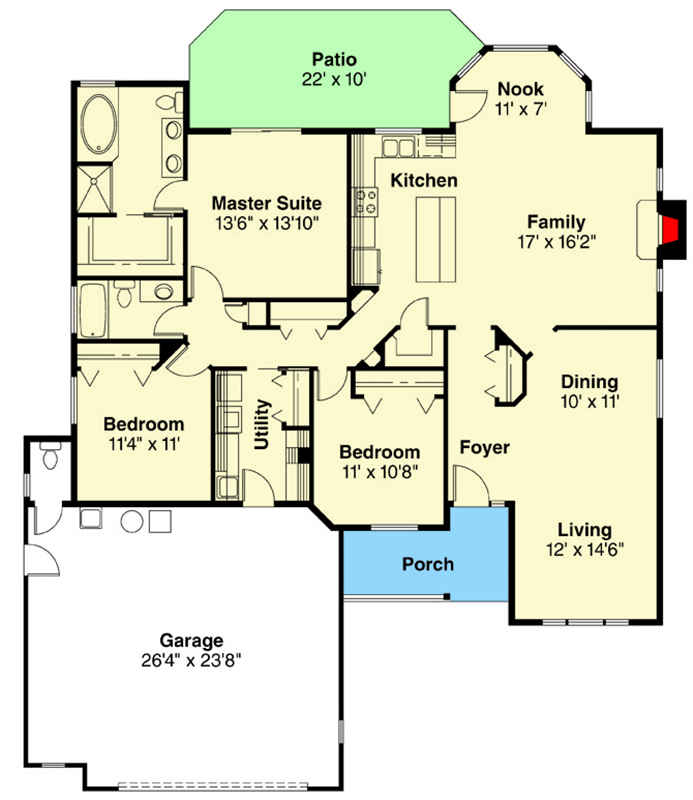

Main Level

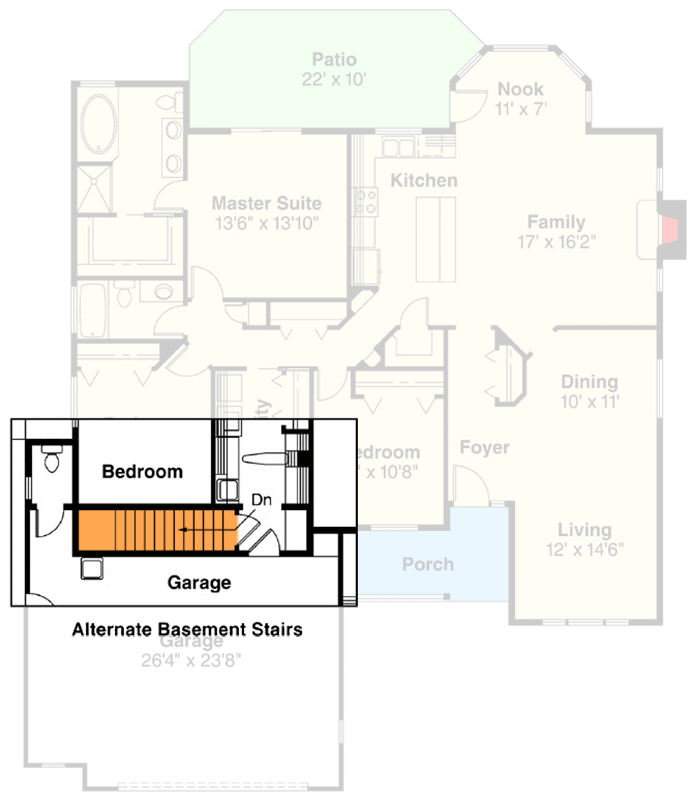

Basement Stairs Location

Plan Details

This charming 1,867 sq. ft. Craftsman Ranch house plan features 3 bedrooms, 2.5 bathrooms, and an attached 658 sq. ft. 2-car garage, all wrapped in a timeless blend of Craftsman and Traditional styling with inviting stone accents.
Upon entering, a welcoming foyer immediately opens into the heart of the home, revealing an open-concept layout that seamlessly connects living spaces, ideal for both daily life and special gatherings.
The main living areas flow effortlessly from the spacious great room to a well-appointed kitchen, complete with a breakfast nook for casual meals, and a dedicated formal dining area perfect for elegant entertaining. A main-level laundry room ensures convenience.
The private master suite, conveniently located on the first floor, offers a serene retreat, while the secondary bedrooms are thoughtfully clustered, providing a comfortable and cohesive living arrangement for family or guests.
A practical mudroom is strategically placed for easy access from the garage, offering essential storage and organization to keep the home tidy.
The inviting front porch, adorned with classic railing, provides a perfect spot for morning coffee or greeting neighbors, enhancing the home's curb appeal and connection to the outdoors.
Related Plan: Get the universal design version of this plan designed for accessibility with house plan 720156DA (2,002 sq. ft.).

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
