Plan 51267MM

Inviting Craftsman Ranch House Plan with Split Beds and Dual Covered Porches

Heated S.F.
1,600
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 51267MM

Main Level
Main Level

Plan 51267MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

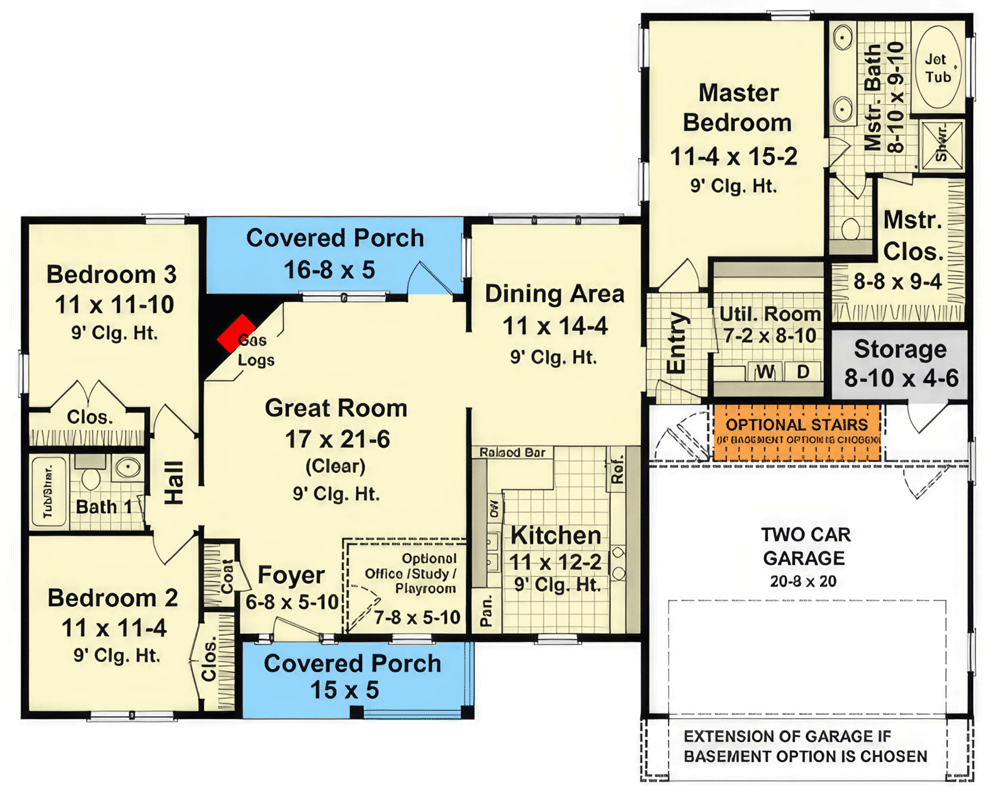

Plan 51267MM: Inviting Craftsman Ranch House Plan with Split Beds and Dual Covered Porches - Floor Plan - Main Level - Country, Craftsman, Ranch, Traditional

Plan Details

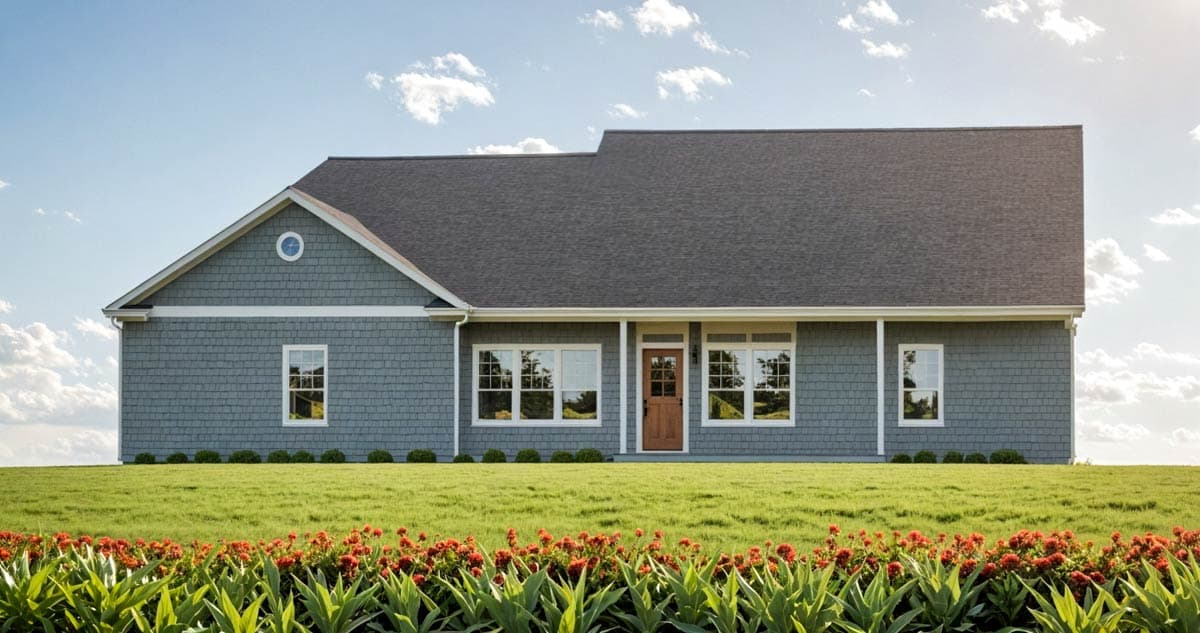

  • This Craftsman-style ranch house plan offers 1,600 sq. ft. of thoughtfully designed living space, featuring 3 bedrooms, 2 full bathrooms, and an attached 430 sq. ft. two-car garage.
  • Step through the welcoming front door from the covered porch into a bright foyer, revealing an immediate sense of spaciousness as it flows seamlessly into the expansive open-concept great room, perfect for everyday living and quiet relaxation.
  • The heart of the home centers around the generously sized great room, complete with cozy gas logs, which effortlessly transitions into the dining area and a well-appointed kitchen featuring a practical raised bar and a pantry for ample storage.
  • Experience ultimate privacy with the split-bedroom layout, placing the luxurious master suite on one side of the home. This serene retreat boasts a spacious bedroom with a 9-foot ceiling, an indulgent master bath with a jet tub and separate shower, and a large walk-in closet. Two additional comfortable bedrooms and a full bath are thoughtfully located on the opposite side, providing ideal separation for family or guests.
  • The master suite thoughtfully includes direct access to a functional utility room and additional storage, streamlining daily chores and maintaining an organized household.
  • Enjoy the outdoors from two distinct covered porches: a charming 75 sq. ft. front porch for welcoming guests and a more secluded 83 sq. ft. rear covered porch, offering a private oasis for al fresco dining or simply unwinding amidst nature.
  • For future expansion, this plan includes the option for an unfinished basement, accessible via optional interior stairs, providing a vast 1,728 sq. ft. canvas ready to be customized into additional living areas, a home gym, or extensive storage to suit your evolving needs. An extension of the garage is also possible if the basement option is chosen.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,600 sq. ft.

1st Floor

1,600 sq. ft.

Basement Unfinished

1,728 sq. ft.

Porch, Front

75 sq. ft.

Porch, Rear

83 sq. ft.

Storage

44 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

61' 8"

Depth

45' 8"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

430 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Closed Floor Plans
