Plan 41841DB

Inviting Northwest Bungalow

Pageloader

Inviting Northwest Bungalow

Plan 41841DB

  • 2,126

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • While this Bungalow house plan may look small, it has four bedrooms, two on each floor.
  • The long hallway takes you back to the big open two-story living area in back, passing by the elegant dining room on the way.
  • A built-in desk by the breakfast nook is an example of this home's clever design features.
  • Set in a quiet spot in back, the master suite is away from the other bedrooms.
  • A computer loft on the second floor keeps the computer out of the family room and within easy reach of the two bedrooms on this level.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



Inviting Northwest Bungalow

  • 2,126

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $655
  • PDF - single-use $995
  • 5 Sets $1,120
  • 5 Sets PLUS $1,165
  • 8 Sets $1,190
  • PDF - multi-use $1,495
  • CAD $1,741
  • CAD - multi-use $2,241
  • View all purchase option online

About This Plan

  • While this Bungalow house plan may look small, it has four bedrooms, two on each floor.
  • The long hallway takes you back to the big open two-story living area in back, passing by the elegant dining room on the way.
  • A built-in desk by the breakfast nook is an example of this home's clever design features.
  • Set in a quiet spot in back, the master suite is away from the other bedrooms.
  • A computer loft on the second floor keeps the computer out of the family room and within easy reach of the two bedrooms on this level.

Floor Plans

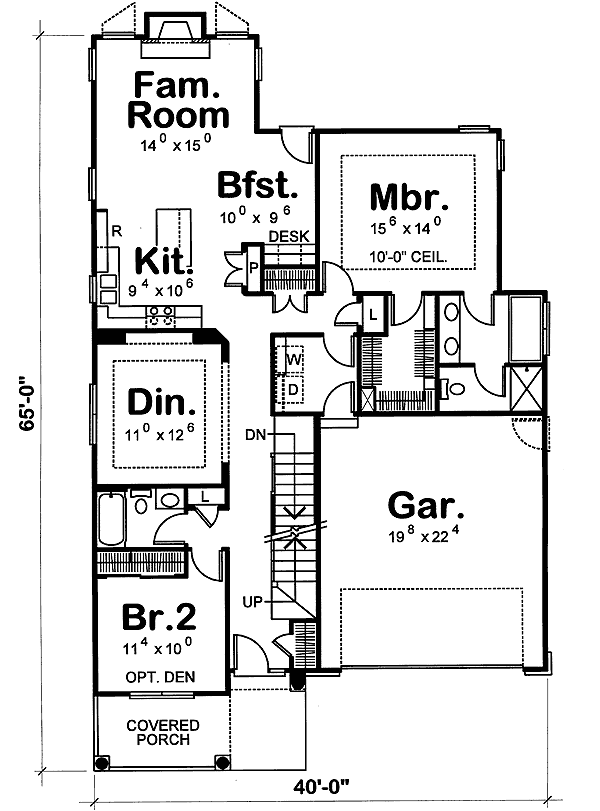

  • Main Level

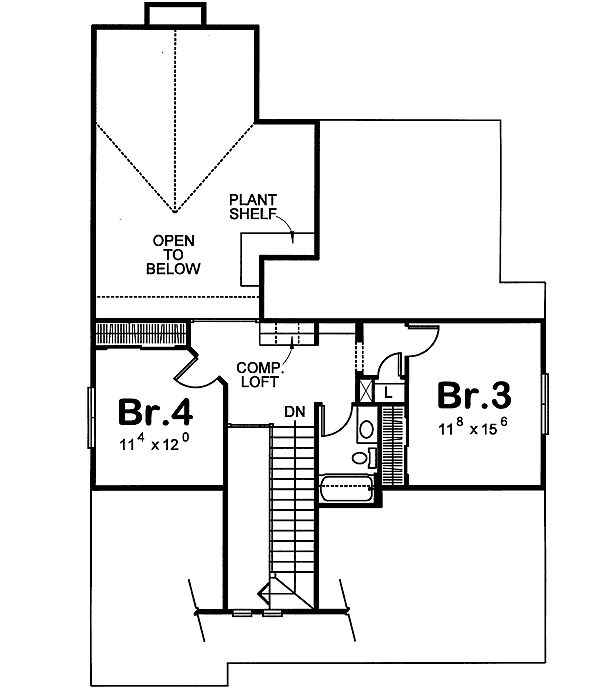

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,126 sq. ft.
  • 1st Floor: 1,556 sq. ft.
  • 2nd Floor: 570 sq. ft.
  • Porch, Front: 149 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 65' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 453 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Stick
