Plan 39270ST
Inviting Traditional House Plan
Heated S.F.
3,073
Beds
4
Baths
2
Stories
2
Cars
2
What's Included
Plan Details
  • A covered porch that wraps around from the front to the side creates a wonderful outdoor gathering place.
  • Formal and informal dining, a private study, great room with corner gas fireplace and large kitchen with walk-in pantry and island with seating create a functional first floor plan.
  • The mudroom, home office and laundry room help maintain order.
  • The second floor master suite showcases two walk-in closets , two vanities and a whirlpool tub and shower.
  • Secondary bedrooms enjoy large closets and provide loads of space for your growing family.
What's Included
  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Inviting Traditional House Plan

  • 3,073

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

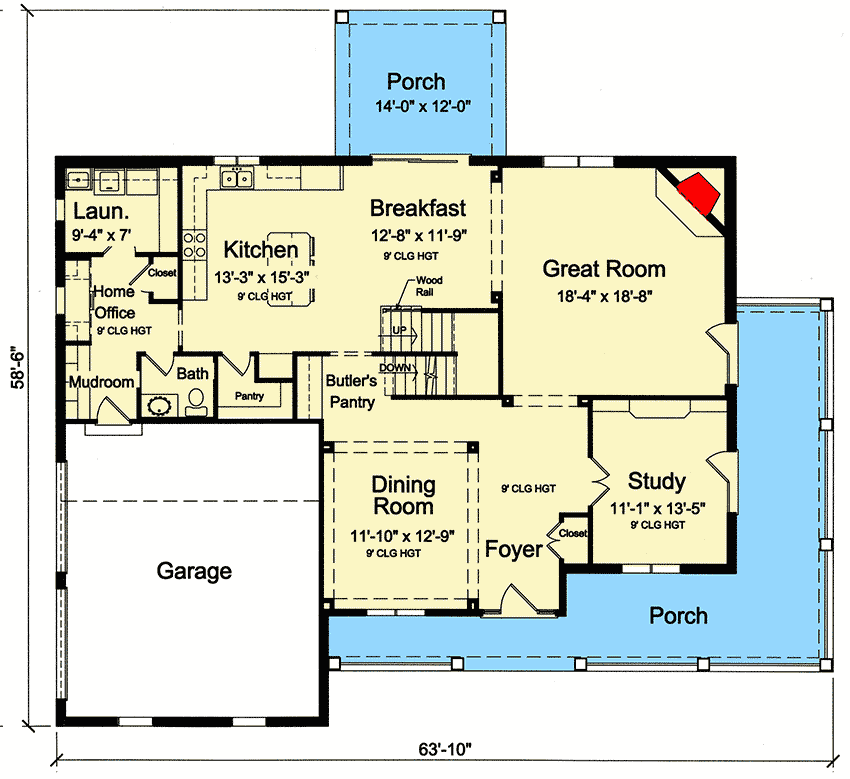

Floor Plan

  • Main Level

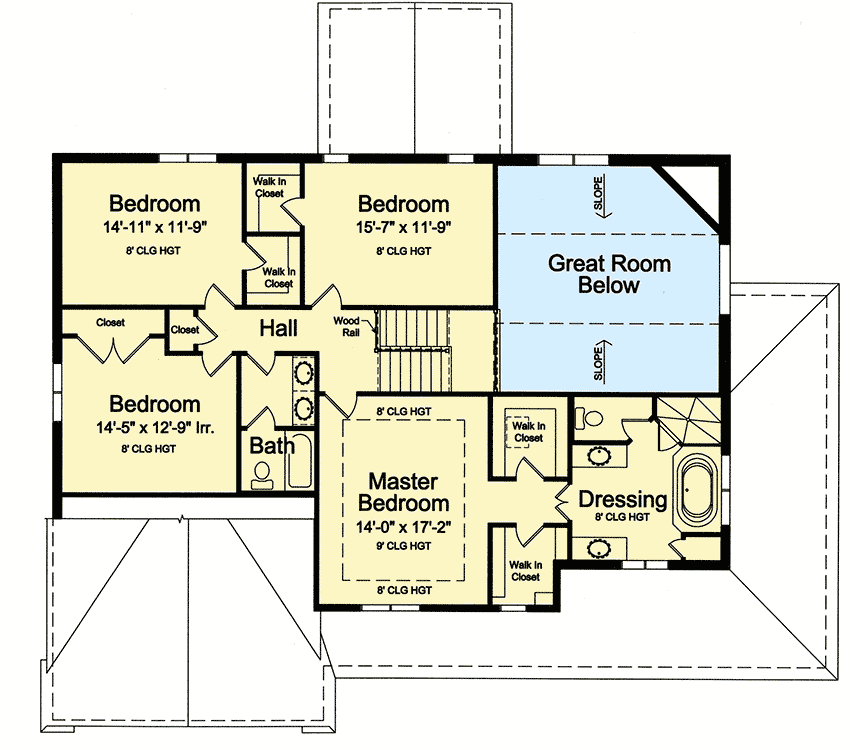

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,073 sq. ft.
  • 1st Floor: 1,689 sq. ft.
  • 2nd Floor: 1,384 sq. ft.

Dimensions

  • Width: 63' 10"
  • Depth: 58' 6"
  • Max ridge height: 33' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 495 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
