Plan 72704DA

Keystone Accents A Nice Touch

2,283 3 3 1-2 2
Pageloader

Keystone Accents A Nice Touch

Plan 72704DA

  • 2,283

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Keystone-accented stone lintels give this traditional ranch-style home plan a touch of class. The liberal application of stone veneer also plays a role in the visual drama of its front faзade, as do the wrought iron railing and stone caps on the column supports.
  • Double doors in the entry open into what could be a den or home office.
  • Just past the coat closet, you emerge into the naturally bright vaulted great room. Media cabinets and/or bookcases flank the fireplace centered on one wall. Across the way, this room flows into the dining room, which is open to the kitchen. Sliding glass doors in the dining room open wide to offer easy access to a covered deck that could be screened.
  • Counters and cabinets wrap around three sides of the large kitchen, encircling a wide work island rimmed on one end by a rounded conversation bar. Work surfaces and storage areas are both generously supplied the latter boosted by a roomy walk-in pantry.
  • The owners' suite boasts an even deeper walk-in closet. In the luxurious bathroom, a deep soaking tub nestles into a windowed alcove between the walk-in shower and a totally private toilet. Bedrooms on the opposite side of the house share a two-section bathroom.
  • Nearby, the pass-through utility room links the house to a 2-car garage with extra storage space. A bonus room sits above.
  • The main roof pitch is 10:12.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

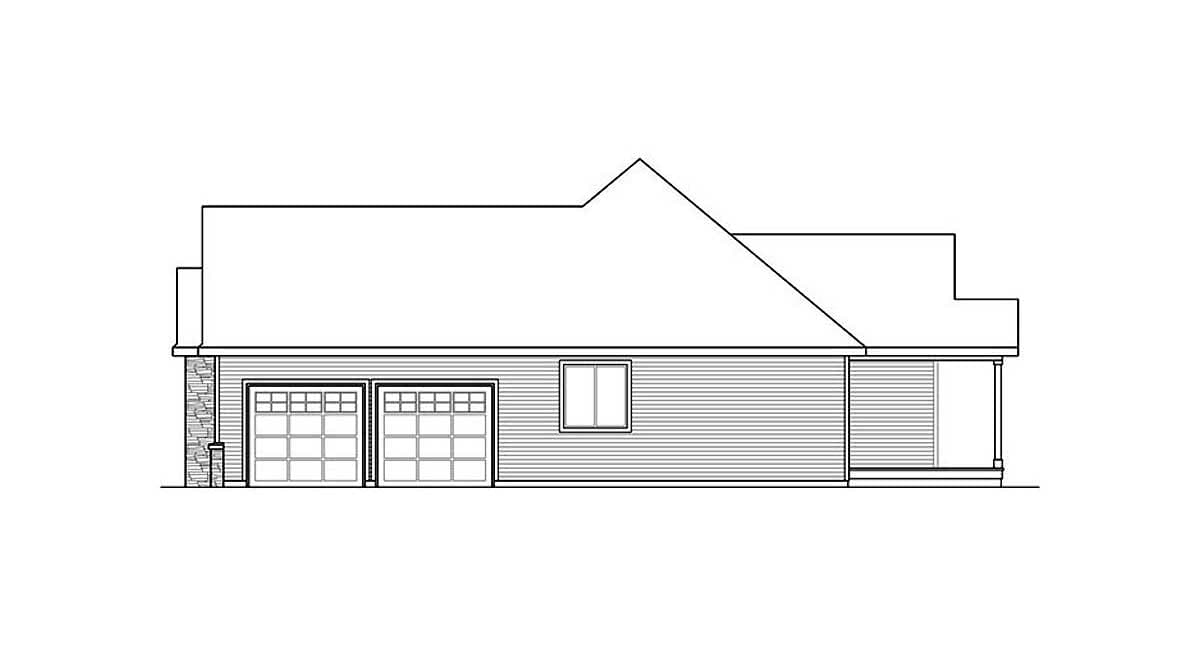

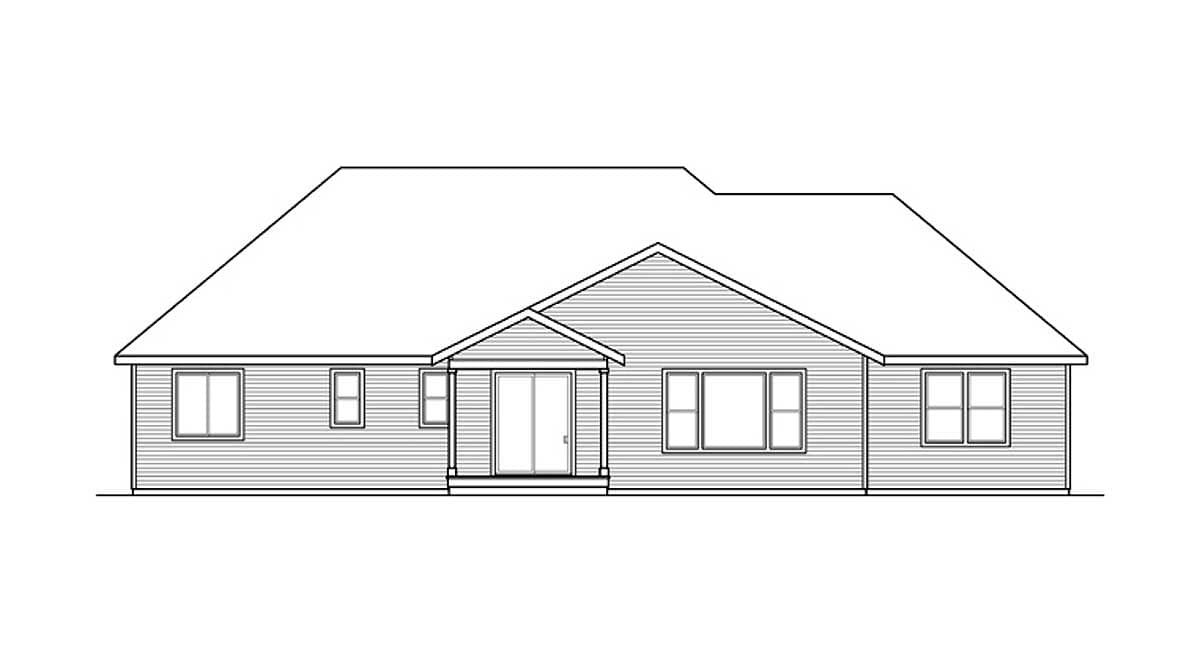

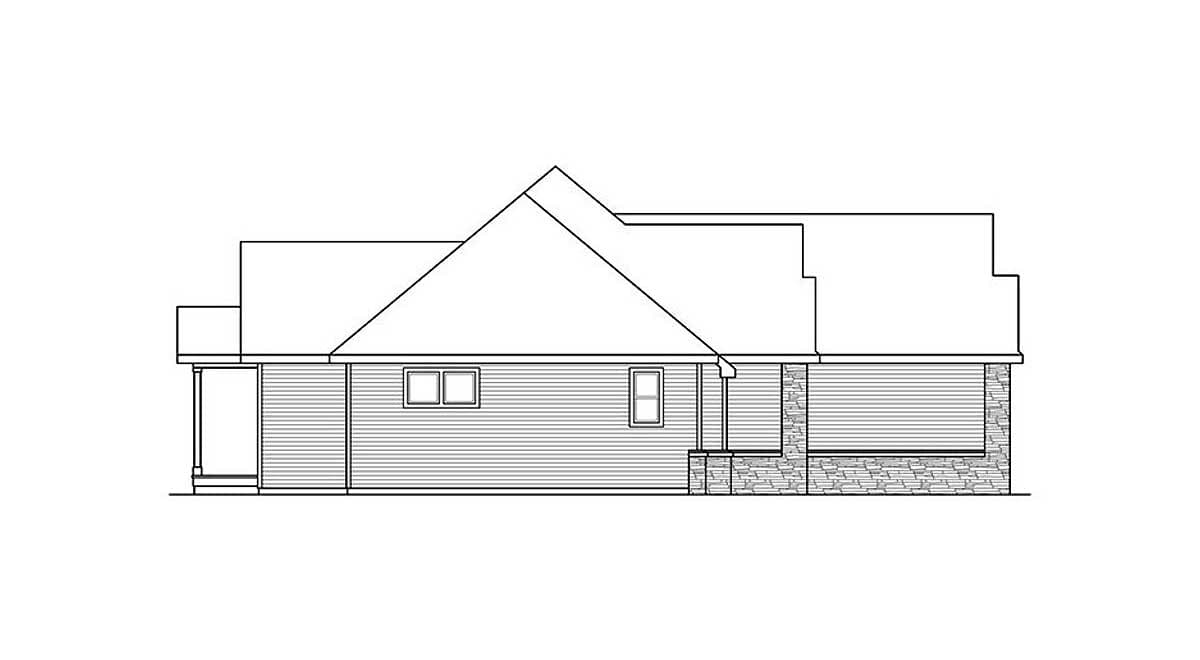

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Bonus Over Garage

Pinit white
Keystone Accents A Nice Touch - 72704DA floor plan - Bonus Over Garage

Plan details



Keystone Accents A Nice Touch

  • 2,283

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $745
  • PDF Light $975
  • 5 Sets $975
  • 8 Sets $1,140
  • PDF Plus $1,955
  • CAD $2,095
  • CAD - multi-use $2,345
  • View all purchase option online

About This Plan

  • Keystone-accented stone lintels give this traditional ranch-style home plan a touch of class. The liberal application of stone veneer also plays a role in the visual drama of its front faзade, as do the wrought iron railing and stone caps on the column supports.
  • Double doors in the entry open into what could be a den or home office.
  • Just past the coat closet, you emerge into the naturally bright vaulted great room. Media cabinets and/or bookcases flank the fireplace centered on one wall. Across the way, this room flows into the dining room, which is open to the kitchen. Sliding glass doors in the dining room open wide to offer easy access to a covered deck that could be screened.
  • Counters and cabinets wrap around three sides of the large kitchen, encircling a wide work island rimmed on one end by a rounded conversation bar. Work surfaces and storage areas are both generously supplied the latter boosted by a roomy walk-in pantry.
  • The owners' suite boasts an even deeper walk-in closet. In the luxurious bathroom, a deep soaking tub nestles into a windowed alcove between the walk-in shower and a totally private toilet. Bedrooms on the opposite side of the house share a two-section bathroom.
  • Nearby, the pass-through utility room links the house to a 2-car garage with extra storage space. A bonus room sits above.
  • The main roof pitch is 10:12.

Floor Plans

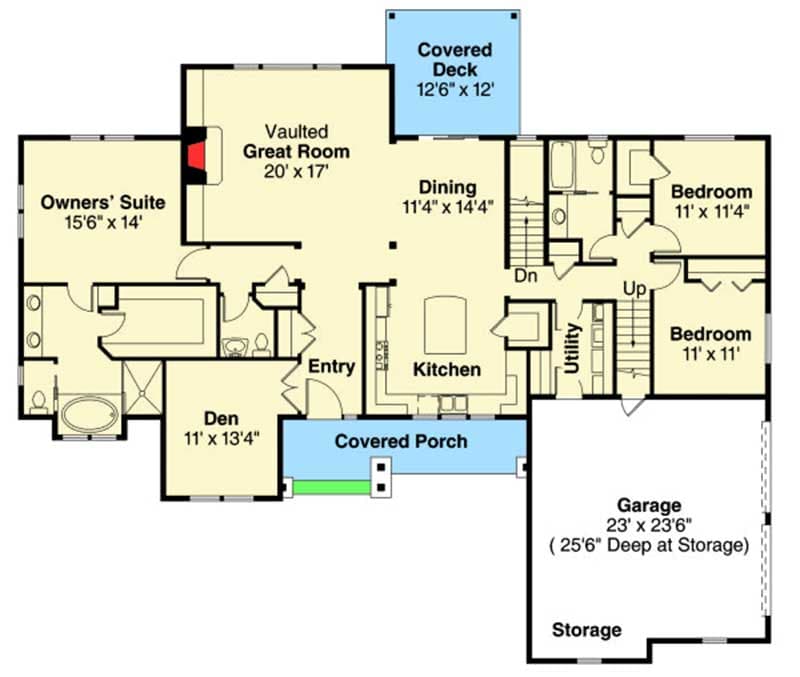

  • Main Level

  • Bonus Over Garage

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,283 sq. ft.
  • 1st Floor: 2,283 sq. ft.
  • Bonus: 286 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 74' 0"
  • Depth: 64' 0"
  • Max ridge height: 25' 11"

Garage

  • Type: Attached
  • Area: 599 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 10 on 12
