Plan 85030MS

EXCLUSIVE

L-Shaped Floor Plan

Heated S.F.

2,449

Beds

3-4

Baths

2.5

Stories

2

Cars

3

What's Included

Floor Plan

Main Level

Reverse Floor Plan

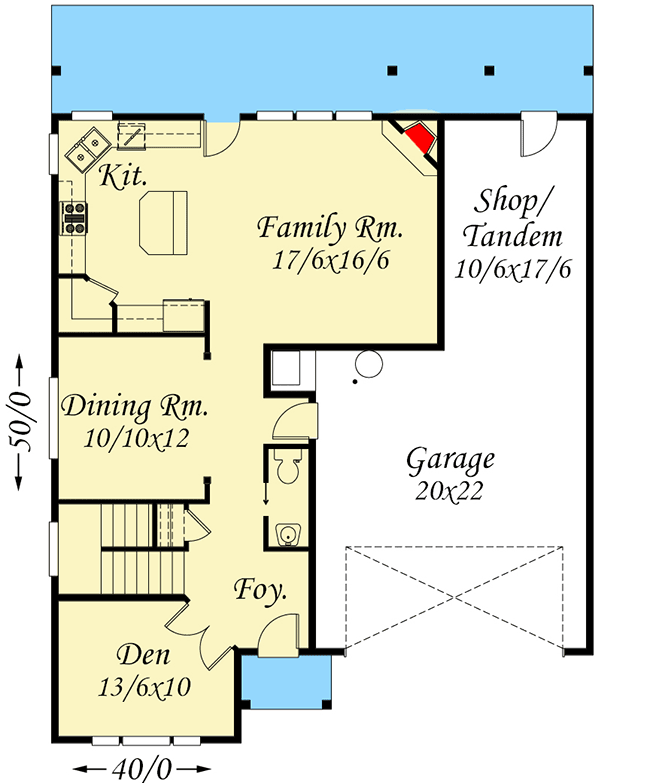

L-Shaped Floor Plan - 85030MS floor plan - Main Level

2nd Floor

Reverse Floor Plan

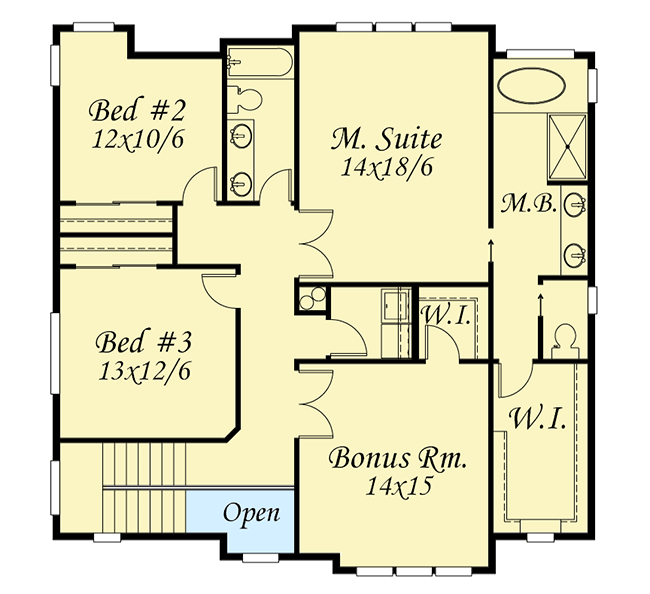

L-Shaped Floor Plan - 85030MS floor plan - 2nd Floor

Plan Details

Decorative wood trim adorns the exterior of this Craftman home with its functional L-shaped floor plan.
The front-facing den has double doors off the foyer.
Pass by the formal dining room on your way back to the kitchen and family room that share one large space.
All the bedrooms are on the upper level along with a big bonus room that can be used as you need.
Having a second floor laundry room saves steps.

What's Included

Elevations: Front, Right, Rear, Left
Fully Dimensioned Floor Plans (window and door sizes called out at openings)
Foundation Plan with notes
Roof Framing Plan with notes
Section Views
Electrical Layout

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

2,449 sq. ft.

1st Floor:

1,027 sq. ft.

2nd Floor:

1,422 sq. ft.

Beds/Baths

Bedrooms:

3 or 4

Full bathrooms:

2

Half bathrooms:

1

Foundation Type

Standard Foundations:

Crawl

Optional Foundations:

Basement

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

40' 0"

Depth:

50' 0"

Garage

Type:

Attached

Area:

624 sq. ft.

Count:

3 Cars

Entry Location:

Front

Architectural Style

Special Features

Butler Walk-in Pantry

Master Suite - 2nd Floor

Plan Collections
