Lake Home Plan with Three Large Covered Decks - 2213 Sq Ft

Plan 62977DJ

2,213
Heated s.f.
1-3
Beds
1.5 - 2.5
Baths
1
Stories
2
Cars

If you are looking for a lake home with plenty of outdoor space, look no further than this attractive lake (or mountain) house plan. The exterior of this lake house plan has a unique curb appeal with its combination of shake siding, wood beams, large windows and a courtyard garage. This home enjoys an abundance of outdoor space, including 3 large covered decks, and a screened-in deck off of the great room.
Inside you'll find a wide-open floorplan. The great room and dining room lie under a 23' cathedral ceiling and flow seamlessly with the large kitchen. The kitchen includes a large island and a walk-in pantry. The master suite is separated from the main living space for ultimate privacy and has a 21'10" cathedral ceiling. The master bathroom includes his/her vanities, a soaking tub, and a large walk-in closet with access to the home's laundry room. You can enjoy the outdoor space directly from the master suite with your own private covered deck.
An optional finished lower level (select it from the Options menu if you want this added to your purchase) adds 1,689 square feet and includes 2 additional bedrooms, a family room with a fireplace, a rec room with a wet bar, and 2 additional bathrooms.

Each plan set includes:

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical wall section
Typical Stair section
Cabinets are shown on all plans.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

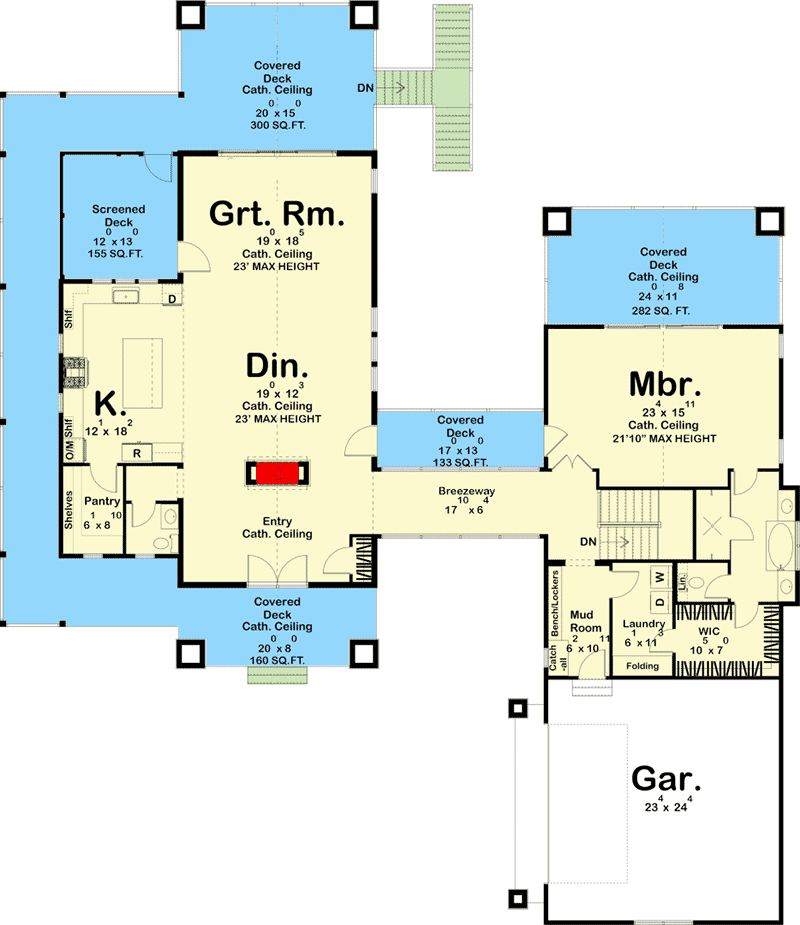

Lake Home Plan with Three Large Covered Decks - 2213 Sq Ft - 62977DJ floor plan - Main Level

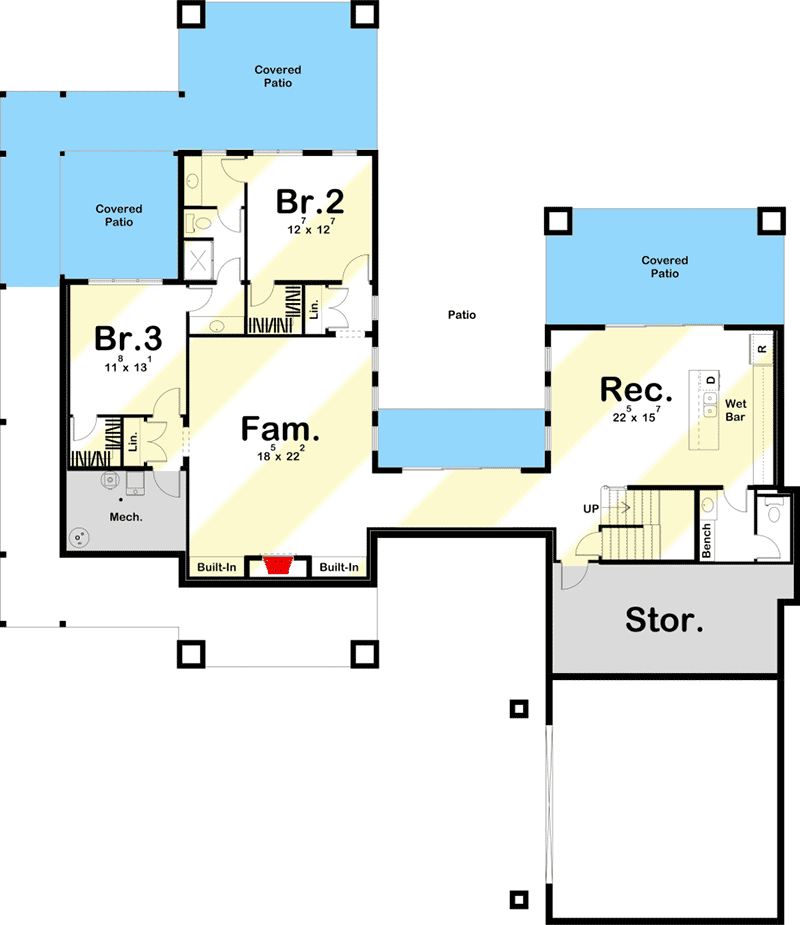

Optional Lower Level Layout (+$250)

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Lake Home Plan with Three Large Covered Decks - 2213 Sq Ft - 62977DJ floor plan - Optional Lower Level Layout (+$250)

Plan details

Square Footage Breakdown

Total Heated Area: 2,213 sq. ft.
1st Floor: 2,213 sq. ft.

Optional Lower Level: 1,689 sq. ft.

Beds/Baths

Bedrooms: 1, 2, or 3

Full bathrooms: 1 or 2
Half bathrooms: 1 or 2

Foundation Type

Standard Foundations: Walkout

Optional Foundations: Slab, Crawl, Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 81' 0"
Depth: 93' 0"
Max ridge height: 22' 0"

Garage

Type: Attached
Area: 592 sq. ft.
Count: 2 Cars
Entry Location: Courtyard

Ceiling Heights

Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof Details

Primary Pitch: 12 on 12
Secondary Pitch: 6 on 12
