Plan 92309MX

Exclusive

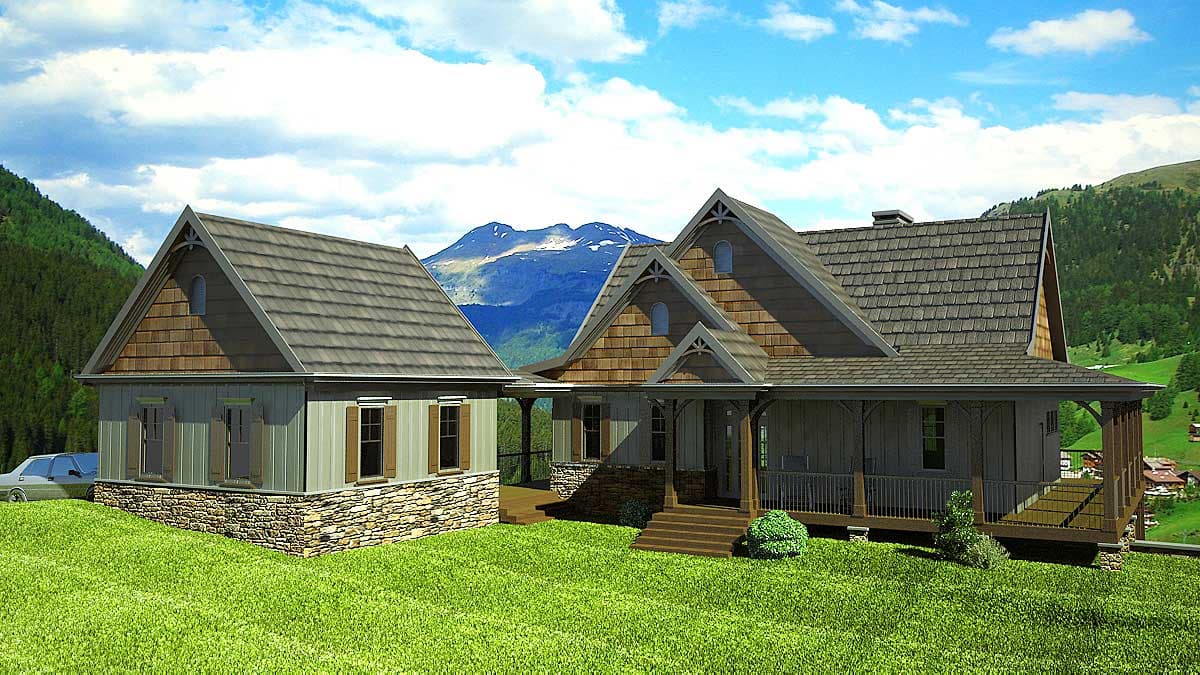

Lake House Plan Retreat with Full Wraparound Porch - 2052 Sq Ft

Heated S.F.
2,052
Beds
3 - 4
Baths
3.5 - 4.5
Stories
2
Cars
2

Floor Plan

Plan 92309MX

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level
Main Level - 3D View
Main Level - 3D View
2nd Floor - 3D View
2nd Floor - 3D View
Lower Level - 3D View
Lower Level - 3D View

Plan 92309MX

M-F 9am-5pm EST |

1-203-761-8500

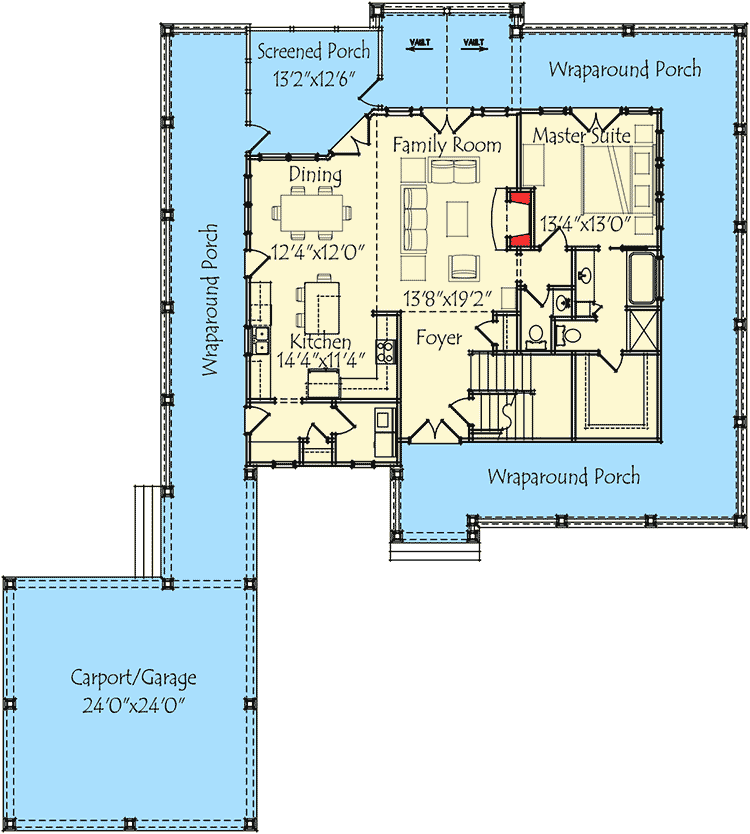

Main Level

Plan 92309MX: Lake House Plan Retreat with Full Wraparound Porch - 2052 Sq Ft - Floor Plan - Main Level - Cottage, Country, Mountain, Rustic

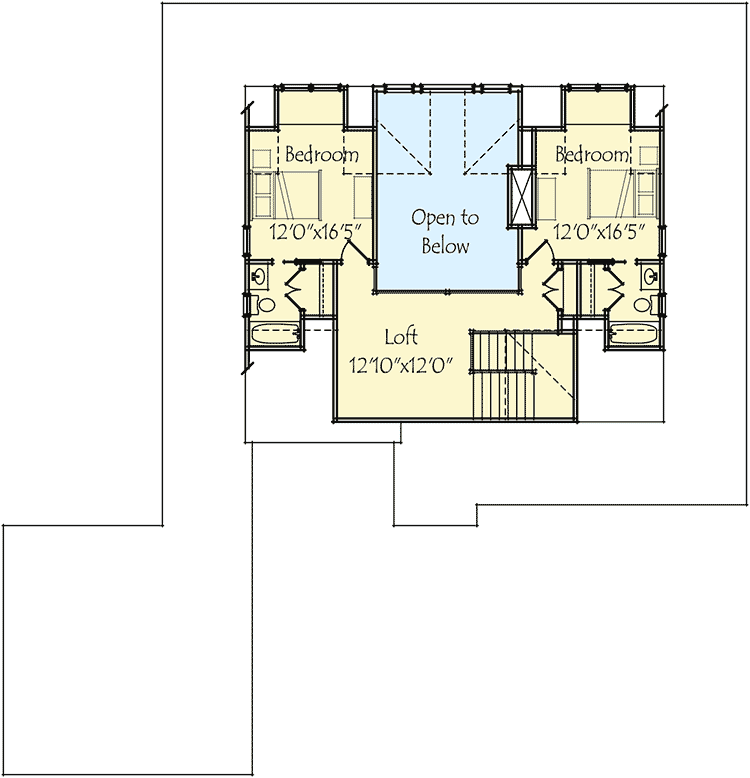

2nd Floor

Plan 92309MX: Lake House Plan Retreat with Full Wraparound Porch - 2052 Sq Ft - Floor Plan - 2nd Floor - Cottage, Country, Mountain, Rustic

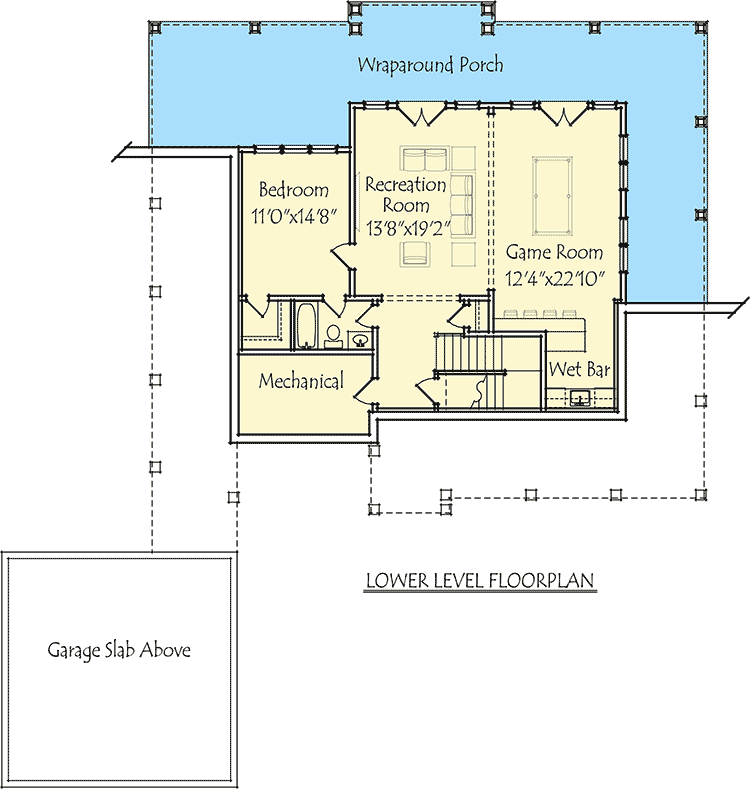

Lower Level

Plan 92309MX: Lake House Plan Retreat with Full Wraparound Porch - 2052 Sq Ft - Floor Plan - Lower Level - Cottage, Country, Mountain, Rustic

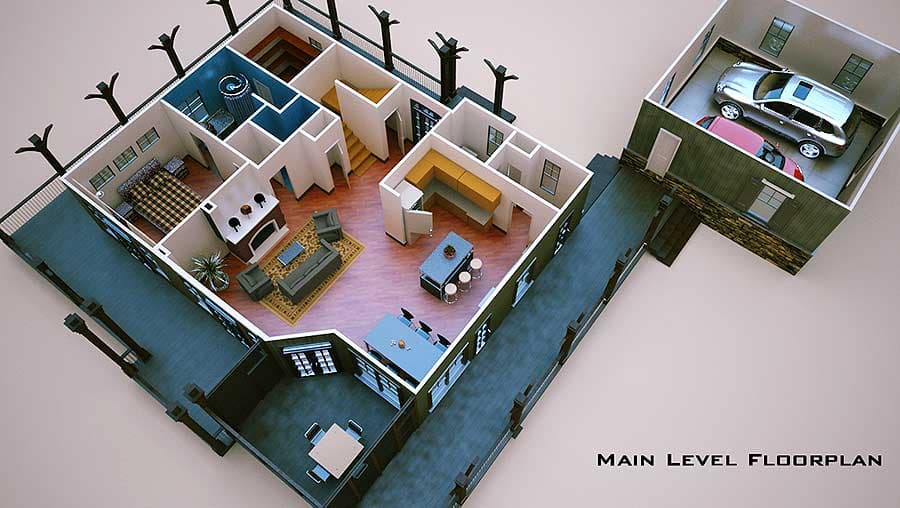

Main Level - 3D View

Plan 92309MX: Lake House Plan Retreat with Full Wraparound Porch - 2052 Sq Ft - Floor Plan - Main Level - 3D View - Cottage, Country, Mountain, Rustic

2nd Floor - 3D View

Plan 92309MX: Lake House Plan Retreat with Full Wraparound Porch - 2052 Sq Ft - Floor Plan - 2nd Floor - 3D View - Cottage, Country, Mountain, Rustic

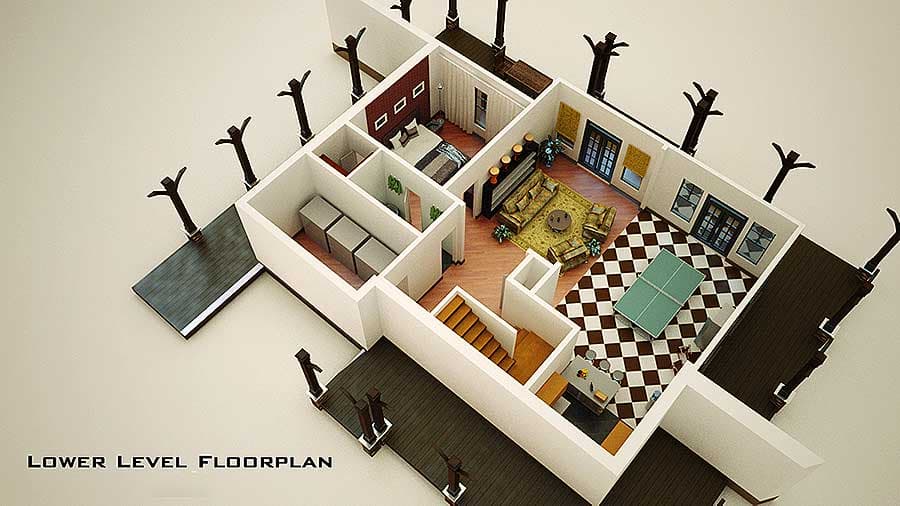

Lower Level - 3D View

Plan 92309MX: Lake House Plan Retreat with Full Wraparound Porch - 2052 Sq Ft - Floor Plan - Lower Level - 3D View - Cottage, Country, Mountain, Rustic

Plan Details

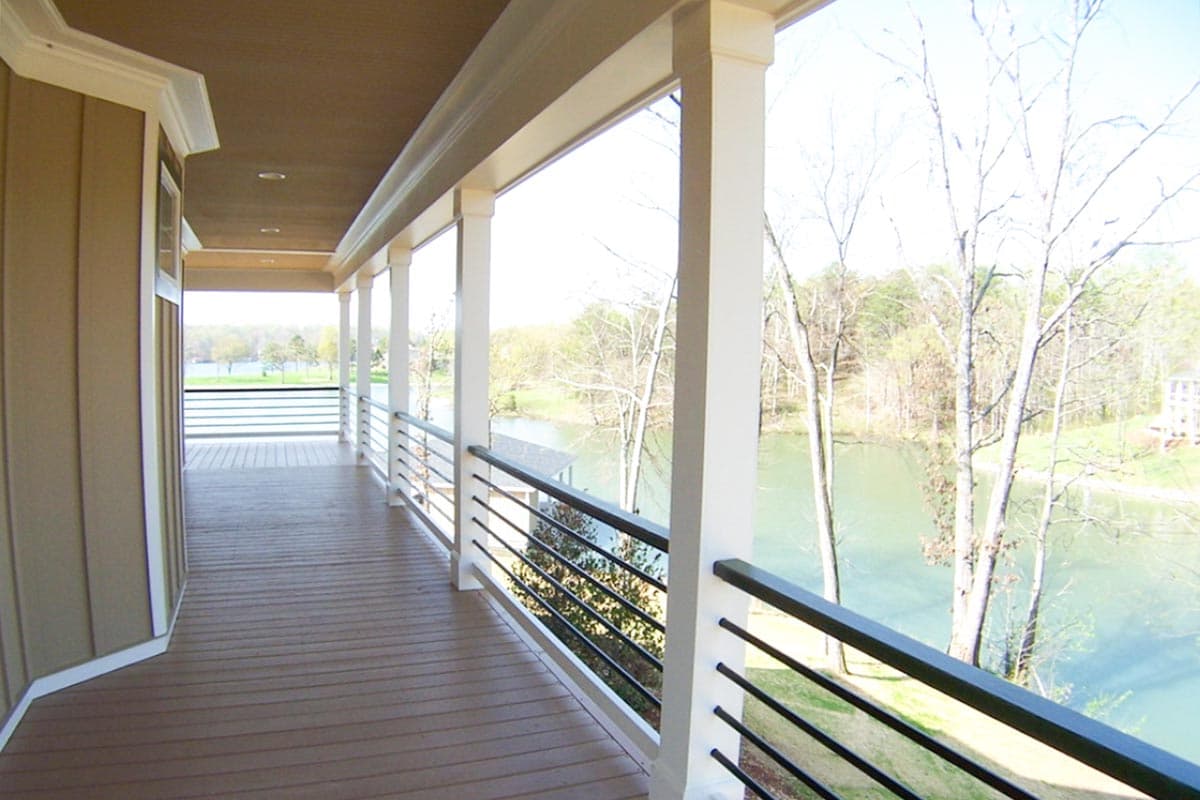

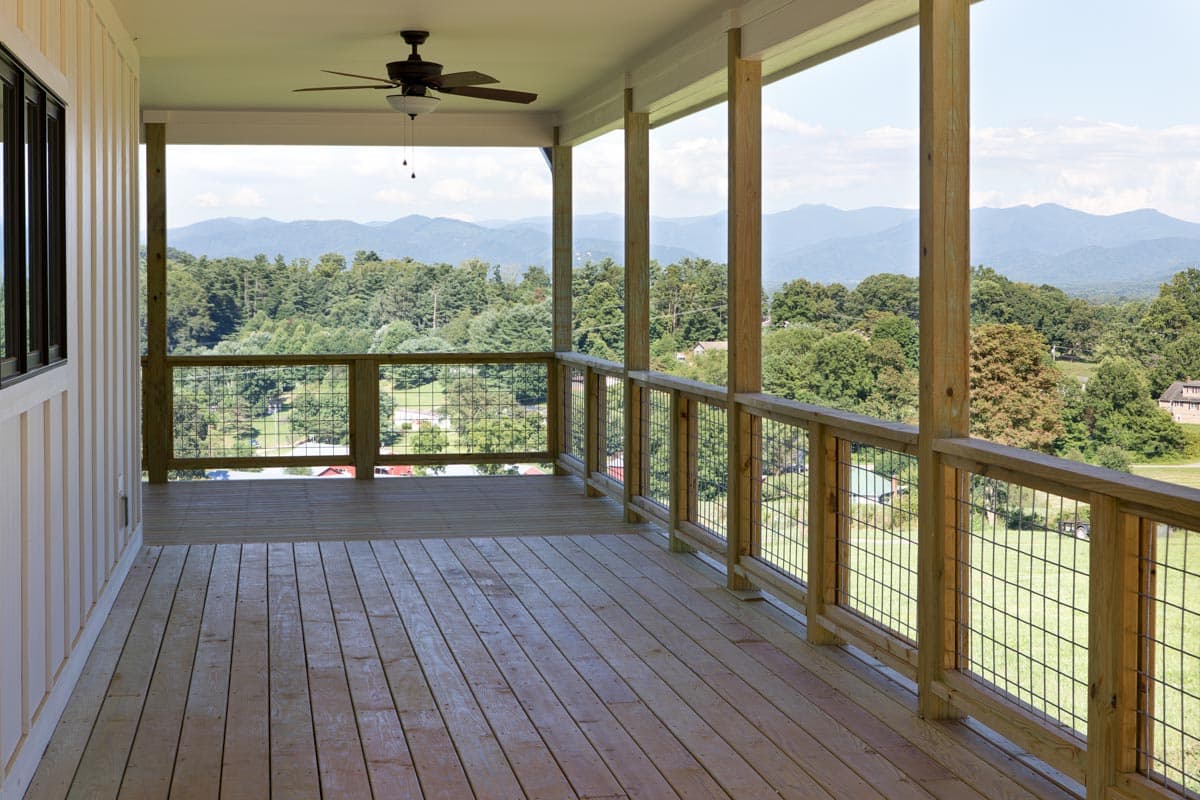

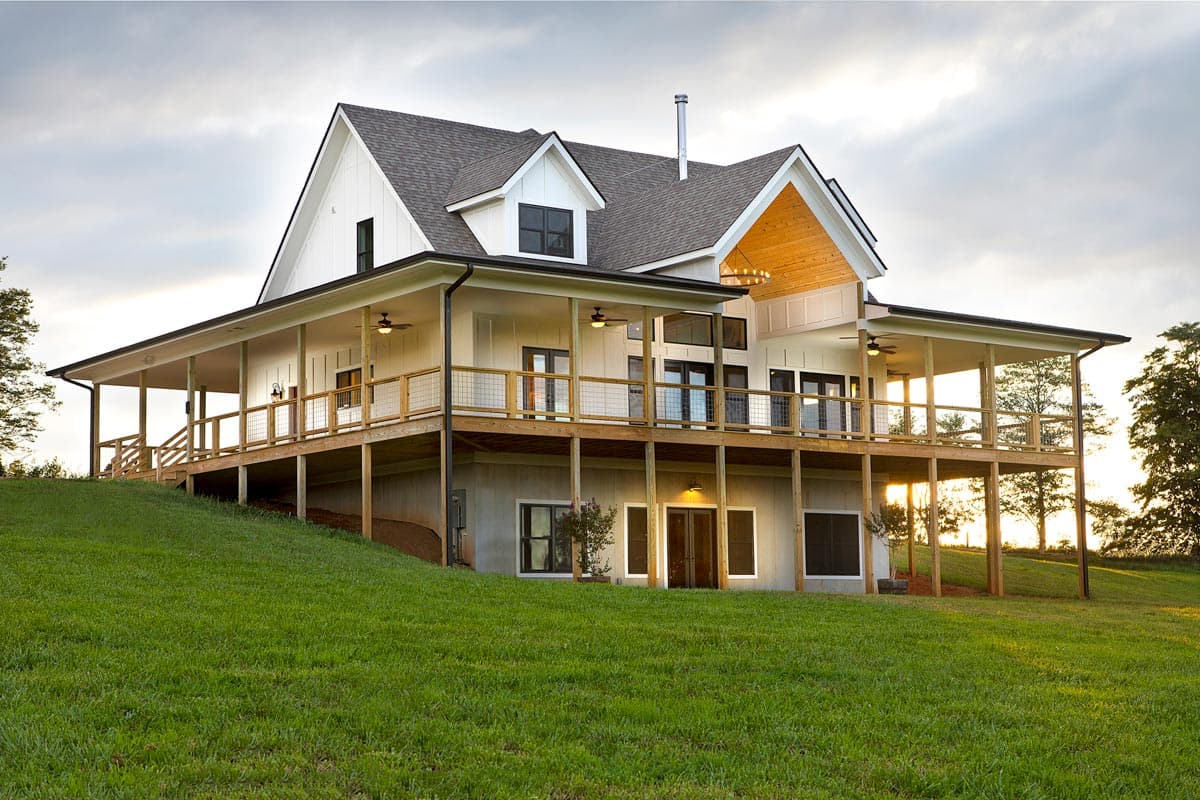

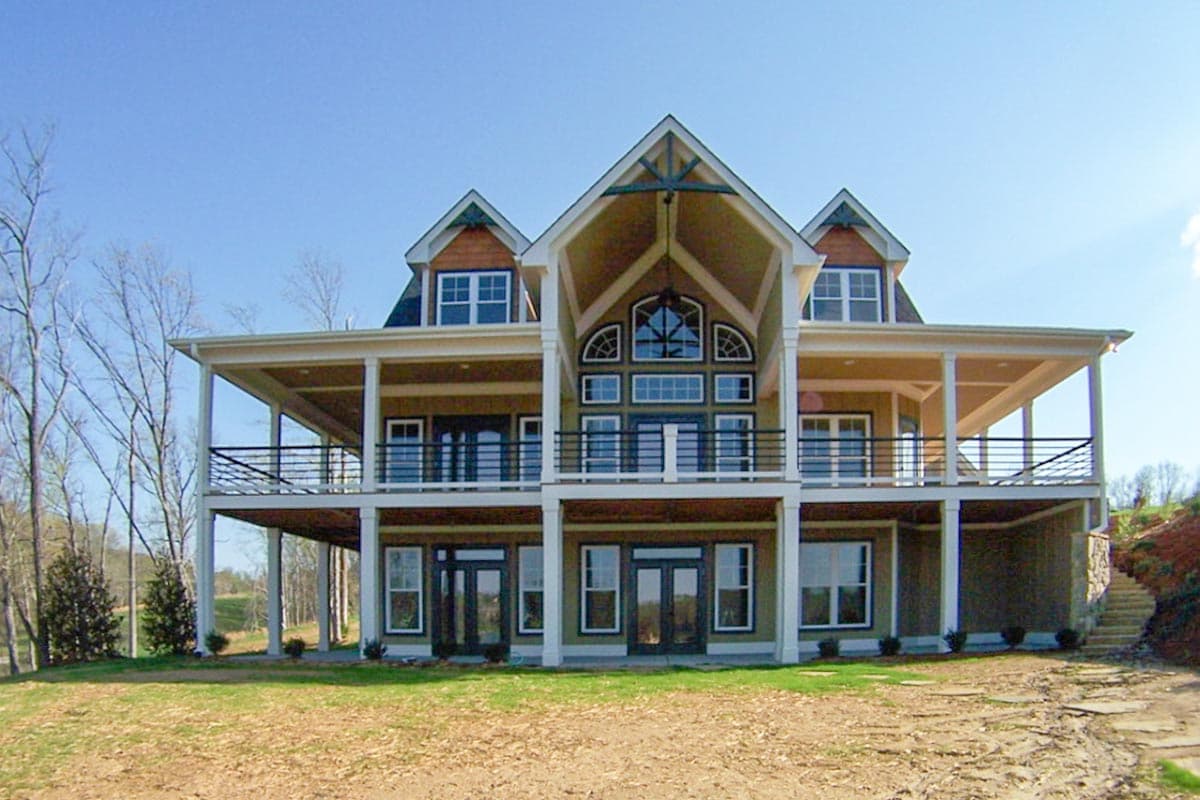

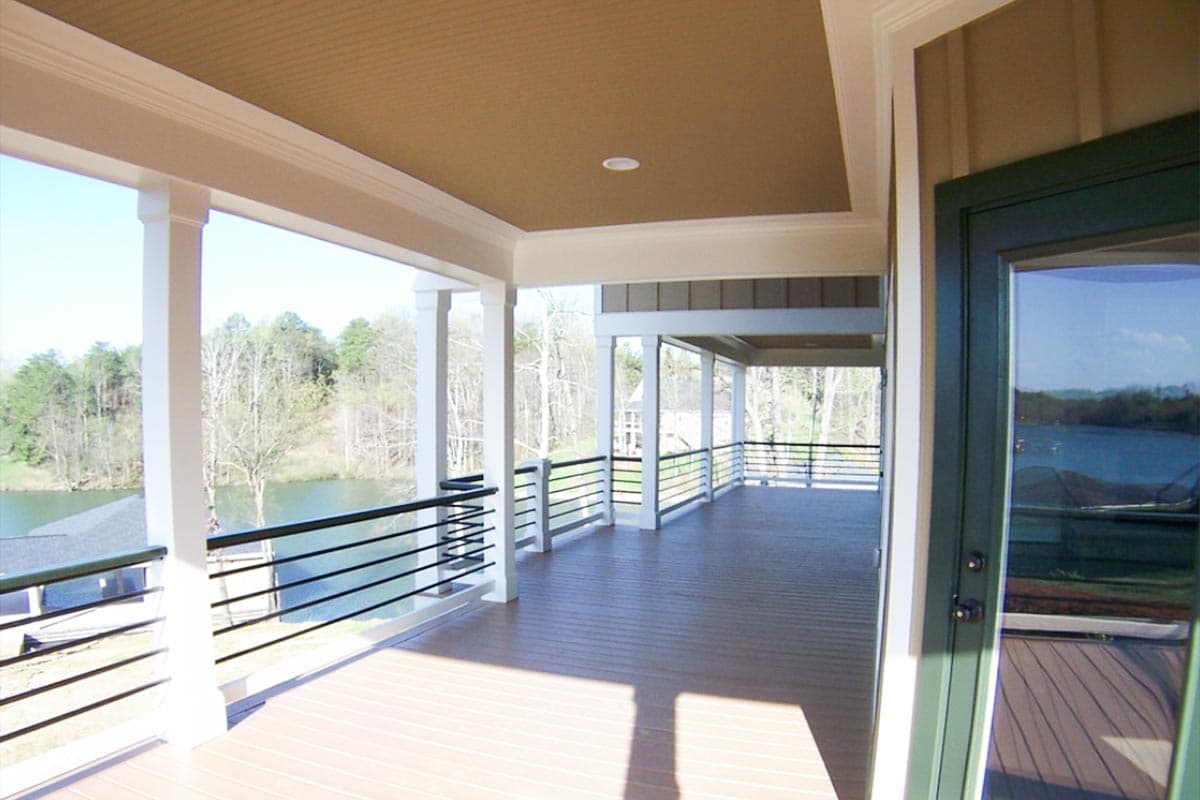

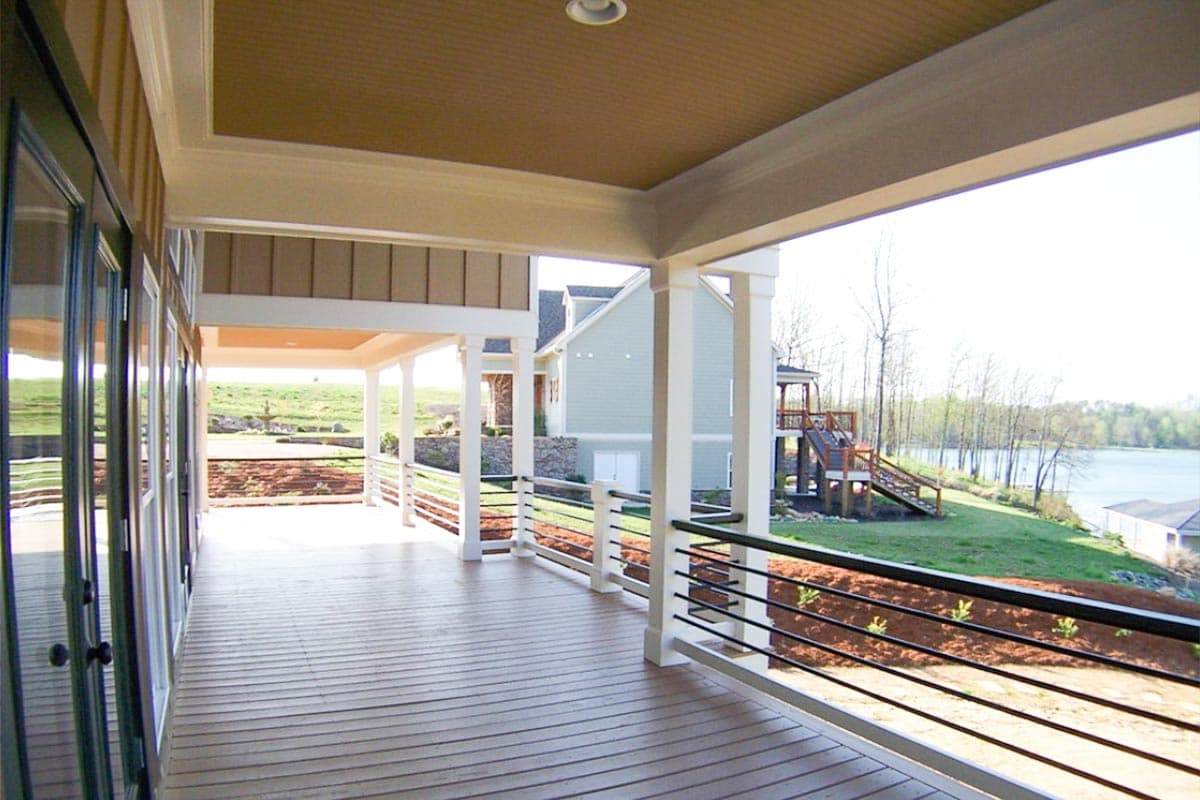

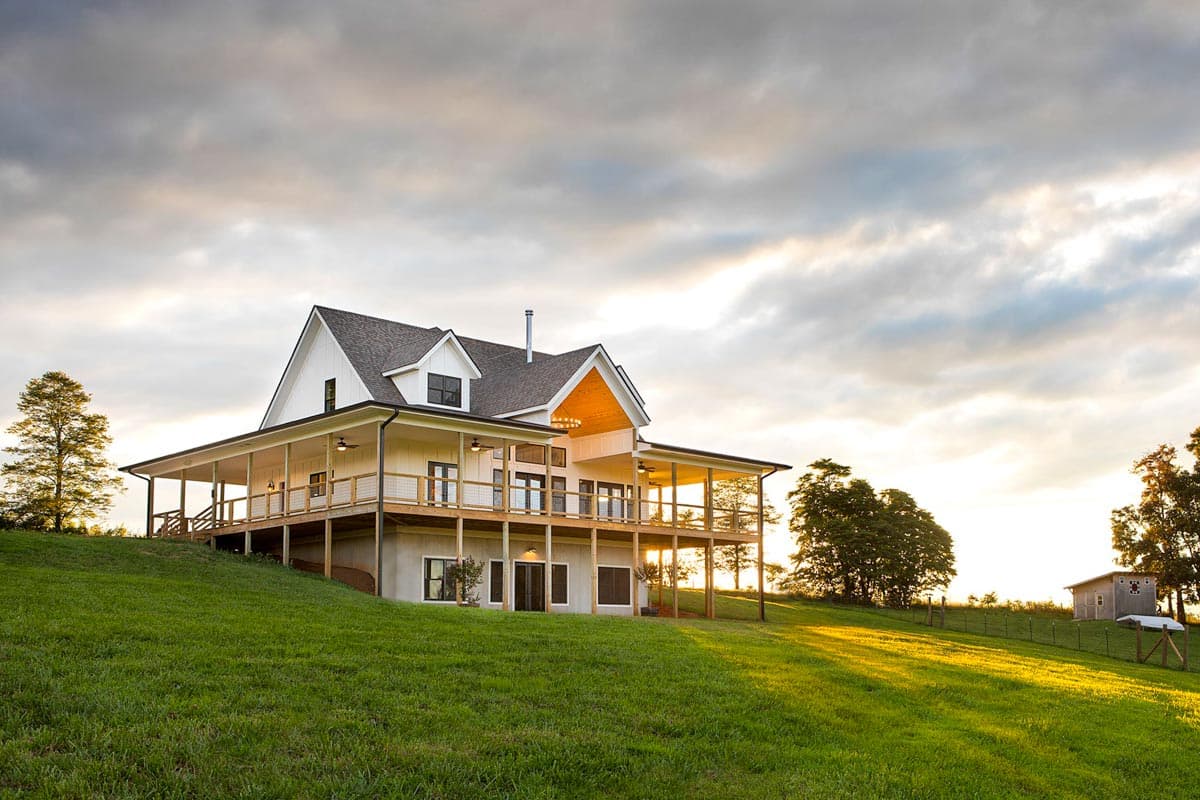

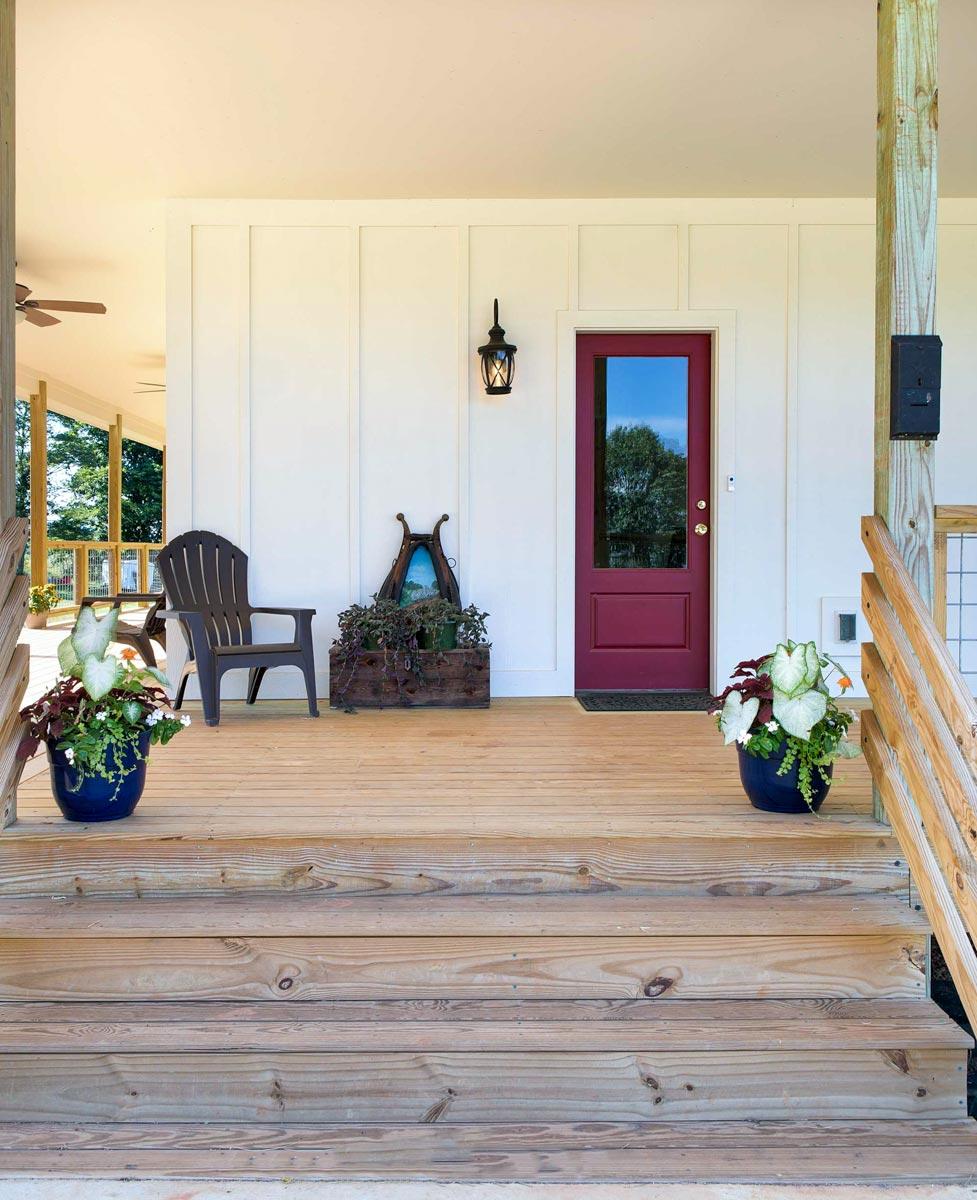

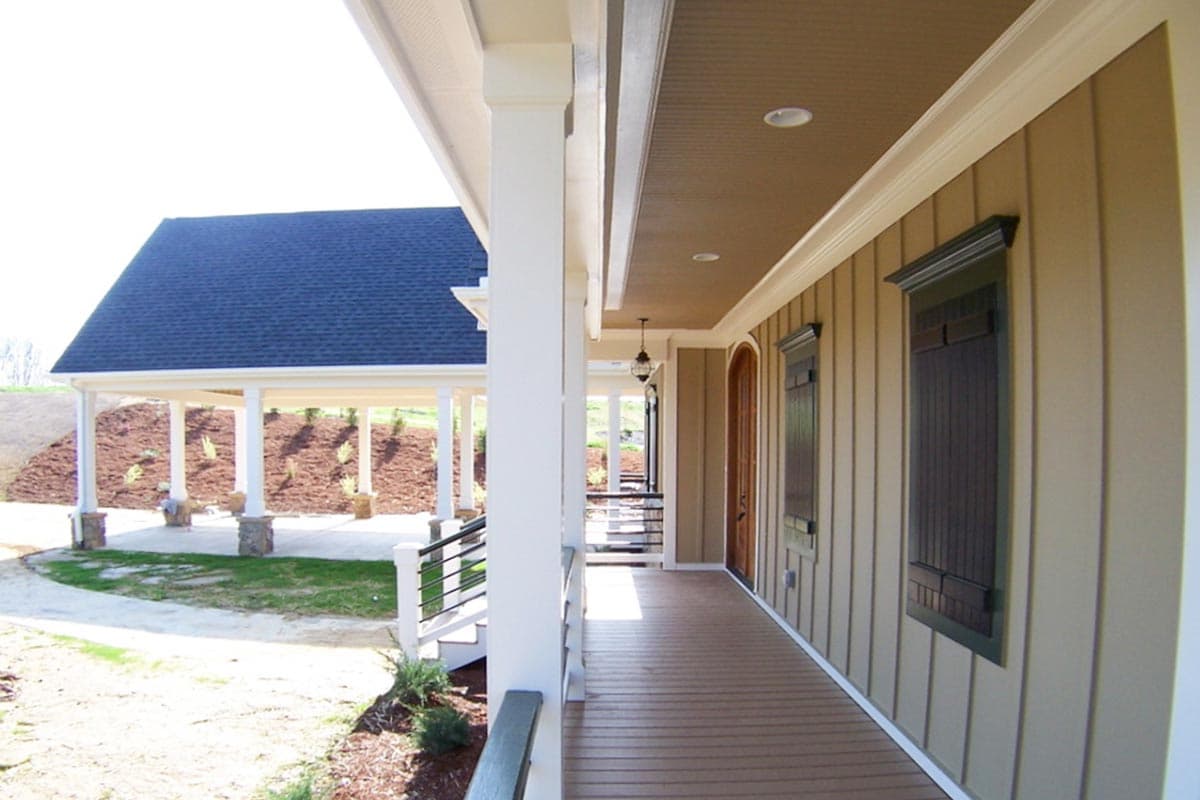

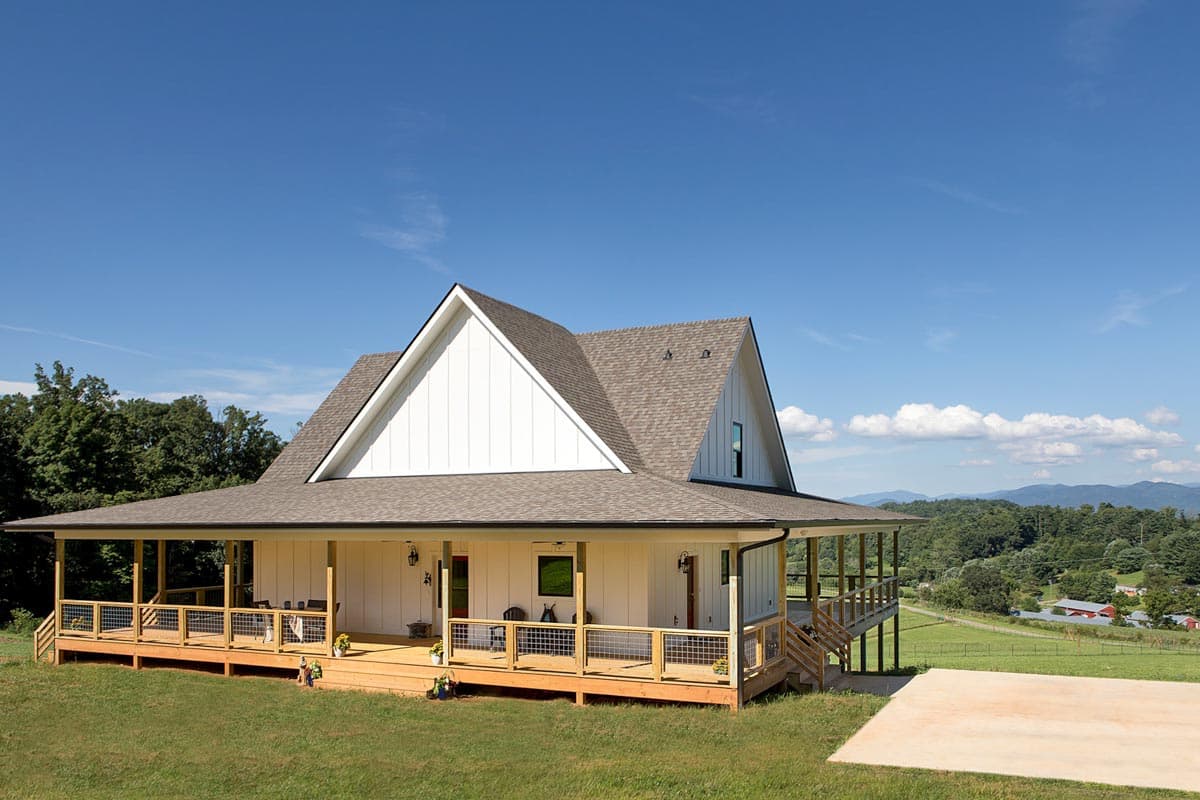

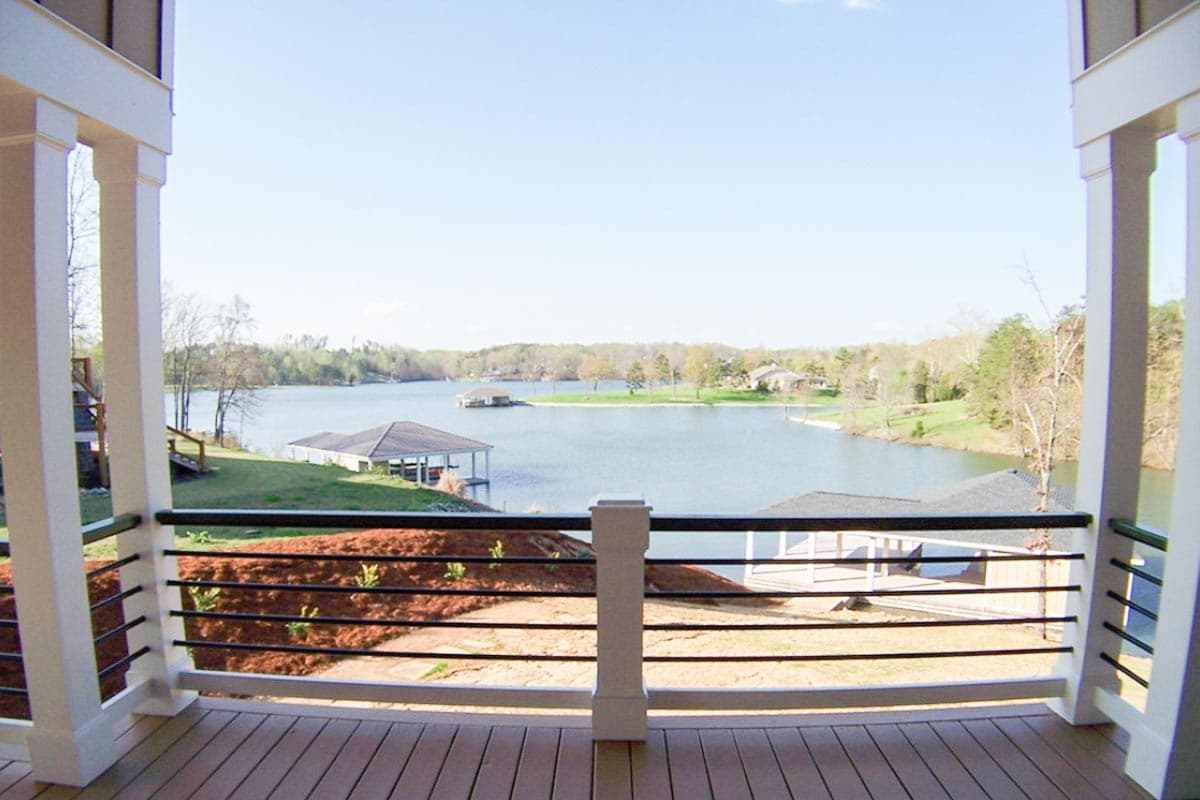

  • A covered 8'-deep porch wraps around all four sides of this vacation or mountain retreat. It vaults in back and even has a screened portion and lets you enjoy the views on all sides.

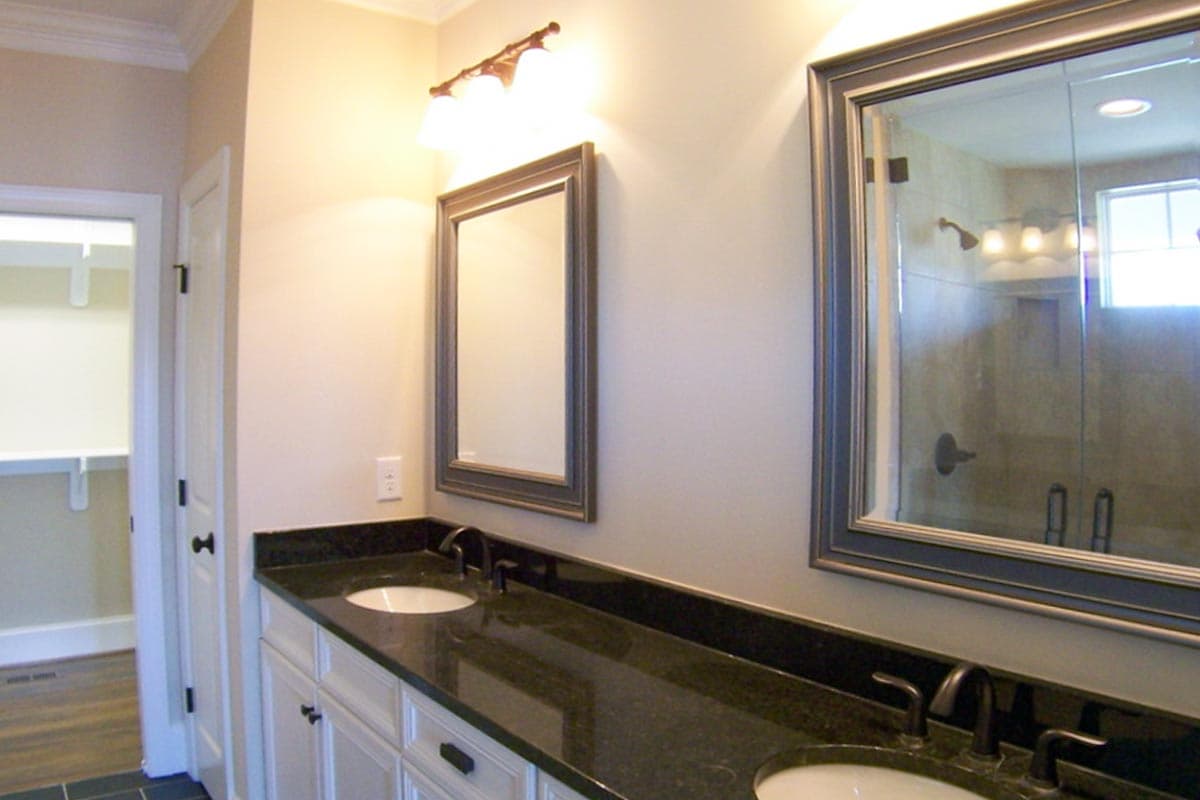

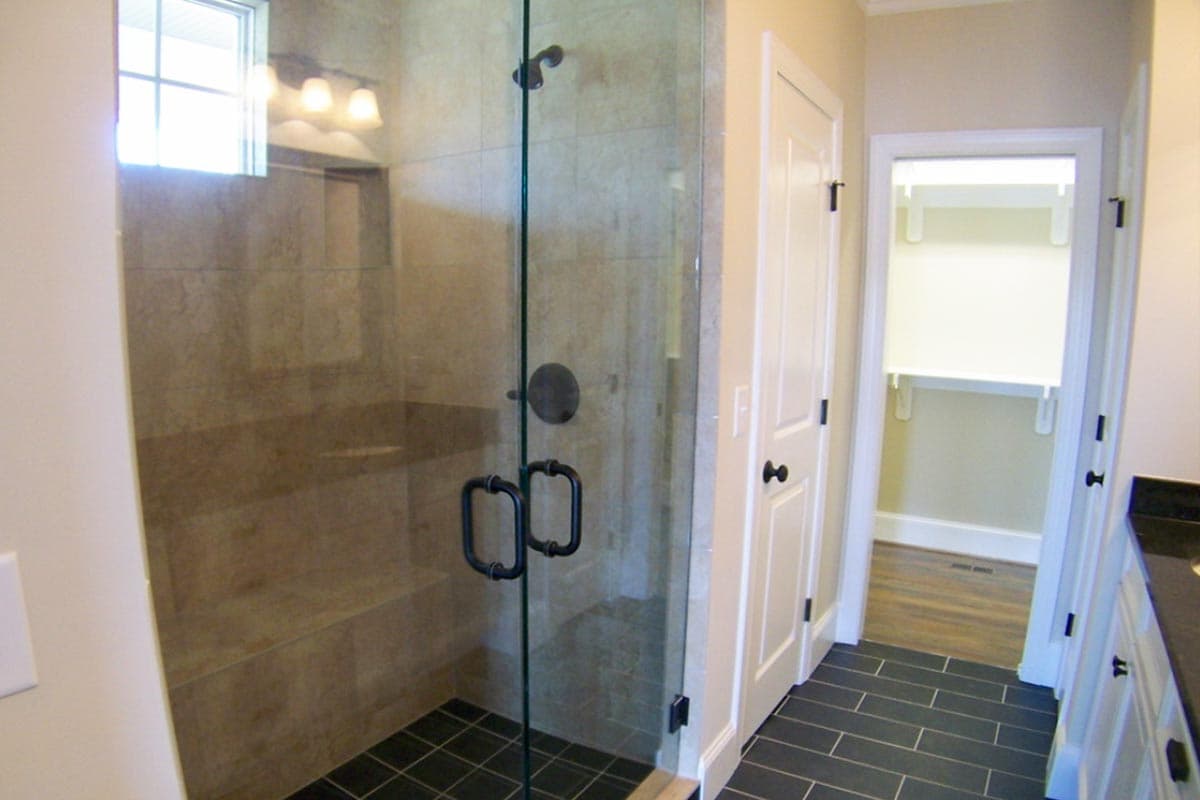

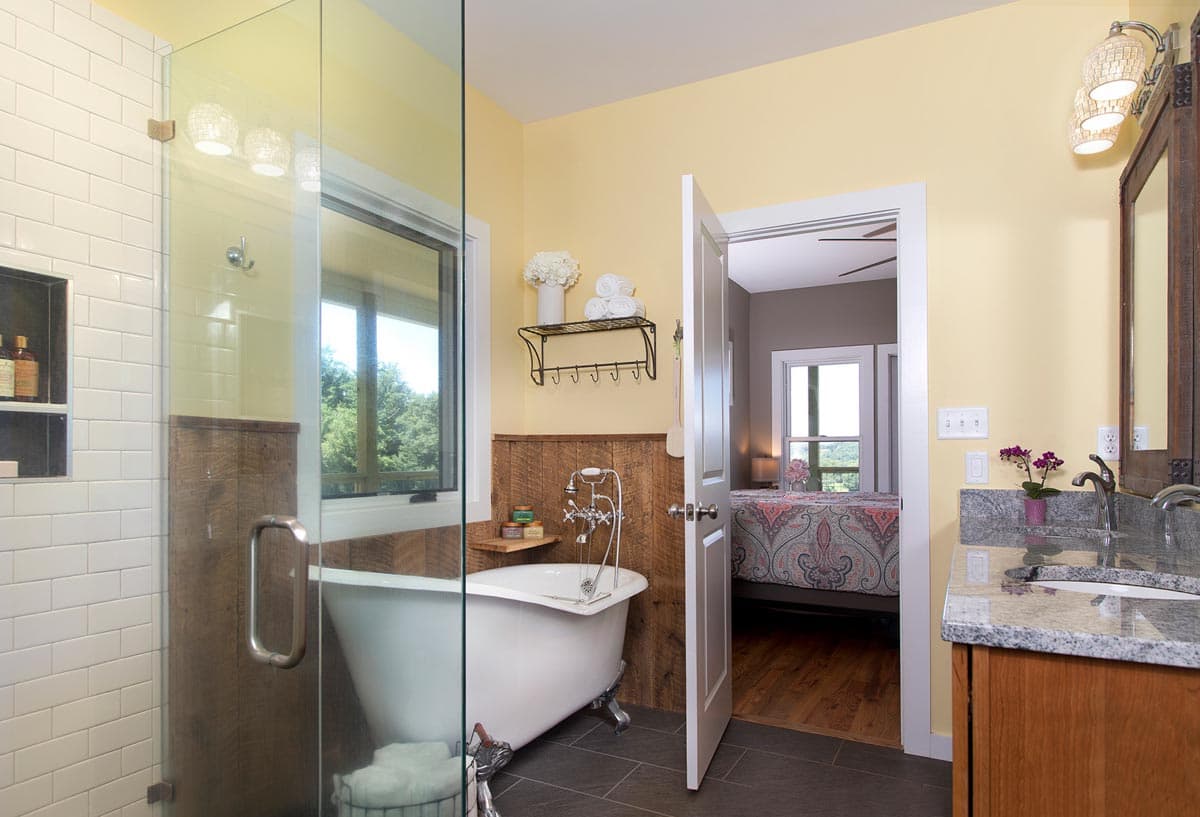

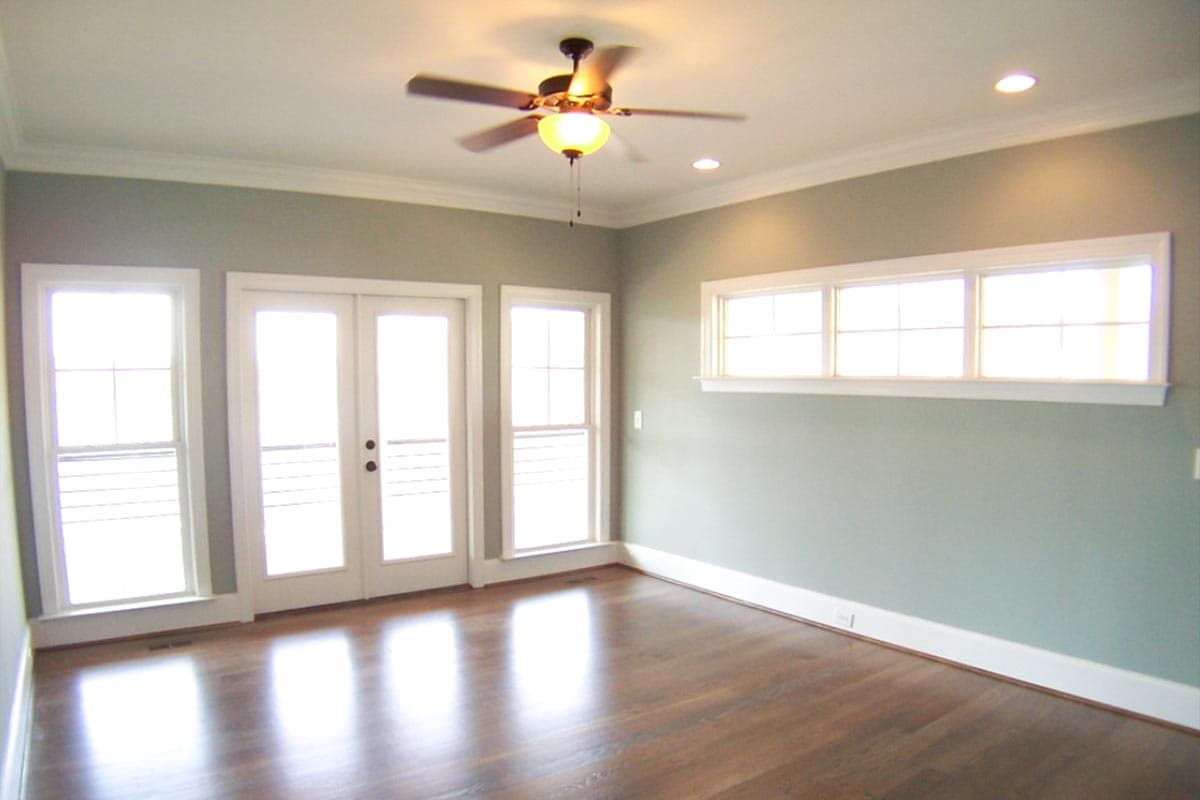

  • French doors in the master gain access to the back porch. A spacious walk-in closet (7'11"x8'2") in the bath (8'x9'11") is a nice touch.

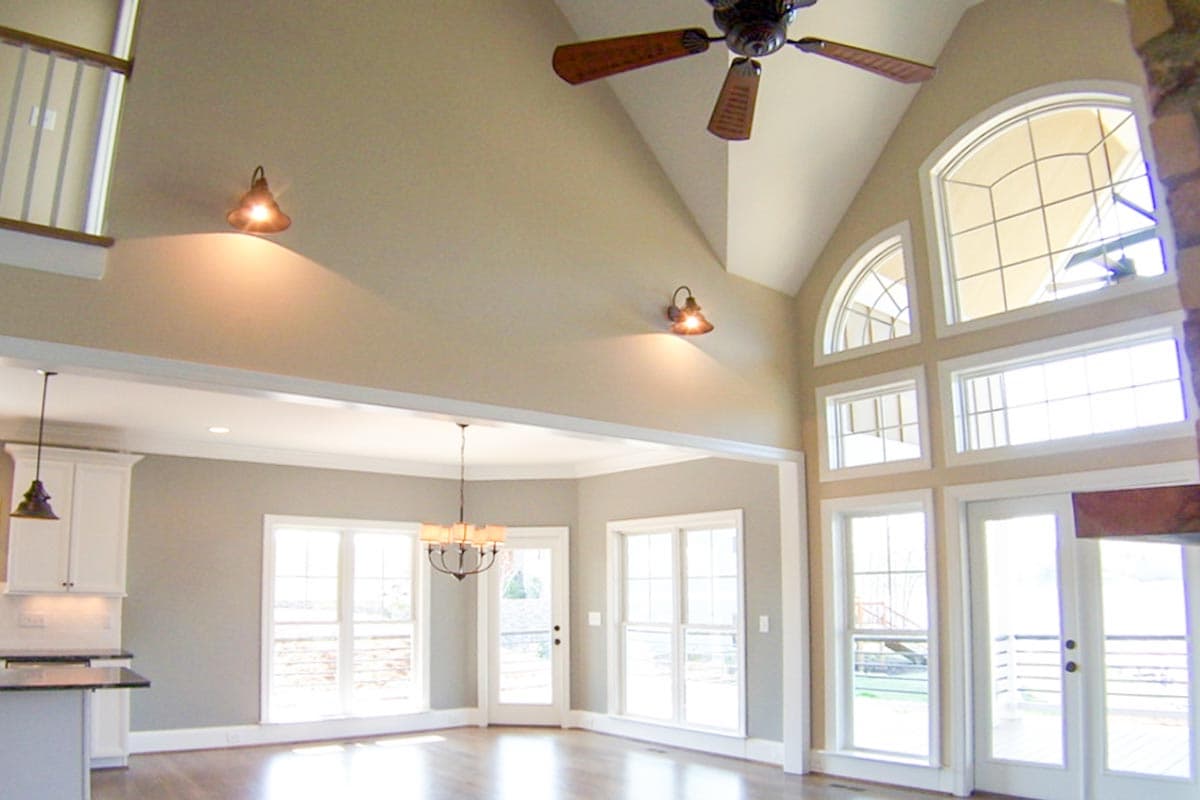

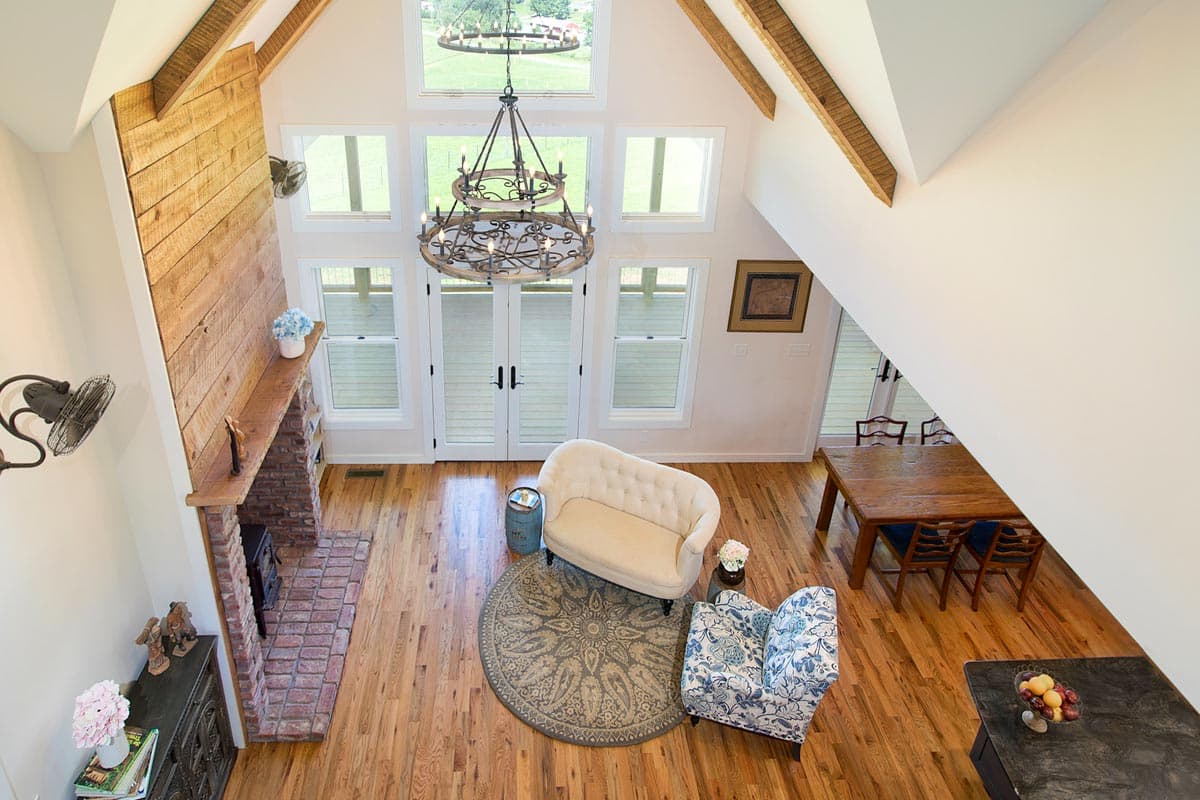

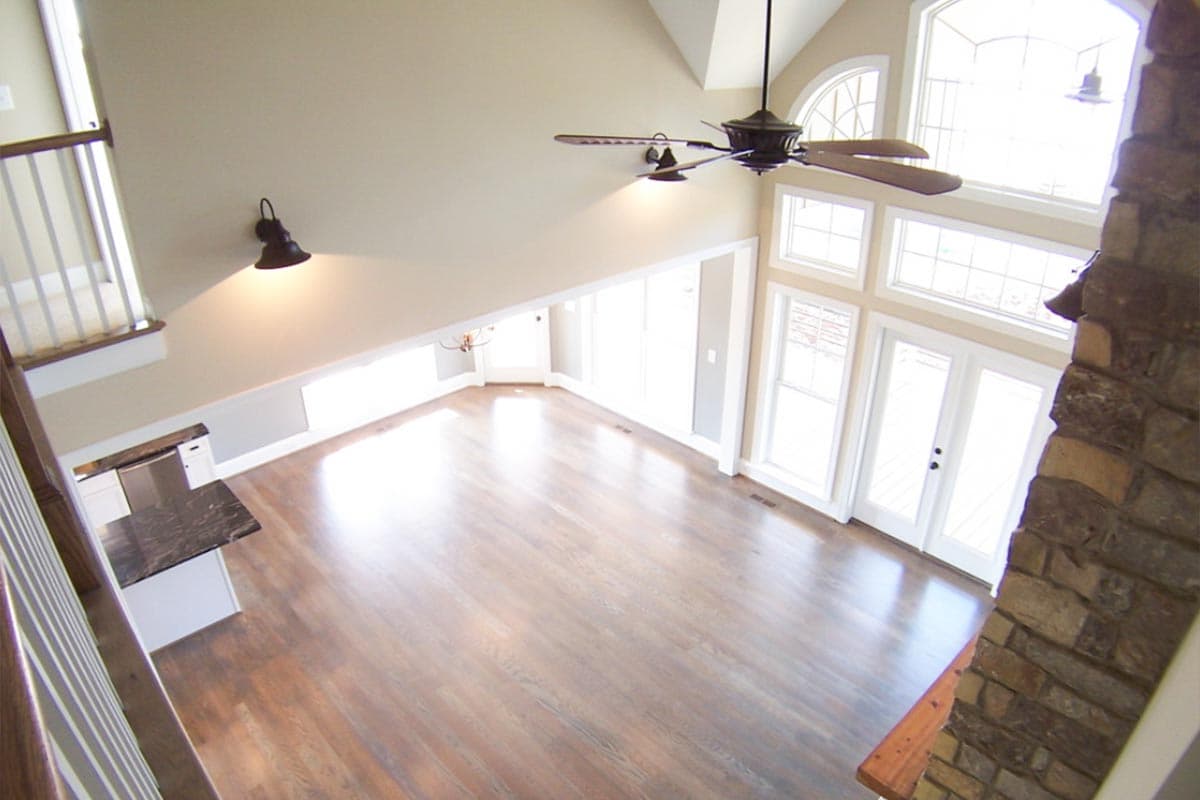

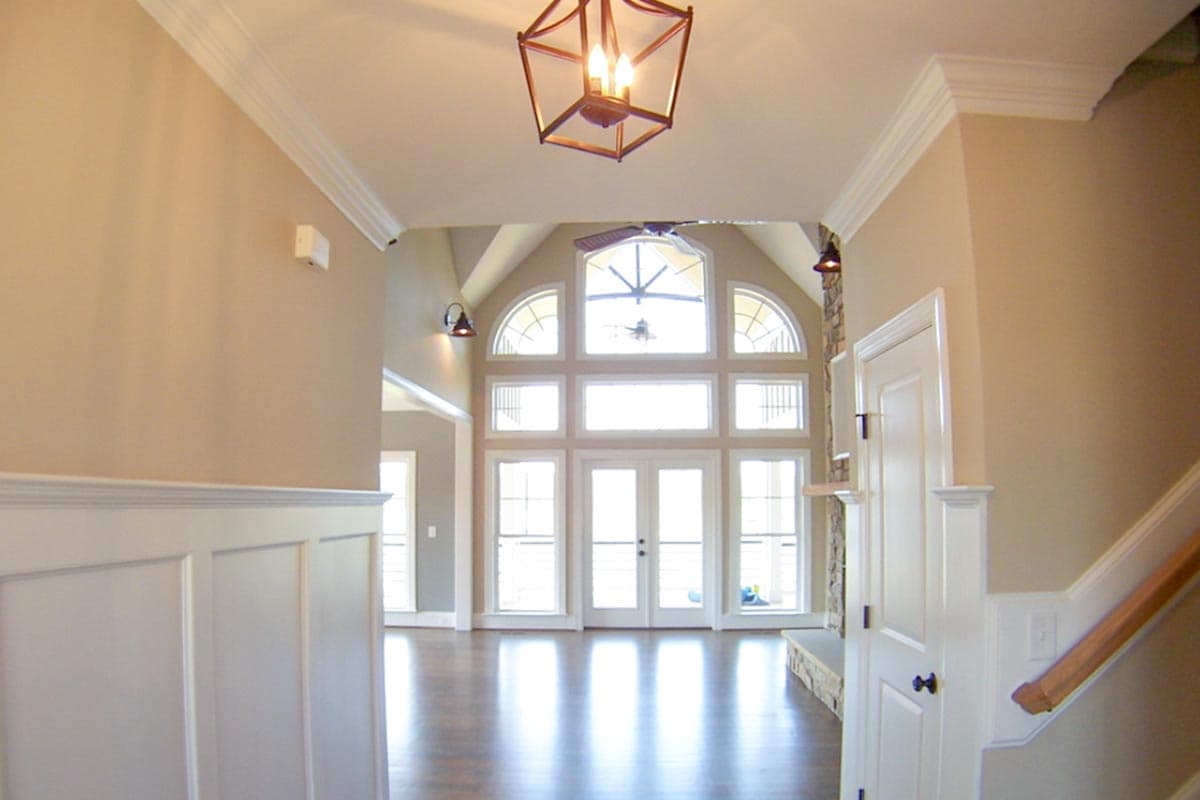

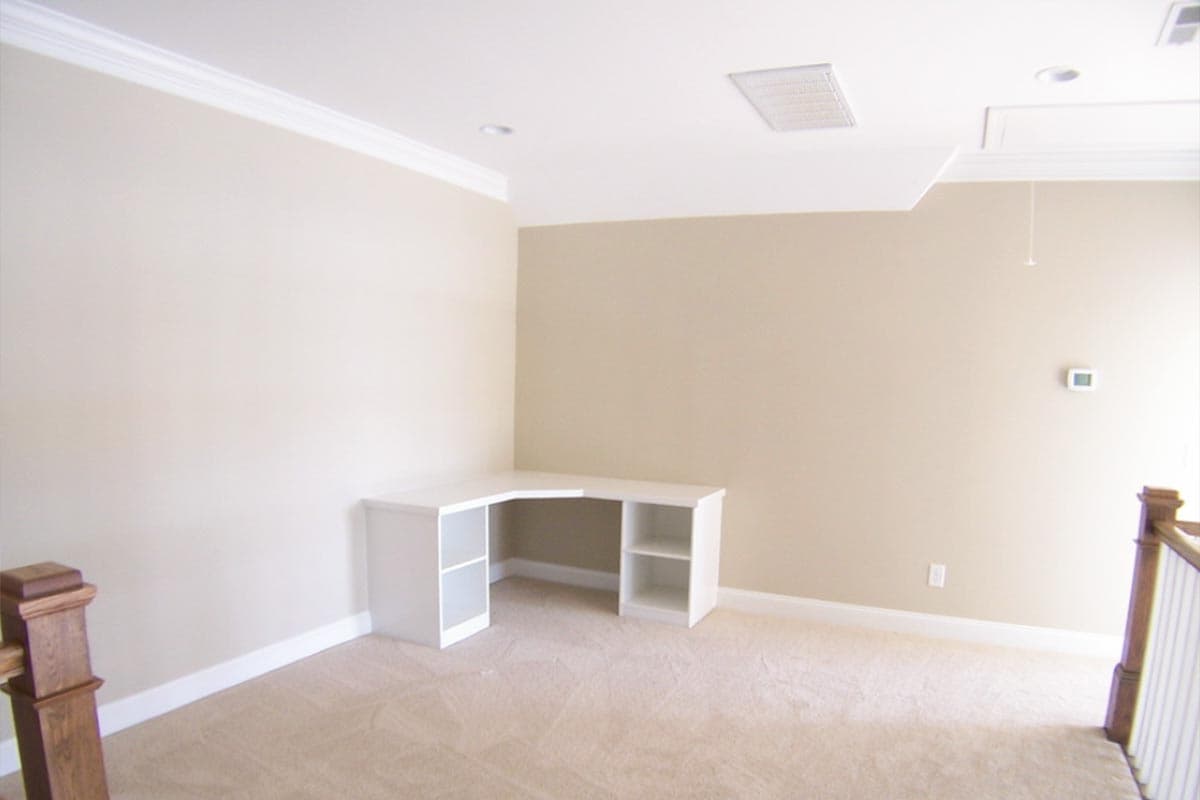

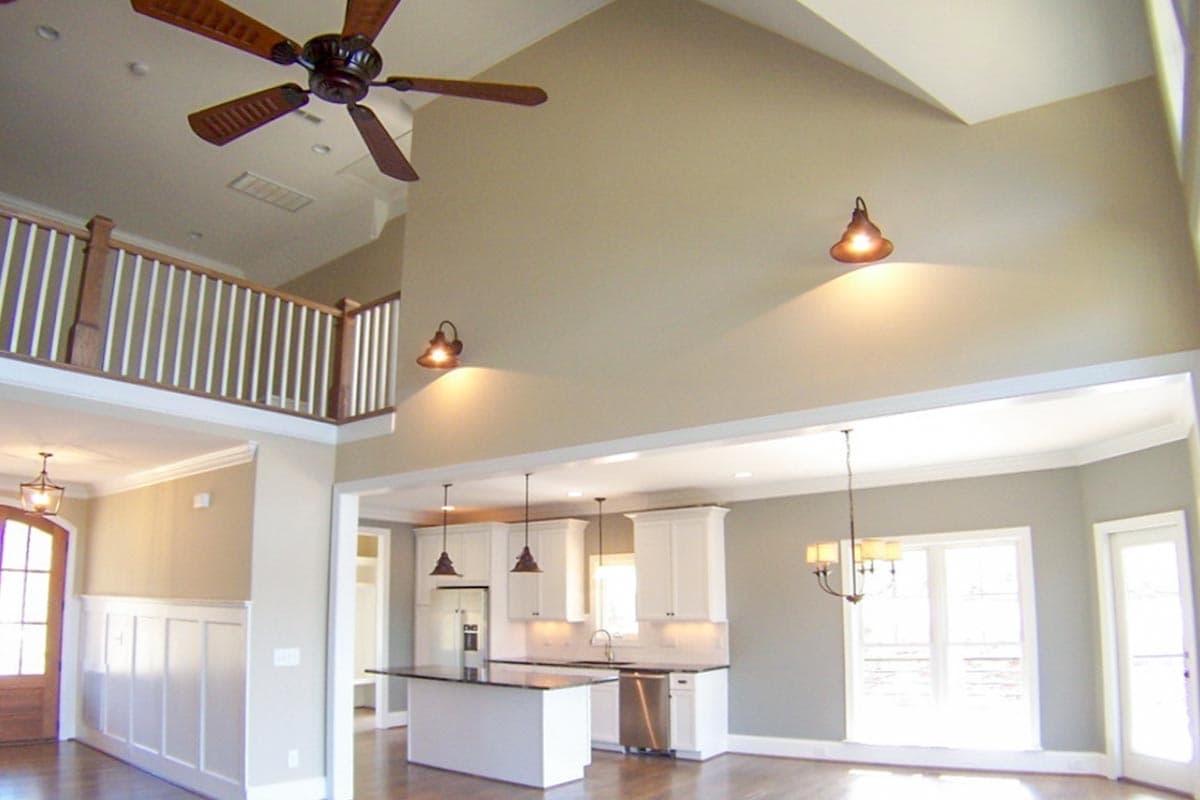

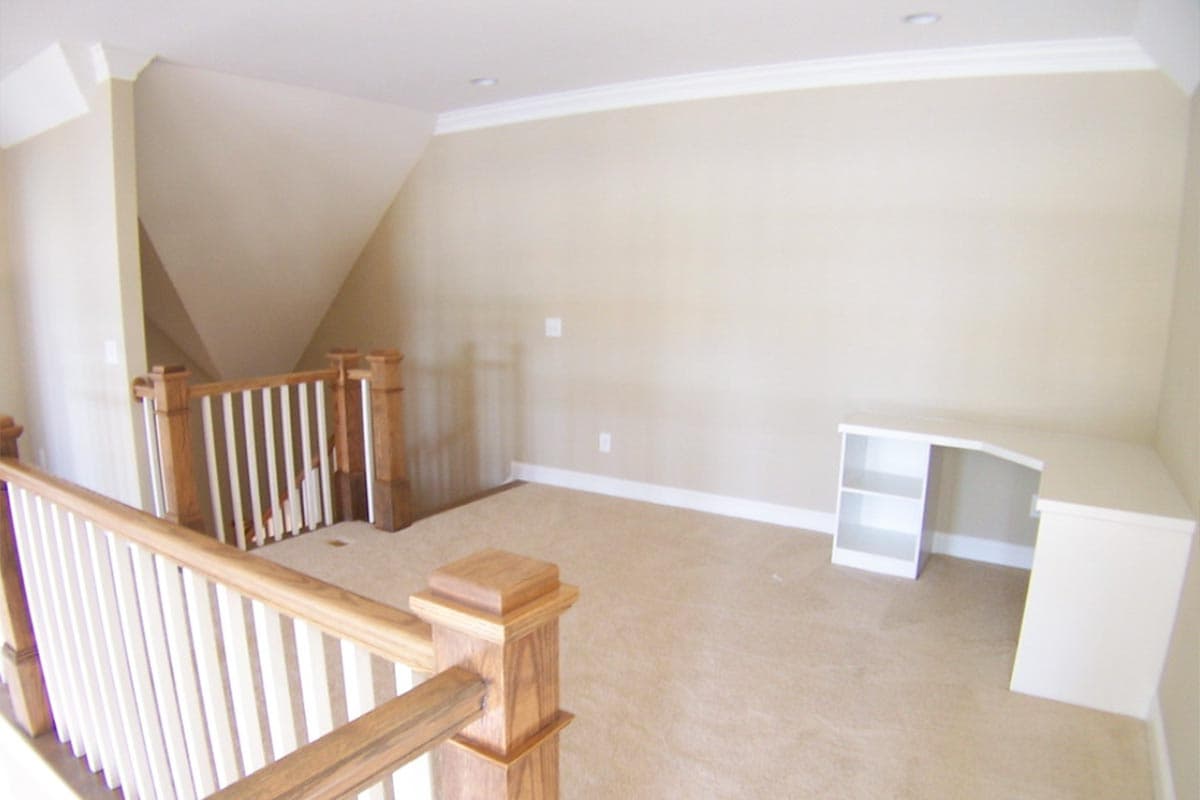

  • From the foyer views extend through the back of the house. The loft above has views below to this two-story room.

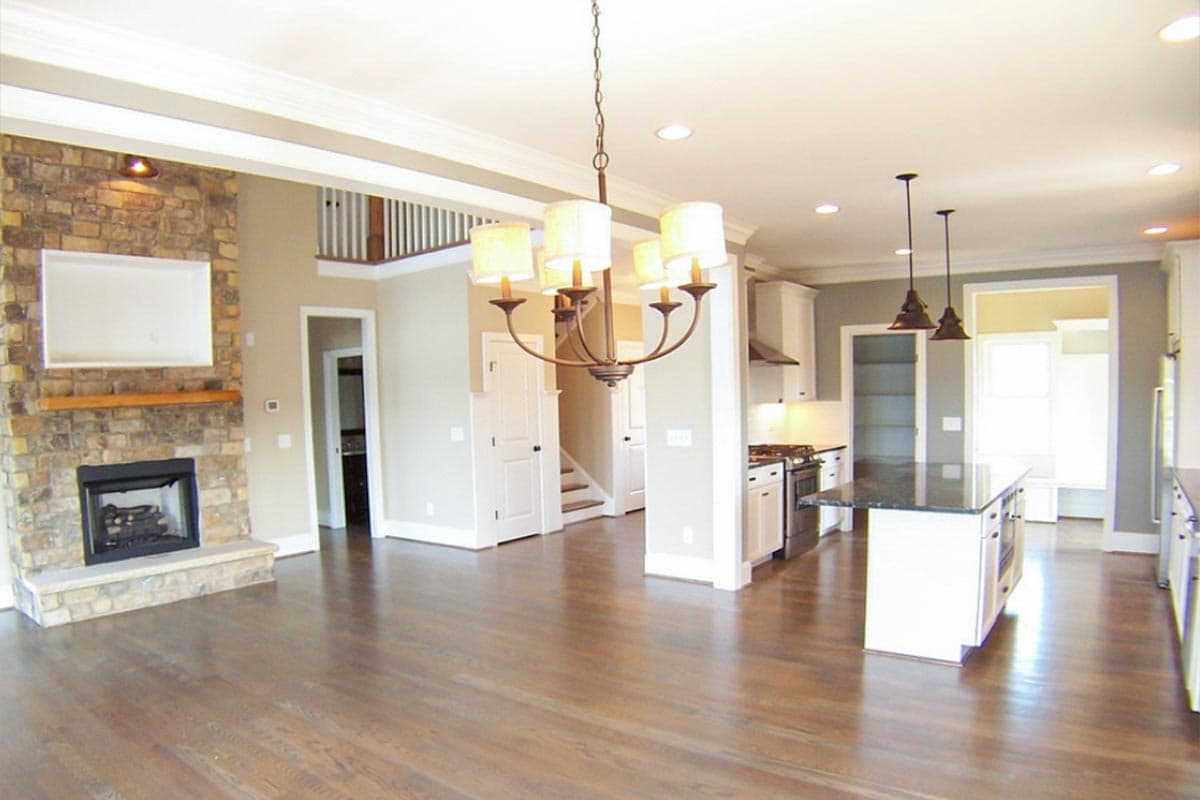

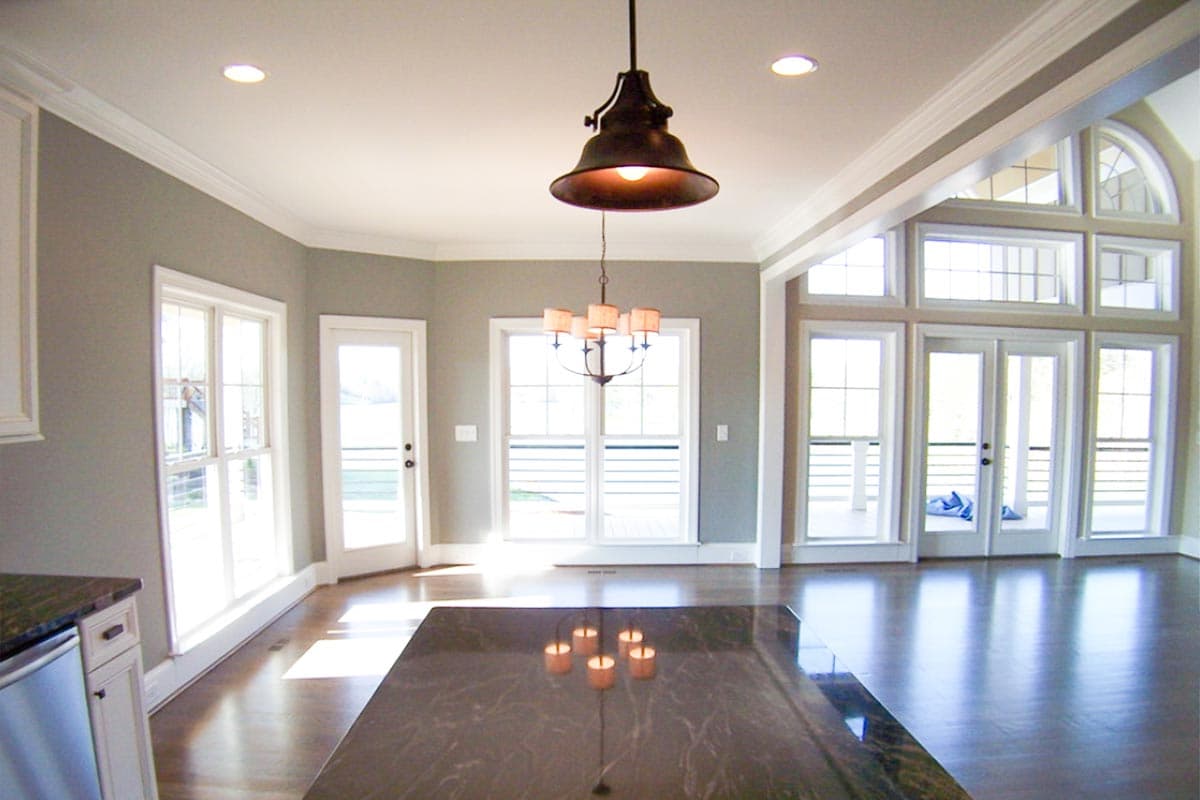

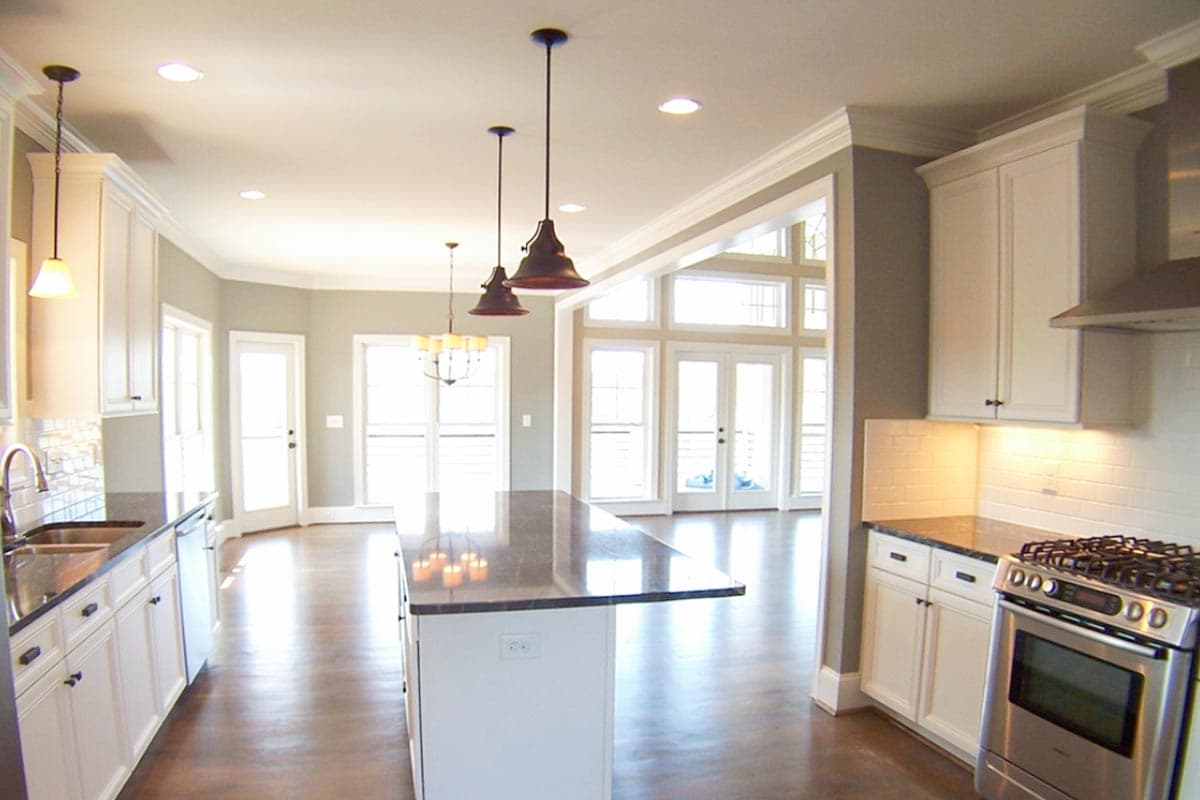

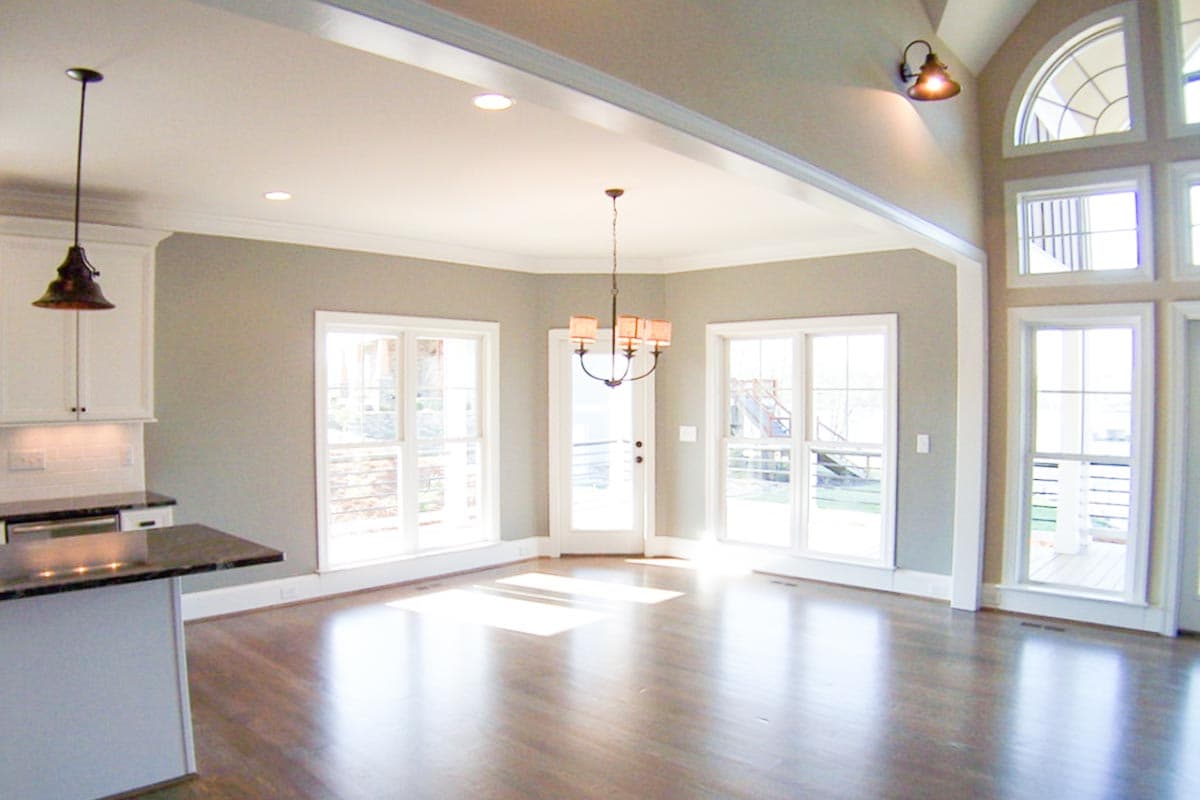

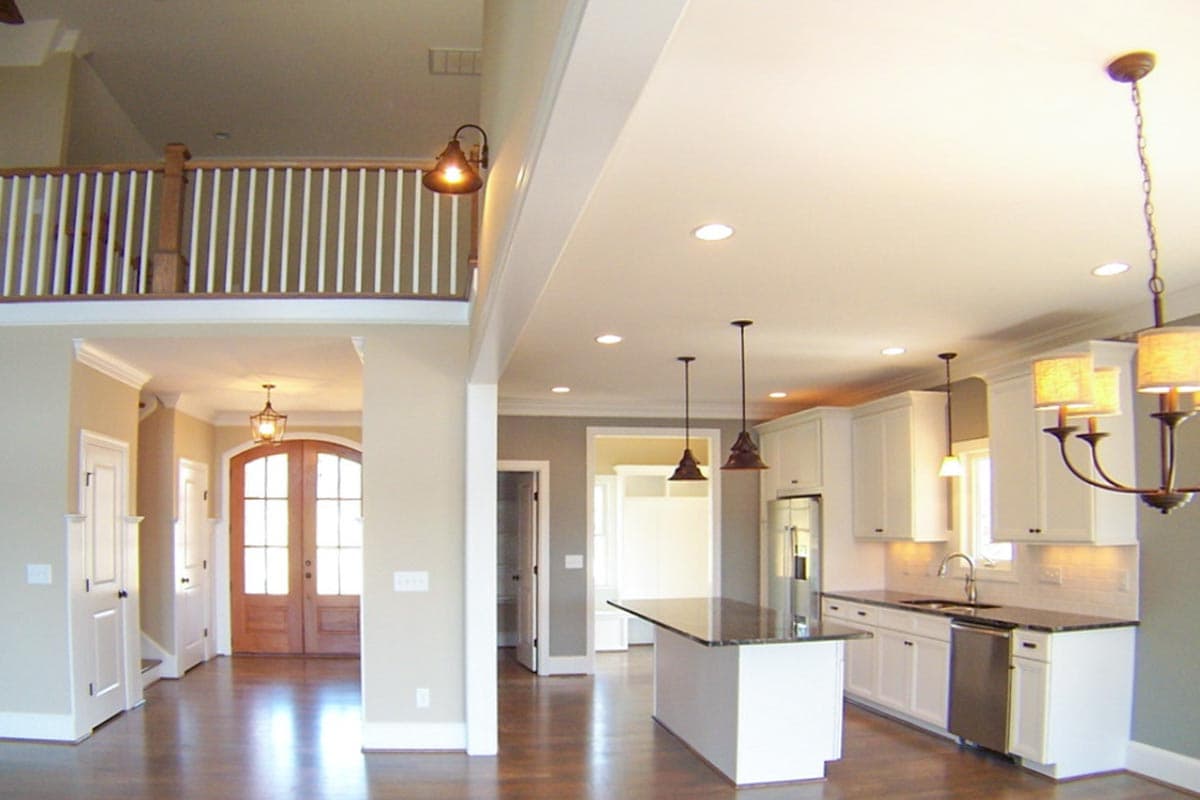

  • The kitchen is bright and open to the dining room.
  • Two bedroom suites complement the upstairs loft.

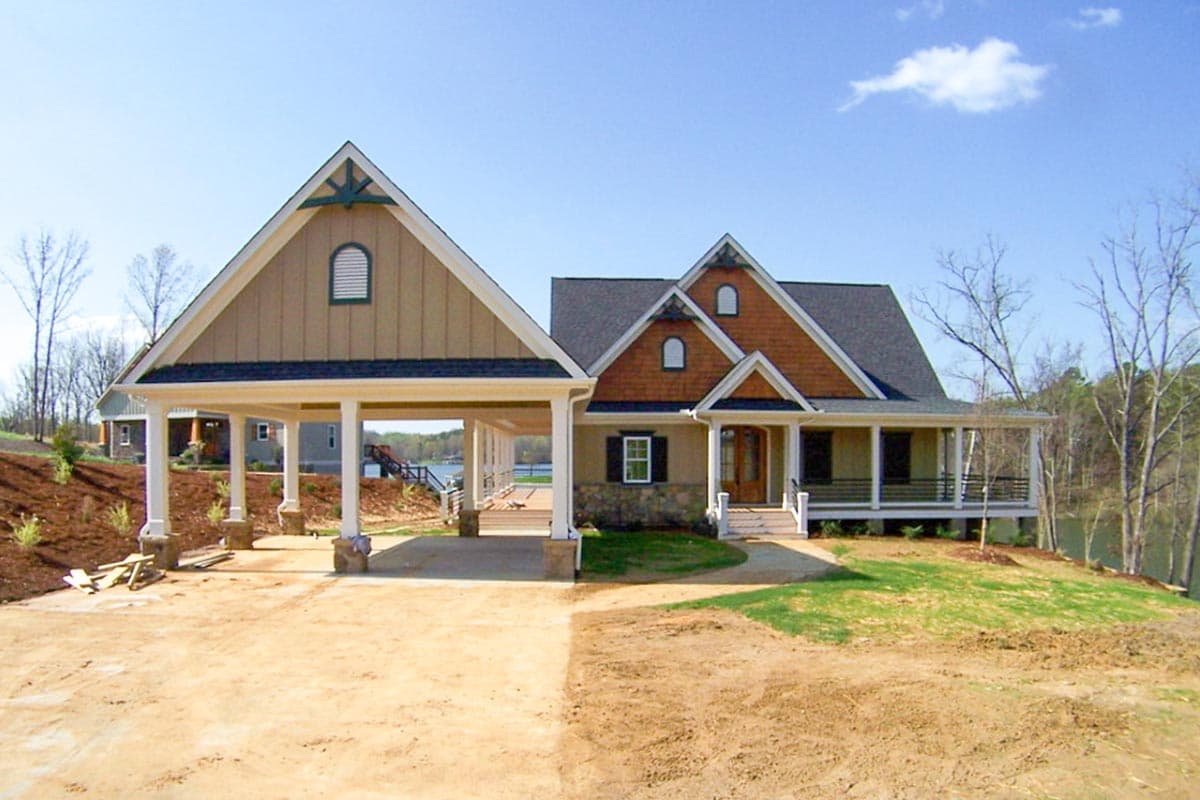

  • The house plan can be built with either a 2-car carport or a 2-car garage.
  • Related Plan: Get a 75'8"-wide version with house plan 92376MX.

What's Included

  • Front, side and rear elevations at 1/4" scale.  All elevations include notes, dimensions and recommended materials.
  • Complete dimensioned and detailed floor plans
  • Foundation plan.  Typically, the plans show a basement foundation. Slab and crawlspace foundations are also available for most plans for an additional fee.
  • Roof plans at 1/4" scale showing all pitches, ridges, hips and valleys

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Electrical plans are customer specific and not included.  A custom electrical plan can be created for $350.

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,052 sq. ft.

1st Floor

1,294 sq. ft.

2nd Floor

758 sq. ft.

Porch, Combined

1,446 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 0"

Depth

80' 0"

Garage

Type

Carport

Area

576 sq. ft.

Count

2 Cars

Ceiling Heights

First Floor

9'

Second Floor

9'

Architectural Style

Cottage

Country

Mountain

Rustic

Special Features

Game/Rec Room

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Wet Bar

Wraparound Porch

Plan Collections

Exclusive

Lake House Plans

Photo Gallery
