Plan 680254VR
Lake House Plan with 2nd Floor Master and a Drive Under Garage - 2165 Sq Ft
Heated S.F.
2,165
Beds
3
Baths
2
Stories
2
Cars
2
What's Included
Plan Details
  • A timber-frame truss lends character to the front porch of this two-story, lake house plan, complete with a wrap-around porch to enjoy the available views.
  • The sun-drenched interior features a 2-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and easy access to the deck for grilling.
  • Two bedrooms share a bath on the main floor while the master bedroom is located on the upper floor and has a 5-fixture bathroom and a walk-in closet. There is also a loft looking out over the living space below.
  • A 2-car side load garage plus a large storage area in the lower level completes this house plan.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Lake House Plan with 2nd Floor Master and a Drive Under Garage - 2165 Sq Ft

  • 2,165

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

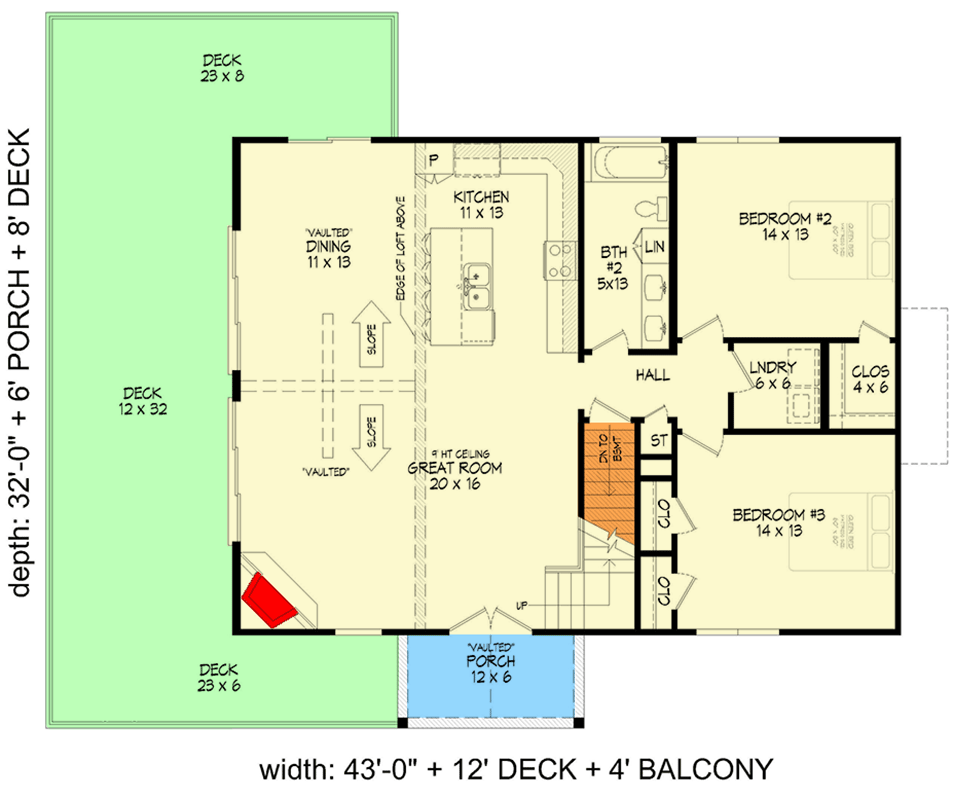

  • Main Level

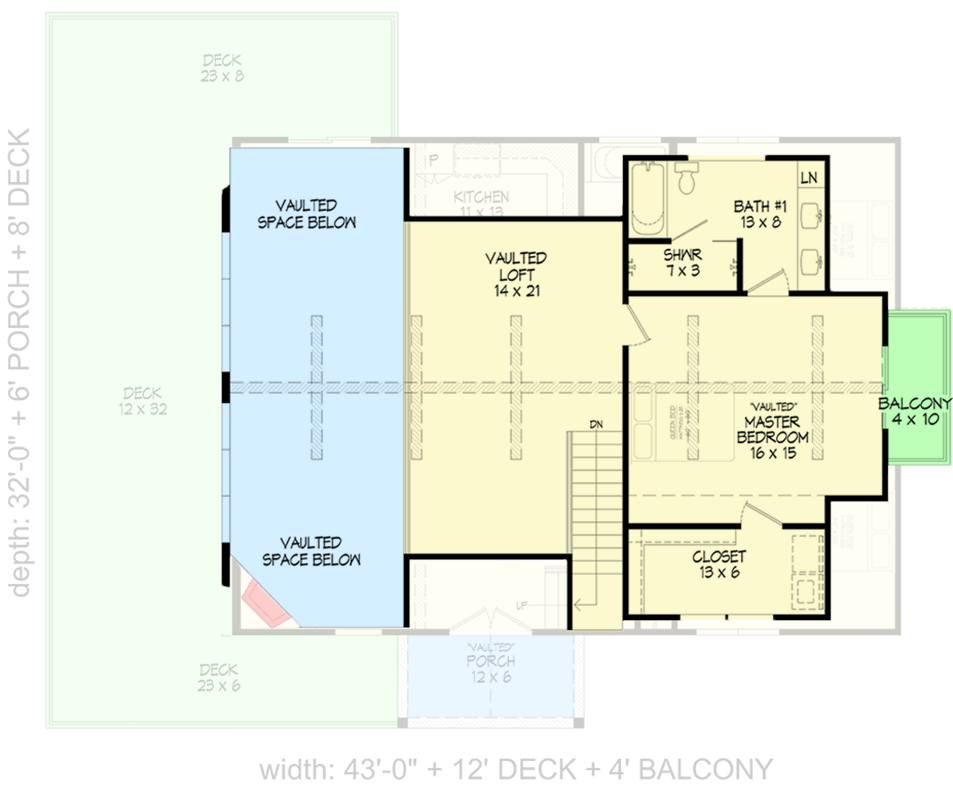

  • 2nd Floor

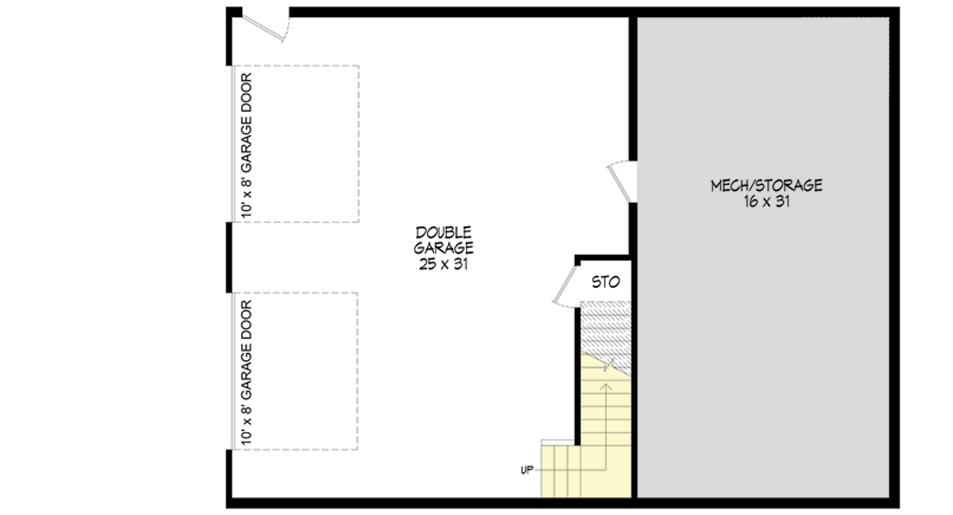

  • Basement

Plan Details

Square Footage Breakdown

  • Total: 2,165 sq. ft.
  • 1st Floor: 1,376 sq. ft.
  • 2nd Floor: 789 sq. ft.

Dimensions

  • Width: 59' 0"
  • Depth: 46' 0"
  • Max ridge height: 26' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Drive Under, Attached
  • Area: 1376 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Basement, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
