Lake Side Cabin Cottage

Plan 59154ND

This plan plants 3 trees

1,970
Heated s.f.
4
Beds
4
Baths
2
Stories

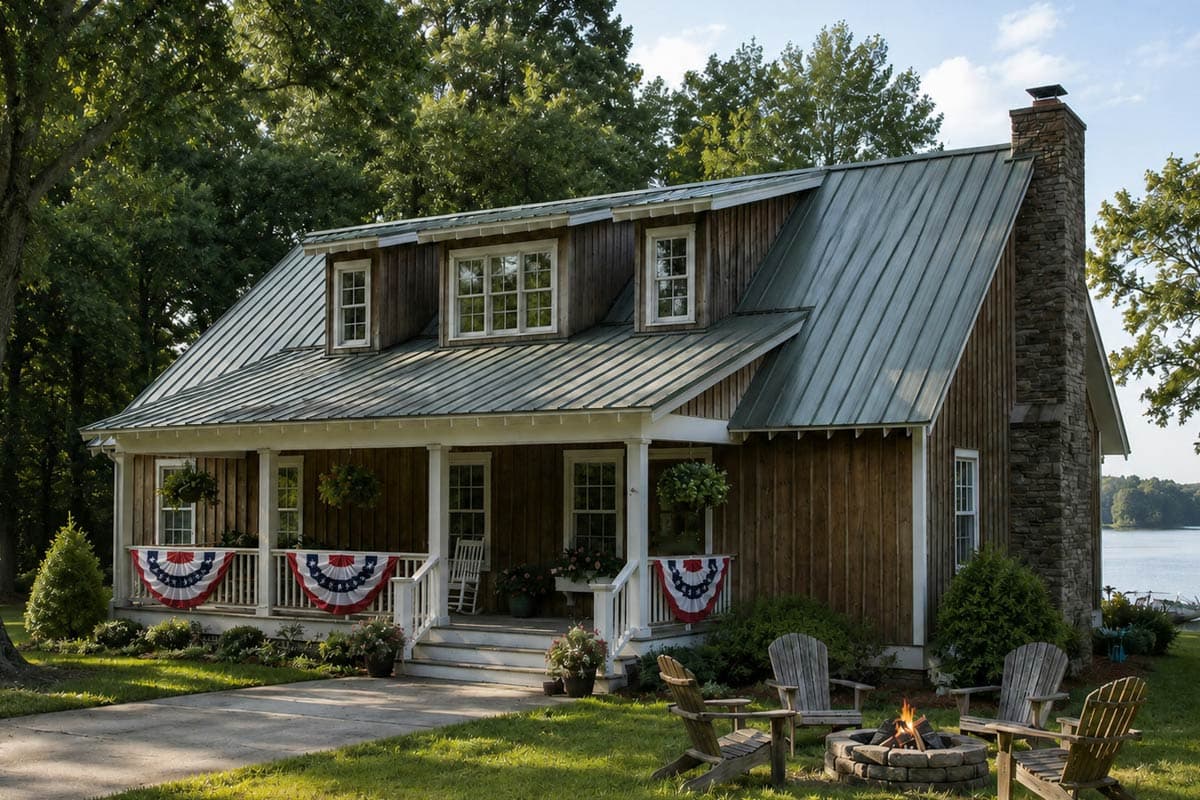

The 8' entry porch is perfect for relaxing in the evenings with friends.
Enter this cottage plan into the dining area and kitchen with island seating for four.
Enjoy the great room with vaulted ceiling open to the upstairs and a rock hearth fireplace.
To conserve space, two bathrooms have showers only.
The master bedroom has access to the rear screened porch. Access to the porch may also be gained from the great room.
Upstairs is a loft with a window seat and a fourth bedroom with vaulted ceiling.
Related Plans: Add a 3-car side-entry garage and a bunk room over the great room with house plan 70677MK. Elevate the structure with house plan 59952ND.

Each plan set includes the following:

Foundation Plan** (1/4″ or 1/2″ = 1′)
Floor Plans (1/4″= 1′)
Set of Elevations (1/4″= 1′)
Miscellaneous Details (3/4″ = 1′)
An electrical diagram showing a birdseye view of rooms with lights, fans to switches

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Lake Side Cabin Cottage - 59154ND floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Lake Side Cabin Cottage - 59154ND floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,970 sq. ft.
1st Floor: 1,440 sq. ft.
2nd Floor: 530 sq. ft.

Screened Porch: 320 sq. ft.
Porch, Front: 240 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 4

Foundation Type

Standard Foundations: Slab, Crawl

Optional Foundations: Basement, Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 50' 4"
Depth: 48' 0"
Max ridge height: 21' 2"

Ceiling Heights

Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch: 10 on 12
Secondary Pitch: 4.5 on 12

Framing Type: Stick

Architectural Style

Special features

Plan Collections
