Plan 11765HZ

Large And Open Floor Plan

Heated S.F.
1,600
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 11765HZ

Main Level
Main Level
Optional
Optional

Plan 11765HZ

M-F 9am-5pm EST |

1-203-761-8500

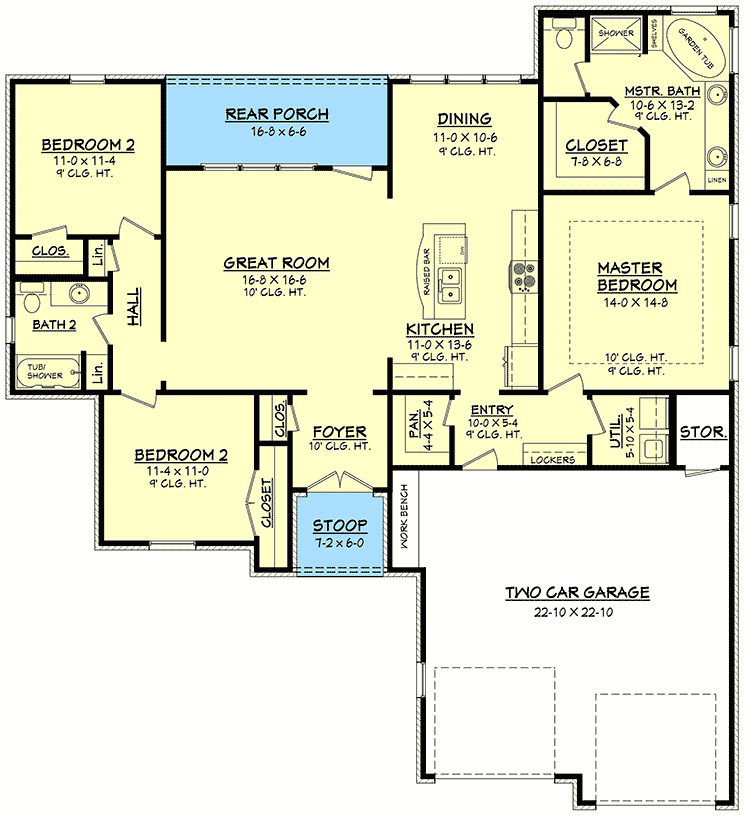

Main Level

Plan 11765HZ: Large And Open Floor Plan - Floor Plan - Main Level - European, French Country, Southern

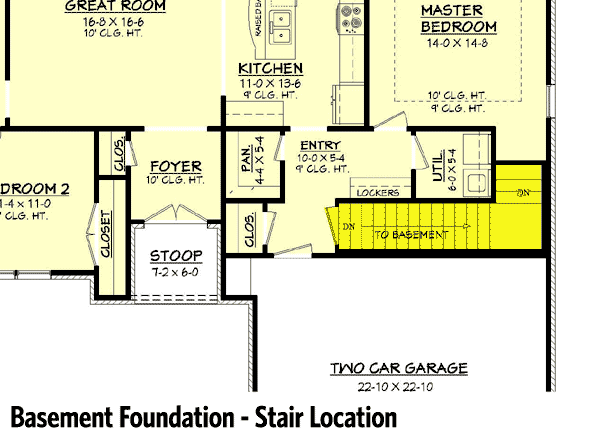

Optional

Plan 11765HZ: Large And Open Floor Plan - Floor Plan - Optional - European, French Country, Southern

Plan Details

  • Sweeping views from the great room to the kitchen to the dining room are all possible because of the open floor plan in this one level home plan.
  • A big island and walk-in pantry benefit the kitchen and a raised eating bar on the island makes it possible to chat with guests while cooking.
  • Split bedrooms separate the family bedrooms from the master with its tray ceiling and deluxe bath with garden tub.
  • A rear covered porch gives you outdoor space in the shade.
  • Related Plan: Get a slightly alternate exterior with house plan 11764HZ.

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,600 sq. ft.

1st Floor

1,600 sq. ft.

Porch, Combined

151 sq. ft.

Storage

25 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 4"

Depth

59' 8"

Max Ridge Height

23' 7"

Garage

Type

Attached

Area

587 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

European

French Country

Southern

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

USDA Approved

Square Footage Breakdown

Total Heated Area

1,600 sq. ft.

1st Floor

1,600 sq. ft.

Porch, Combined

151 sq. ft.

Storage

25 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 4"

Depth

59' 8"

Max Ridge Height

23' 7"

Garage

Type

Attached

Area

587 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

European

French Country

Southern

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

USDA Approved
