Plan 5779HA
Layout Creates Large Open Living Area
Heated S.F.
1,285
Beds
3
Baths
2
Stories
1
What's Included
Plan Details
  • This accommodating home plan with ranch style porch has a great layout that creates a large open living area.
  • A coat closet by the entry helps minimize clutter.
  • The master bedroom includes a dressing area, private bath and built-in bookcase.
  • The kitchen features a pantry, breakfast bar and has an open view to the dining room where windows on two walls let in lots of natural light.
  • A large storage area in the back is a nice plus.
  • Foundations: basement, crawl space and slab all included.
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

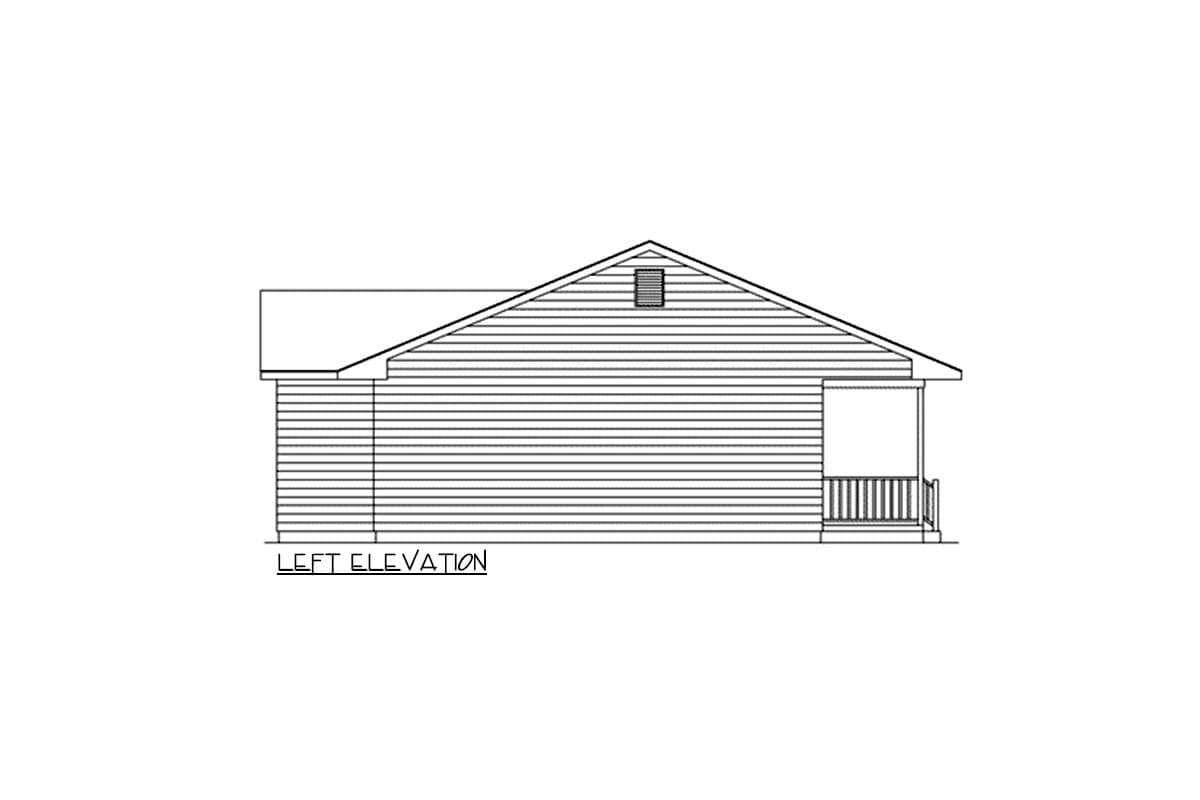

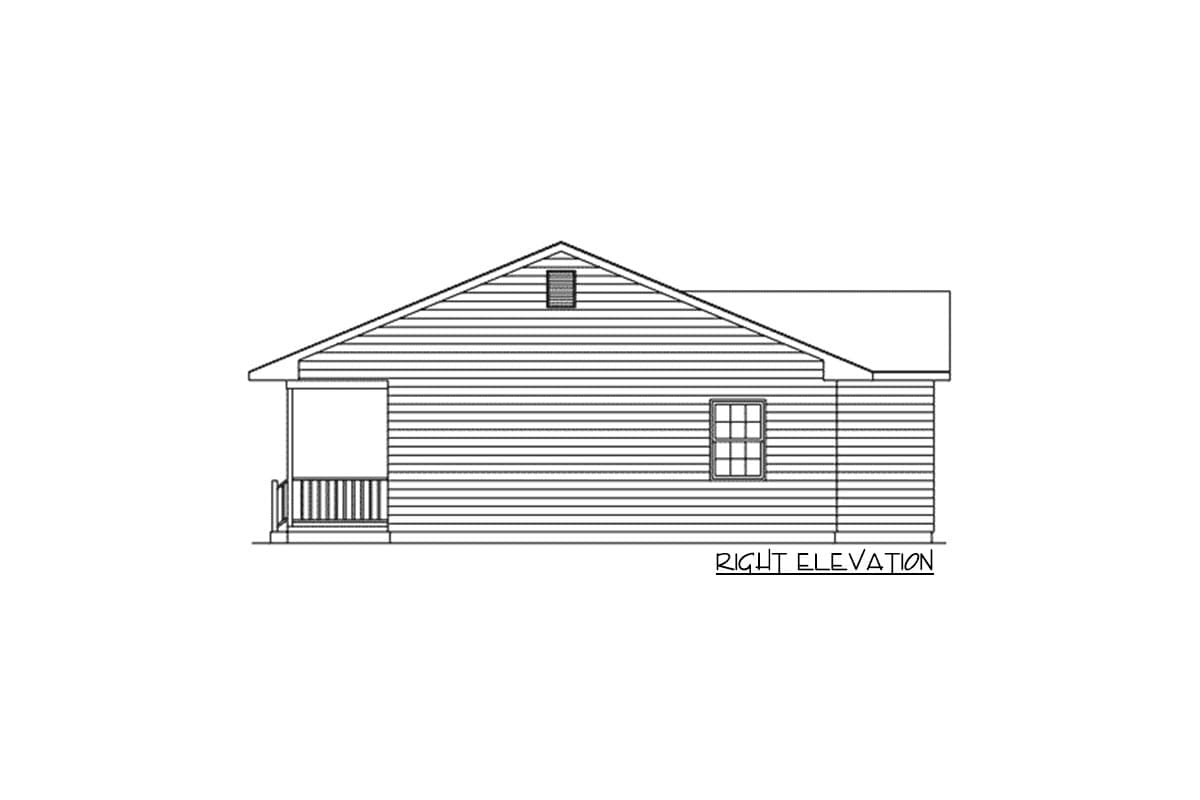

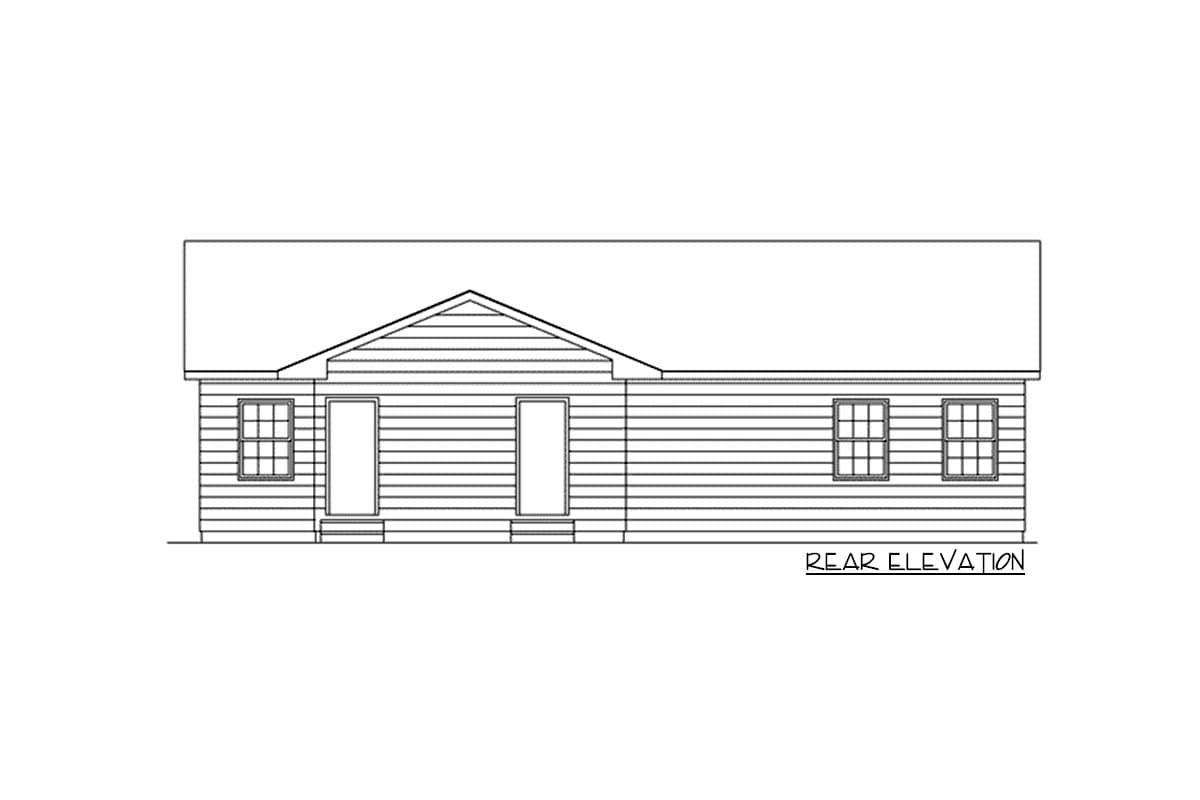

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Layout Creates Large Open Living Area

  • 1,285

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

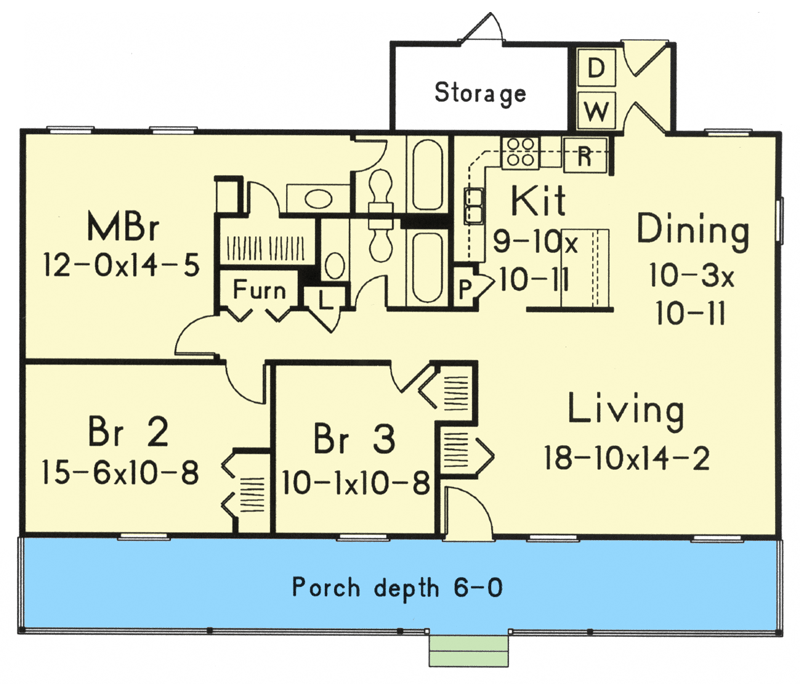

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,285 sq. ft.
  • 1st Floor: 1,285 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 26' 0"
  • Max ridge height: 17' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
