Plan 68564VR Lift-Friendly RV Garage

0 0 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Lift-Friendly RV Garage

Plan 68564VR

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • 3

    Cars

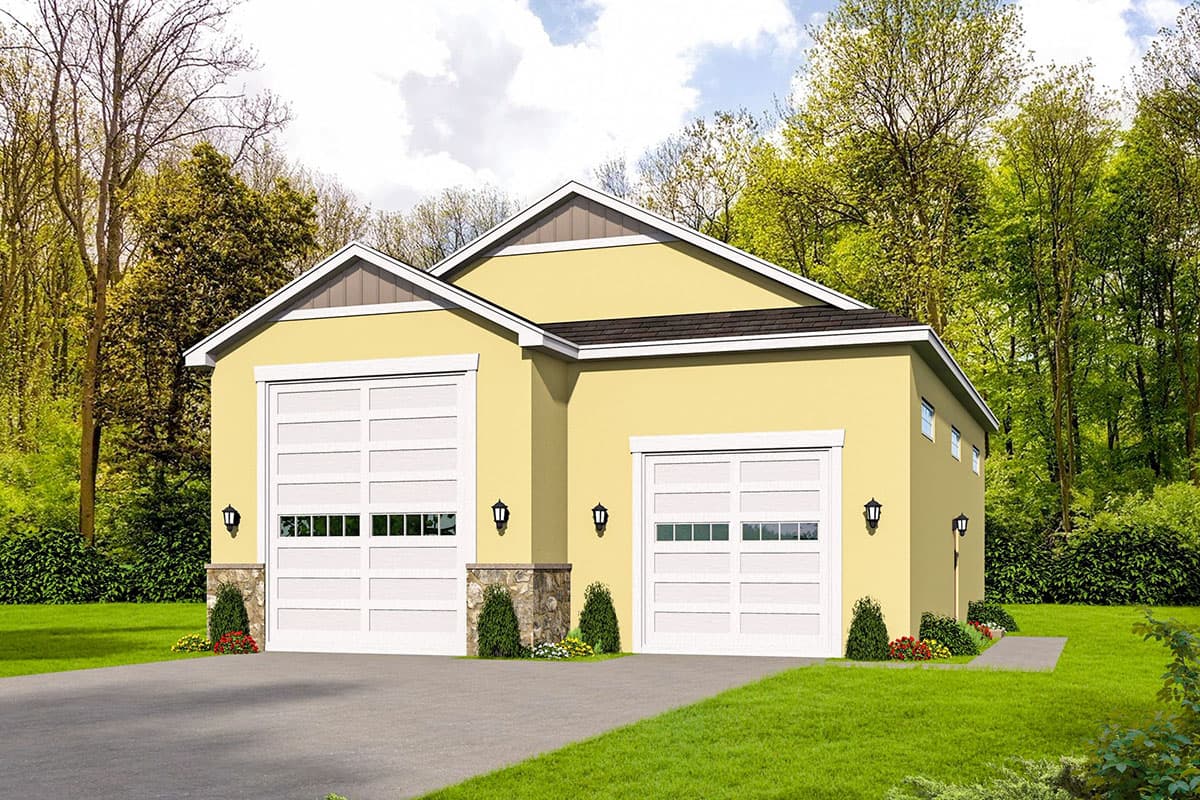

  • Get parking for both your RV and non-RV vehicles in this garage plan.
  • Each parking spot has its own garage door. There's lots of volume inside with 15' ceilings.
  • Related Plans: Get different dimensions with garage plans 68647VR (40' by 60') and 68506VR (37' by 51'). Add living space with garage plan 68599VR. Get a second floor with garage plan 68423VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

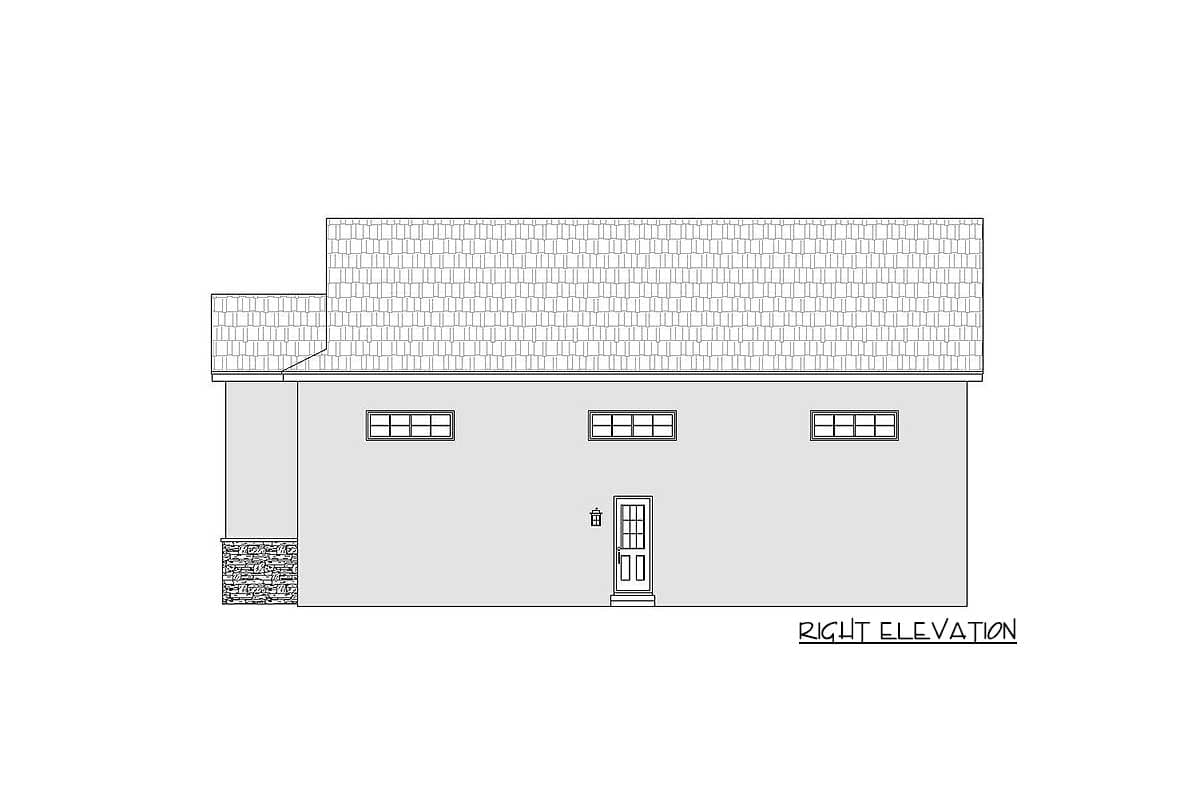

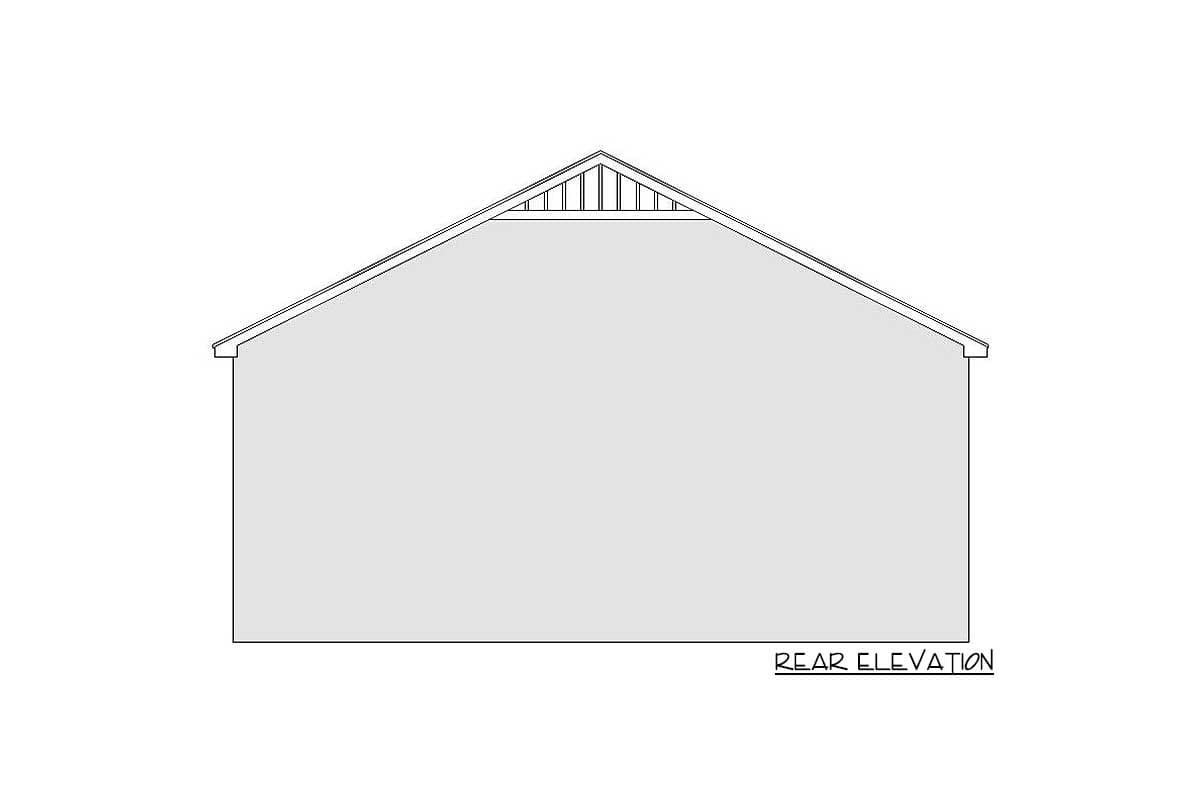

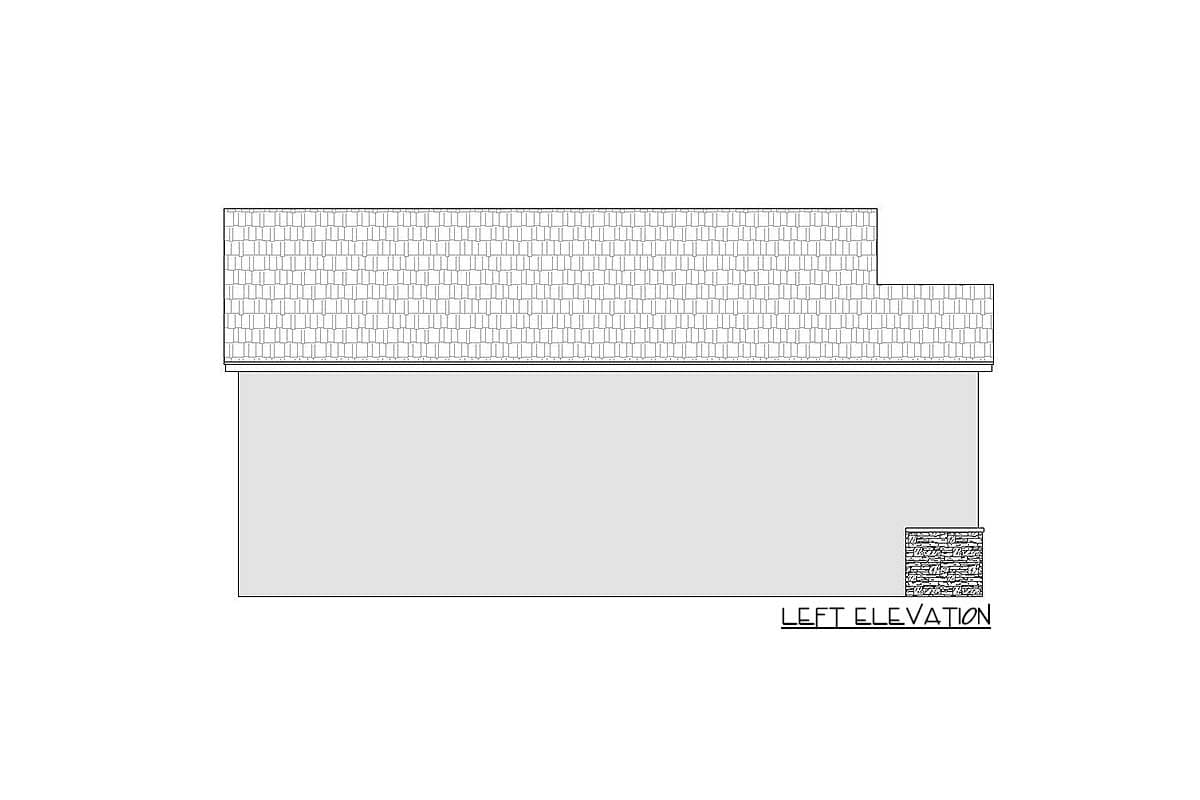

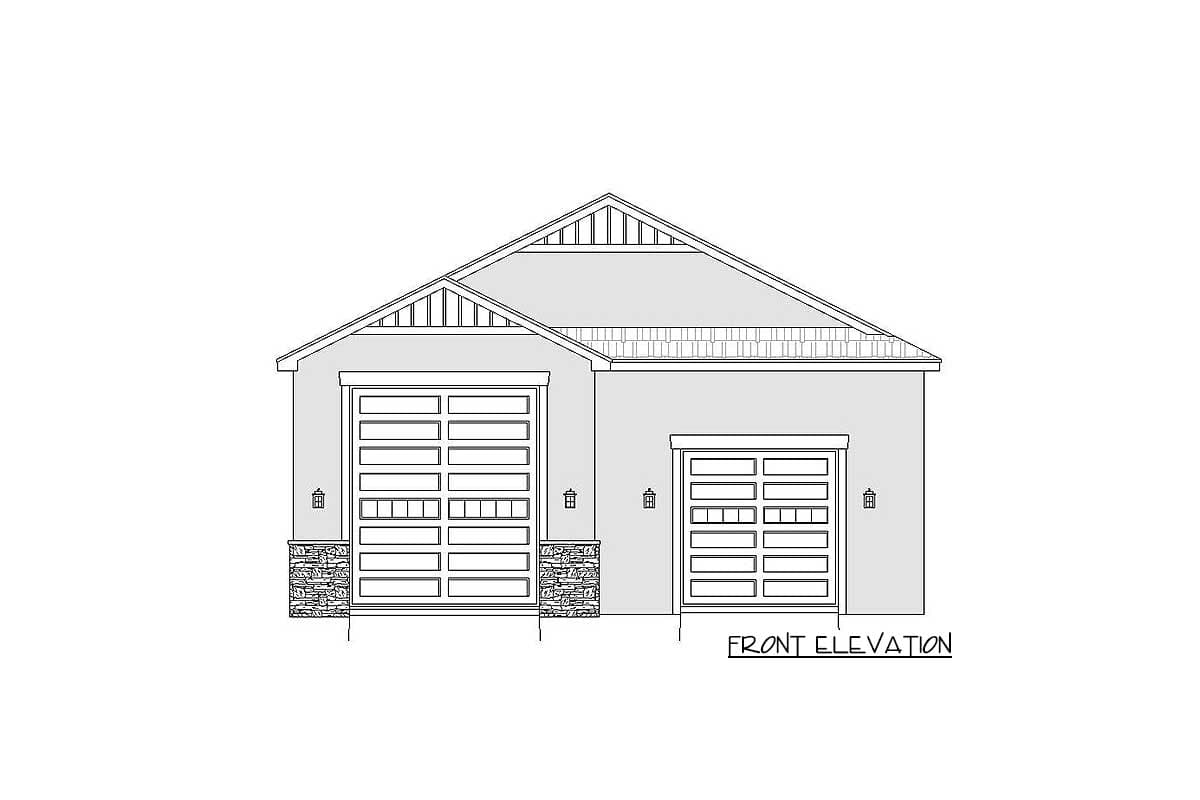

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

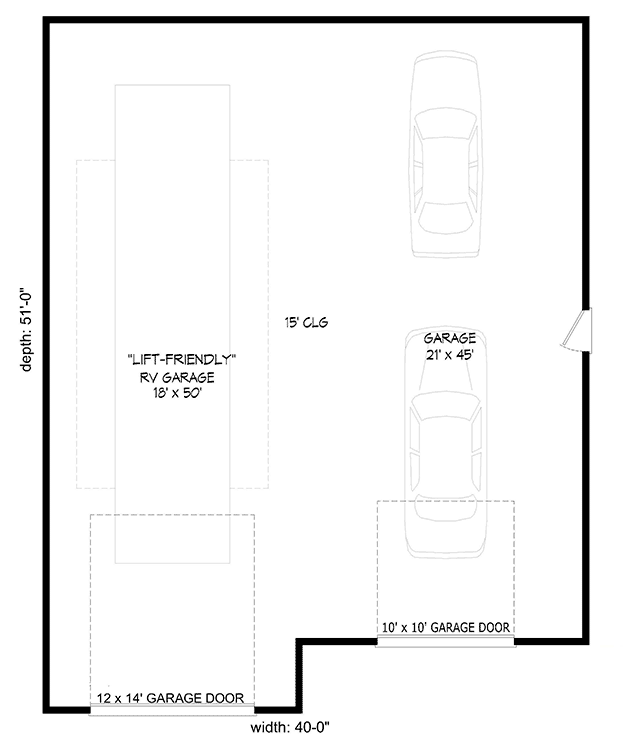

Lift-Friendly RV Garage - 68564VR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 51' 0"
  • Max ridge height: 25' 9"

Garage

  • Type: RV Garage, Detached
  • Area: 1935 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 15' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Lift-Friendly RV Garage

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,100
  • 5 Sets $1,175
  • 5 Sets + PDF $1,250
  • CAD + PDF - Single-Build $1,400
  • View all purchase option online

About This Plan

  • Get parking for both your RV and non-RV vehicles in this garage plan.
  • Each parking spot has its own garage door. There's lots of volume inside with 15' ceilings.
  • Related Plans: Get different dimensions with garage plans 68647VR (40' by 60') and 68506VR (37' by 51'). Add living space with garage plan 68599VR. Get a second floor with garage plan 68423VR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 51' 0"
  • Max ridge height: 25' 9"

Garage

  • Type: RV Garage, Detached
  • Area: 1935 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 15' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
Plan 68564VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68564VR
|
