Lift-Friendly RV Garage with High Ceilings

Plan 68506VR

  • 0

    Heated s.f.

  • 1

    Stories

  • 2

    Cars

  • The 18' by 50' bay will nicely accommodate your RV and there's a second bay almost as large that can hold two cars parked in tandem fashion.
  • Related Plans: Add living space with garage plan 68599VR. Get an alternate version with garage plans 68564VR (51' by 40') and 68647VR (40' by 60'). Get a second level with garage plan 68423VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

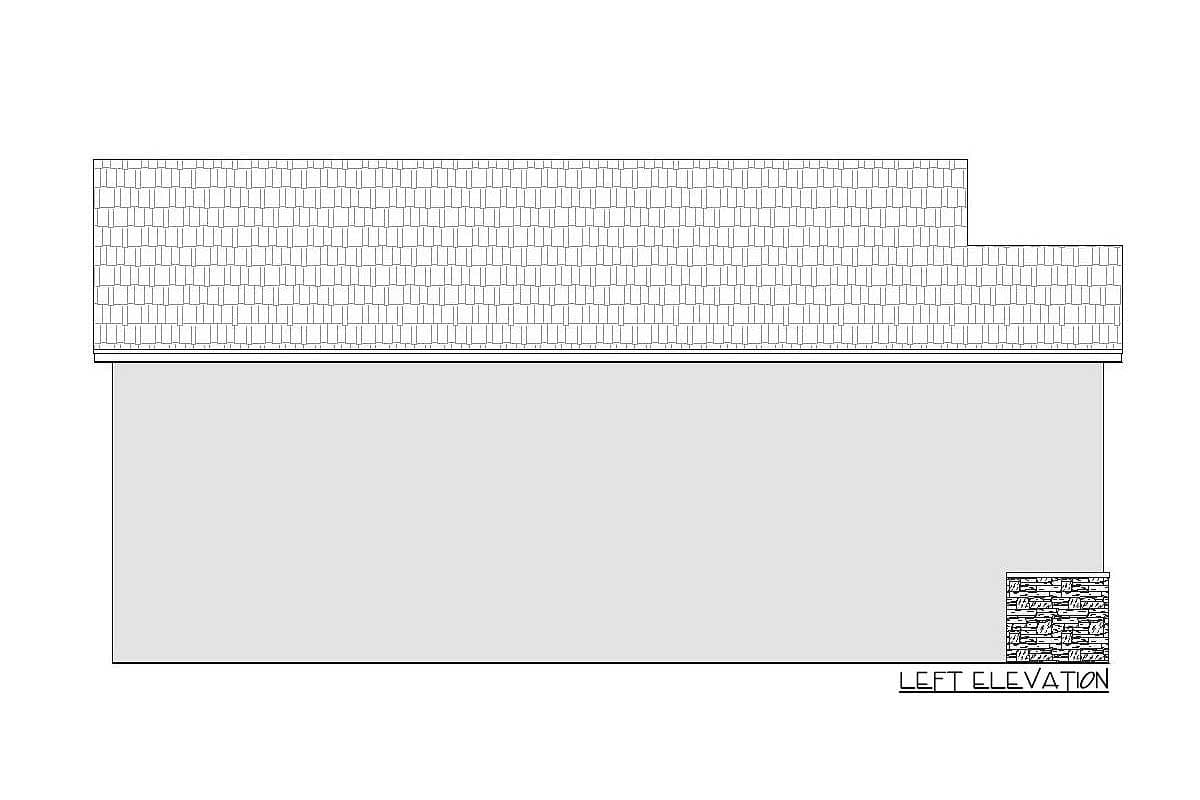

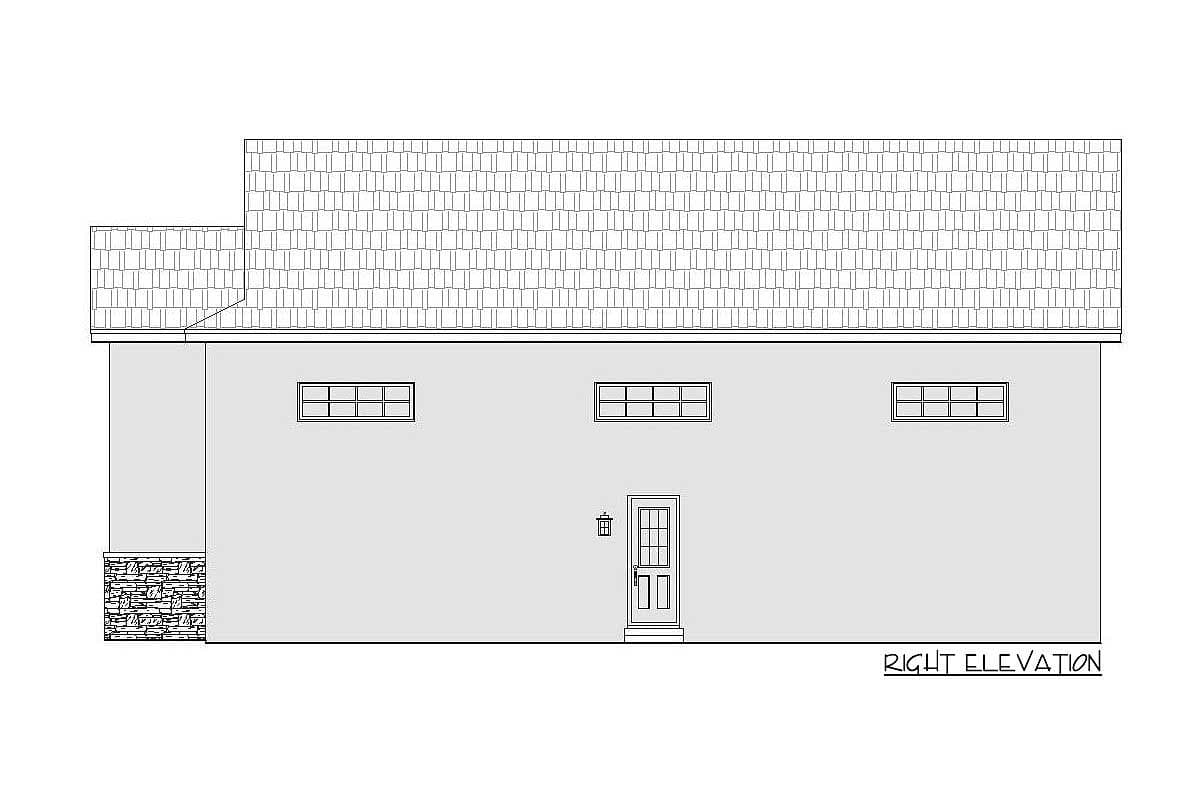

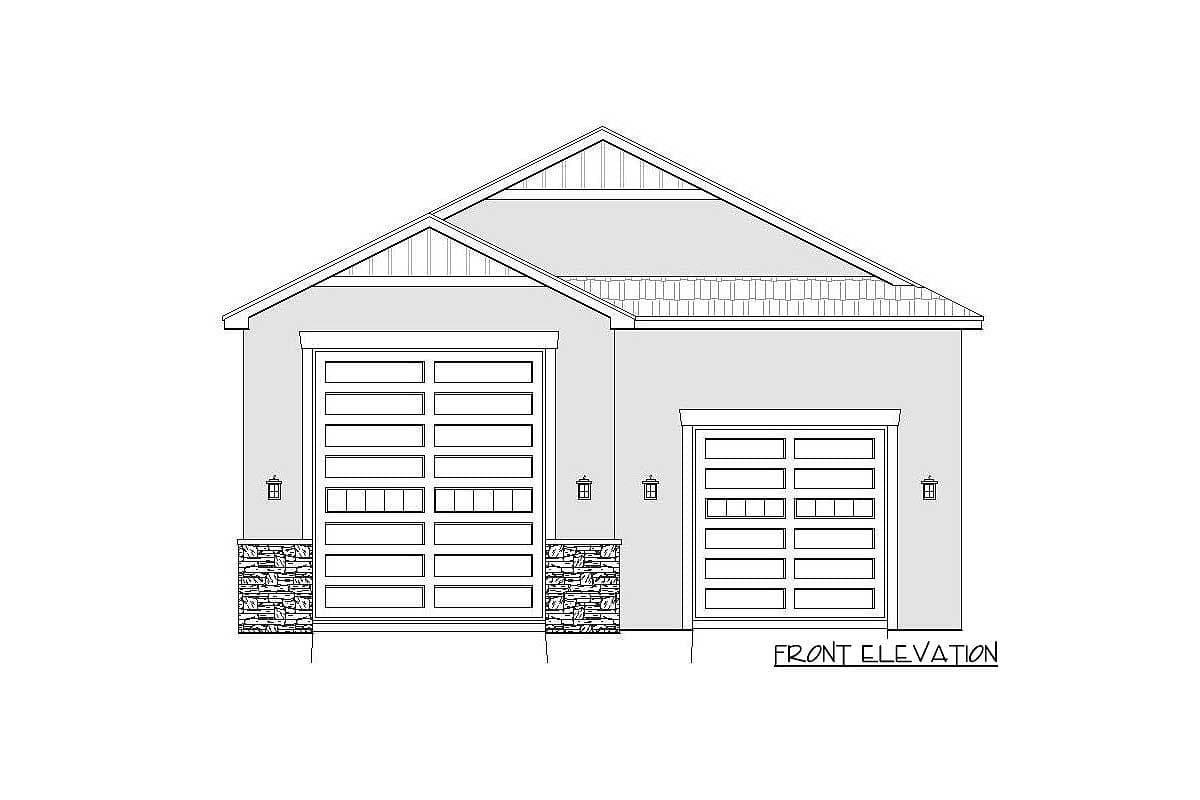

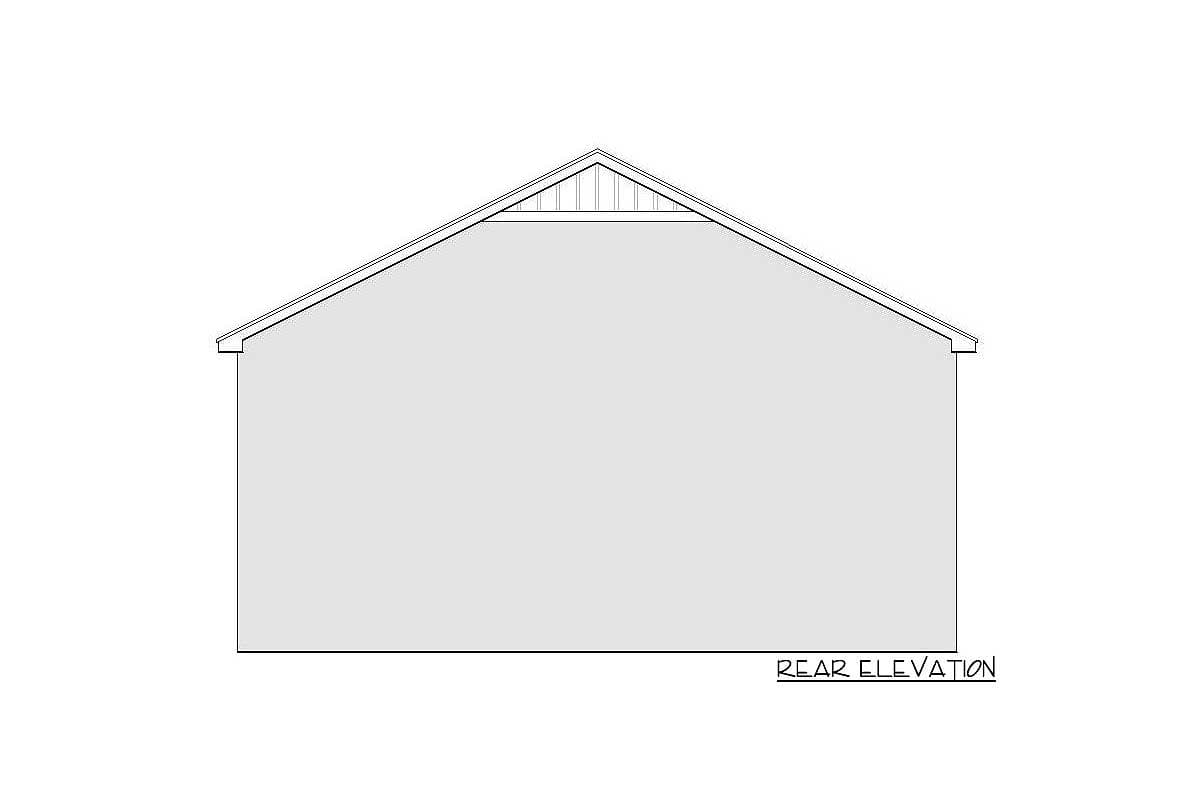

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

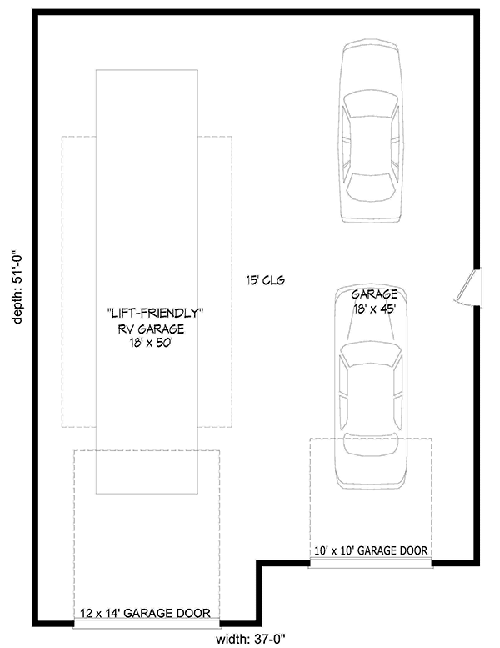

Lift-Friendly RV Garage with High Ceilings - 68506VR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 37' 0"
  • Depth: 51' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Detached, RV Garage
  • Area: 1797 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 15' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Plan Collections

Lift-Friendly RV Garage with High Ceilings

  • 0

    Heated s.f.

  • Beds

  • 0

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,100
  • 5 Sets $1,175
  • 5 Sets + PDF $1,250
  • CAD + PDF - Single-Build $1,400
  • View all purchase option online

About This Plan

  • The 18' by 50' bay will nicely accommodate your RV and there's a second bay almost as large that can hold two cars parked in tandem fashion.
  • Related Plans: Add living space with garage plan 68599VR. Get an alternate version with garage plans 68564VR (51' by 40') and 68647VR (40' by 60'). Get a second level with garage plan 68423VR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 37' 0"
  • Depth: 51' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Detached, RV Garage
  • Area: 1797 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 15' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
