Plan 35354GH
Light and Bright
Heated S.F.
2,305
Beds
3
Baths
2
Stories
2
What's Included
Plan Details
  • Designed with ICF exterior walls, this light and bright Vacation house plan will be energy efficient too.
  • The great room benefits from walls of windows on three sides giving you beautiful views from the great room, dining room and kitchen.
  • The main floor has two bedrooms while the whole second floor is devoted to the master suite.
  • Homeowners can enjoy the private deck and sitting room and an open rail balcony that overlooks the great room below.
  • Large walk-in closets are on either side of the master bedroom, giving you wonderful storage space.
What's Included
  • Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.

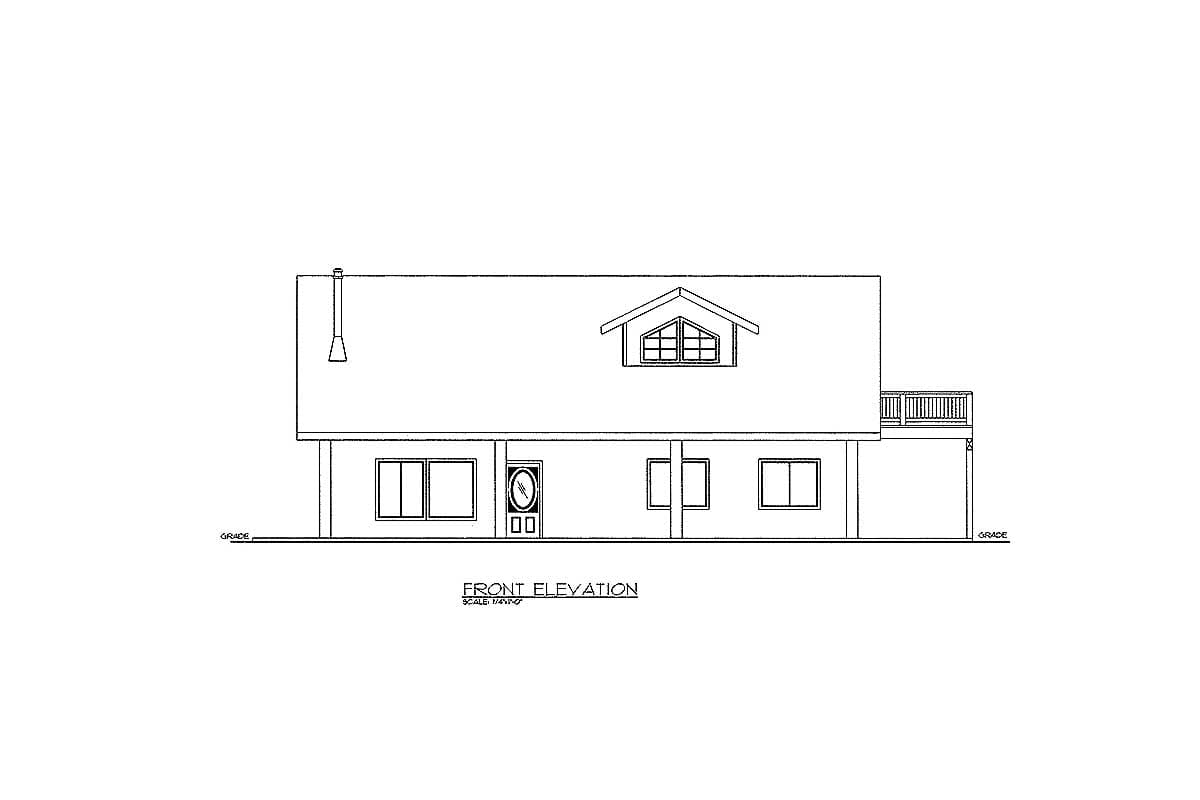

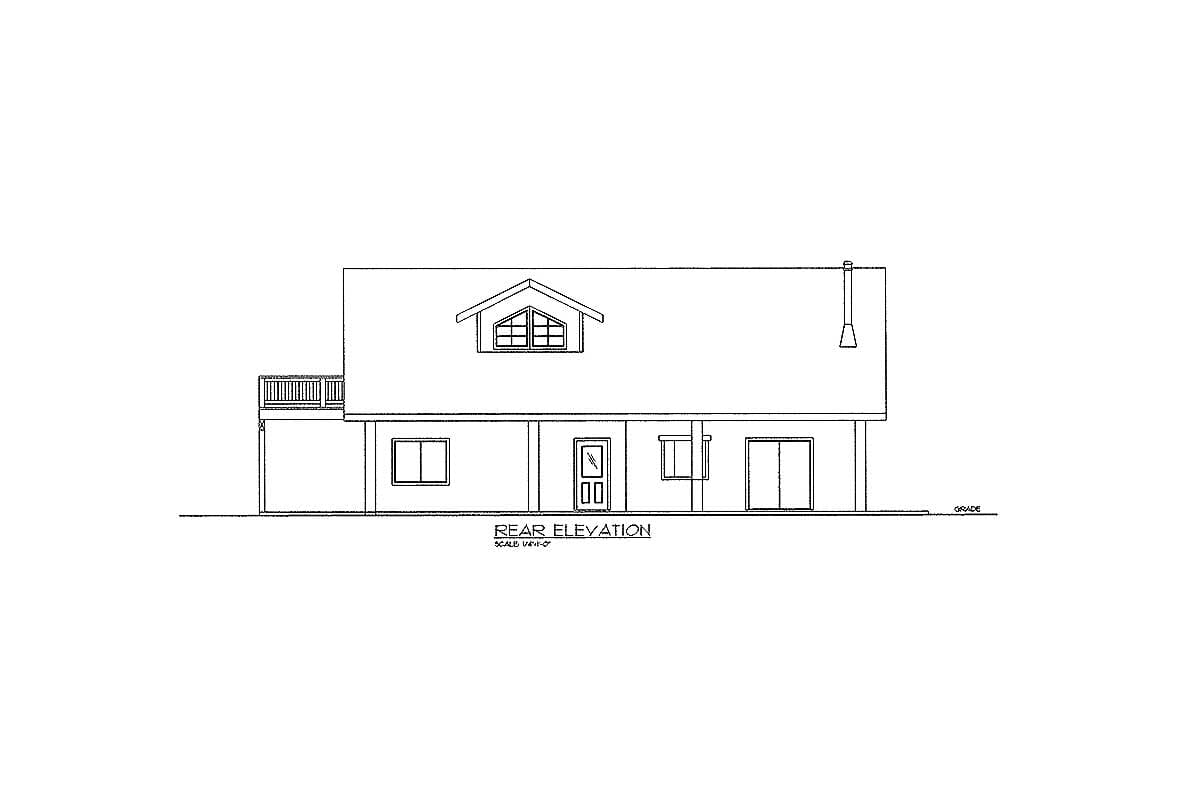

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.

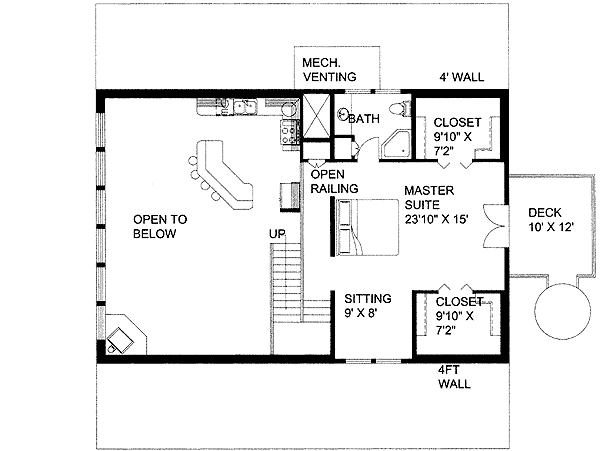

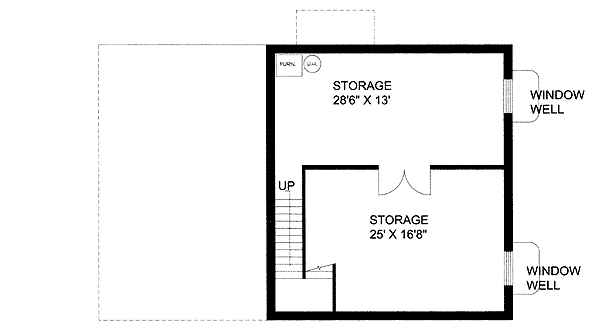

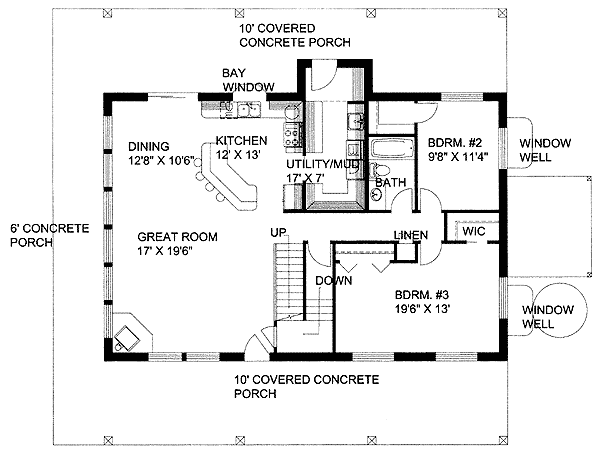

  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Light and Bright

  • 2,305

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,305 sq. ft.
  • 1st Floor: 1,572 sq. ft.
  • 2nd Floor: 733 sq. ft.

Dimensions

  • Width: 54' 0"
  • Depth: 52' 0"
  • Max ridge height: 23' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): ICF

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 11' 6"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: N on N
  • Framing Type: Truss
