Plan 54218HU
Light-filled Contemporary Home Plan with Rooftop Deck
Heated S.F.
3,838
Beds
4
Baths
3.5
Stories
1
Cars
3
What's Included
Plan Details
  • A unique layout makes this contemporary house plan a real stand out with its combination shed and flat roof lines.
  • The foyer leads you straight back where the great room, kitchen and dining room extend towards the back. Collapsible walls on the left and right help you enjoy indoor/outdoor living.
  • The master suite is isolated in its own wing on the right and has an office/sitting room connected to it.
  • Across the home, three bedrooms share two baths. A media room gives you a space to enjoy movies.
  • Head back to the great room where a collapsible wall helps bring the outside in.
  • There are two covered outdoor areas. The spiral stairs take you to a roof deck where you can enjoy your views.
What's Included
  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan

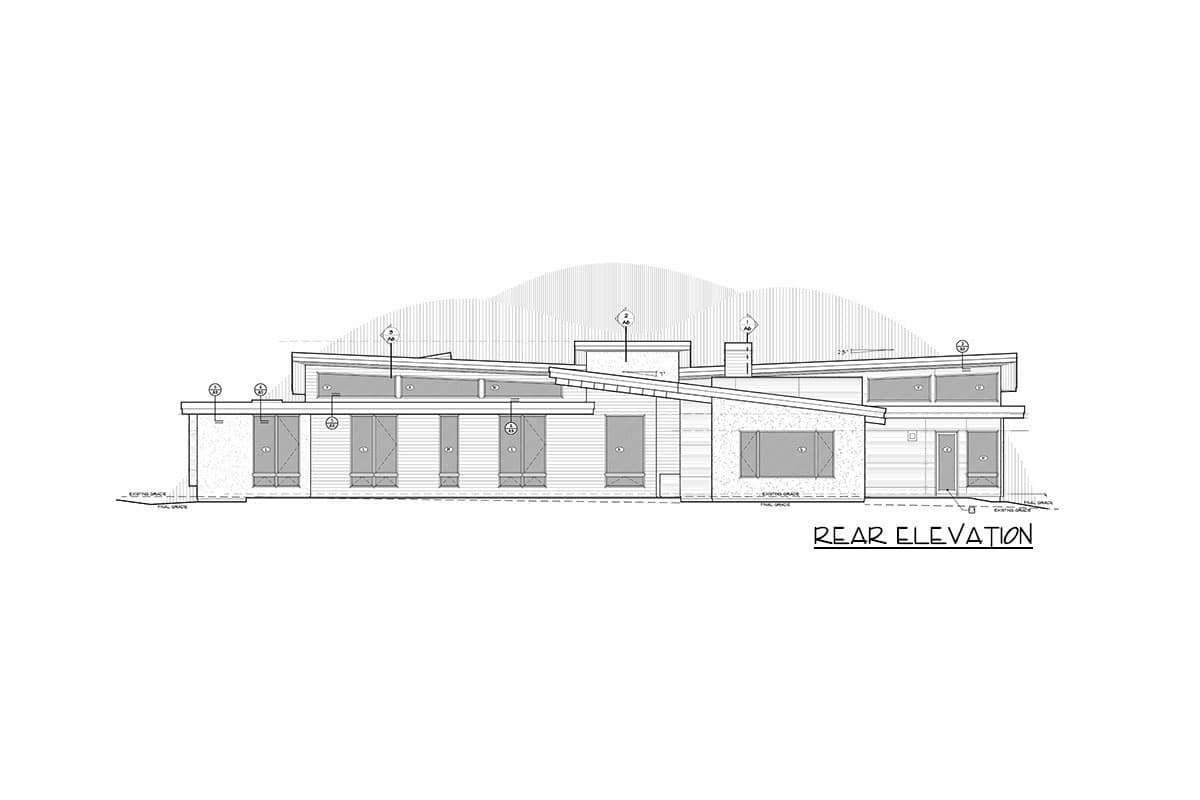

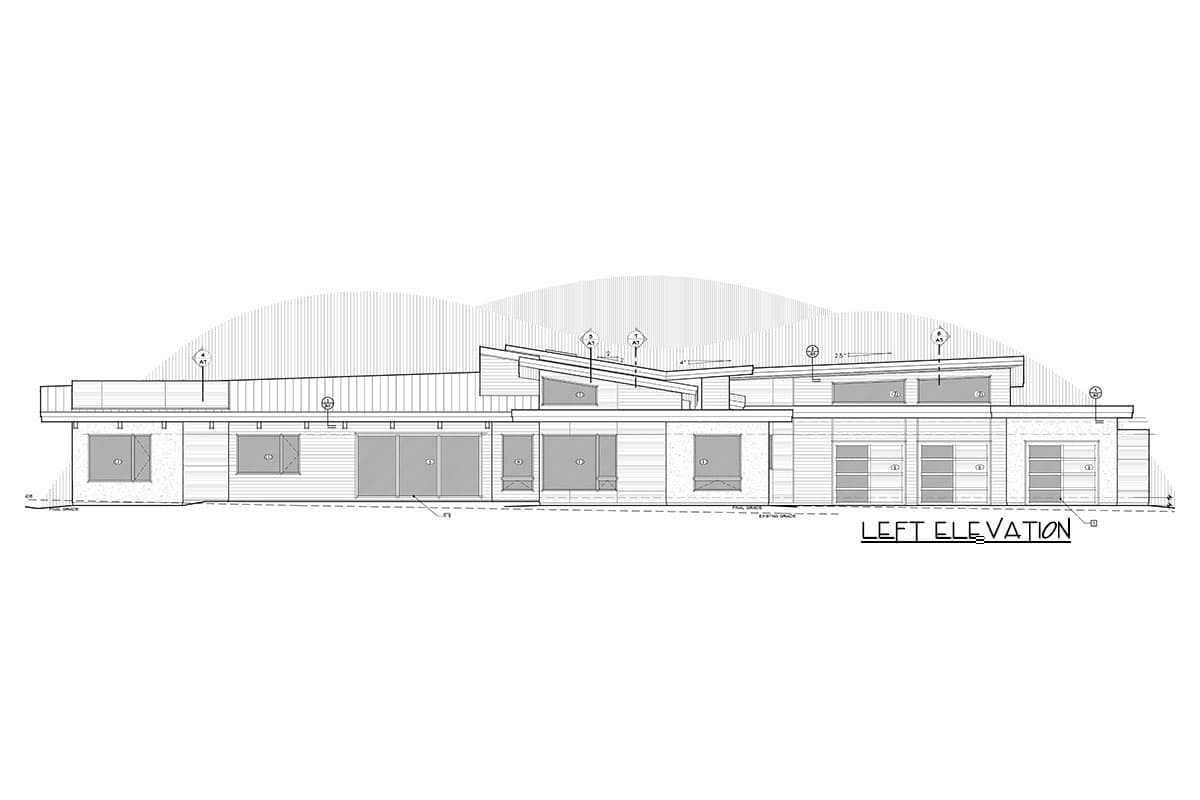

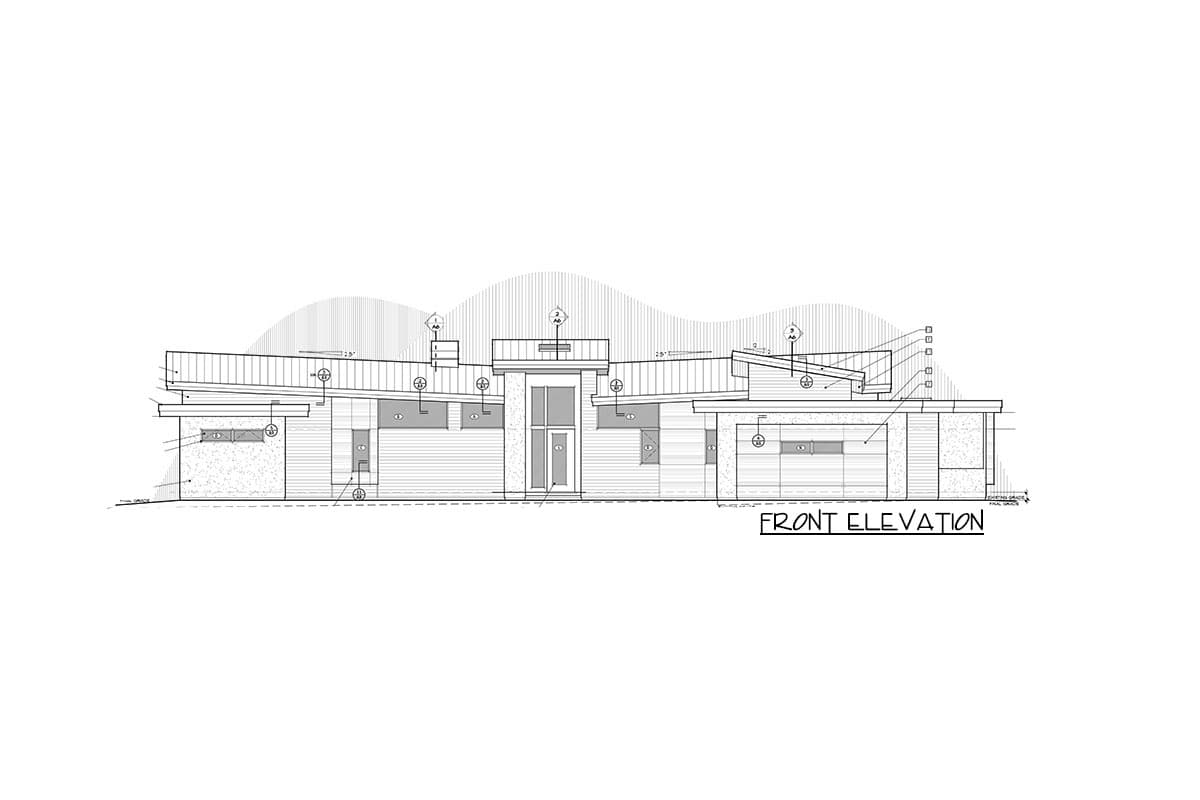

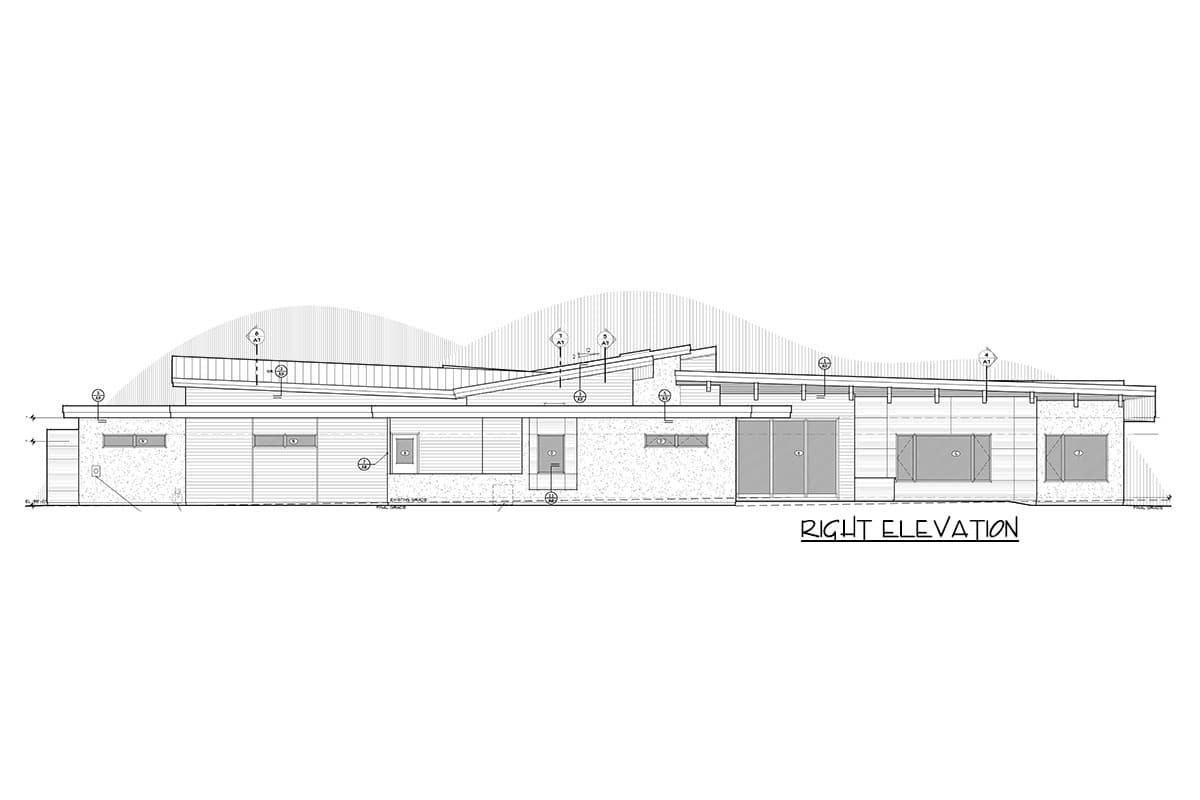

  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Light-filled Contemporary Home Plan with Rooftop Deck

  • 3,838

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

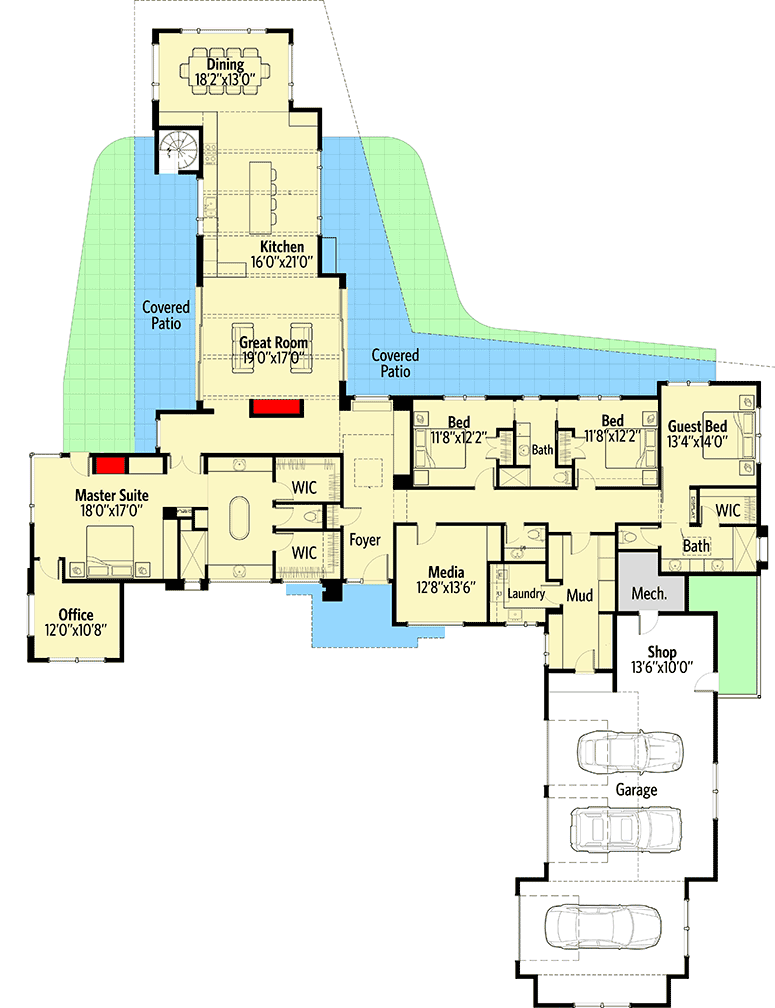

Floor Plan
