Living in the Lap of Luxury

Plan 36153TX

  • 6,903

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 2

    Stories

  • 3

    Cars

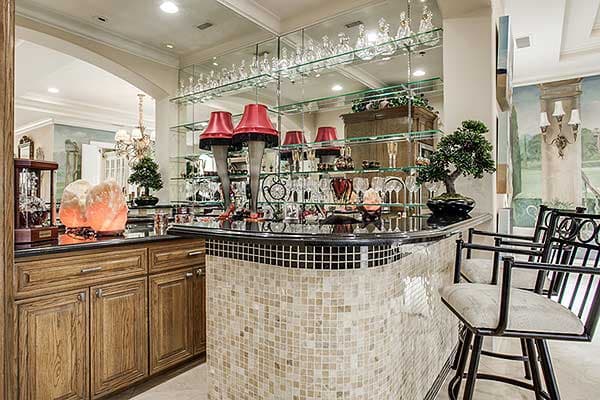

  • Live in the lap of luxury with special features like built-ins, a two-sided fireplace, huge wet bar and wine butlery in this stunning Mediterranean house plan.
  • There are two powder rooms on the first floor - one for family and one for company.
  • Coffered, tray and two-story ceilings add interest and delight the eye.

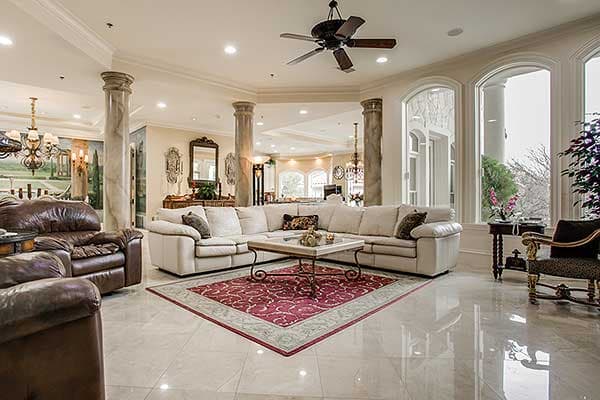

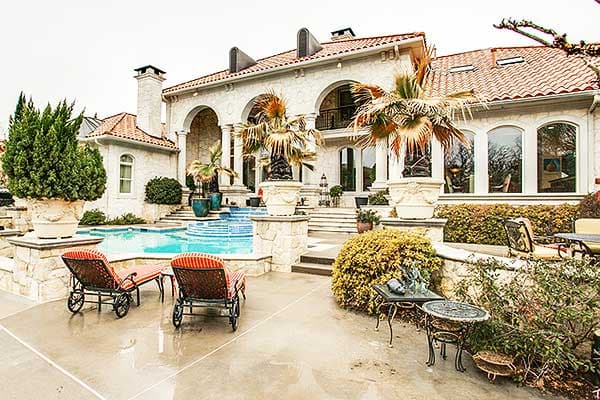

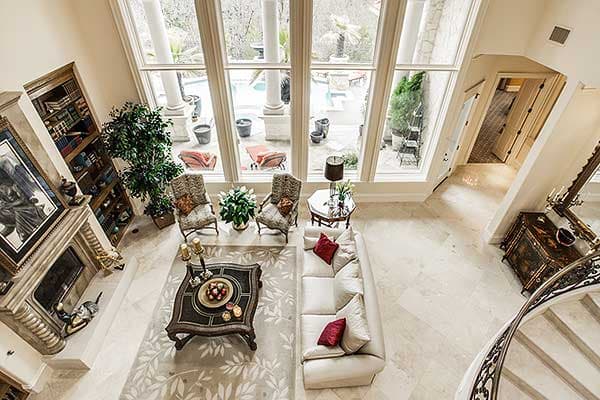

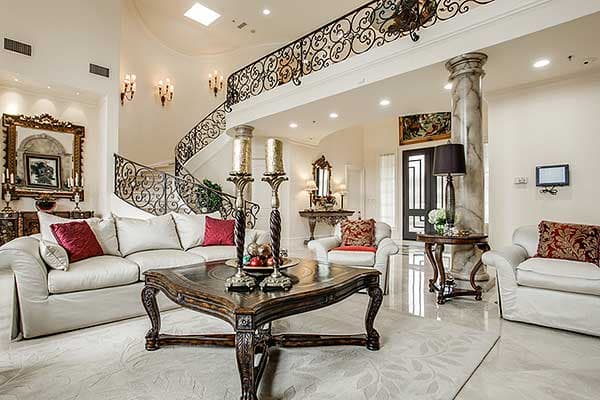

  • A two-sided fireplace is shared by the family room and two-story living room with its wall of windows that overlooks the covered terrace in back.

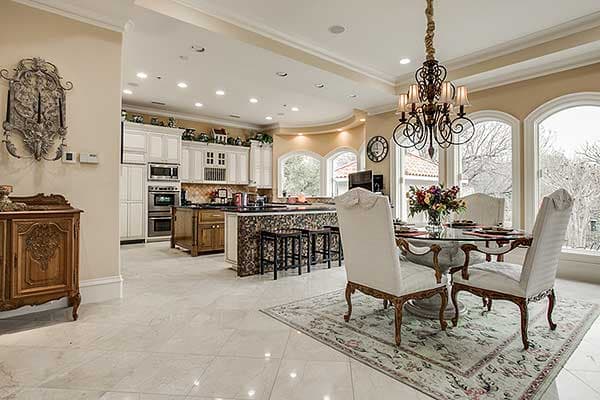

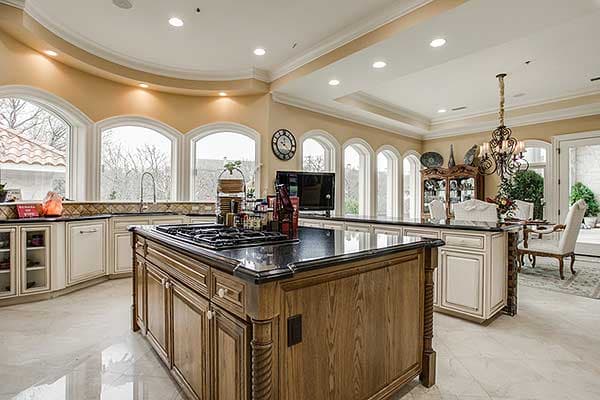

  • The amazing Kitchen has a sink set in a rounded bay and an extra-large breakfast nook with 11' tray ceiling.

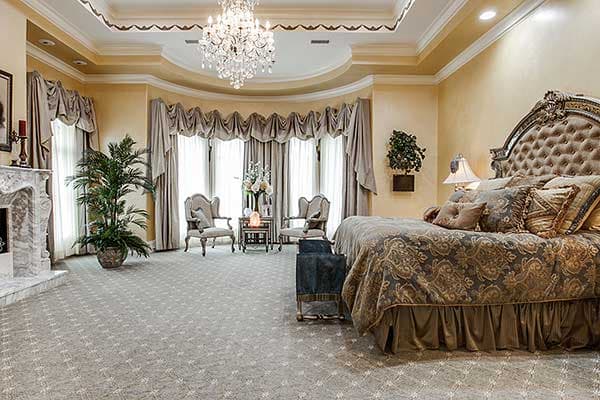

  • Taking up the whole right wing of the home, the master suite has a massive walk-in closet with separate cedar closet for winter storage. A romantic fireplace and sitting area set in a bay enhance this area.

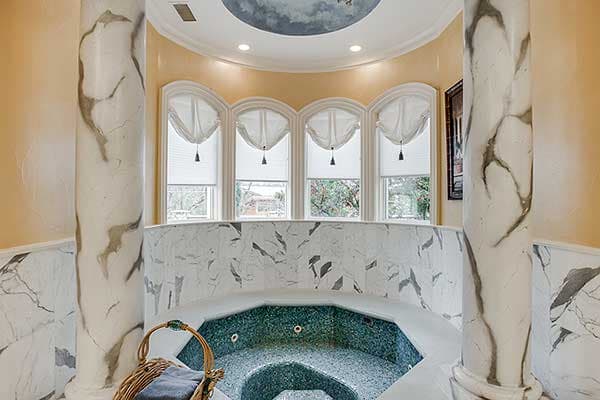

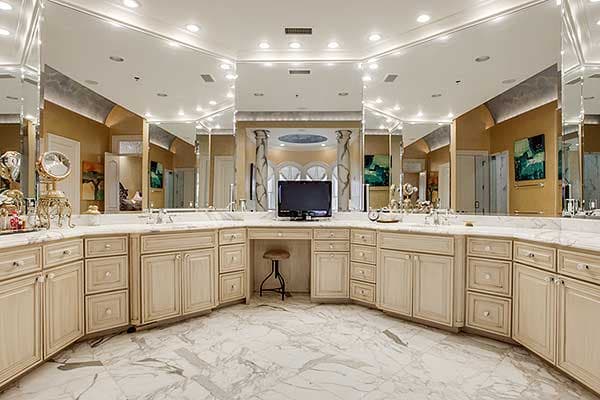

  • Barrel vaulted ceilings in the master bath create a grand impression along with the round tub set in a bay flanked by two columns.

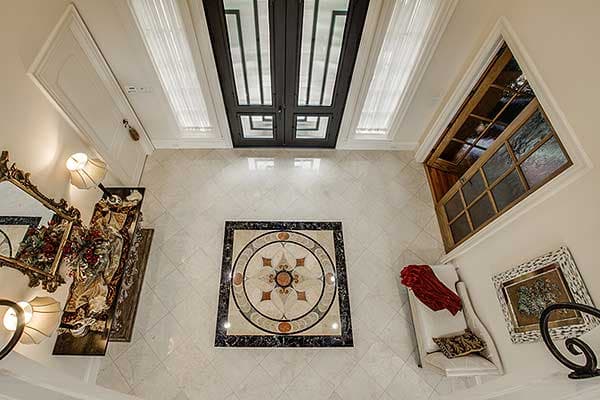

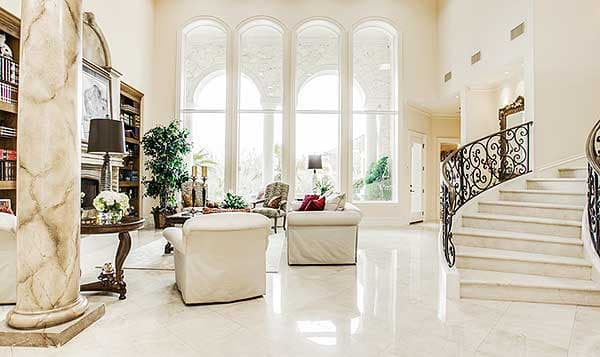

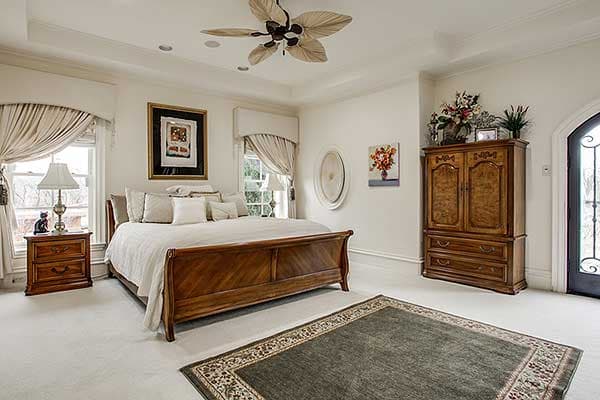

  • Climb to the second floor on the elaborate curved staircase. A loggia overlooks both the foyer and the living room below and leads to two family bedrooms and a huge guest suite that would rival the master bedroom in any other house.
  • Bonus space is divided into two levels with a small balcony at the front of the home.
  • Bedroom 3 also has its own balcony that overlooks the rear of the home.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

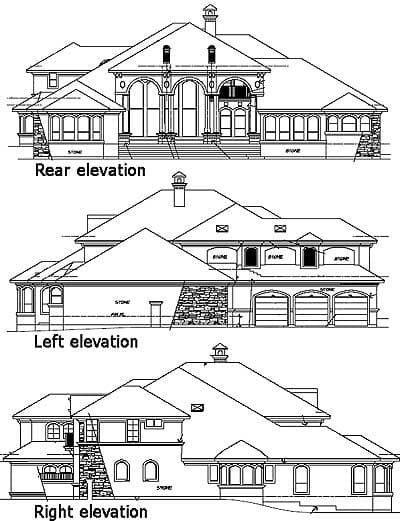

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page - NOT all of our house plans include sections because they may not have been required with the original design.

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



Living in the Lap of Luxury

  • 6,903

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $3,295
  • 5 Sets $3,495
  • CAD $4,950
  • View all purchase option online

About This Plan

  • Live in the lap of luxury with special features like built-ins, a two-sided fireplace, huge wet bar and wine butlery in this stunning Mediterranean house plan.
  • There are two powder rooms on the first floor - one for family and one for company.
  • Coffered, tray and two-story ceilings add interest and delight the eye.
  • A two-sided fireplace is shared by the family room and two-story living room with its wall of windows that overlooks the covered terrace in back.
  • The amazing Kitchen has a sink set in a rounded bay and an extra-large breakfast nook with 11' tray ceiling.
  • Taking up the whole right wing of the home, the master suite has a massive walk-in closet with separate cedar closet for winter storage. A romantic fireplace and sitting area set in a bay enhance this area.
  • Barrel vaulted ceilings in the master bath create a grand impression along with the round tub set in a bay flanked by two columns.
  • Climb to the second floor on the elaborate curved staircase. A loggia overlooks both the foyer and the living room below and leads to two family bedrooms and a huge guest suite that would rival the master bedroom in any other house.
  • Bonus space is divided into two levels with a small balcony at the front of the home.
  • Bedroom 3 also has its own balcony that overlooks the rear of the home.

Floor Plans

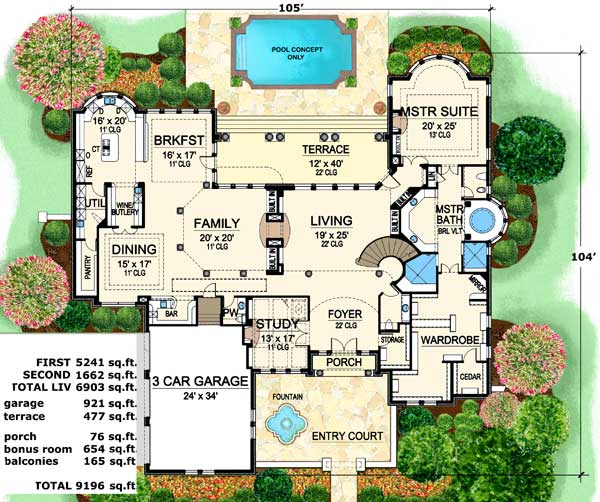

  • Main Level

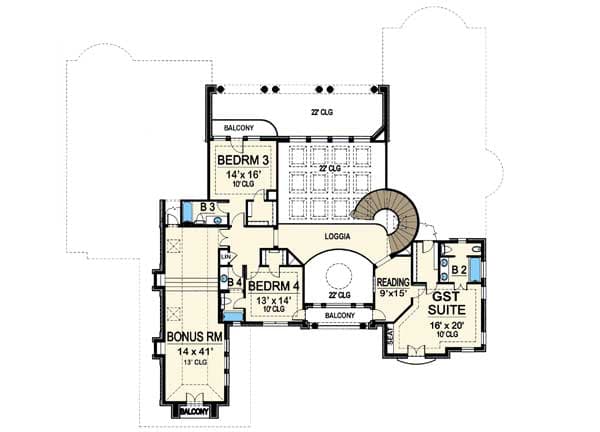

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,903 sq. ft.
  • 1st Floor: 5,241 sq. ft.
  • 2nd Floor: 1,662 sq. ft.
  • Bonus: 574 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 105' 0"
  • Depth: 104' 0"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 921 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 10' 0"

Architectural Style

  • European

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • Jack & Jill Bath
  • Loft
  • MBR Sitting Area
  • PDF
