Plan 36473TX
Living Large
Heated S.F.
8,988
Beds
5
Baths
5.5+
Stories
2
Cars
6
What's Included
Plan Details

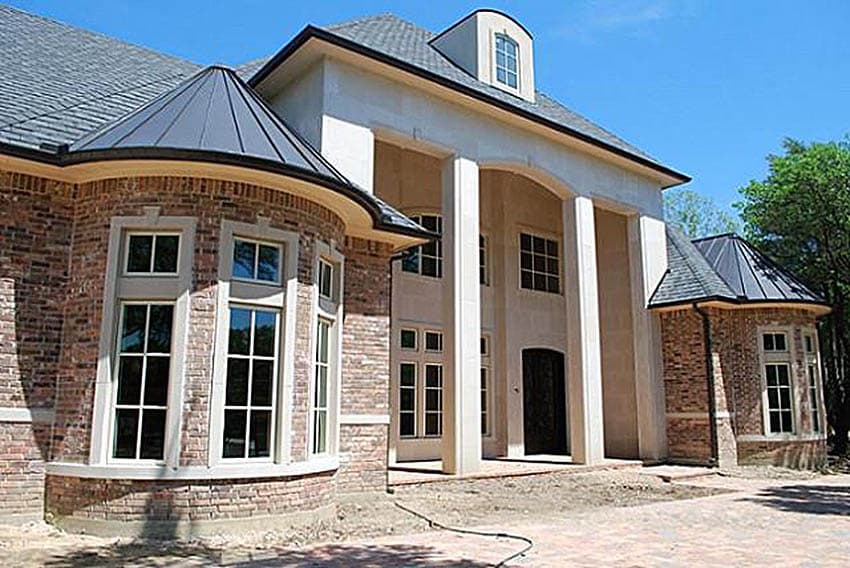

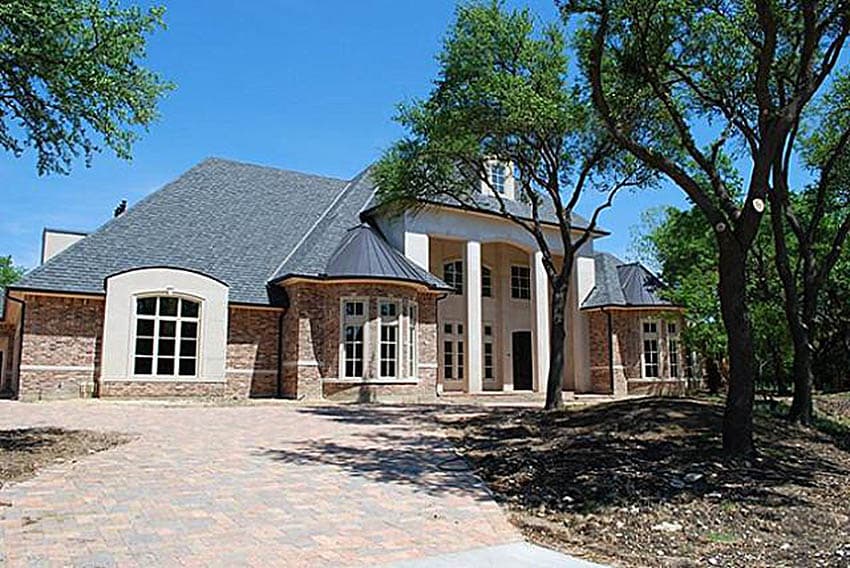

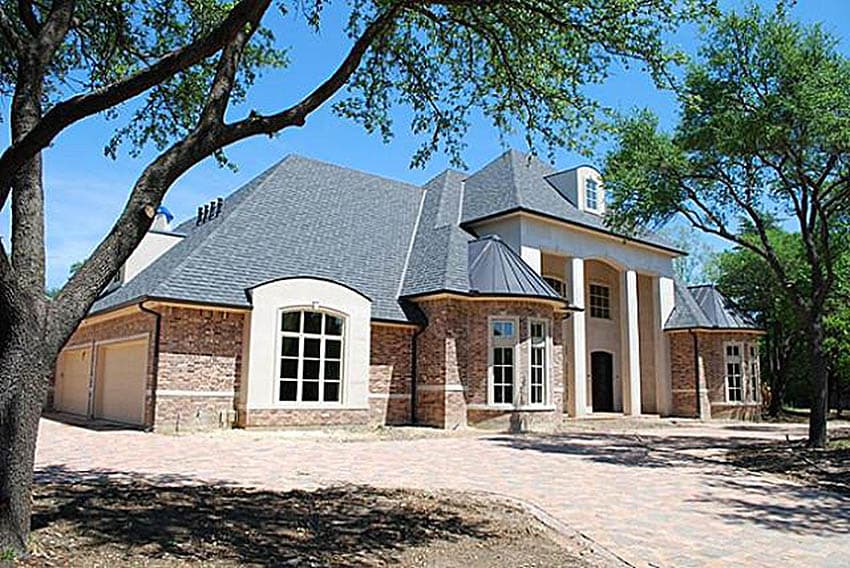

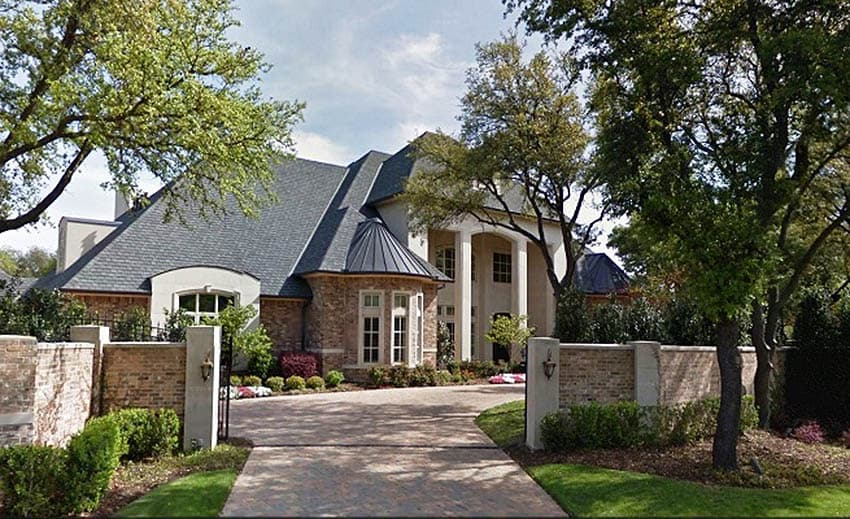

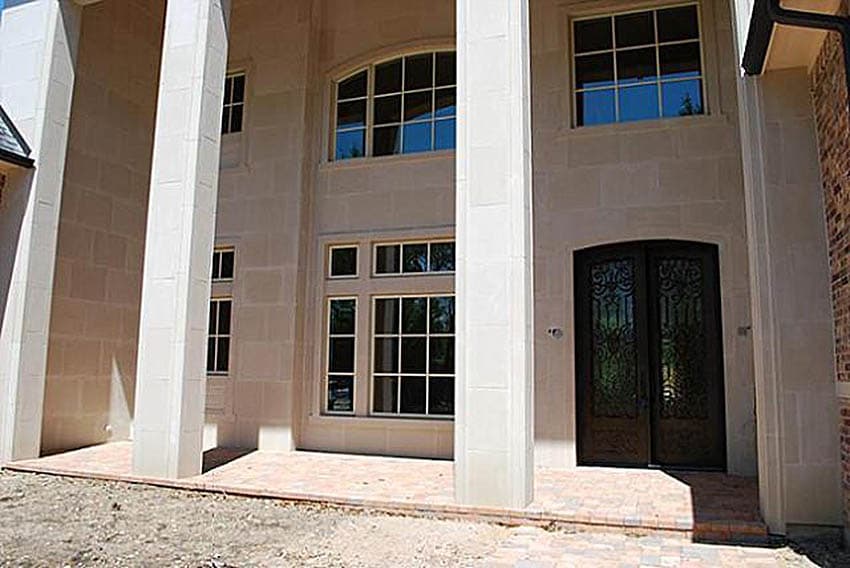

  • With a grand two-story high front porch, five luxurious bedrooms and both a game room and a media room, this Hill Country house plan lives large.

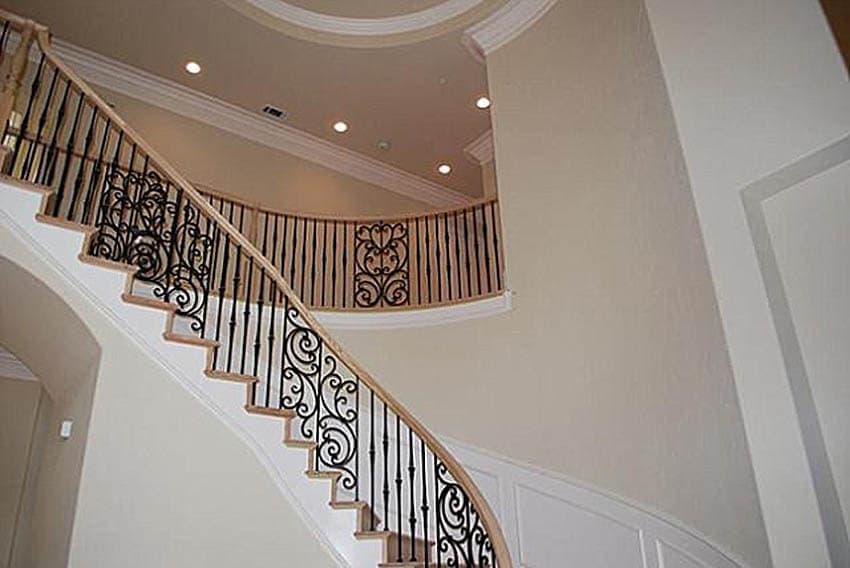

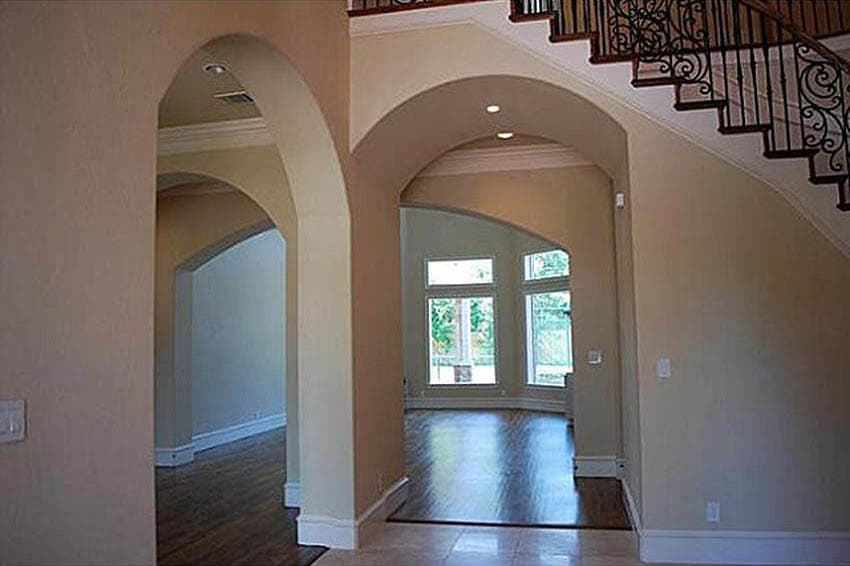

  • Exquisite details both inside and out include a large wine cellar, residential elevator, gorgeous curved staircase and special ceiling treatments in almost every room.

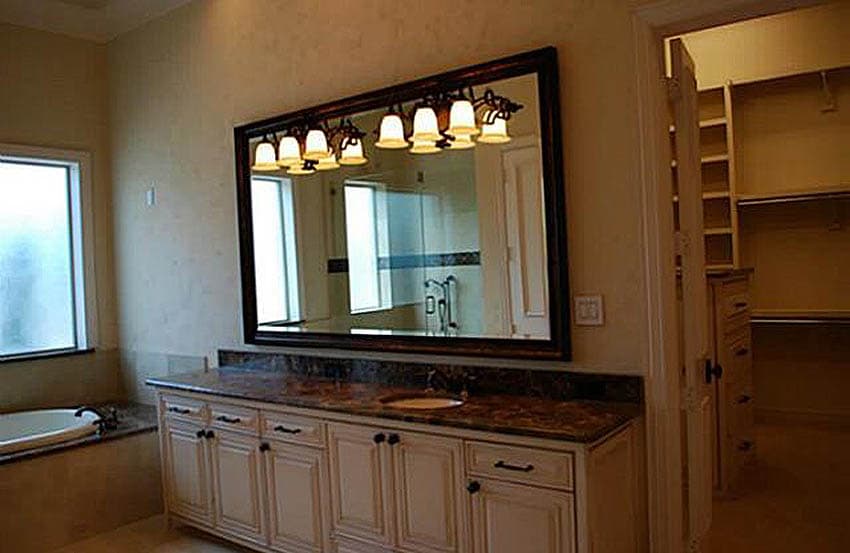

  • The opulent master suite is a sight to behold with its bayed sitting area, romantic fireplace and his and her bathrooms.

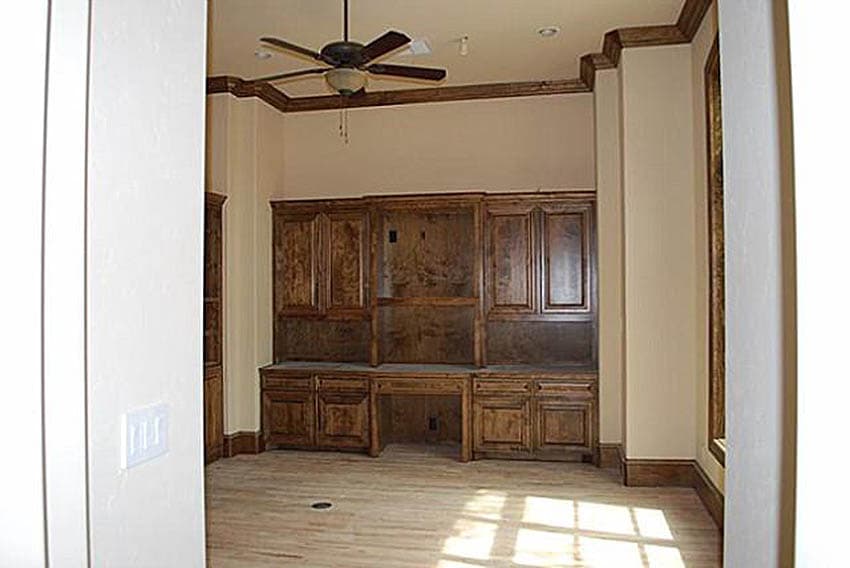

  • The home boasts a large library and a study that flow into each other, united with lovely coffered ceilings.

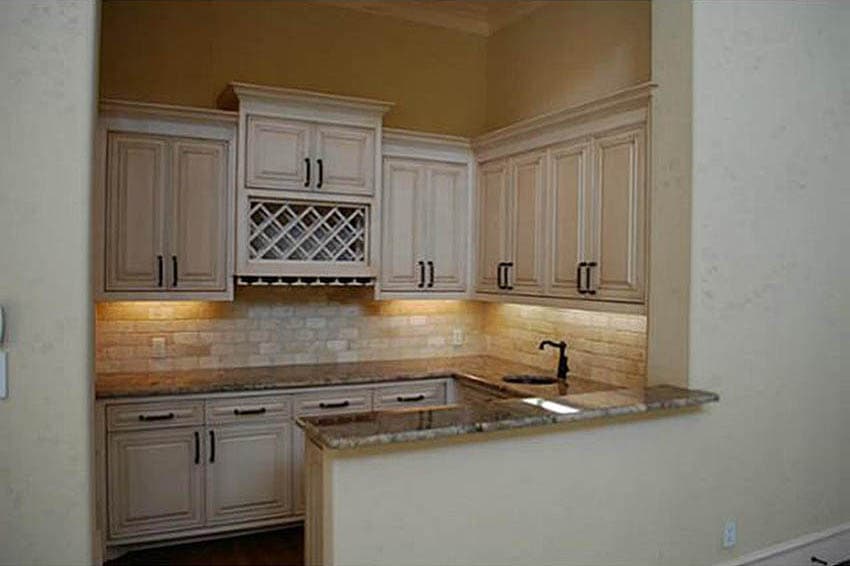

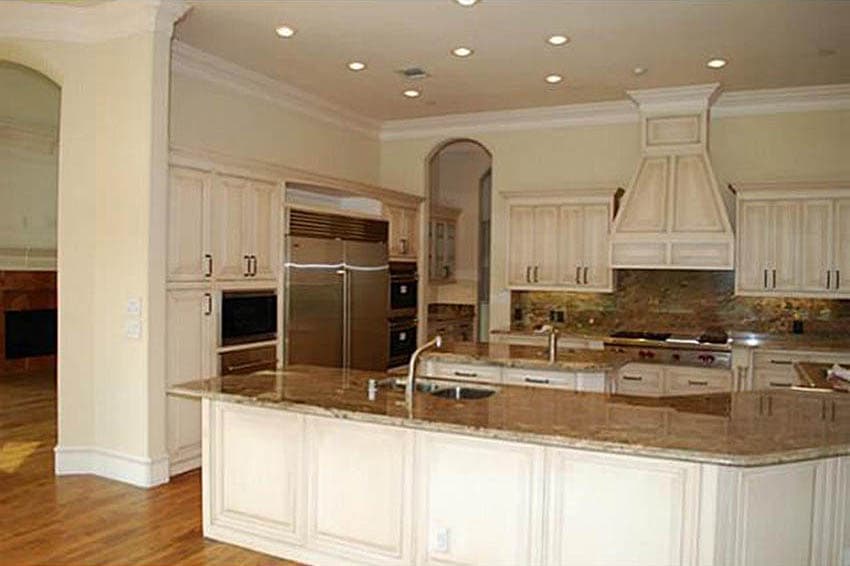

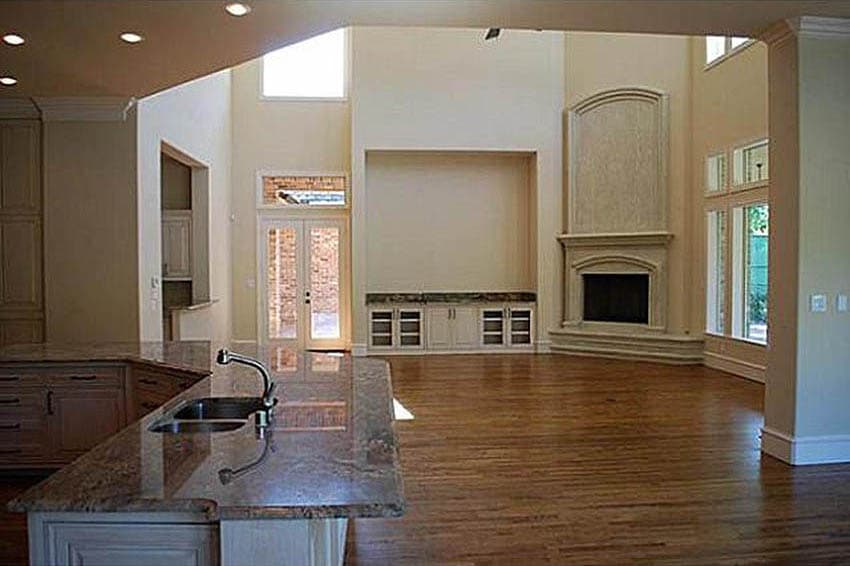

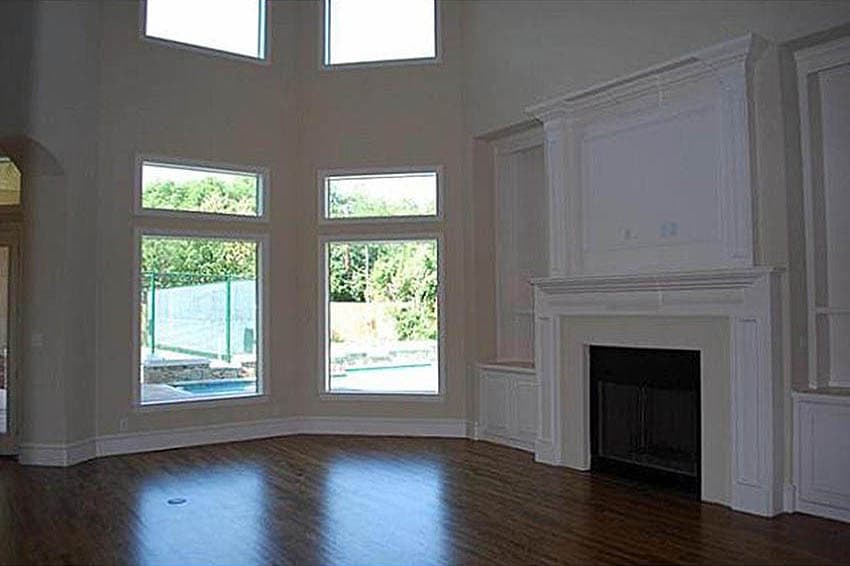

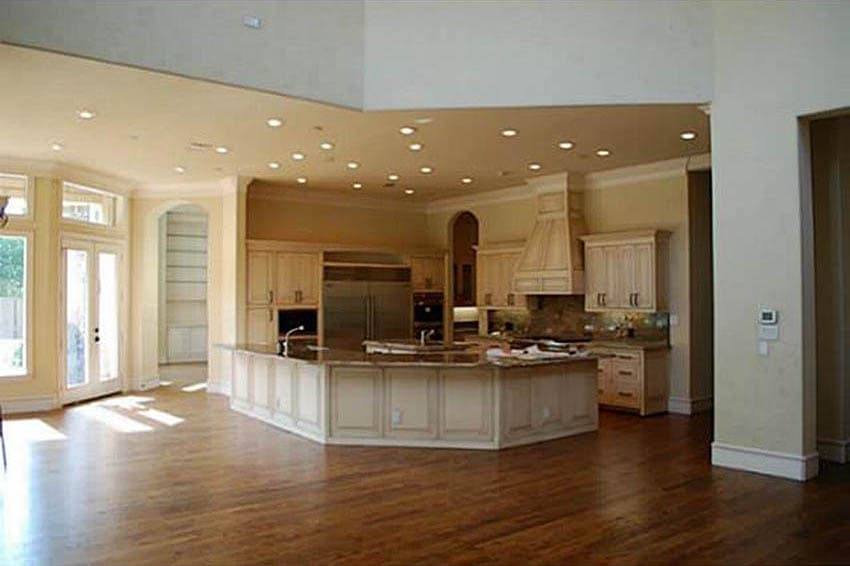

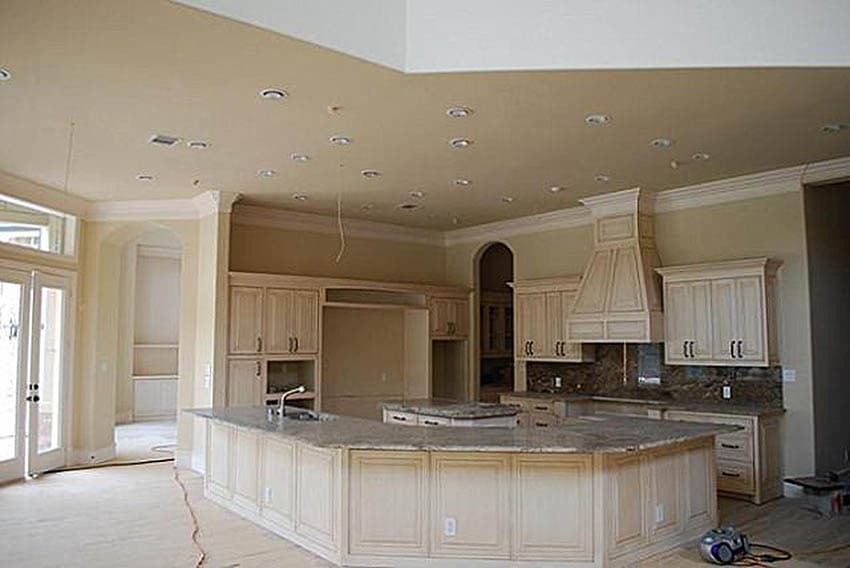

  • In the informal area of the home, the open floor plan gives you wonderful sightlines from the kitchen into the nook and family room, with a big wet bar to serve all three rooms.
  • Bedroom 2 is located on the main floor and the other three spacious bedroom suites are all upstairs.
  • A walk-in closet in the media room gives you excellent storage and the game room has a handy bathroom attached.
  • Attic space on the third level is great for storage or use as a kids' hangout.
What's Included
  • Cover sheet
  • Foundation Plan
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

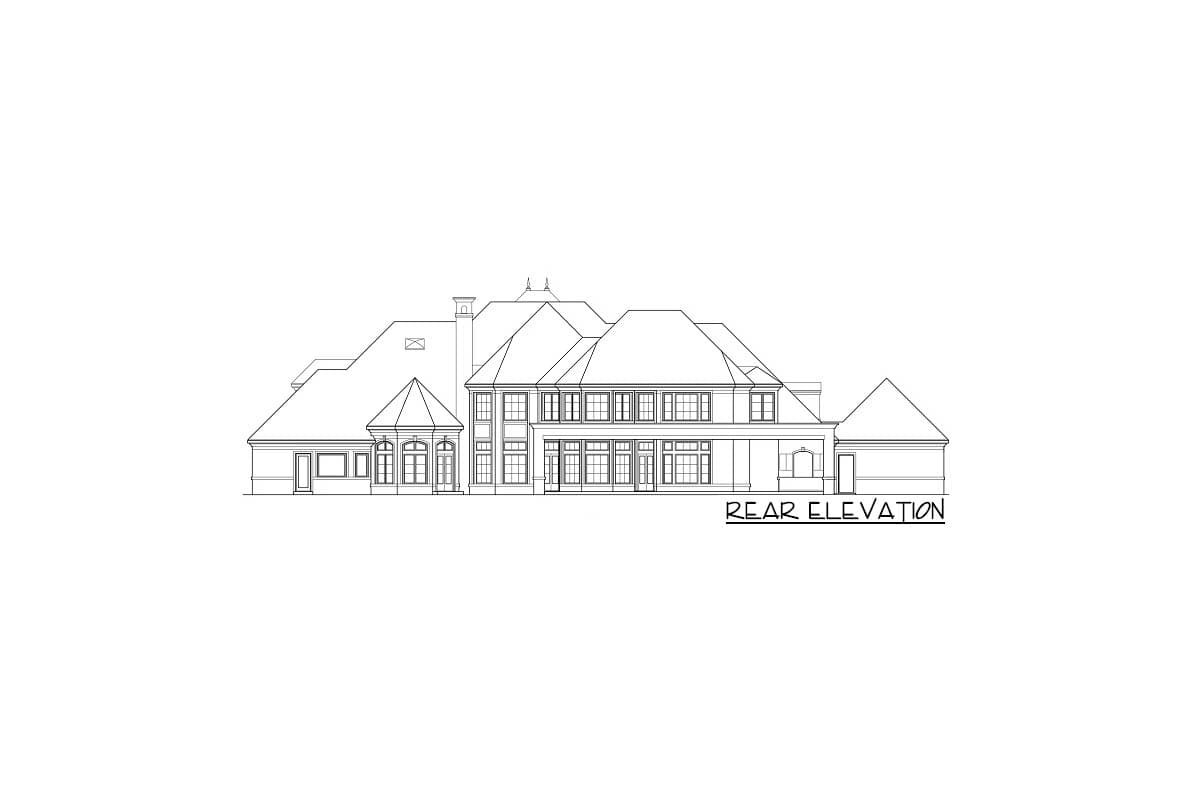

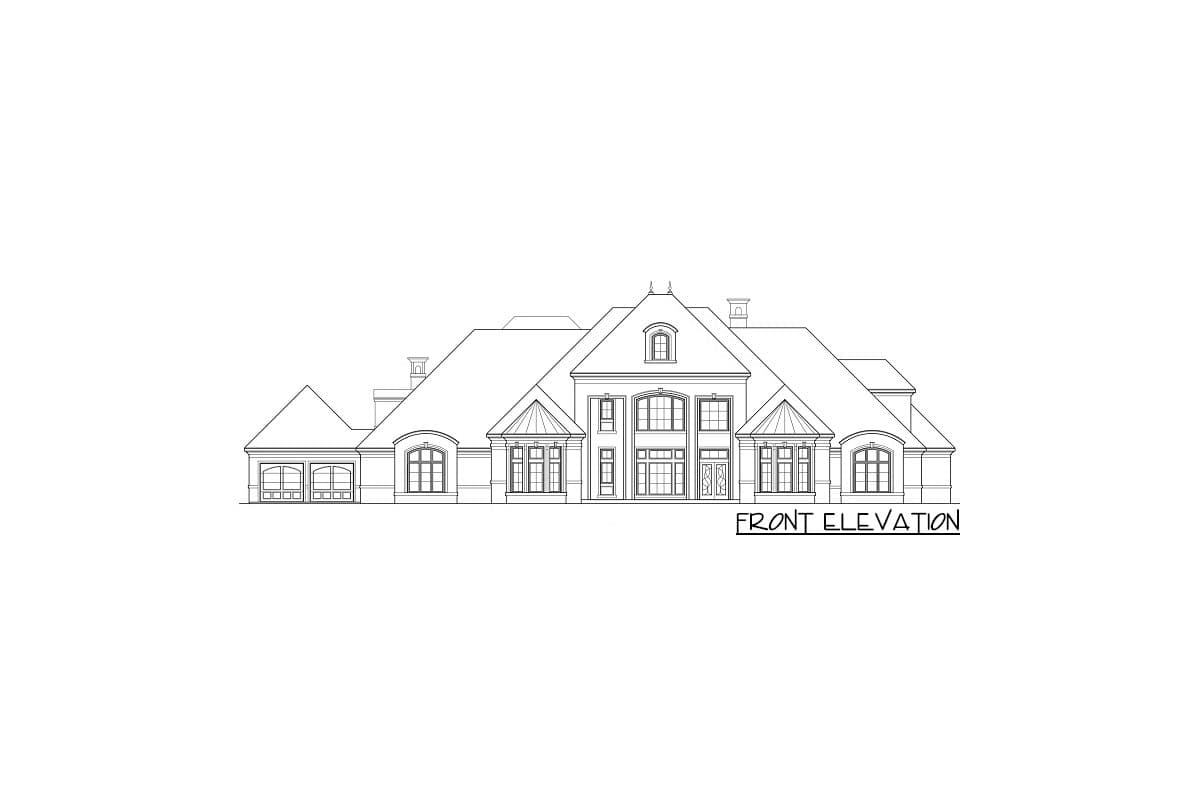

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

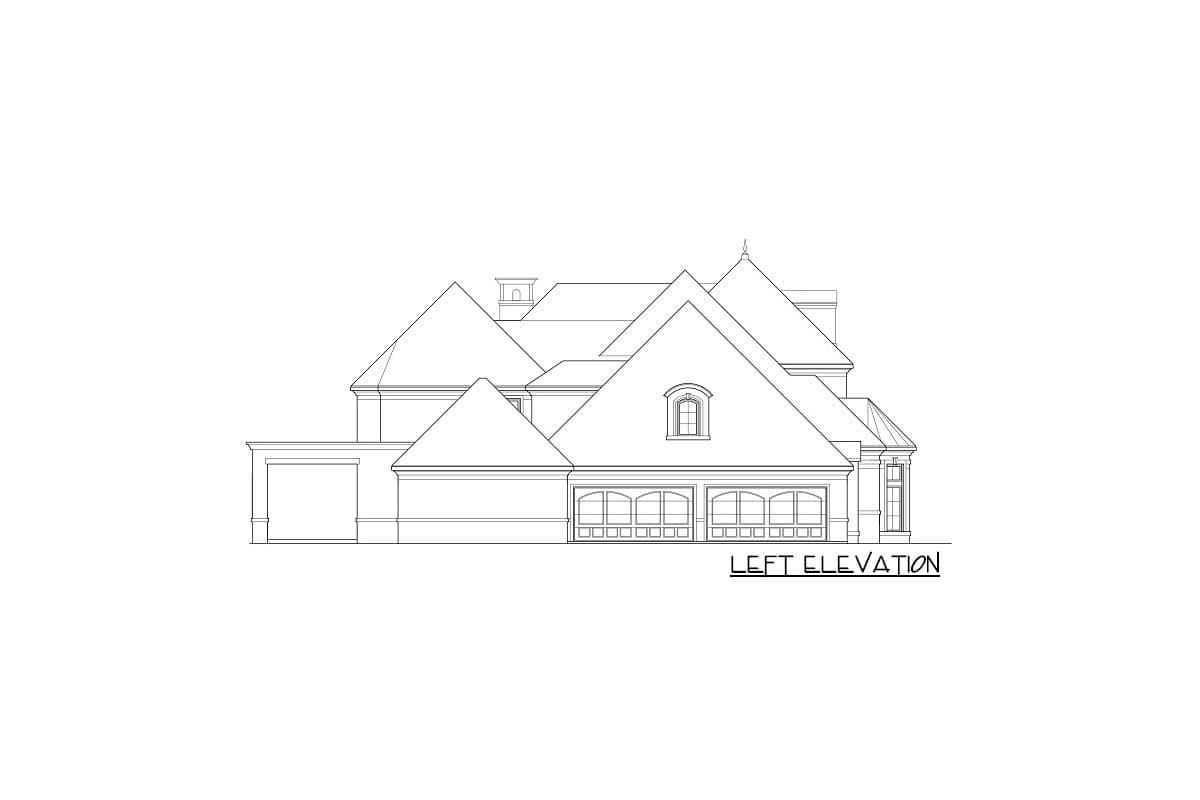

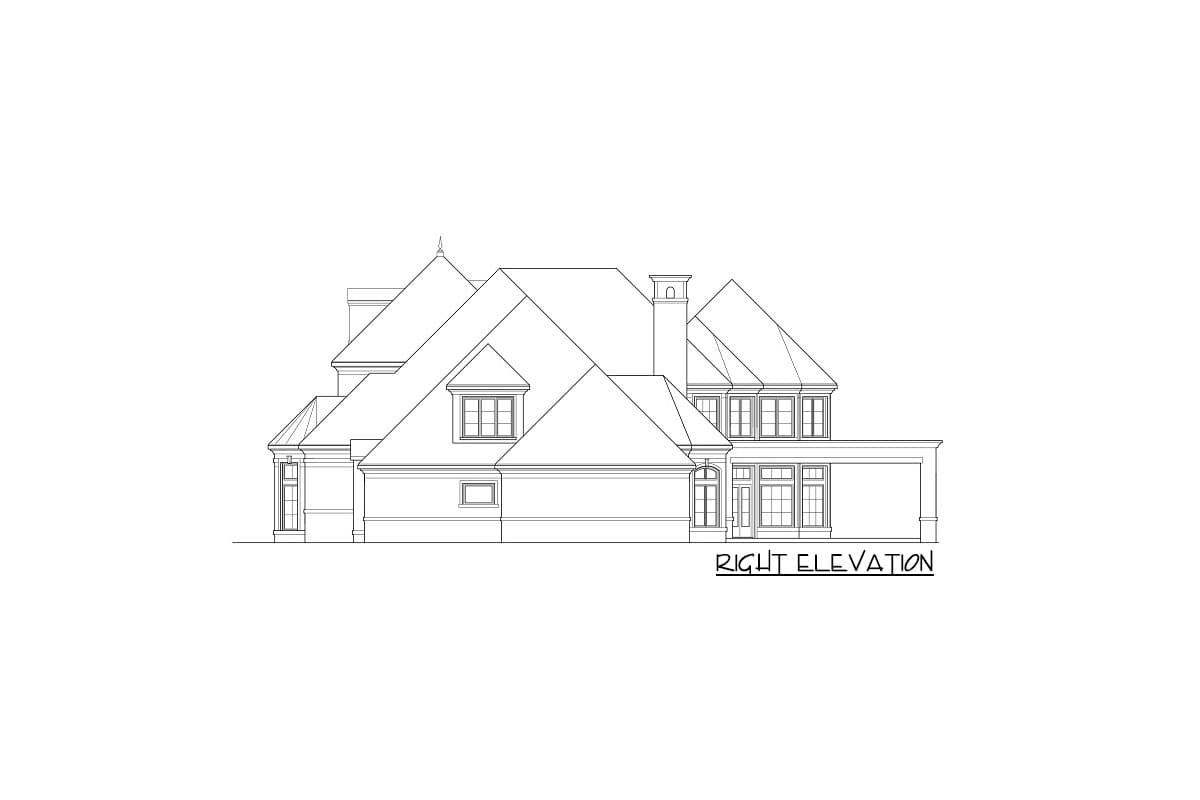

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Living Large

  • 8,988

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 6

    Car garage

Floor Plan

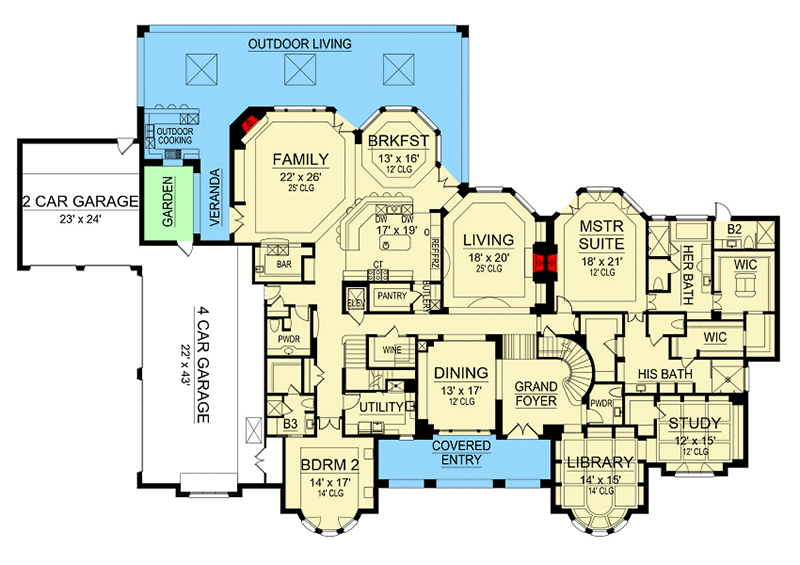

  • Main Level

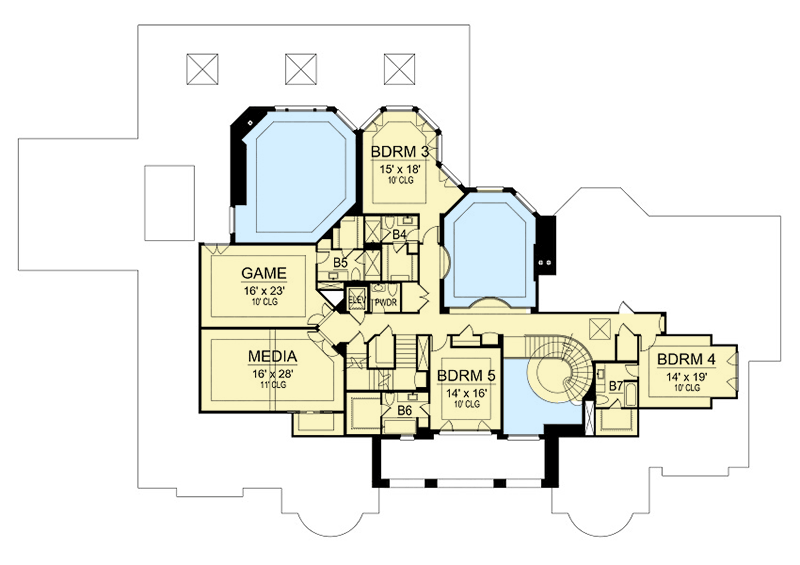

  • 2nd Floor

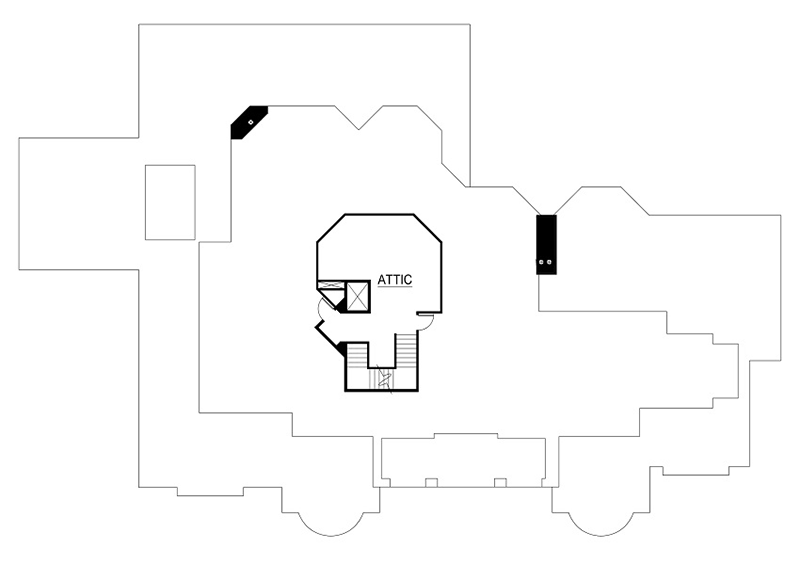

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 8,988 sq. ft.
  • 1st Floor: 6,140 sq. ft.
  • 2nd Floor: 2,848 sq. ft.

Dimensions

  • Width: 150' 0"
  • Depth: 100' 0"
  • Max ridge height: 45' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1811 sq. ft.
  • Count: 6 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 10' 0"
