Living Large with Unique Angled Garage

Plan 36087DK

  • 5,909

    Heated s.f.

  • 5-6

    Beds

  • 7.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • This luxurious house plan lives large, giving you over almost 6,000 square feet of heated living space (plus an unfinished basement) and has a unique garage. Slightly angled off the front, it gives you 3 bays accessible courtyard-style with one of them also available from the side
  • Double doors take you into the sunken vestibule. The foyer and dining room are directly ahead of you and closets are on either side.
  • The right side of the home has a living room with fireplace and outside access and a massive master suite. The suite has his and her closets and a luxury bath arrangement.
  • The left side of the home has a large kitchen with access to the dining room and breakfast area. The great room has French doors that take you to outside and a bedroom suite is tucked away in the corner with a walk-in closet and private bath.
  • Two stairs take you to the second floor. There, you'll find three bedroom suites each with their own bathrooms and convenient upstairs laundry. There are overlooks from the gallery to the foyer and dining rooms. A loft area is a great space for reading or for playing games.

This plan includes the following elements:

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

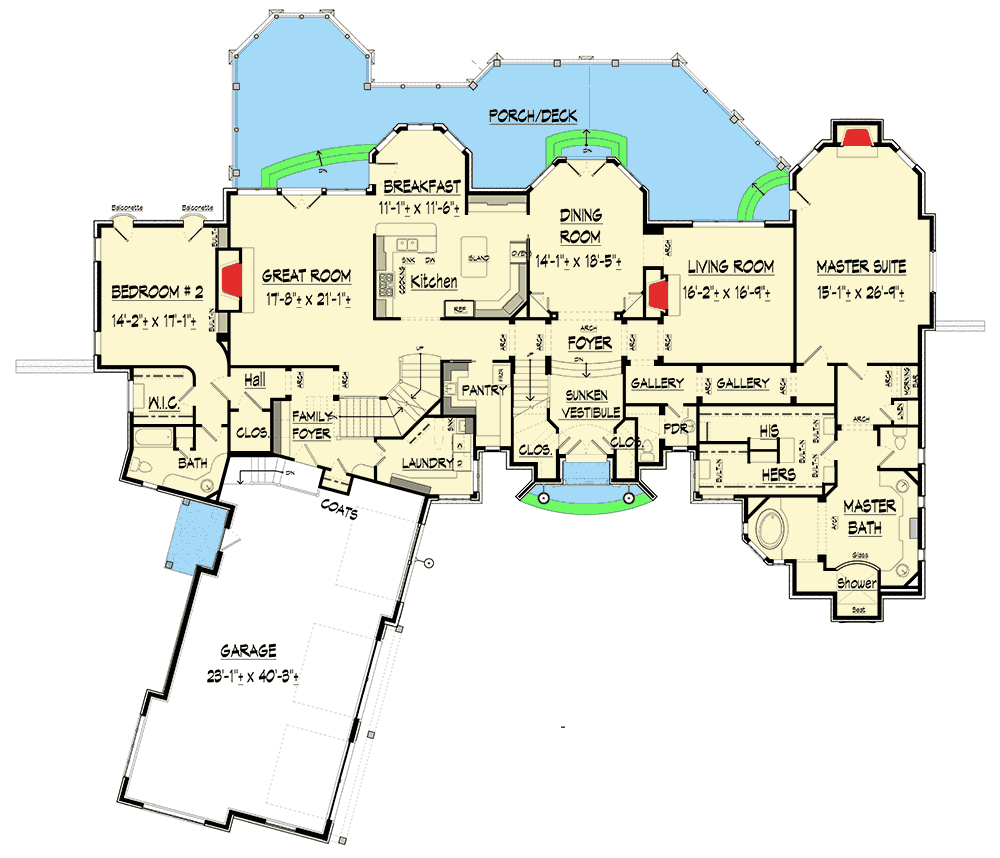

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Living Large with Unique Angled Garage - 36087DK floor plan - Main Level

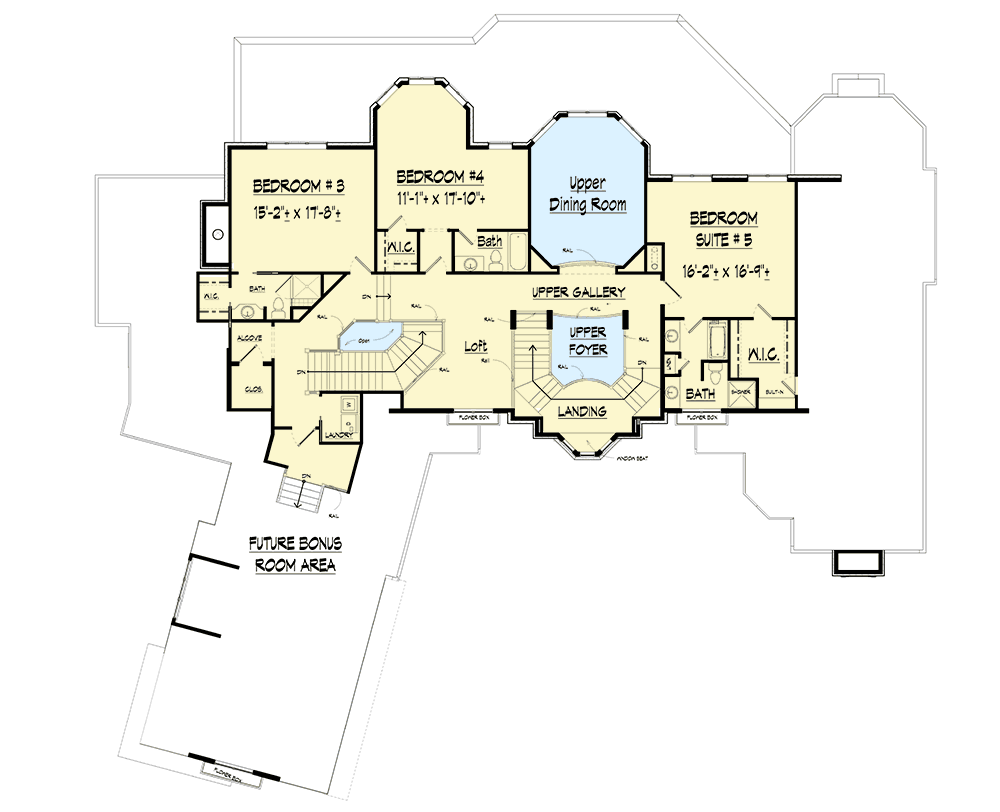

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Living Large with Unique Angled Garage - 36087DK floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,909 sq. ft.
  • 1st Floor: 3,953 sq. ft.
  • 2nd Floor: 1,956 sq. ft.
  • Deck: 244 sq. ft.
  • Porch, Rear: 580 sq. ft.
  • Porch, Front: 20 sq. ft.

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 7
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 103' 6"
  • Depth: 96' 5"
  • Max ridge height: 36' 11"

Garage

  • Type: Attached
  • Area: 1111 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Dining Room 20' 8"
Family Room 12' 6"
Master Bedroom Vaulted

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick

Architectural Style

Special features

Living Large with Unique Angled Garage

  • 5,909

    Heated s.f.

  • 5-6

    Beds

  • 7.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • 5 Sets $1,200
  • 8 Sets $1,400
  • PDF Light $1,950
  • View all purchase option online

About This Plan

  • This luxurious house plan lives large, giving you over almost 6,000 square feet of heated living space (plus an unfinished basement) and has a unique garage. Slightly angled off the front, it gives you 3 bays accessible courtyard-style with one of them also available from the side
  • Double doors take you into the sunken vestibule. The foyer and dining room are directly ahead of you and closets are on either side.
  • The right side of the home has a living room with fireplace and outside access and a massive master suite. The suite has his and her closets and a luxury bath arrangement.
  • The left side of the home has a large kitchen with access to the dining room and breakfast area. The great room has French doors that take you to outside and a bedroom suite is tucked away in the corner with a walk-in closet and private bath.
  • Two stairs take you to the second floor. There, you'll find three bedroom suites each with their own bathrooms and convenient upstairs laundry. There are overlooks from the gallery to the foyer and dining rooms. A loft area is a great space for reading or for playing games.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,909 sq. ft.
  • 1st Floor: 3,953 sq. ft.
  • 2nd Floor: 1,956 sq. ft.
  • Deck: 244 sq. ft.
  • Porch, Rear: 580 sq. ft.
  • Porch, Front: 20 sq. ft.

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 7
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 103' 6"
  • Depth: 96' 5"
  • Max ridge height: 36' 11"

Garage

  • Type: Attached
  • Area: 1111 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
