Plan 15762GE Loaded with Options and Special Features

3,183 3-5 4.5+ 2 3
Print
Compare
...

Loaded with Options and Special Features

Plan 15762GE

  • 3,183

    Heated s.f.

  • 3-5

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • Shakes, stone and arched windows add up to tremendous curb appeal to this stunning home plan.
  • A large, dramatic library with tray ceilings is the ideal spot for the man of the house.
  • The spacious two-story Grand Room features a see-through fireplace and wall of windows.
  • Two-story ceilings in the foyer and grand room combine with tray ceilings in the master suite and dining room to enhance the elegance.
  • The first floor master suite also has a bayed sitting area with access to the rear deck.
  • Options abound on the second floor - gain a fourth bedroom or add a cedar closet or loft.

The plan set includes the following:

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • The plans are designed to meet the International Residential Code but are not designed for a specific area.  These plans do not come engineered or with structural drawings. They do not include framing plans.
  • Plans do include wall and cornice sections, general foundation sections and details.

 These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Loaded with Options and Special Features - 15762GE floor plan - Main Level

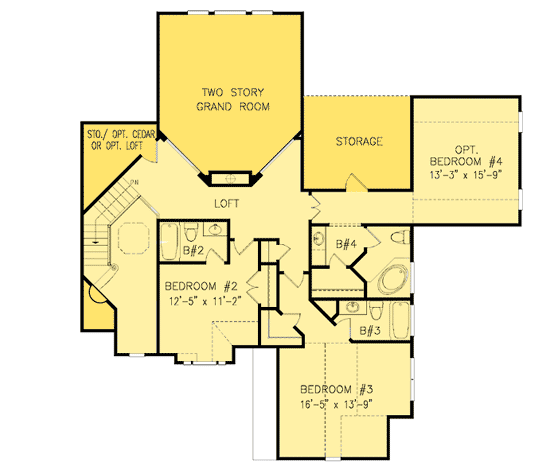

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Loaded with Options and Special Features - 15762GE floor plan - 2nd Floor

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Loaded with Options and Special Features - 15762GE floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,183 sq. ft.
  • 1st Floor: 2,417 sq. ft.
  • 2nd Floor: 766 sq. ft.
  • Bonus: 83 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, & 5
  • Full bathrooms: 4
  • Half bathrooms: 1 or 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 64' 6"
  • Depth: 74' 2"
  • Max ridge height: 32' 10"

Garage

  • Type: Attached
  • Area: 838 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Architectural Style

Special features

Plan Collections



Loaded with Options and Special Features

  • 3,183

    Heated s.f.

  • 3 - 5

    Beds

  • 5 +

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,695
  • CAD - Single-Build $2,645
  • View all purchase option online

About This Plan

  • Shakes, stone and arched windows add up to tremendous curb appeal to this stunning home plan.
  • A large, dramatic library with tray ceilings is the ideal spot for the man of the house.
  • The spacious two-story Grand Room features a see-through fireplace and wall of windows.
  • Two-story ceilings in the foyer and grand room combine with tray ceilings in the master suite and dining room to enhance the elegance.
  • The first floor master suite also has a bayed sitting area with access to the rear deck.
  • Options abound on the second floor - gain a fourth bedroom or add a cedar closet or loft.

Floor Plans

  • Main Level

  • 2nd Floor

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,183 sq. ft.
  • 1st Floor: 2,417 sq. ft.
  • 2nd Floor: 766 sq. ft.
  • Bonus: 83 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, & 5
  • Full bathrooms: 4
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 64' 6"
  • Depth: 74' 2"
  • Max ridge height: 32' 10"

Garage

  • Type: Attached
  • Area: 838 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
