Lodge-Like Craftsman Home Plan with Optional Upstairs Apartment

Plan 25655GE

  • 4,888

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 5.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This gorgeous, mountain house plan has a lodge-like feel with vaulted ceilings, five fireplaces, ample outdoor living space, and decorative, gabled roofs. The open-concept floor plan provides a feeling of grandeur throughout the family room, kitchen, and circular, casual dining space.
  • A formal, front entry lies under an inviting front porch, along with a friend's entry for more casual guests.
  • The family room, with a vaulted ceiling and access to the back porch, opens to the kitchen which boasts a large island, walk-in pantry, and ample storage space.
  • On one side of the home, discover your first-floor, master bedroom, which includes a fireplace, 5-fixture bathroom, and large walk-in closet. Two additional bedrooms, privately situated on the opposite side of the home, both feature full bathrooms with walk-in closets.
  • Just off the foyer, an additional room maximizes versatility by serving as a den or fourth bedroom. Guests will love to cozy up to the fireplace in the 2-story, lodge room.
  • An optional apartment, gives your family or guests the ultimate getaway and includes a kitchen, bedroom with a full bathroom, and a loft.

The plan set includes the following:

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

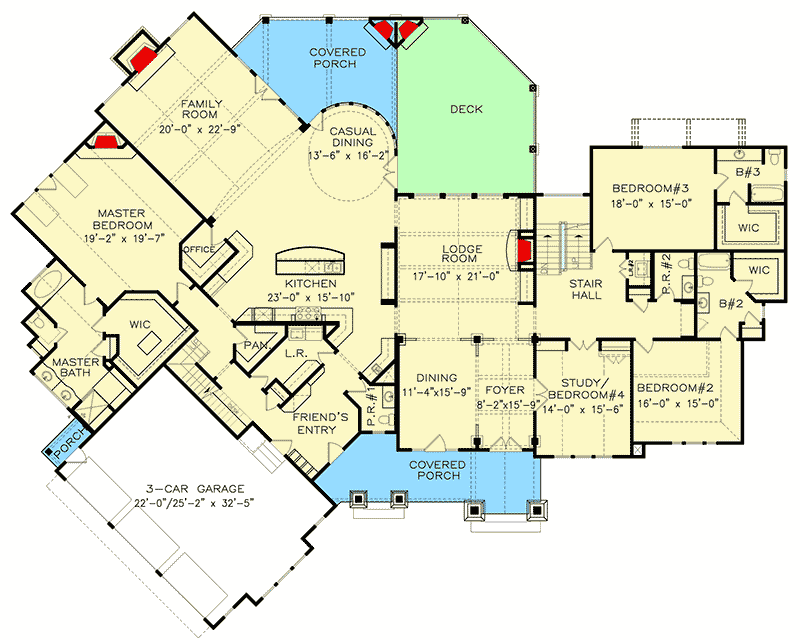

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Lodge-Like Craftsman Home Plan with Optional Upstairs Apartment - 25655GE floor plan - Main Level

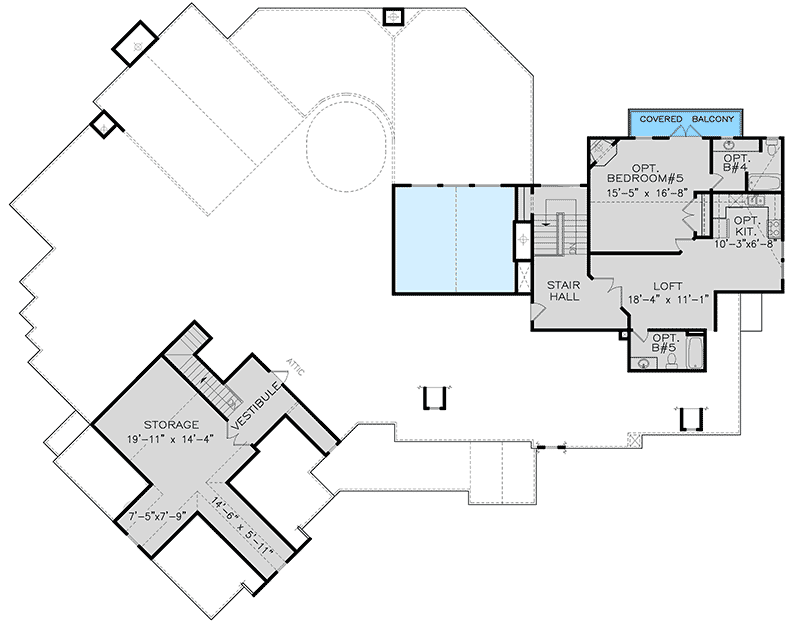

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Lodge-Like Craftsman Home Plan with Optional Upstairs Apartment - 25655GE floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,888 sq. ft.
  • 1st Floor: 4,888 sq. ft.
  • Bonus: 1,046 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, & 5
  • Full bathrooms: 3, 4, & 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 115' 3"
  • Depth: 92' 2"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 812 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Bonus 9' 0"

Architectural Style

Special features

Plan Collections

Lodge-Like Craftsman Home Plan with Optional Upstairs Apartment

  • 4,888

    Heated s.f.

  • 3 - 5

    Beds

  • 4 +

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,695
  • CAD - Single-Build $3,945
  • View all purchase option online

About This Plan

  • This gorgeous, mountain house plan has a lodge-like feel with vaulted ceilings, five fireplaces, ample outdoor living space, and decorative, gabled roofs. The open-concept floor plan provides a feeling of grandeur throughout the family room, kitchen, and circular, casual dining space.
  • A formal, front entry lies under an inviting front porch, along with a friend's entry for more casual guests.
  • The family room, with a vaulted ceiling and access to the back porch, opens to the kitchen which boasts a large island, walk-in pantry, and ample storage space.
  • On one side of the home, discover your first-floor, master bedroom, which includes a fireplace, 5-fixture bathroom, and large walk-in closet. Two additional bedrooms, privately situated on the opposite side of the home, both feature full bathrooms with walk-in closets.
  • Just off the foyer, an additional room maximizes versatility by serving as a den or fourth bedroom. Guests will love to cozy up to the fireplace in the 2-story, lodge room.
  • An optional apartment, gives your family or guests the ultimate getaway and includes a kitchen, bedroom with a full bathroom, and a loft.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,888 sq. ft.
  • 1st Floor: 4,888 sq. ft.
  • Bonus: 1,046 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, & 5
  • Full bathrooms: 3, 4, & 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 115' 3"
  • Depth: 92' 2"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 812 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Bonus 9' 0"
Plan 25655GE
View this and more for this plan by visiting www.architechtecturaldesigns.com/25655GE
|
