Lodge Style Two Bedroom House Plan

Plan 72855DA

  • 1,545

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Families looking for a smaller home or vacation retreat might just find their heart’s desire in this ranch-style home.
  • Vaulted ceilings through the center give the appearance of an A-frame chalet.
  • Eye-catching wood trim in the porte cochere and vaulted patio at the rear highlight the handsome stone veneer chimney and amplify that chalet feeling.
  • An expansive vaulted great room fills the heart of the home. Wide sliding glass doors flank the wood-burning fireplace centered on the rear wall.
  • The doors invite breezes in to boost air circulation, and offer easy access to the vaulted patio, ideal for outdoor dining and relaxation.
  • The L-shaped kitchen is also vaulted. It nestles neatly into the corner left of the entry. Light spills into the kitchen through the door’s sidelights, along with wide windows in front of the kitchen sink.
  • A raised eating bar rims one side of the uniquely shaped work island.
  • Two bedrooms and two bathrooms fill the left wing.
  • A utility room is on the right. It has a bench for shoe removal and storage, and offers access to the garage.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

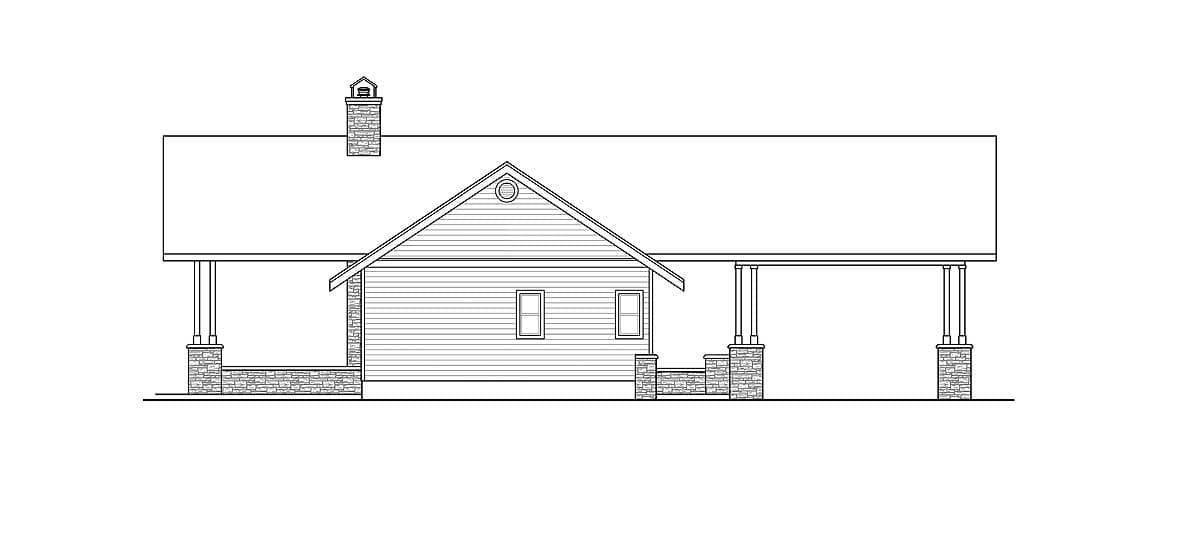

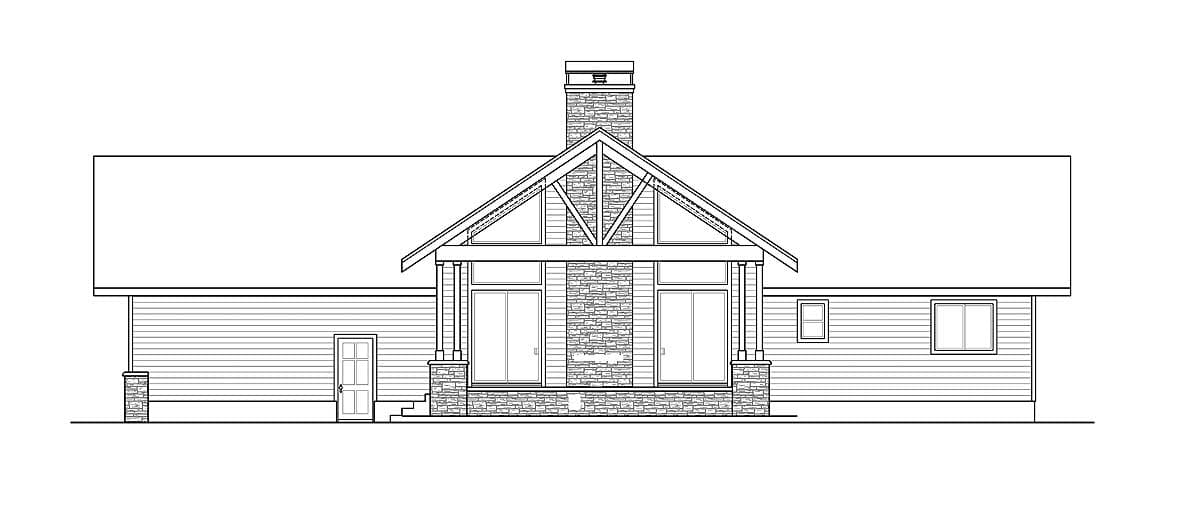

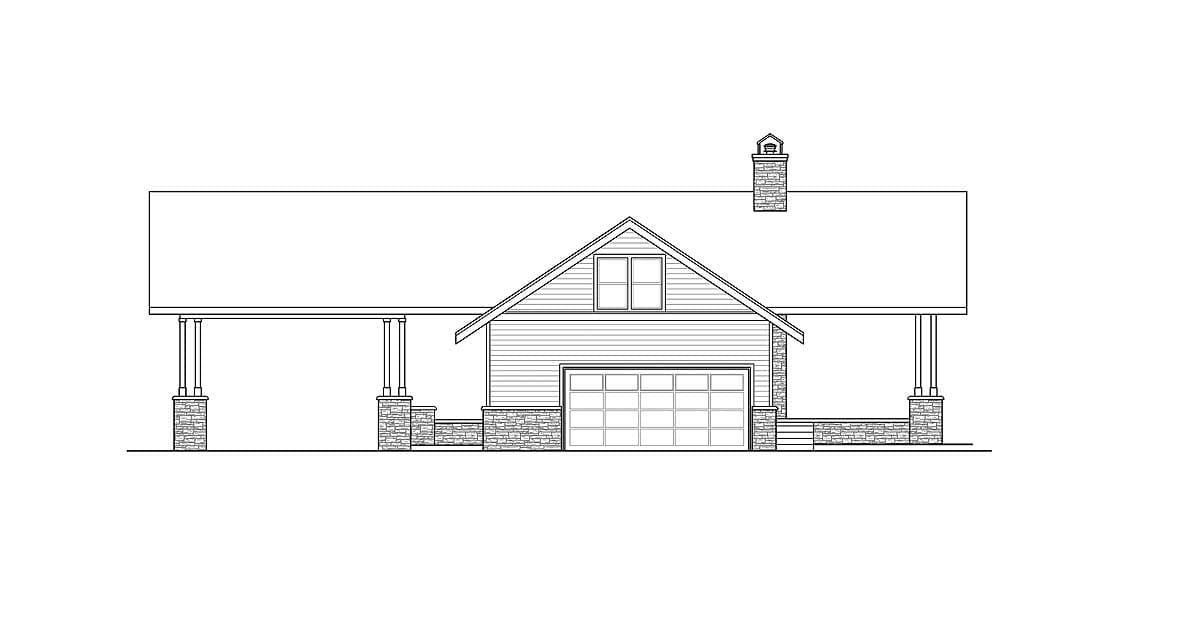

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

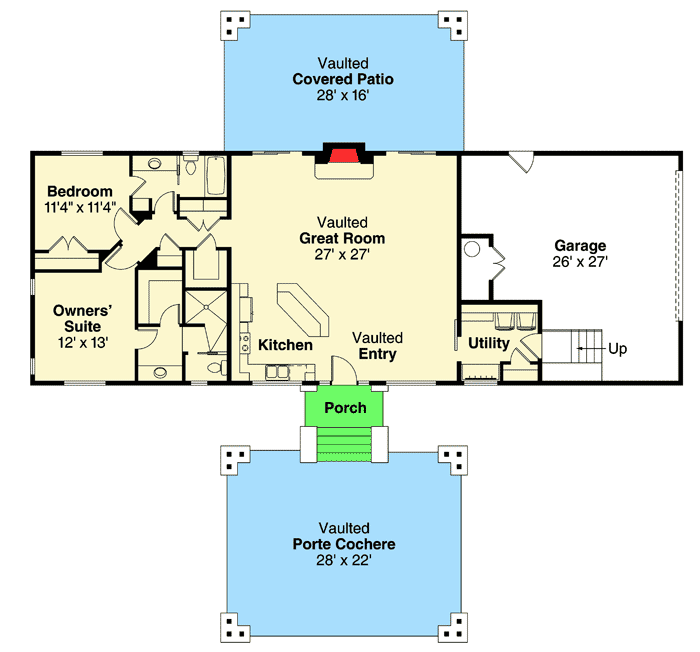

Floor Plan
