Plan 280028JWD
Lovely 3-Bed Craftsman House Plan with First-Floor Master
Heated S.F.
2,307
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • This lovely, craftsman house plan has 3 bedrooms and an inviting front porch with an open, gabled roof.
  • The smart, open floor plan is essential to everyday living. Conversation flows easily between the kitchen, dining and living room, and a warm fireplace can be enjoyed throughout the main level.
  • A door from the kitchen leads to a covered porch and beyond to a patio.

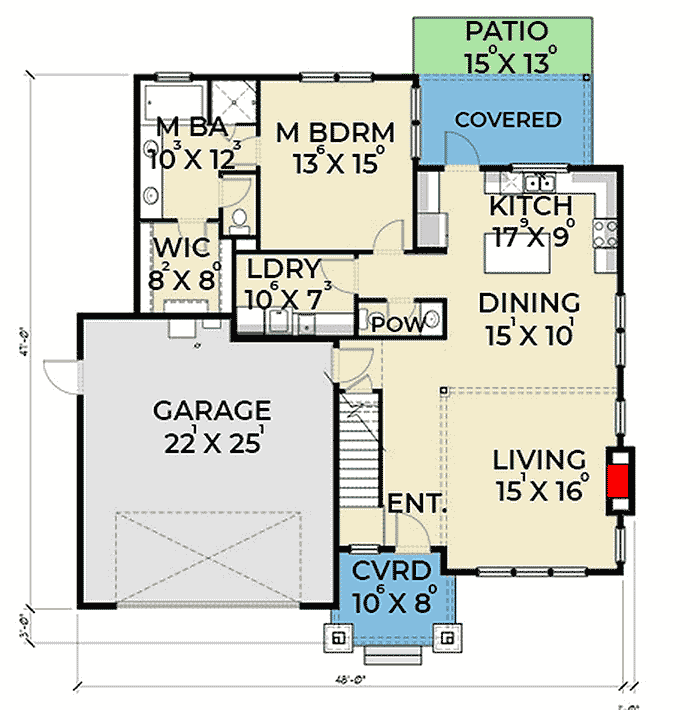

  • The master suite is located on this level, conveniently located next to the laundry room, and features a walk-in closet and bathroom with dual sinks.

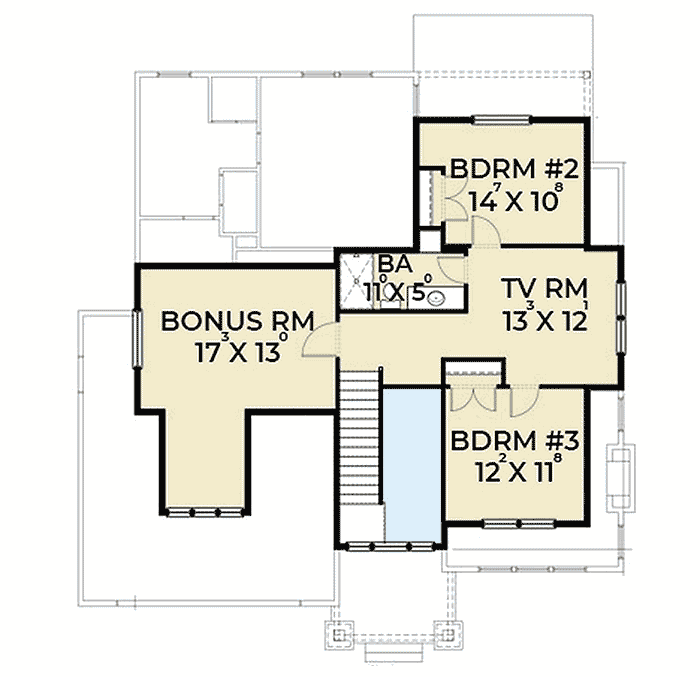

  • A bonus room sits at the top of the stairs, and a loft area adds flexibility to the second level. Two additional bedrooms also reside on this level and share a full bathroom.
  • IMPORTANT NOTE:  The total heated square footage includes the bonus room.
What's Included

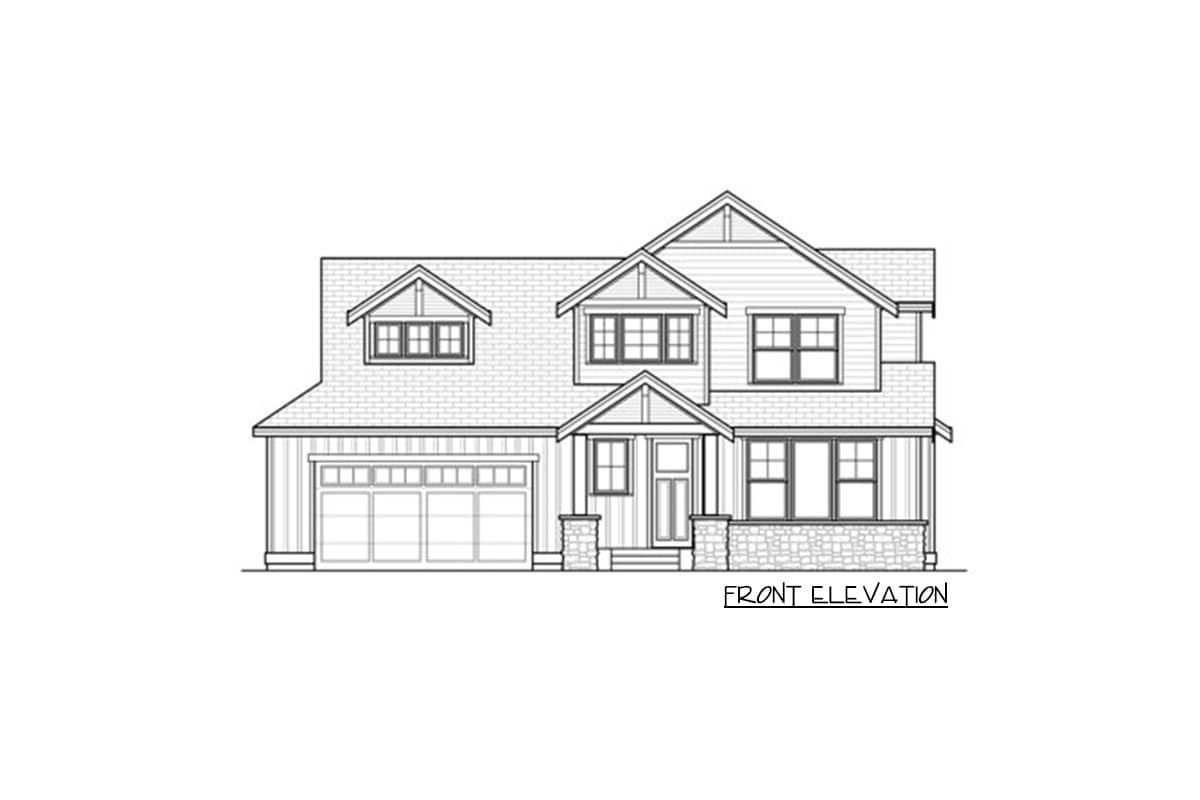

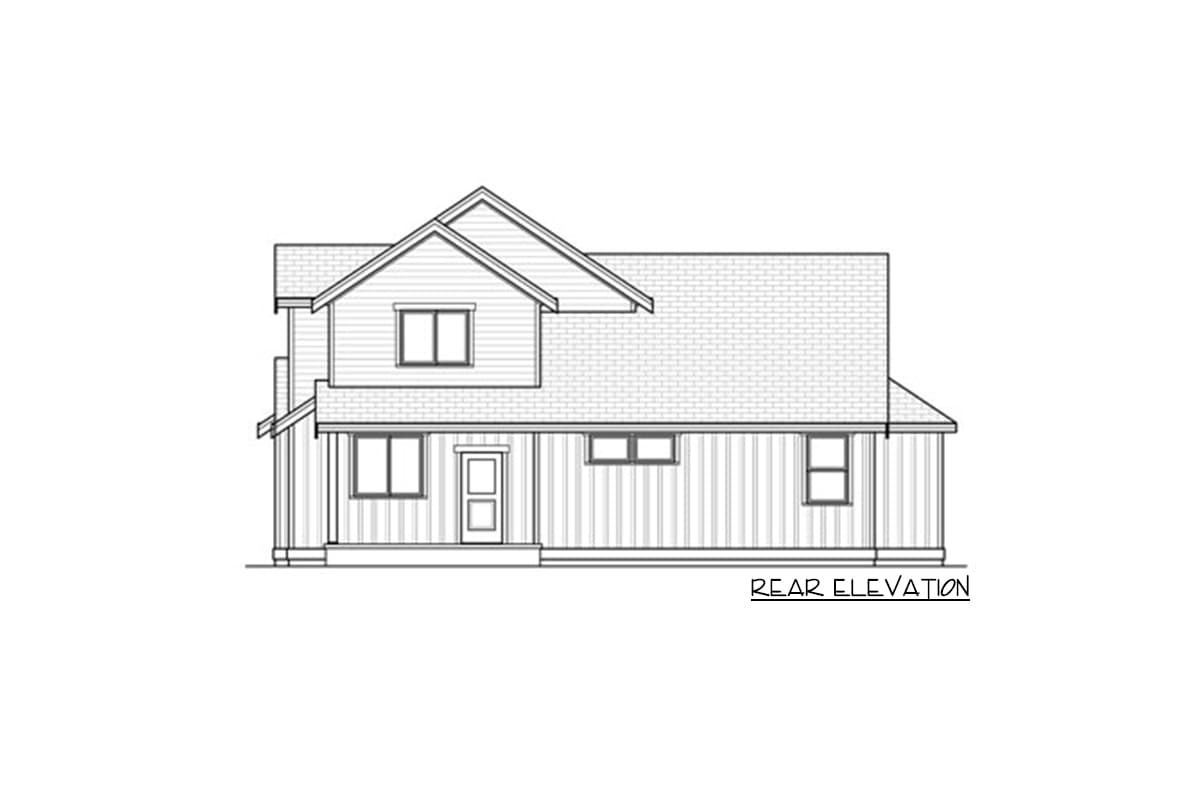

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Lovely 3-Bed Craftsman House Plan with First-Floor Master

  • 2,307

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,307 sq. ft.
  • 1st Floor: 1,358 sq. ft.
  • 2nd Floor: 645 sq. ft.

Dimensions

  • Width: 49' 0"
  • Depth: 47' 0"
  • Max ridge height: 27' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 562 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
