Low Country Craftsman Simplicity

Plan 15710GE

  • 3,258

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This low country Craftsman style home plan welcomes family and friends with a rocking chair front porch. A well-designed floor plan with an exceptional number of windows takes advantage of scenic outdoor views.
  • Guests have views of the grand room from the foyer. The formal dining room is defined by a single column.
  • The kitchen is open to the breakfast room and family room. Outdoor access is available off both rooms.
  • This three-to-four bedroom home plan has a first floor master suite with a sitting area, tray vaulted ceiling, and private access to the rear porch. A second bedroom or study is also on the main floor.
  • The second floor is complete with up to two additional bedrooms and a flex space suitable for a large bonus room or ample storage (the bonus room gives you 327 sq. ft. of additional space not included in the total living area shown).
  • Related Plans: Square off the study with house plan 25652GE. Get a full wraparound porch on the left with house plans 15889GE and 25673GE (alternate exterior) and 25629GE which also has upstairs rooms.

The plan set includes the following:

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

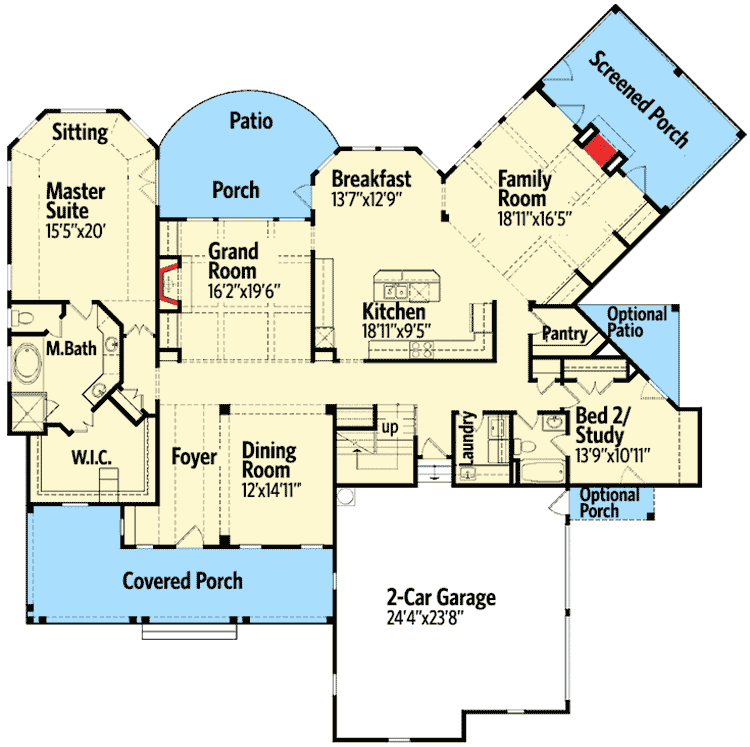

Low Country Craftsman Simplicity - 15710GE floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Low Country Craftsman Simplicity - 15710GE floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,258 sq. ft.
  • 1st Floor: 2,530 sq. ft.
  • 2nd Floor: 728 sq. ft.
  • Screened Porch: 234 sq. ft.
  • Bonus: 327 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 78' 3"
  • Depth: 78' 2"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 575 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Low Country Craftsman Simplicity

  • 3,258

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,795
  • CAD - Single-Build $2,845
  • View all purchase option online

About This Plan

  • This low country Craftsman style home plan welcomes family and friends with a rocking chair front porch. A well-designed floor plan with an exceptional number of windows takes advantage of scenic outdoor views.
  • Guests have views of the grand room from the foyer. The formal dining room is defined by a single column.
  • The kitchen is open to the breakfast room and family room. Outdoor access is available off both rooms.
  • This three-to-four bedroom home plan has a first floor master suite with a sitting area, tray vaulted ceiling, and private access to the rear porch. A second bedroom or study is also on the main floor.
  • The second floor is complete with up to two additional bedrooms and a flex space suitable for a large bonus room or ample storage (the bonus room gives you 327 sq. ft. of additional space not included in the total living area shown).
  • Related Plans: Square off the study with house plan 25652GE. Get a full wraparound porch on the left with house plans 15889GE and 25673GE (alternate exterior) and 25629GE which also has upstairs rooms.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,258 sq. ft.
  • 1st Floor: 2,530 sq. ft.
  • 2nd Floor: 728 sq. ft.
  • Screened Porch: 234 sq. ft.
  • Bonus: 327 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 78' 3"
  • Depth: 78' 2"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 575 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
Plan 15710GE
