Luxurious 4-Bed Coastal Contemporary House Plan with Golf Cart Garage and Outdoor Kitchen - 4298 Sq

Name: Plan 86072BS: Luxurious 4-Bed Coastal Contemporary House Plan with Golf Cart Garage and Outdoor Kitchen - 4298 Sq
Brand: Architectural Designs
SKU: 86072BS
Price: 4298.0 USD
Availability: InStock

Heated S.F.

4,298

Beds

Baths

4.5

Stories

Cars

Floor Plan

Main Level

Plan Details

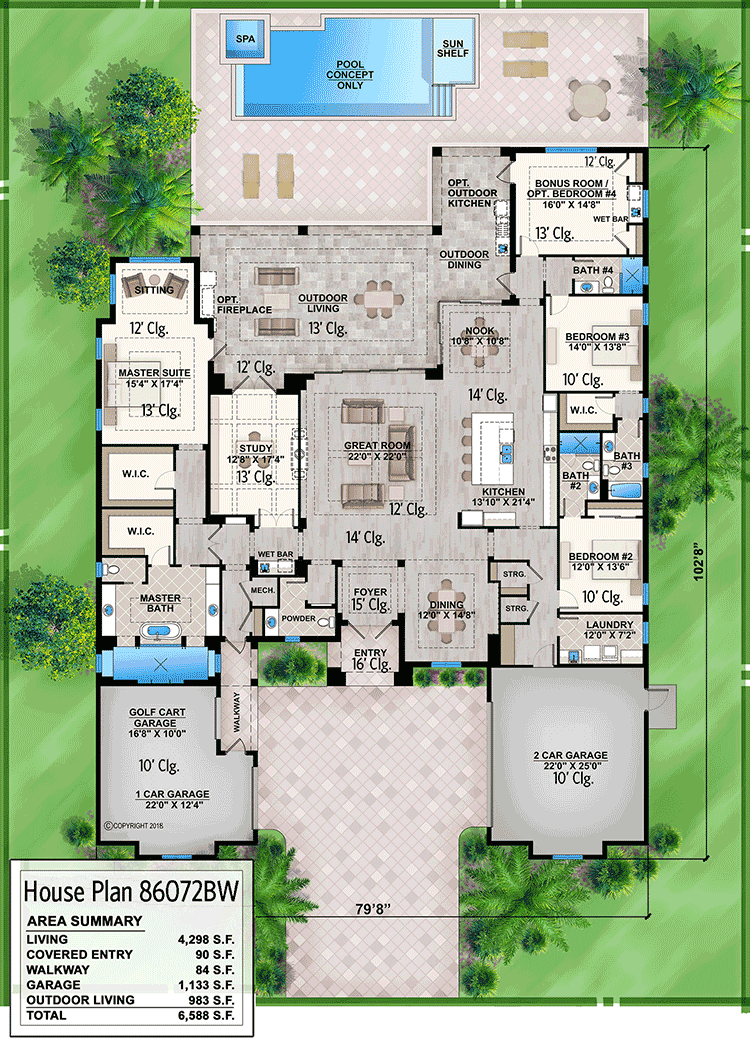

This gorgeous, 4-bedroom coastal contemporary house plan encourages an indoor-outdoor lifestyle with a light and airy floor plan that flows into an expansive, outdoor living space. The U-shaped house is created by a large driveway bordered by two garages, including a bay for a golf cart.

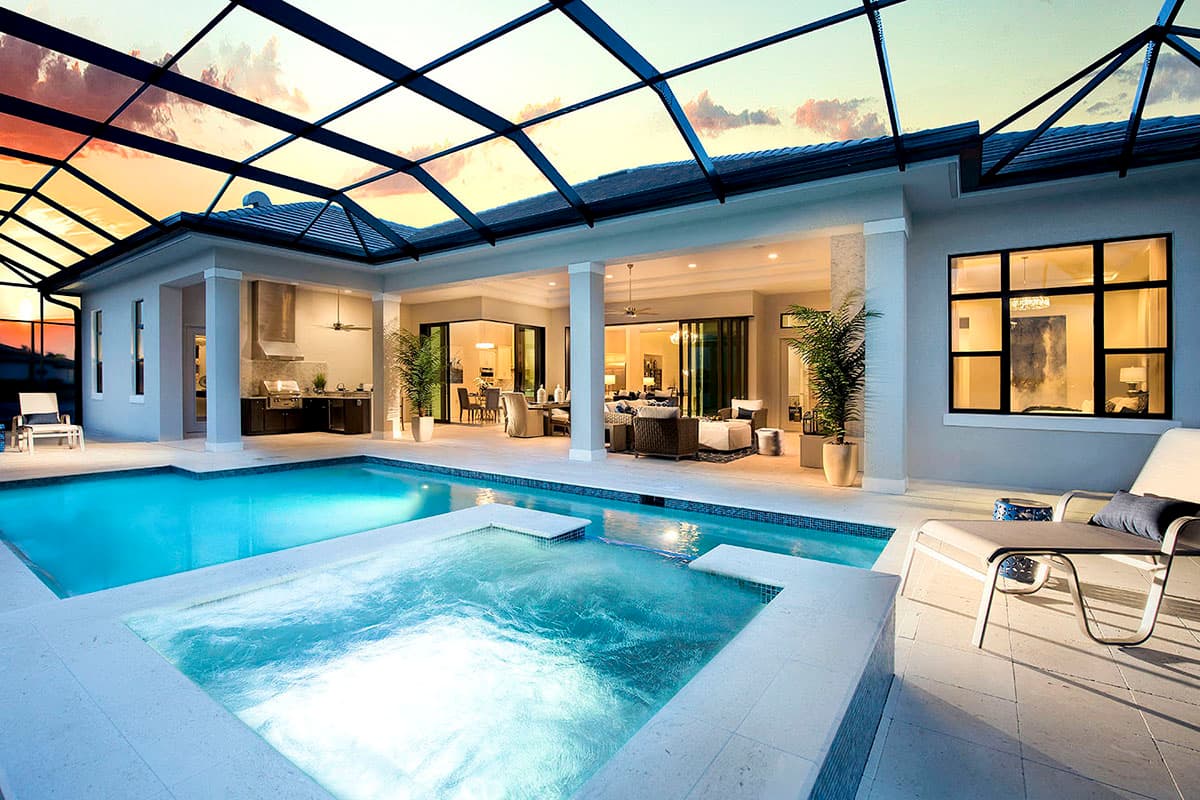

Clean sight lines from the front entry to the outdoor, covered porch are provided by the open layout. The great room boasts a tall, vaulted ceiling and a wall made of retractable, sliding doors. The outdoor living area includes space for dining, an optional outdoor kitchen, and optional outdoor fireplace.
Privately located on one side of the home resides your master suite featuring tray ceilings and a sitting nook. The master bath offers two, walk-in closets, along with dual sinks, a tub, and oversized shower.
A quiet study, with a coffered ceiling, neighbors the master suite and includes french doors to the outdoor space.
Two additional bedrooms with full bathrooms can be found on the opposite side of the home, and a bonus room with a wet bar could serve as a fourth bedroom.
BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.

What's Included

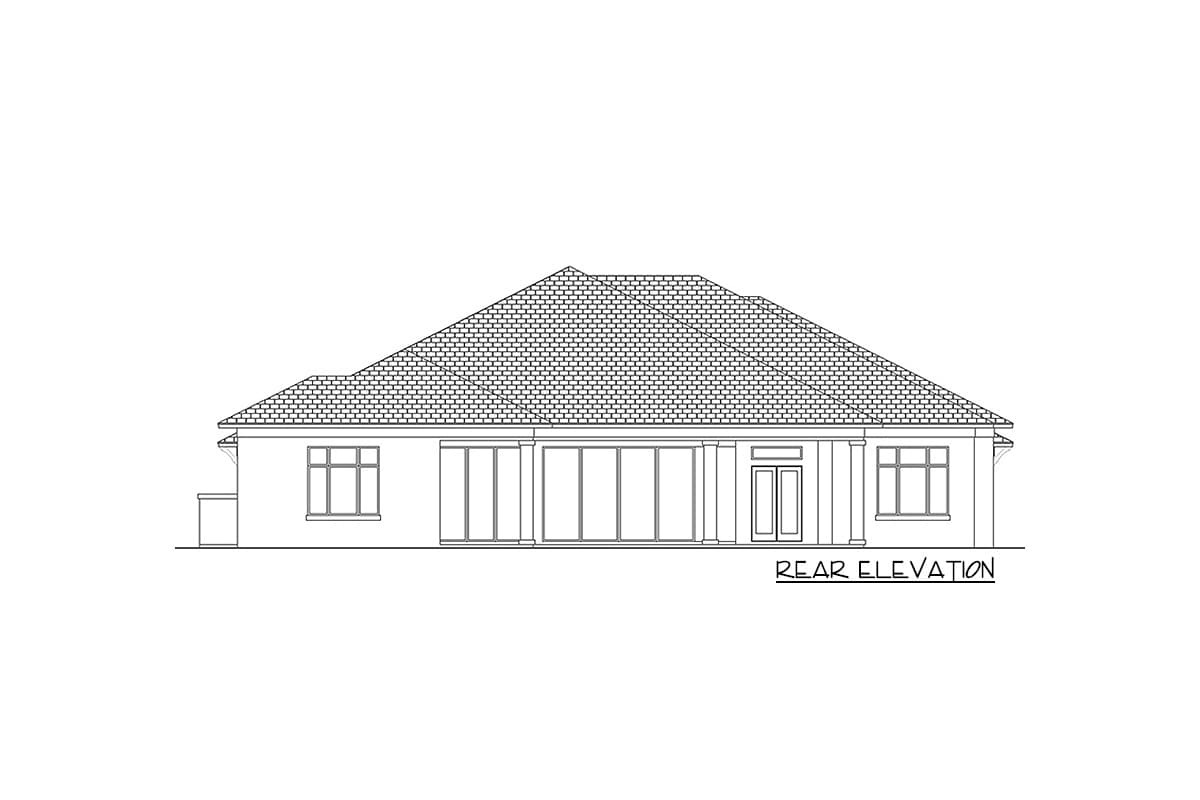

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
