Plan 17802LV
Luxurious European Mansion
Heated S.F.
6,465
Beds
3-4
Baths
3.5+ - 4.5+
Stories
2-3
Cars
3
What's Included
Plan Details
  • A turret, steep hip roof and stone exterior announce that this is a very special European house plan filled with luxuries.

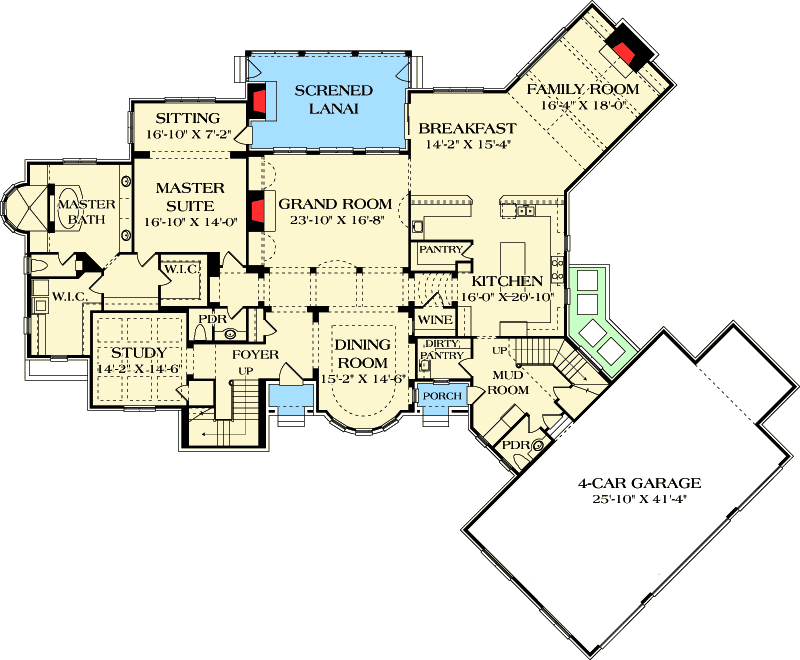

  • The two-story foyer gives you immediate views of the large formal dining room and the grand room beyond.
  • Vaulting up two-stories, the grand room has three double windows that overlook the screened lanai with its outdoor fireplace.
  • The kitchen is massive with two sinks, a walk-in pantry, tons of counter space and two peninsula eating bars that look out onto the breakfast nook and the vaulted and beamed family room.
  • Homeowners will appreciate the gorgeous master suite that has a separate sitting area, grand spa-like bathroom and two walk-in closets, one of which has a washer/dryer just for the homeowners.

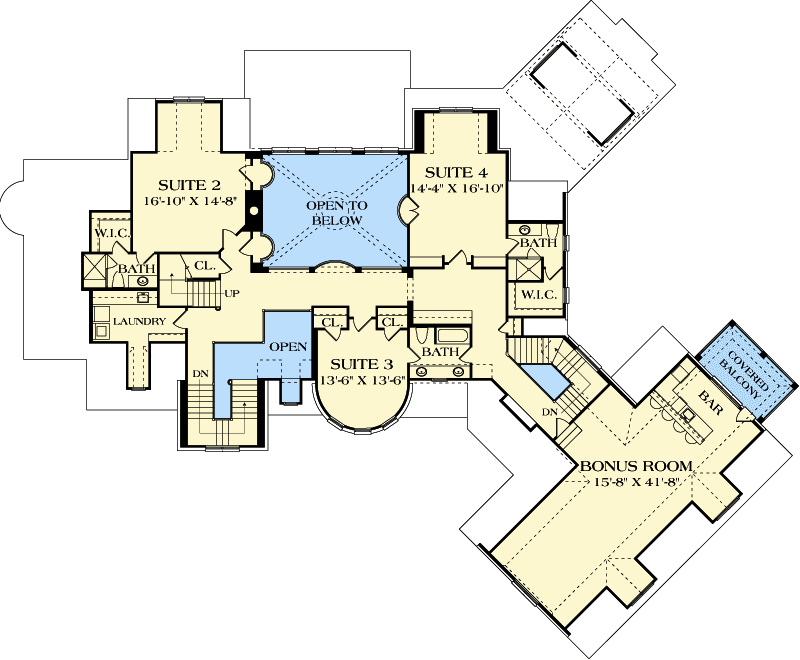

  • Every bedroom suite on the second floor is unique and has access to a bathroom.
  • There's even a second floor laundry room to serve these three suites.
  • Sunken bonus space over the garage adds an additional 798 square feet of living space if finished off.

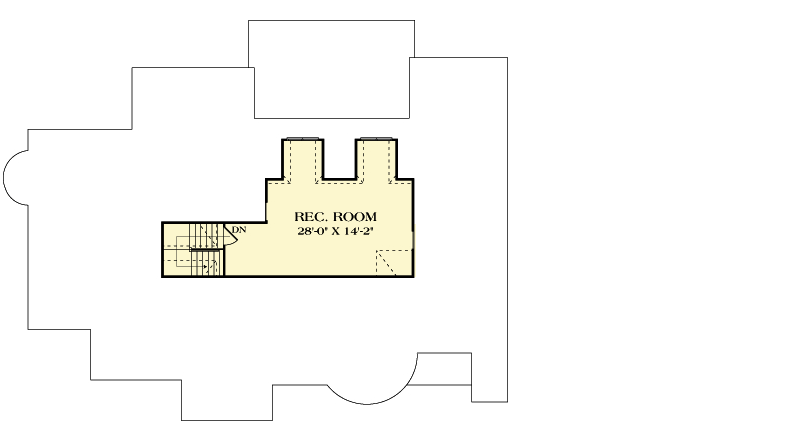

  • A third floor rec room has two dormer windows and is part of the 6465 square foot total living area.
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
