Plan 65793BS

Luxurious Five Bedroom Modern Estate House Plan with Courtyard Entry

Name: Plan 65793BS: Luxurious Five Bedroom Modern Estate House Plan with Courtyard Entry
Brand: Architectural Designs
SKU: 65793BS
Price: 5196.0 USD
Availability: InStock

Heated S.F.

5,196

Beds

Baths

Stories

Cars

Floor Plan

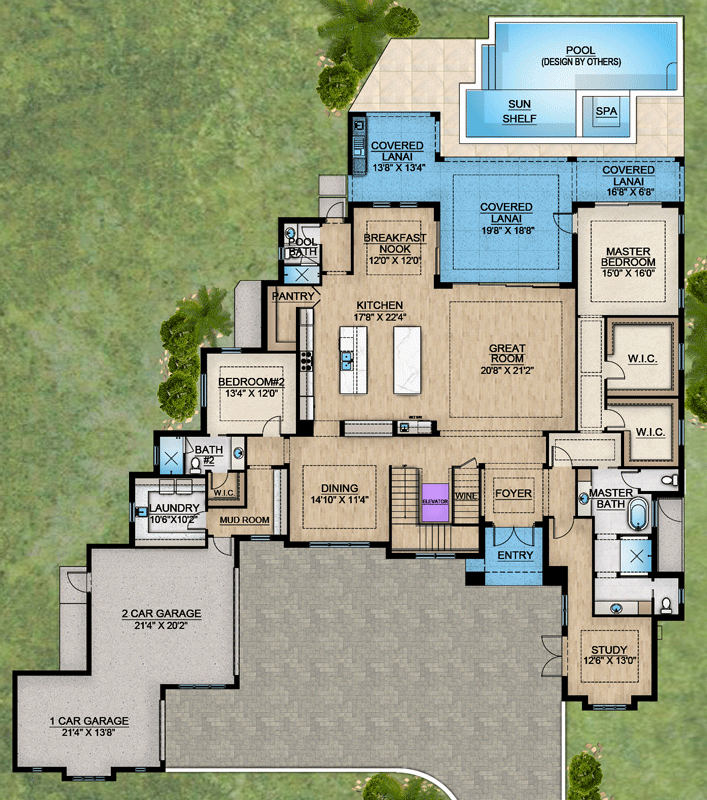

Main Level

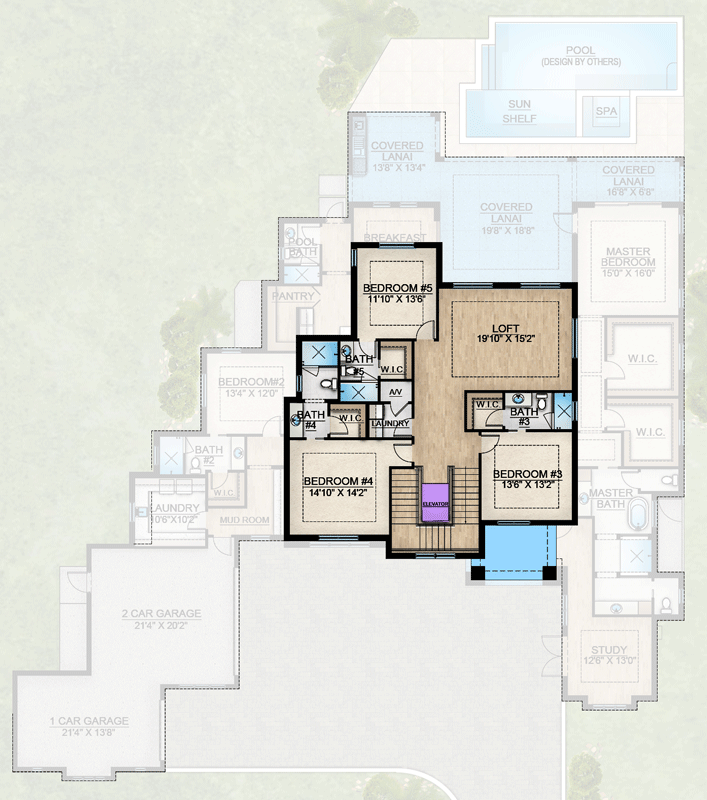

2nd Level

Plan Details

Spanning 5,196 square feet of heated living space, this sophisticated modern estate features five bedrooms, four full bathrooms, and a two-car courtyard garage.

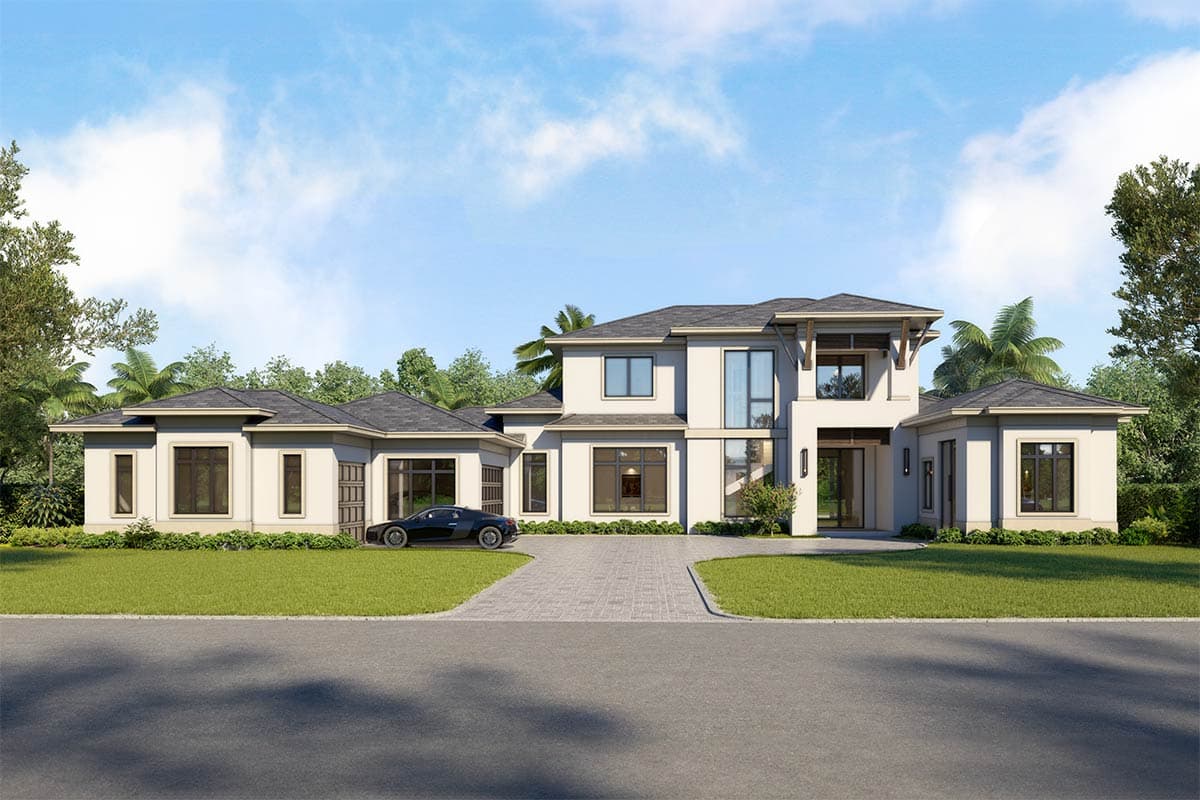

The home welcomes you through an elegant courtyard entry that sets a tone of privacy and architectural distinction.
Inside, the sprawling main level flows effortlessly between formal dining, a dedicated library, and a spacious living area anchored by a well-appointed kitchen with a large walk-in pantry and breakfast nook.
The primary suite is conveniently located on the main floor, offering a secluded sanctuary, while the remaining bedrooms are thoughtfully distributed to provide comfort and flexibility for family or guests.
A central elevator provides seamless accessibility between the two levels, leading to an expansive upstairs loft that serves as a versatile secondary living space.
The layout includes dedicated laundry facilities on both floors, a functional mudroom, and a harmonious connection between the interior living spaces and the exterior grounds.

What's Included

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
