Plan 9505RW Luxurious Living

3,965 4 4.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Luxurious Living

Plan 9505RW

  • 3,965

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

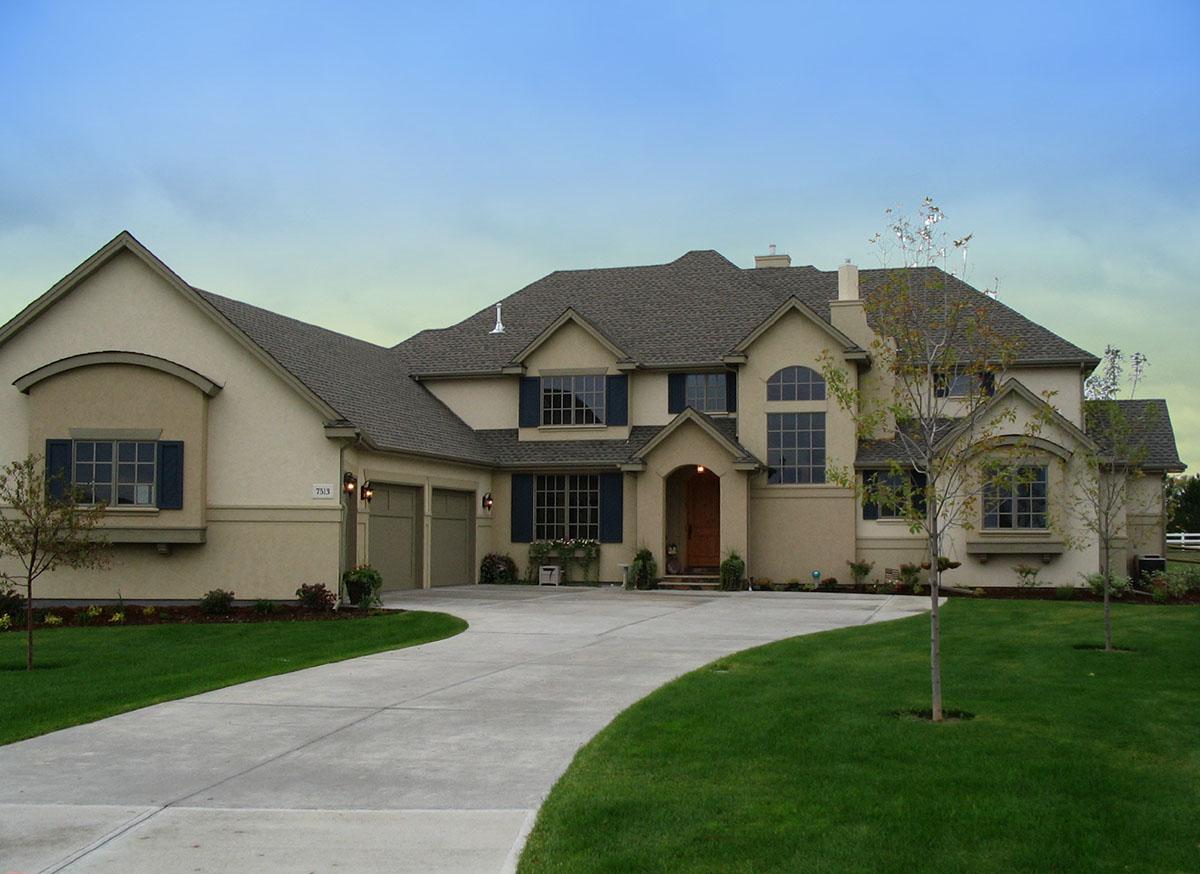

  • A beautiful European exterior draws your eye to this luxurious home.
  • The floor plan flows from room to room with special touches along the way such as the dining room tray ceiling and nearby butler's pantry.

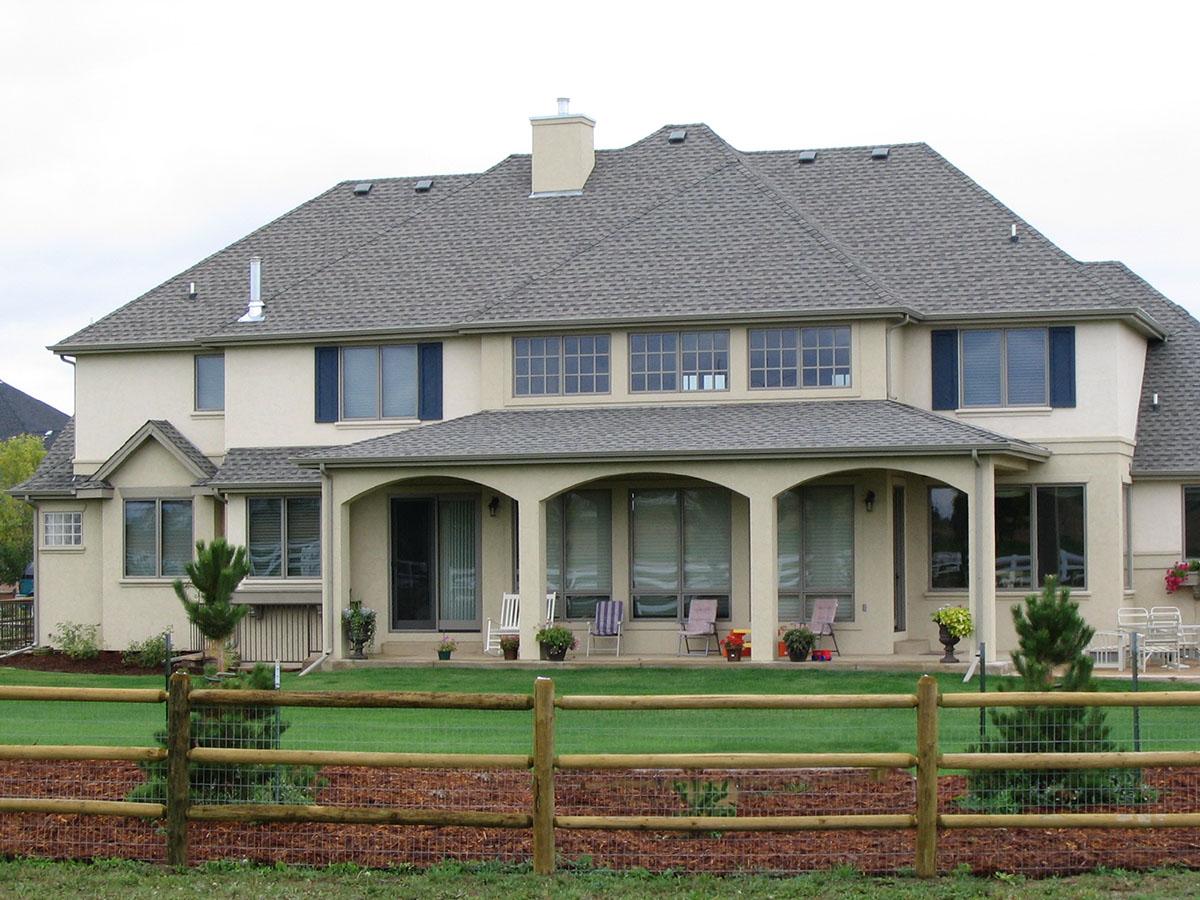

  • A wall of windows in the great room with fireplace overlooks the rear covered porch.
  • Sliding glass doors in the first floor master suite also access the rear porch.
  • The spacious master bathroom is a real draw with its big soaking tub and a large walk-in shower.
  • Each bedroom on the second floor has its own private bathroom and walk-in closet.

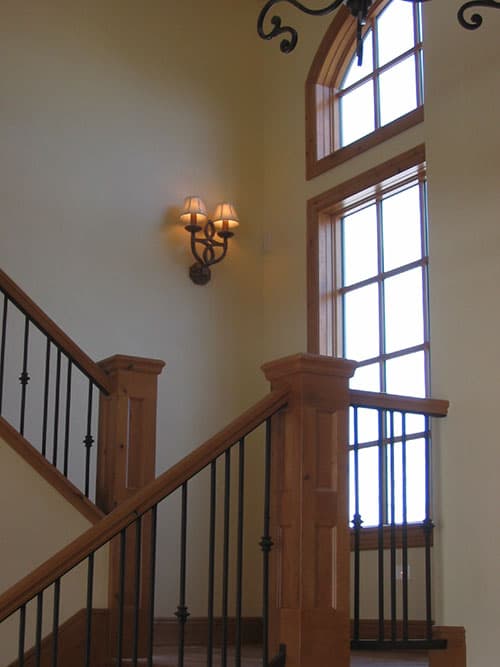

  • The second floor loft has open rails that allow you to overlook both the foyer and great room below.

The following details are included with this house plan:
  • Cover Page
  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Luxurious Living - 9505RW floor plan - Main Level

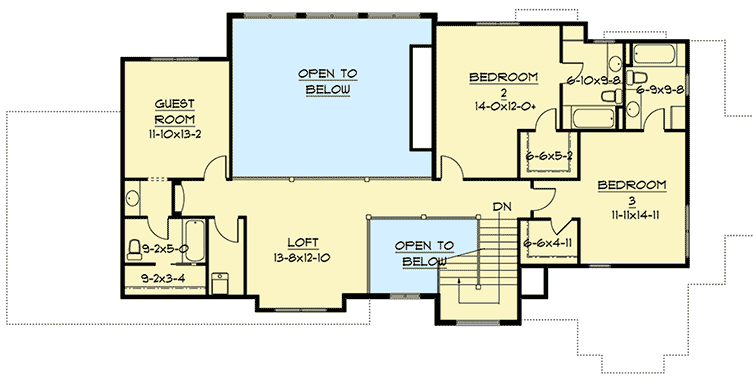

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Luxurious Living - 9505RW floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,965 sq. ft.
  • 1st Floor: 2,641 sq. ft.
  • 2nd Floor: 1,324 sq. ft.
  • Porch, Combined: 364 sq. ft.
  • Basement Unfinished: 2,641 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 84' 0"
  • Depth: 89' 3"
  • Max ridge height: 33' 3"

Garage

  • Type: Attached
  • Area: 1164 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Luxurious Living

  • 3,965

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,550
  • PDF - Unlimited Build $3,825
  • CAD + PDF - Single Build $4,050
  • CAD - Unlimited Build $6,075
  • View all purchase option online

About This Plan

  • A beautiful European exterior draws your eye to this luxurious home.
  • The floor plan flows from room to room with special touches along the way such as the dining room tray ceiling and nearby butler's pantry.
  • A wall of windows in the great room with fireplace overlooks the rear covered porch.
  • Sliding glass doors in the first floor master suite also access the rear porch.
  • The spacious master bathroom is a real draw with its big soaking tub and a large walk-in shower.
  • Each bedroom on the second floor has its own private bathroom and walk-in closet.
  • The second floor loft has open rails that allow you to overlook both the foyer and great room below.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,965 sq. ft.
  • 1st Floor: 2,641 sq. ft.
  • 2nd Floor: 1,324 sq. ft.
  • Porch, Combined: 364 sq. ft.
  • Basement Unfinished: 2,641 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 84' 0"
  • Depth: 89' 3"
  • Max ridge height: 33' 3"

Garage

  • Type: Attached
  • Area: 1164 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss
Plan 9505RW
View this and more for this plan by visiting www.architechtecturaldesigns.com/9505RW
|
