Luxurious Mediterranean House Plan with Grand Two-Story Foyer and Family Room

Plan 36564TX

  • 7,503

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 4

    Cars

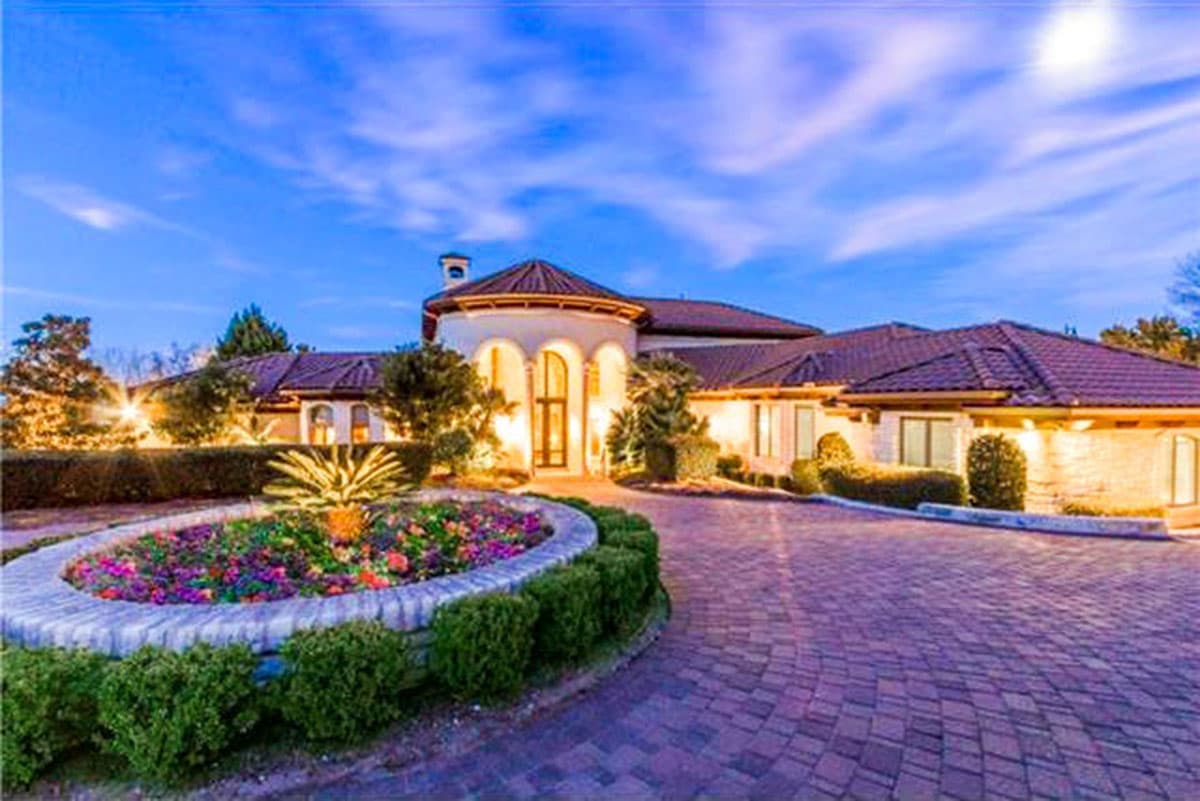

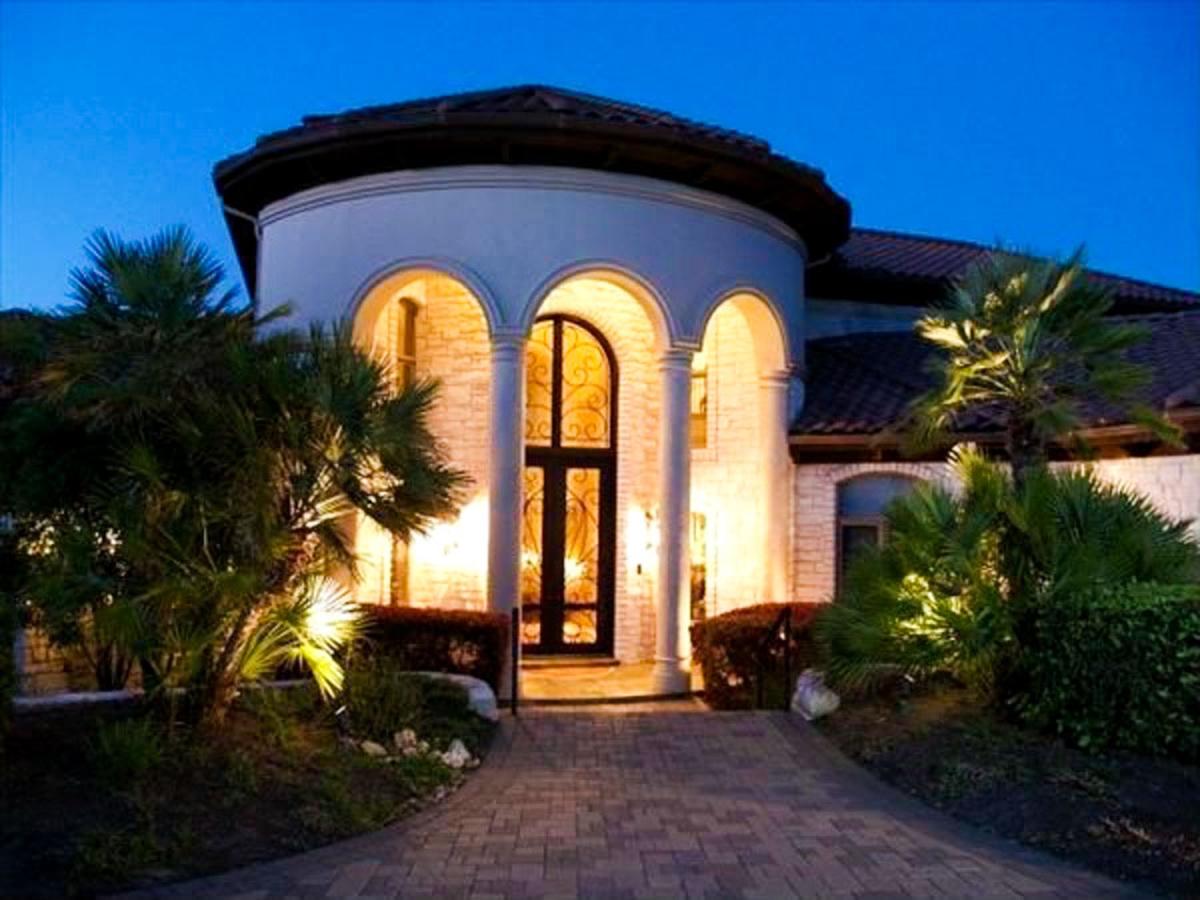

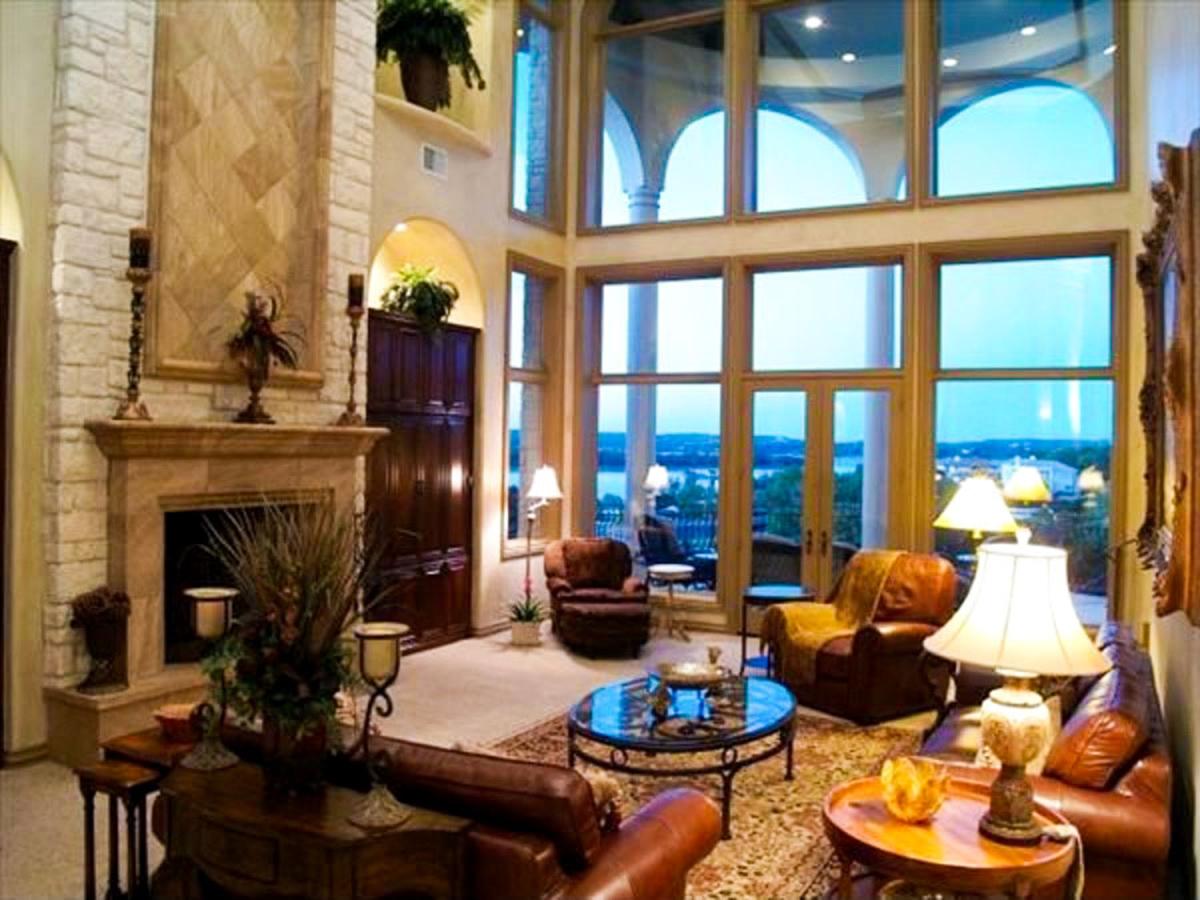

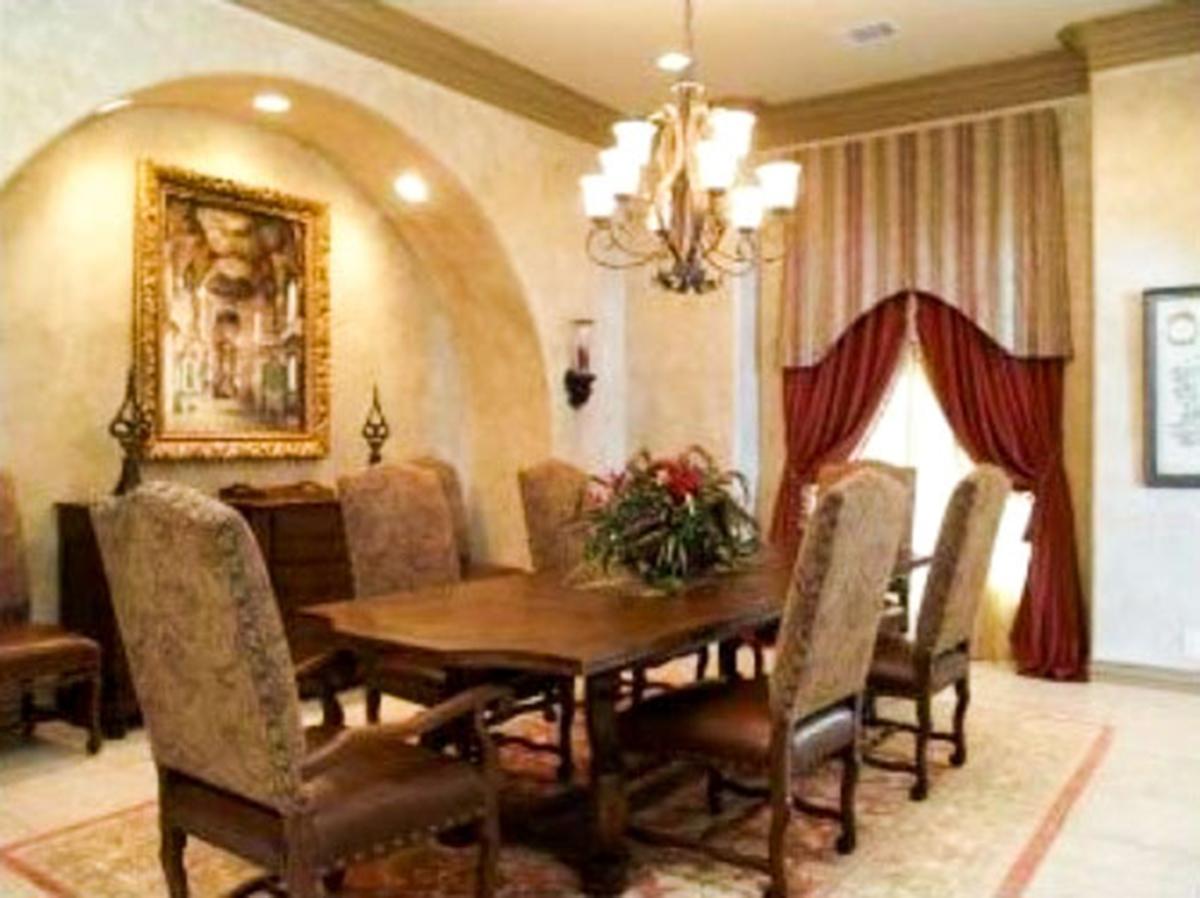

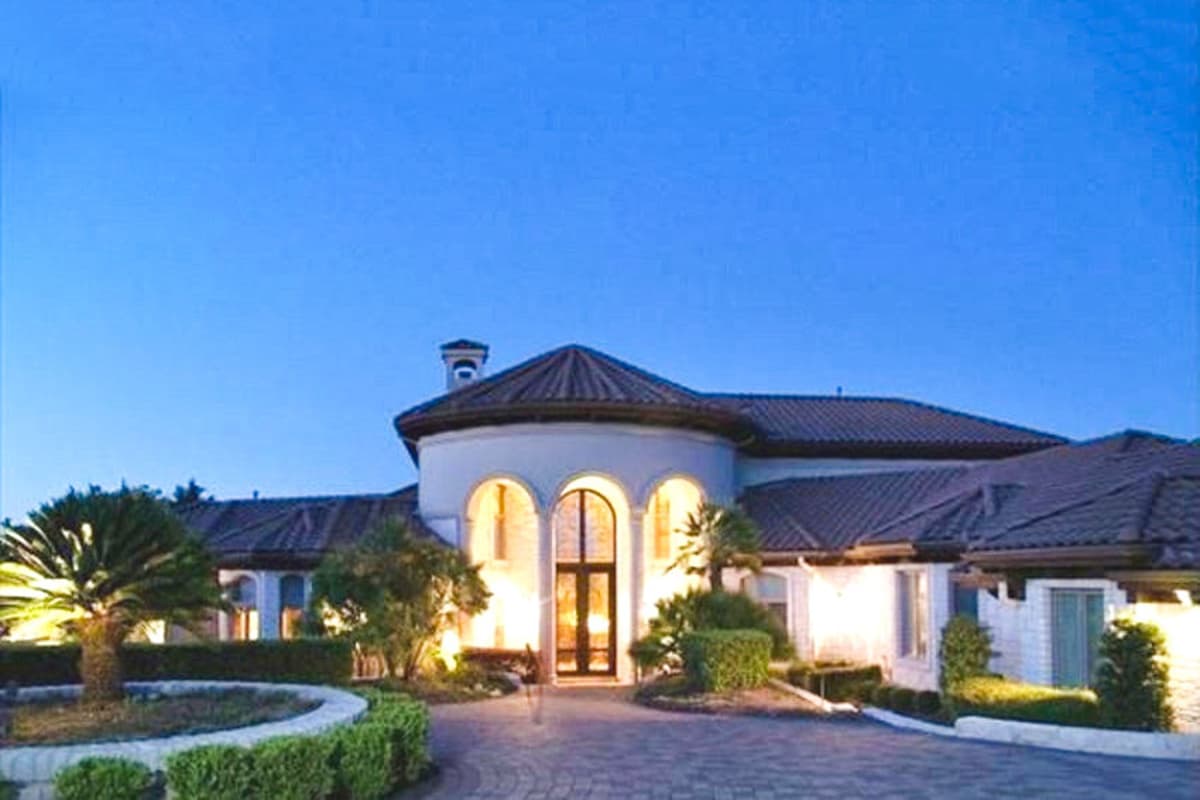

  • Luxury defines this breathtaking Mediterranean house plan, complete with a grand tower with arched entryways serving as the front entrance. The spacious, two-story foyer suggests three options: the family room straight ahead, a quiet living room to the left, or a large dining room to the right.

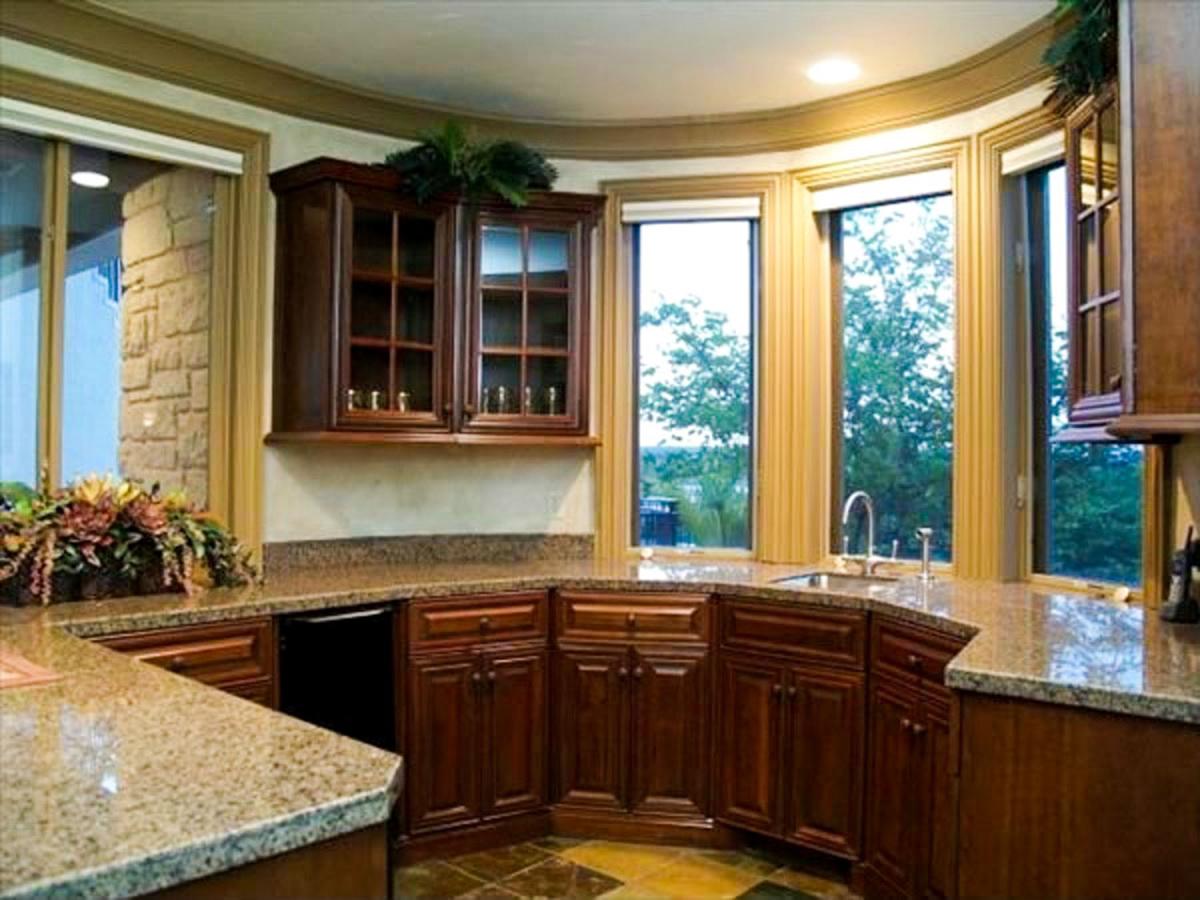

  • The chef in the family will delight in the spacious kitchen with a large multi-purpose island and nearby walk-in pantry. Large windows in the family room and breakfast nook allow light to flood the living space, while overlooking the covered verandah.

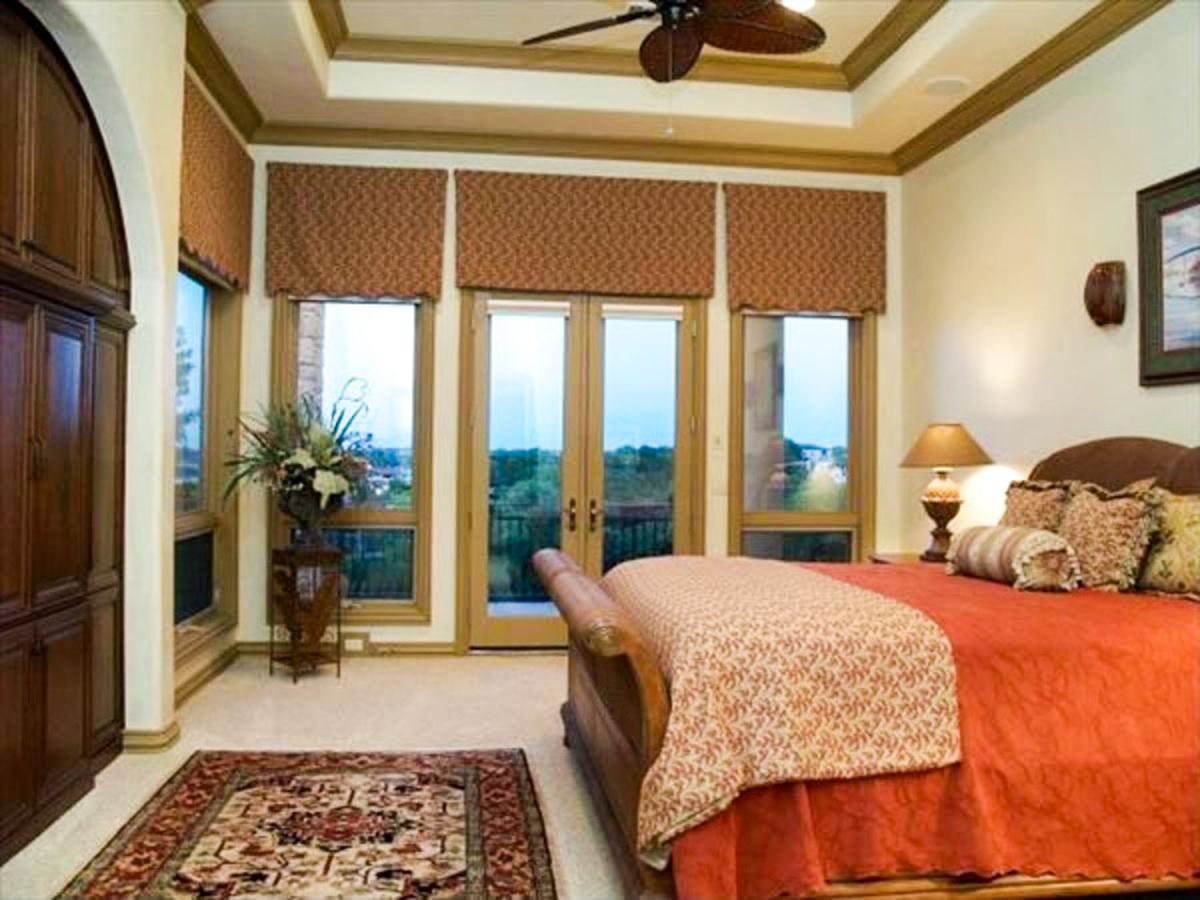

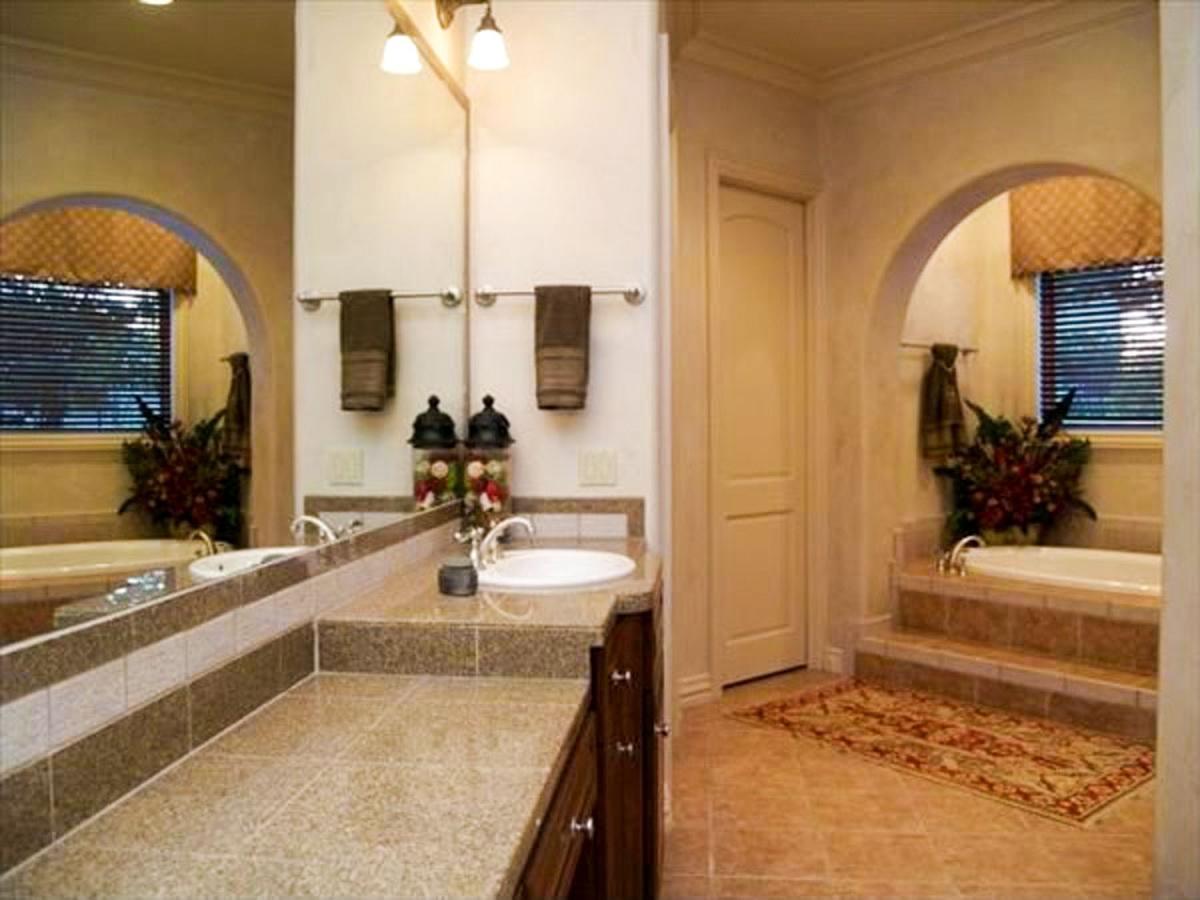

  • The lavish master suite is privately situated on the main level, and boasts french doors to the back verandah, dual wardrobes, and an exercise room in the master bathroom.
  • Also on this level, discover a library with coffered ceilings, a study, and a guest bedroom with a full bath.

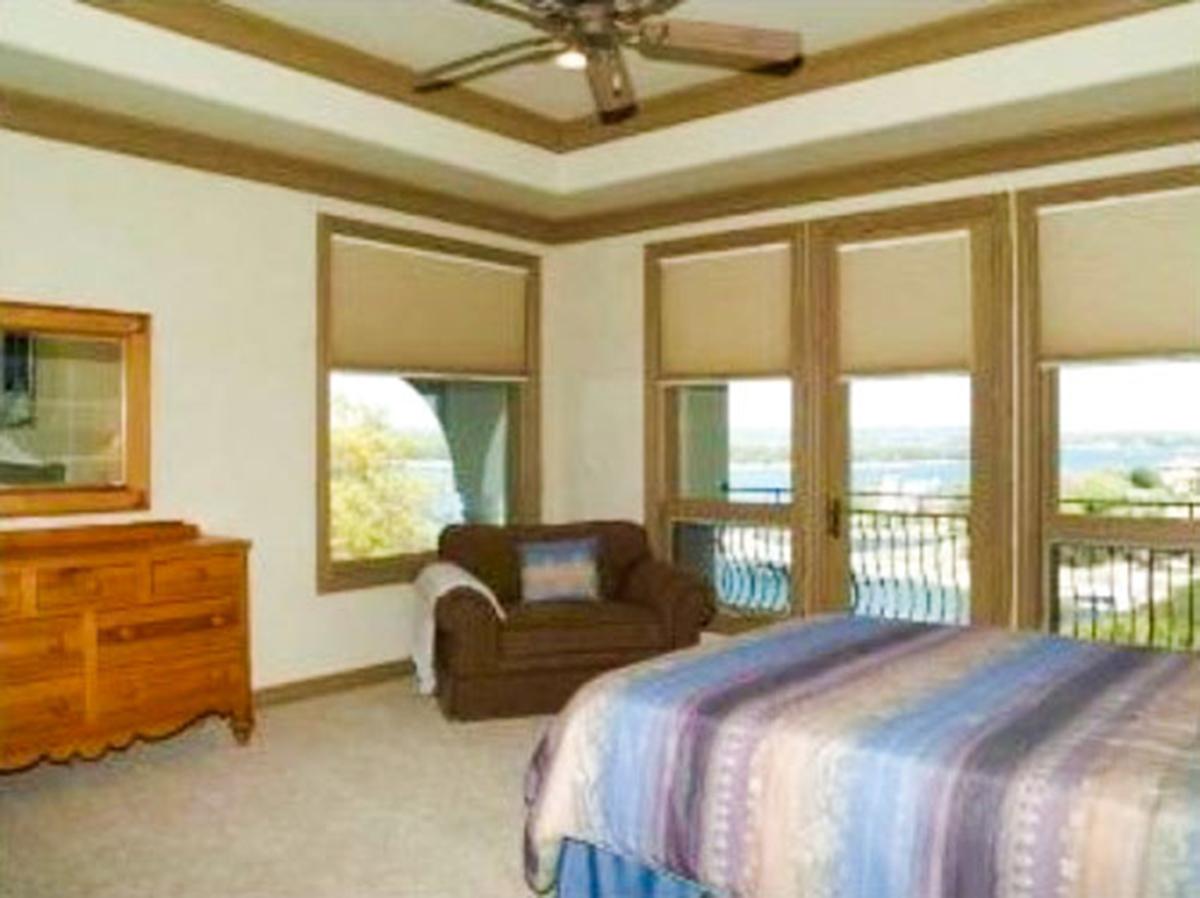

  • Bedrooms 3 and 4 reside on the second level, and both include a full bath and access to a rear-facing balcony.
  • The lower level features a large game room with a wet bar and access to the veranda.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

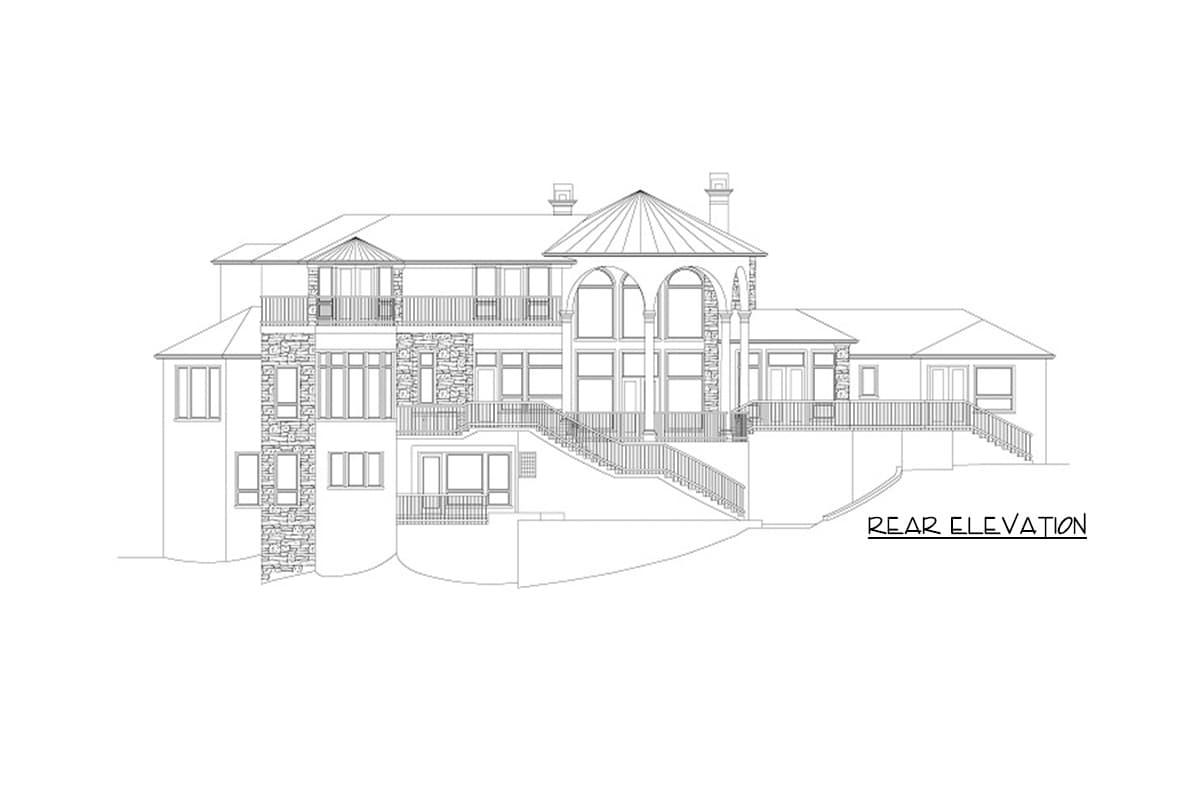

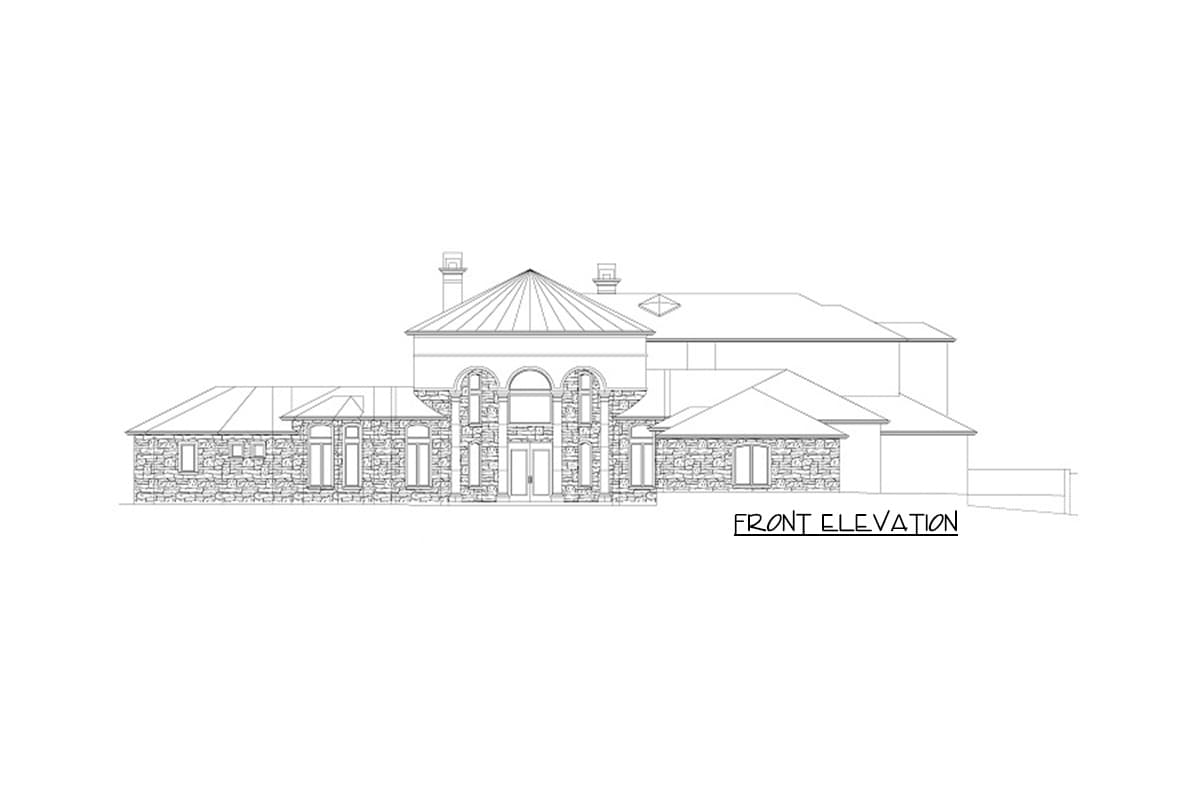

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

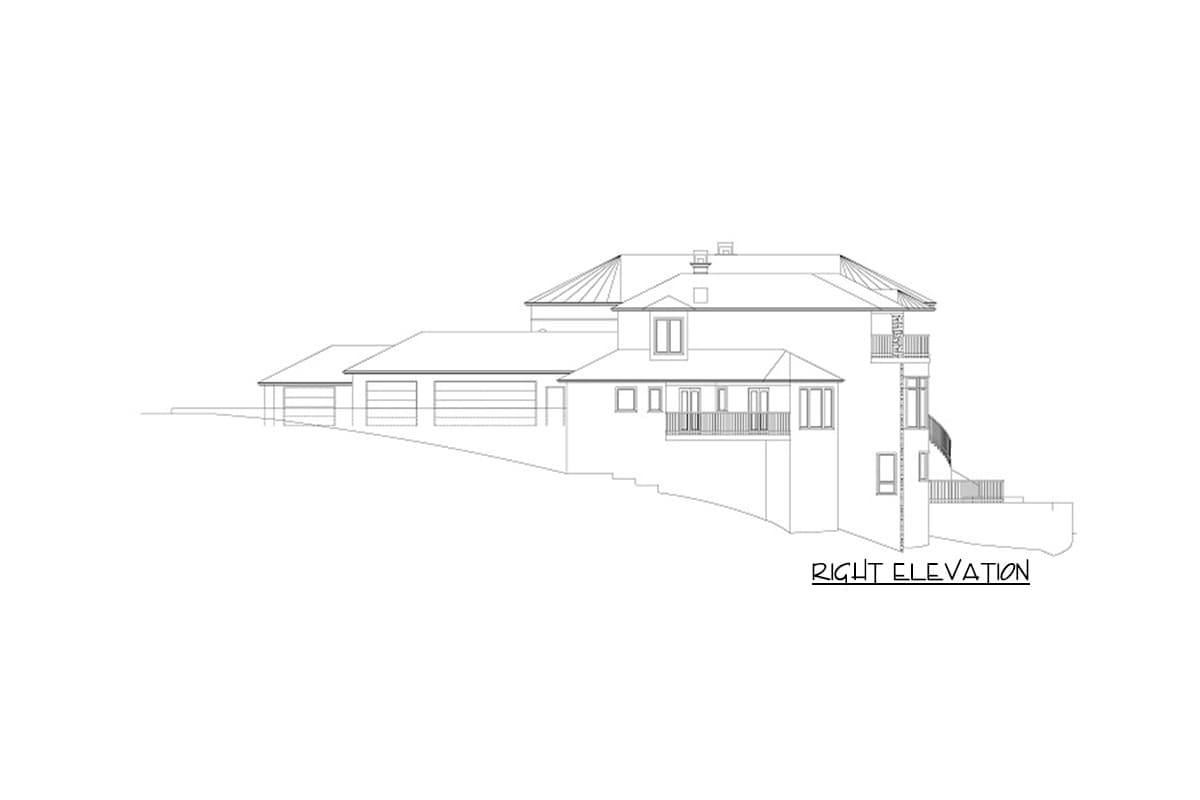

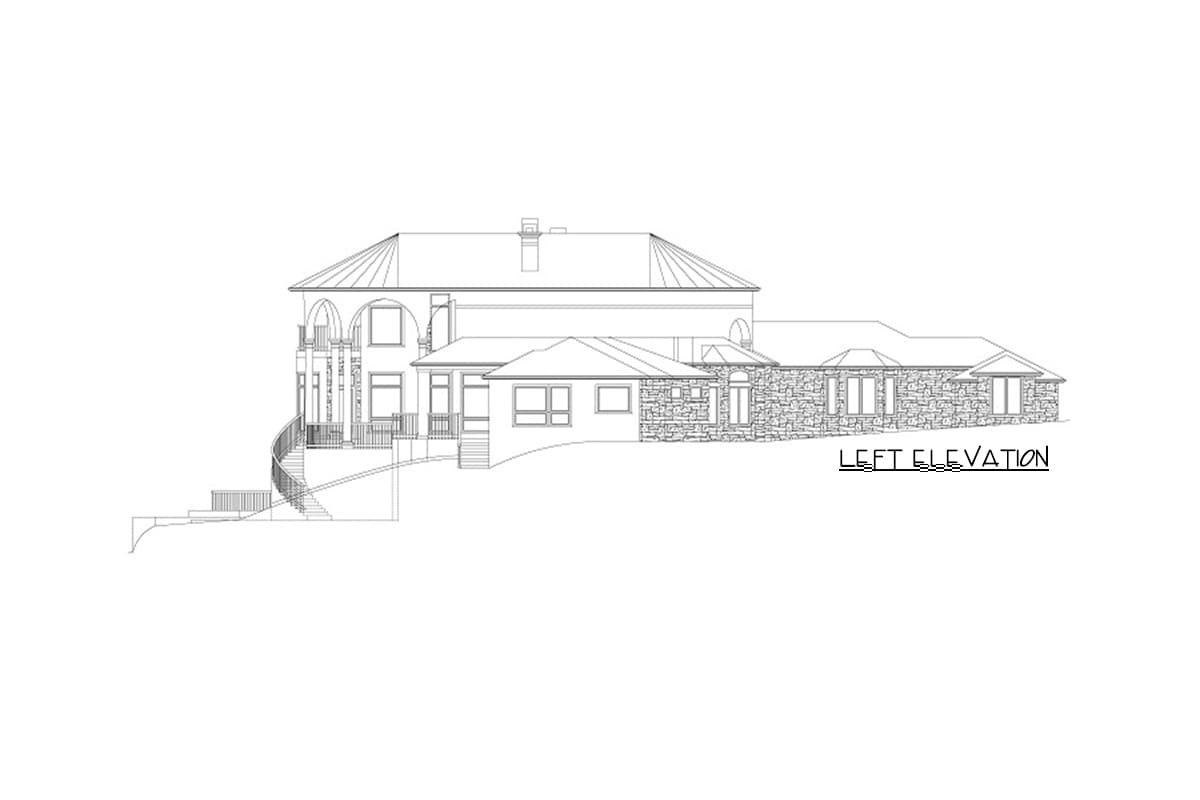

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Plan details



Luxurious Mediterranean House Plan with Grand Two-Story Foyer and Family Room

  • 7,503

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - single-use $3,295
  • 5 Sets $3,495
  • CAD $4,950
  • View all purchase option online

About This Plan

  • Luxury defines this breathtaking Mediterranean house plan, complete with a grand tower with arched entryways serving as the front entrance. The spacious, two-story foyer suggests three options: the family room straight ahead, a quiet living room to the left, or a large dining room to the right.
  • The chef in the family will delight in the spacious kitchen with a large multi-purpose island and nearby walk-in pantry. Large windows in the family room and breakfast nook allow light to flood the living space, while overlooking the covered verandah.
  • The lavish master suite is privately situated on the main level, and boasts french doors to the back verandah, dual wardrobes, and an exercise room in the master bathroom.
  • Also on this level, discover a library with coffered ceilings, a study, and a guest bedroom with a full bath.
  • Bedrooms 3 and 4 reside on the second level, and both include a full bath and access to a rear-facing balcony.
  • The lower level features a large game room with a wet bar and access to the veranda.

Floor Plans

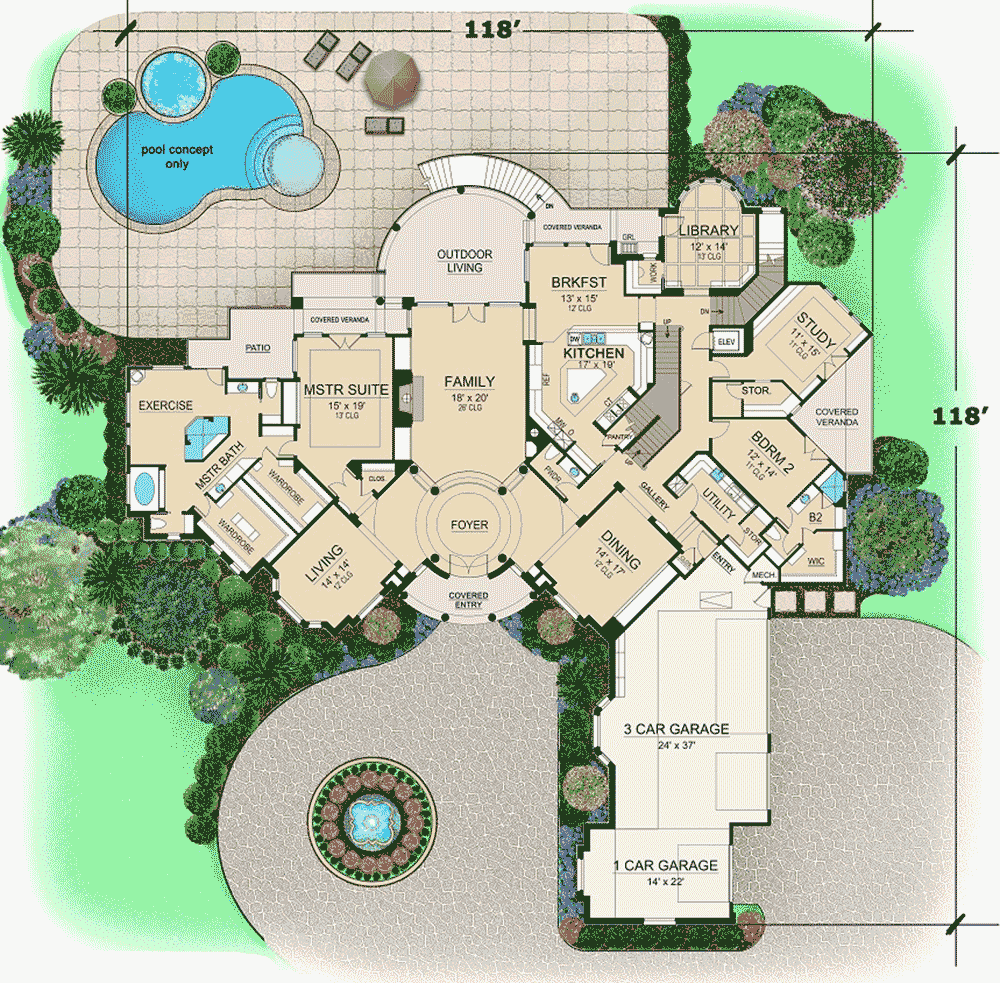

  • Main Level

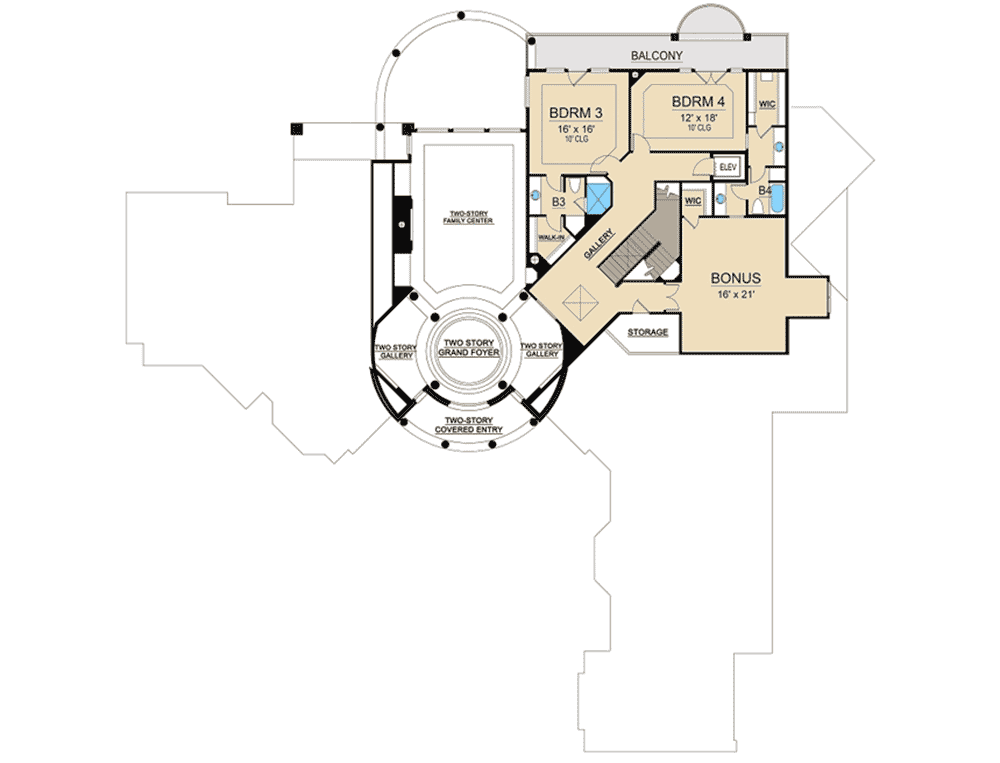

  • 2nd Floor

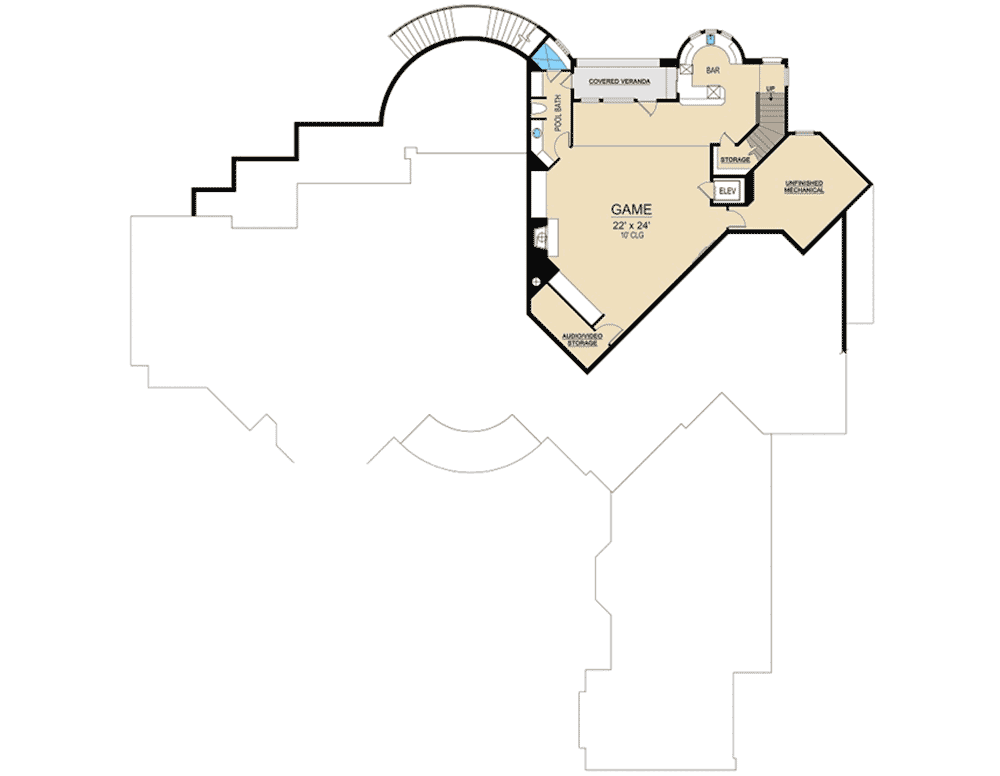

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 7,503 sq. ft.
  • Lower Level: 1,274 sq. ft.
  • 1st Floor: 5,076 sq. ft.
  • 2nd Floor: 1,153 sq. ft.
  • Bonus: 470 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 118' 0"
  • Depth: 118' 0"
  • Max ridge height: 36' 0"

Garage

  • Type: Attached
  • Area: 1435 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 12' 0" Second Floor / 11' 0"
