Plan 86077BW

Luxurious Two-Story House Plan with Expansive Outdoor Living Space

Luxurious Two-Story House Plan with Expansive Outdoor Living Space

Plan 86077BW

  • 9,224

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 4

    Cars

  • This sprawling, two-story house plan spares no details with luxurious features at every turn. The open floor plan creates a wonderful space for entertaining, but also offers private suites for family and friends to retreat to when needed.
  • The master suite occupies the right side of the home, and boasts dual walk-in closets and a lavish en suite, complete with an outdoor shower.
  • The large bar off the dining room will be a hit when hosting gatherings, and the chef will appreciate the second kitchen to contain dirty dishes.
  • The main-level guest suite features a spa-like bath, and neighbors a large, circular sun room.
  • Walls retract, merging the great room and breakfast nook with the outdoor, covered lanai, which includes a kitchen.
  • Upstairs, discover a recreation room, which extends to a second-level lanai, with access to three additional bedrooms, each with their own full bath.

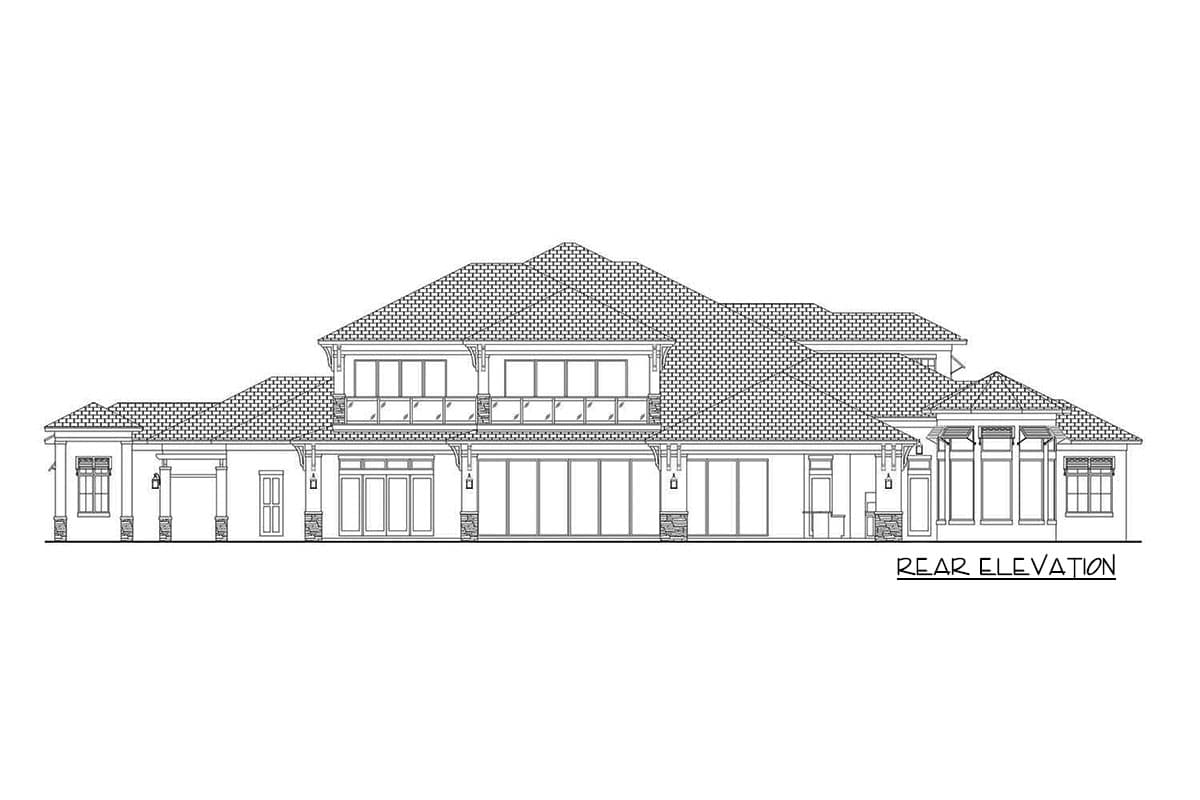

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)

Floor Plan

Plan details



Luxurious Two-Story House Plan with Expansive Outdoor Living Space

  • 9,224

    Heated s.f.

  • 5

    Beds

  • 8

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • CAD $8,300
  • PDF - single-use $8,300
  • View all purchase option online

About This Plan

  • This sprawling, two-story house plan spares no details with luxurious features at every turn. The open floor plan creates a wonderful space for entertaining, but also offers private suites for family and friends to retreat to when needed.
  • The master suite occupies the right side of the home, and boasts dual walk-in closets and a lavish en suite, complete with an outdoor shower.
  • The large bar off the dining room will be a hit when hosting gatherings, and the chef will appreciate the second kitchen to contain dirty dishes.
  • The main-level guest suite features a spa-like bath, and neighbors a large, circular sun room.
  • Walls retract, merging the great room and breakfast nook with the outdoor, covered lanai, which includes a kitchen.
  • Upstairs, discover a recreation room, which extends to a second-level lanai, with access to three additional bedrooms, each with their own full bath.

Floor Plans

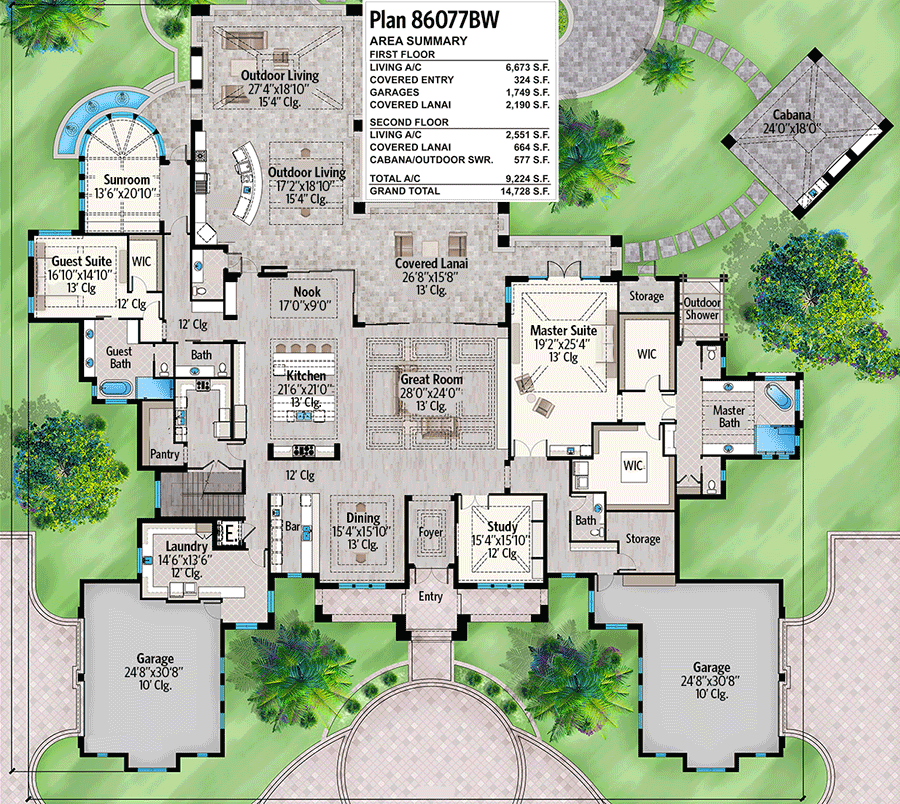

  • Main Level

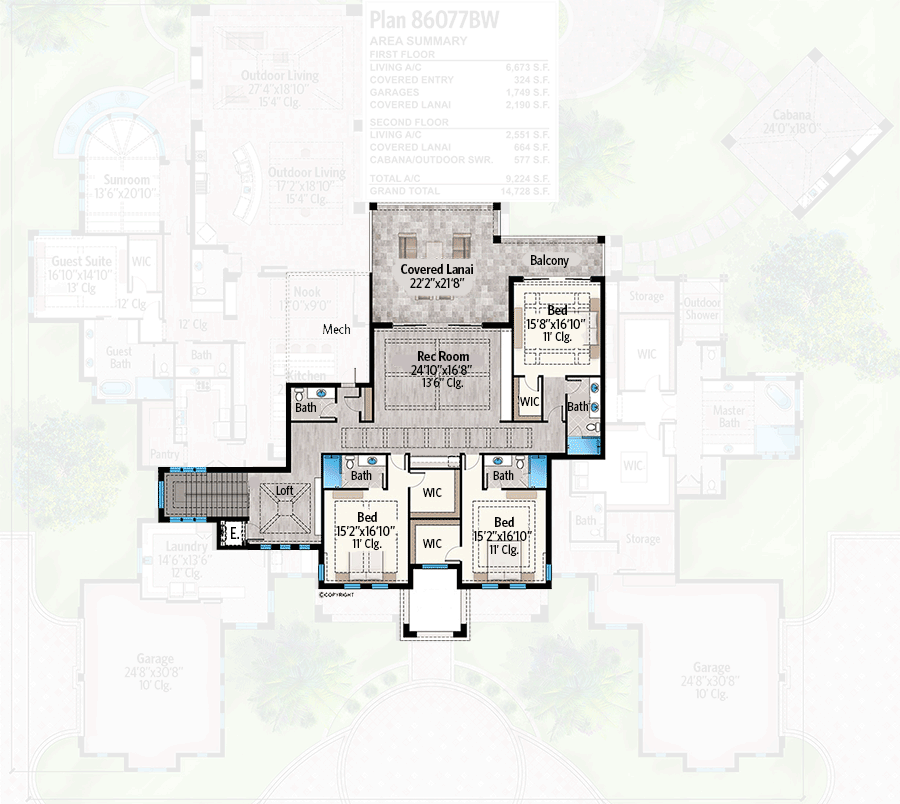

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 9,224 sq. ft.
  • 1st Floor: 6,673 sq. ft.
  • 2nd Floor: 2,551 sq. ft.
  • Lanai: 2,190 sq. ft.
  • Balcony / Veranda: 664 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 139' 8"
  • Depth: 138' 4"
  • Max ridge height: 38' 4"

Garage

  • Type: Attached
  • Area: 1749 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
