Plan 36556TX Luxury 3-Bed Home Plan with Overlooks to the Family Room and Foyer

3,828 3 3.5 2 2
Print
Compare
...

Luxury 3-Bed Home Plan with Overlooks to the Family Room and Foyer

Plan 36556TX

  • 3,828

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This luxury 3-bed home plan has a beautiful brick exterior with arched and block pane windows, a covered front entry with overhead transom, sidelites, and keystone trim.
  • Enter into the foyer and get a view of the dramatic curved stairs straight ahead.
  • Off the foyer, you'll find a family bedroom with full bath and walk-in closet.
  • The dining room has a trey ceiling and leads into the kitchen for ease in serving gatherings..
  • The kitchen has a free-standing center island and a curved breakfast bar that separates the kitchen from the breakfast room.
  • The family room boasts a corner fireplace and two-story cathedral ceiling. A full wall of windows gives you great outside views. Double French doors take you to the patio. A wet bar sits on the outer corner of the family room.
  • Beyond is a quiet study with a 12’ ceiling, built-ins and a storage closet.
  • Down the back hall sits the elegant master suite with octagonal step trey ceiling, fireplace and a master bath with dual vanities, separate shower and marble tub, a walk-in closet and large wardrobe with built-ins.
  • A utility room and front-entry, two-car garage with side door to the yard and a storage closet complete the first floor.
  • Upstairs there are overlooks to the family room and the foyer. Two family bedrooms each have their own full baths and walk-in closets.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

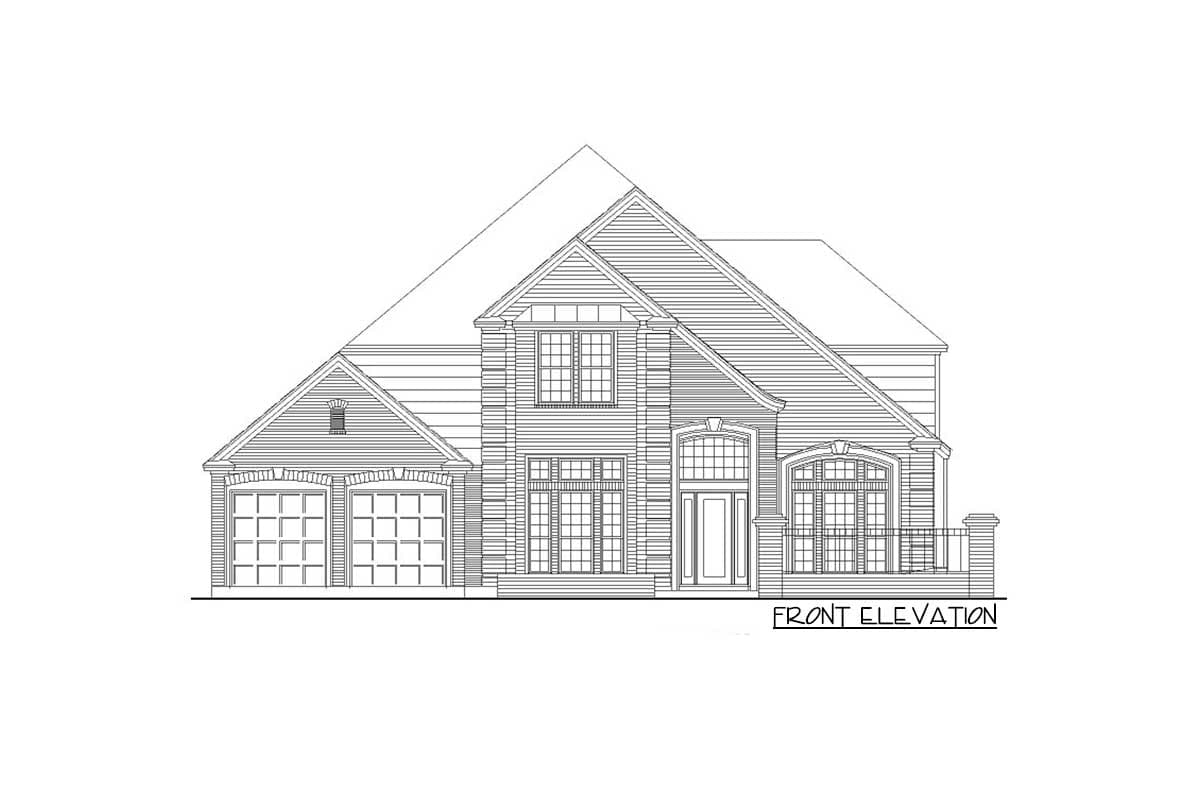

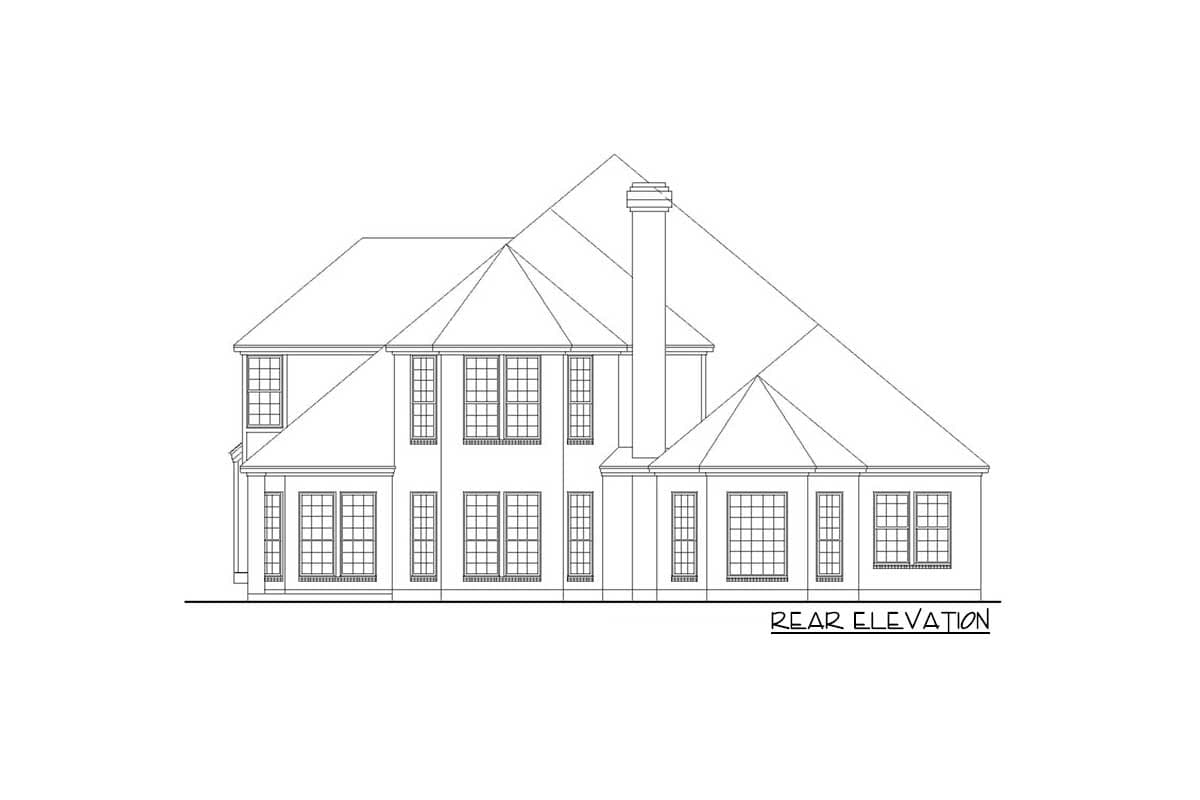

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

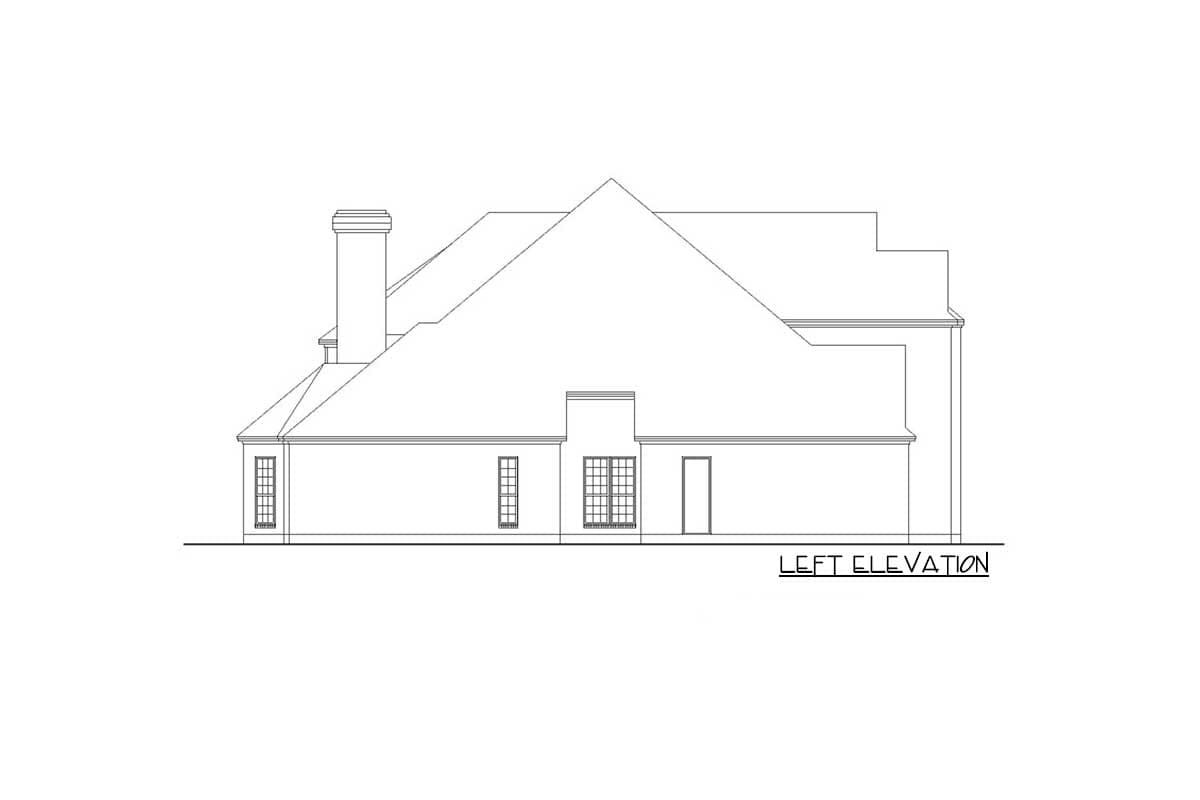

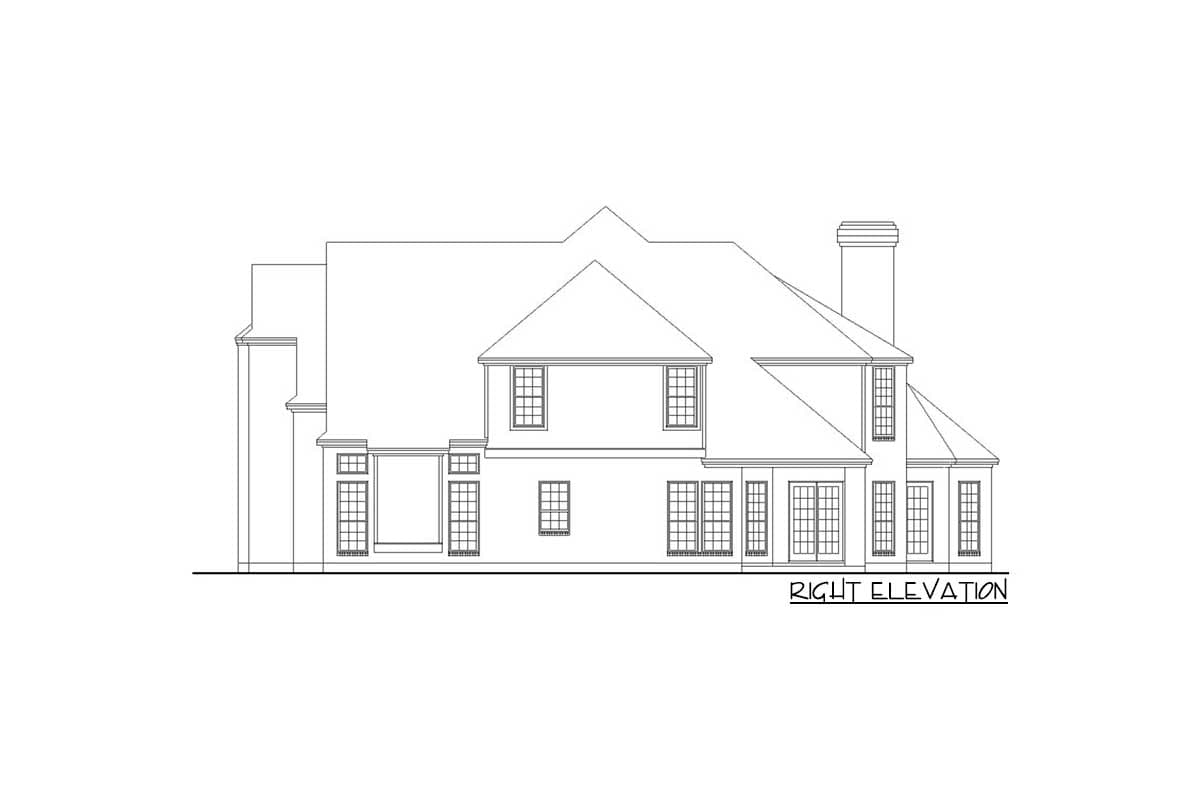

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

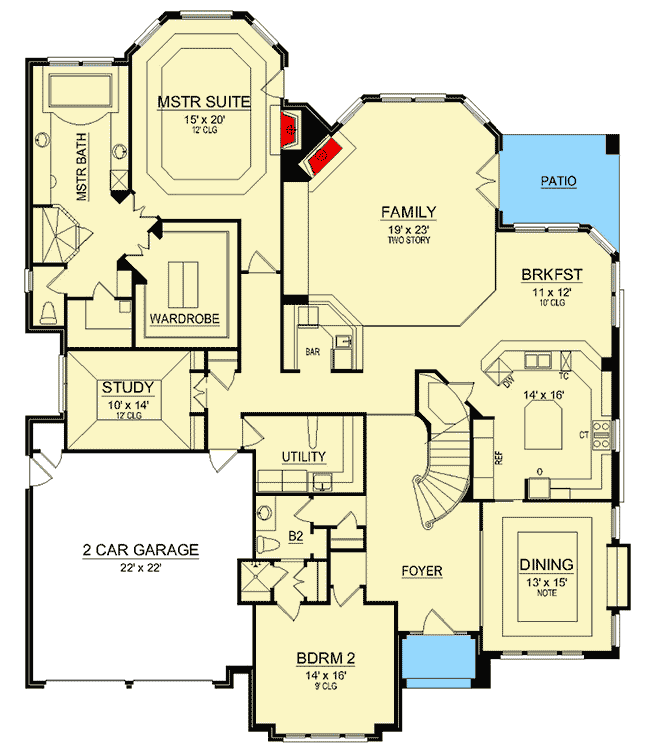

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Luxury 3-Bed Home Plan with Overlooks to the Family Room and Foyer - 36556TX floor plan - Main Level

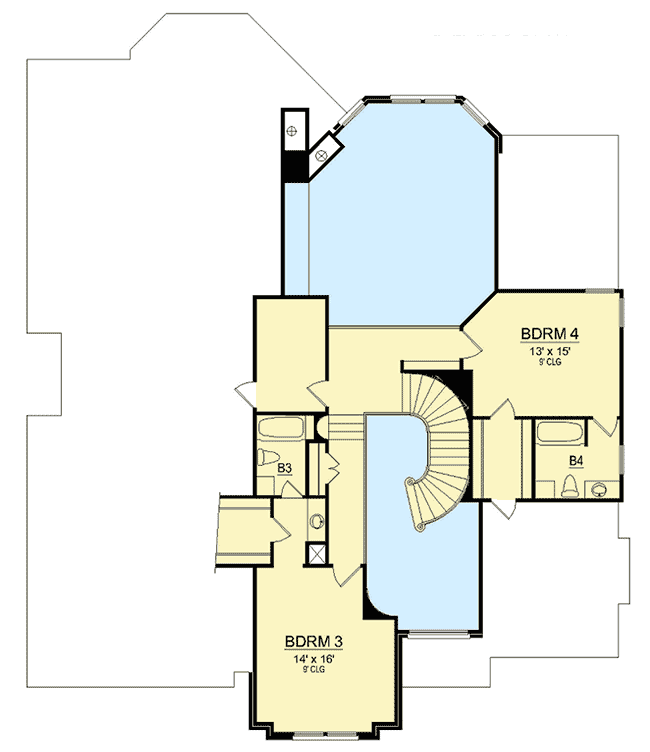

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Luxury 3-Bed Home Plan with Overlooks to the Family Room and Foyer - 36556TX floor plan - Second Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,828 sq. ft.
  • 1st Floor: 2,961 sq. ft.
  • 2nd Floor: 857 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 60' 0"
  • Depth: 74' 0"
  • Max ridge height: 38' 0"

Garage

  • Type: Attached
  • Area: 560 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12

Architectural Style

Special features

Plan Collections



Luxury 3-Bed Home Plan with Overlooks to the Family Room and Foyer

  • 3,828

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,250
  • 5 Sets $1,450
  • CAD - Single-Build $1,875
  • View all purchase option online

About This Plan

  • This luxury 3-bed home plan has a beautiful brick exterior with arched and block pane windows, a covered front entry with overhead transom, sidelites, and keystone trim.
  • Enter into the foyer and get a view of the dramatic curved stairs straight ahead.
  • Off the foyer, you'll find a family bedroom with full bath and walk-in closet.
  • The dining room has a trey ceiling and leads into the kitchen for ease in serving gatherings..
  • The kitchen has a free-standing center island and a curved breakfast bar that separates the kitchen from the breakfast room.
  • The family room boasts a corner fireplace and two-story cathedral ceiling. A full wall of windows gives you great outside views. Double French doors take you to the patio. A wet bar sits on the outer corner of the family room.
  • Beyond is a quiet study with a 12’ ceiling, built-ins and a storage closet.
  • Down the back hall sits the elegant master suite with octagonal step trey ceiling, fireplace and a master bath with dual vanities, separate shower and marble tub, a walk-in closet and large wardrobe with built-ins.
  • A utility room and front-entry, two-car garage with side door to the yard and a storage closet complete the first floor.
  • Upstairs there are overlooks to the family room and the foyer. Two family bedrooms each have their own full baths and walk-in closets.

Floor Plans

  • Main Level

  • Second Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,828 sq. ft.
  • 1st Floor: 2,961 sq. ft.
  • 2nd Floor: 857 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 60' 0"
  • Depth: 74' 0"
  • Max ridge height: 38' 0"

Garage

  • Type: Attached
  • Area: 560 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12

Plan 36556TX
View this and more for this plan by visiting www.architechtecturaldesigns.com/36556TX
|
