Plan 48274FM Luxury 4-Bed Home Plan with Bonus Room

3,162 4 3.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Luxury 4-Bed Home Plan with Bonus Room

Plan 48274FM

  • 3,162

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation
Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

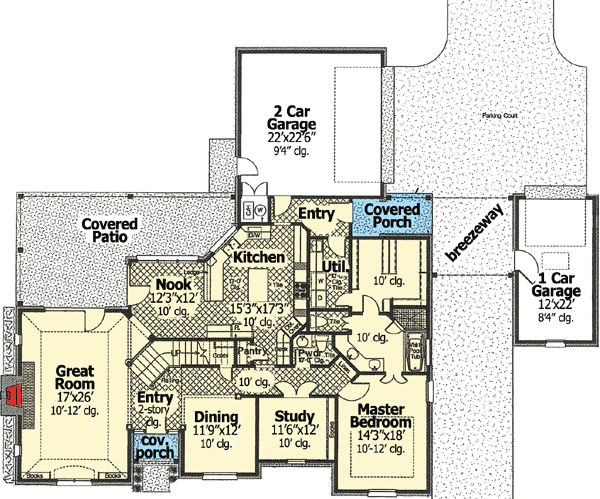

Luxury 4-Bed Home Plan with Bonus Room - 48274FM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

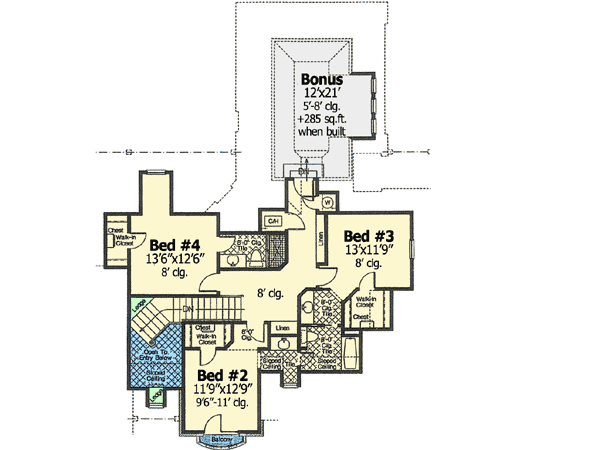

Luxury 4-Bed Home Plan with Bonus Room - 48274FM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,162 sq. ft.
  • 1st Floor: 2,152 sq. ft.
  • 2nd Floor: 1,010 sq. ft.
  • Porch, Combined: 100 sq. ft.
  • Bonus: 285 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 88' 0"
  • Depth: 67' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 828 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side, Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"
Room Details Ceiling Type Width Depth Height
Great Room Pan Vaulted 12' 0"
Master Bedroom Tray 12' 0"
Entry Second Story
Bedroom 2 Vaulted 11' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Luxury 4-Bed Home Plan with Bonus Room

  • 3,162

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,395
  • 8 Sets $1,535
  • PDF - Single-Build $1,685
  • CAD - Single-Build $2,610
  • View all purchase option online

About This Plan

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,162 sq. ft.
  • 1st Floor: 2,152 sq. ft.
  • 2nd Floor: 1,010 sq. ft.
  • Porch, Combined: 100 sq. ft.
  • Bonus: 285 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 88' 0"
  • Depth: 67' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 828 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side, Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
Plan 48274FM
View this and more for this plan by visiting www.architechtecturaldesigns.com/48274FM
|
Need Help? 800-854-7852
|
